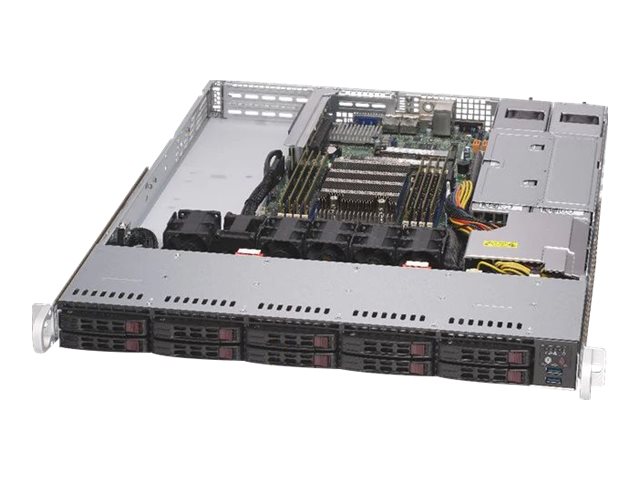

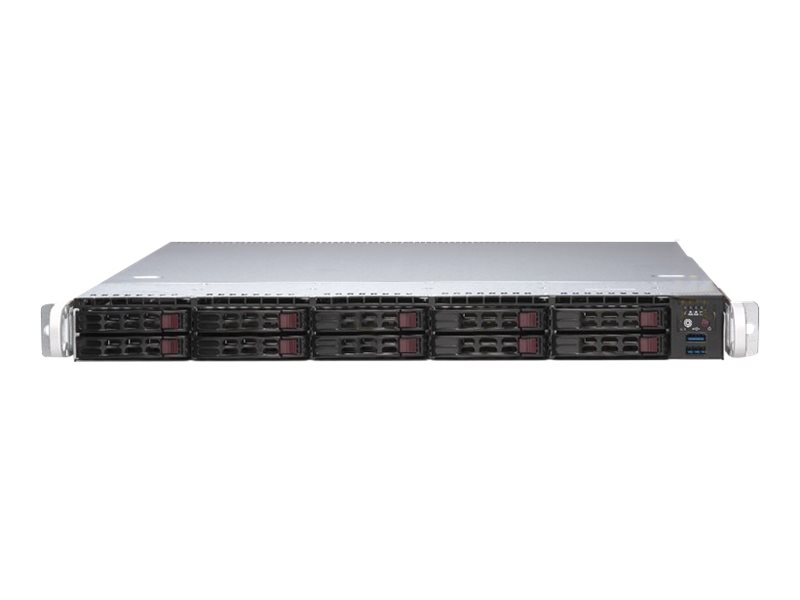

Supermicro A+ Server 1114S-WTRT 0GB ASPEED AST2500
Supermicro A+ Server 1114S-WTRT - Server - rack-monterbar 1U - envejs - uden CPU - RAM 0 GB - SATA - hot-swap 2.5" bås(e) - ingen HDD - AST2500 - 10 Gigabit Ethernet - skærm: ingen - sort
14 833,00 DKK
11 866,40 DKK excl. VAT
-
Product no 995308235
Model AS-1114S-WTRT
Brand Super Micro Computer
EAN 0672042367023
Weight 17.5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Supermicro A+ Server 1114S-WTRT - rack-monterbar uden CPU - 0 GB - ingen HDD |
| Type | Server - rack-monterbar |
| Højde (rackenheder) | 1U |
| Serverskalerbarhed | Envejs |
| Processor | Uden CPU |
| Processor-socket | Socket SP3 |
| RAM | 0 GB (installeret) / 2 TB (maks.) - DDR3 SDRAM |
| Controller for lagring | RAID (SATA 6Gb/s) |
| Server-lagringsenheder | Hot-swap 2.5" |
| Harddisk | Ingen HDD |
| Optisk lagring | Intet optisk drev |
| Grafik controller | ASPEED AST2500 |
| Netværk | 10GbE |
| Effekt | AC 120/230 V (50 - 60 Hz) |
| Overskudsspænding | Ja |
| Farve | Sort |
| Dimensioner (B x D x H) | 43.7 cm x 59.7 cm x 4.3 cm |
| Producentgaranti | Begrænset garanti - arbejde - 3 år<br>Begrænset garanti - reservedele - 1 år |
| General | |
|---|---|
| Color | Black |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 10 |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Processor / Chipset | |
| CPU | No CPU |
| CPU Socket | Socket SP3 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| RAM | |
| Features | Registered, 3DS Load-Reduced DIMM (LRDIMM), 3DS registered |
| Form Factor | DIMM 240-pin |
| Installed Size | 0 GB / 2 TB (max) |
| Slots | 8 (total) / 8 (empty) |
| Technology | DDR3 SDRAM |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x RAID |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Networking | |
| Data Link Protocol | 10 Gigabit Ethernet |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" | 1 (total) / 1 (free) x external 5.25" Slim Line |
| Interfaces | 2 x LAN (10Gigabit Ethernet) | 7 x USB 3.0 (2 front, 4 rear, 1 internal) | 1 x VGA | 1 x management |
| Slots | 2 (total) / 2 (free) x PCIe 4.0 x16 - half-length, full-height | 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile | 2 (total) / 2 (free) x M.2 Card |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Included Accessories | 2 x CPU Heatsink, 2 x riser cards, rack rail kit |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Installed Qty | 2 |
| Power Provided | 500 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labor - 3 years | Limited warranty - parts - 1 year |
| Dimensions & Weight | |
| Depth | 59.7 cm |
| Height | 4.3 cm |
| Width | 43.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 20.9 kg |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
