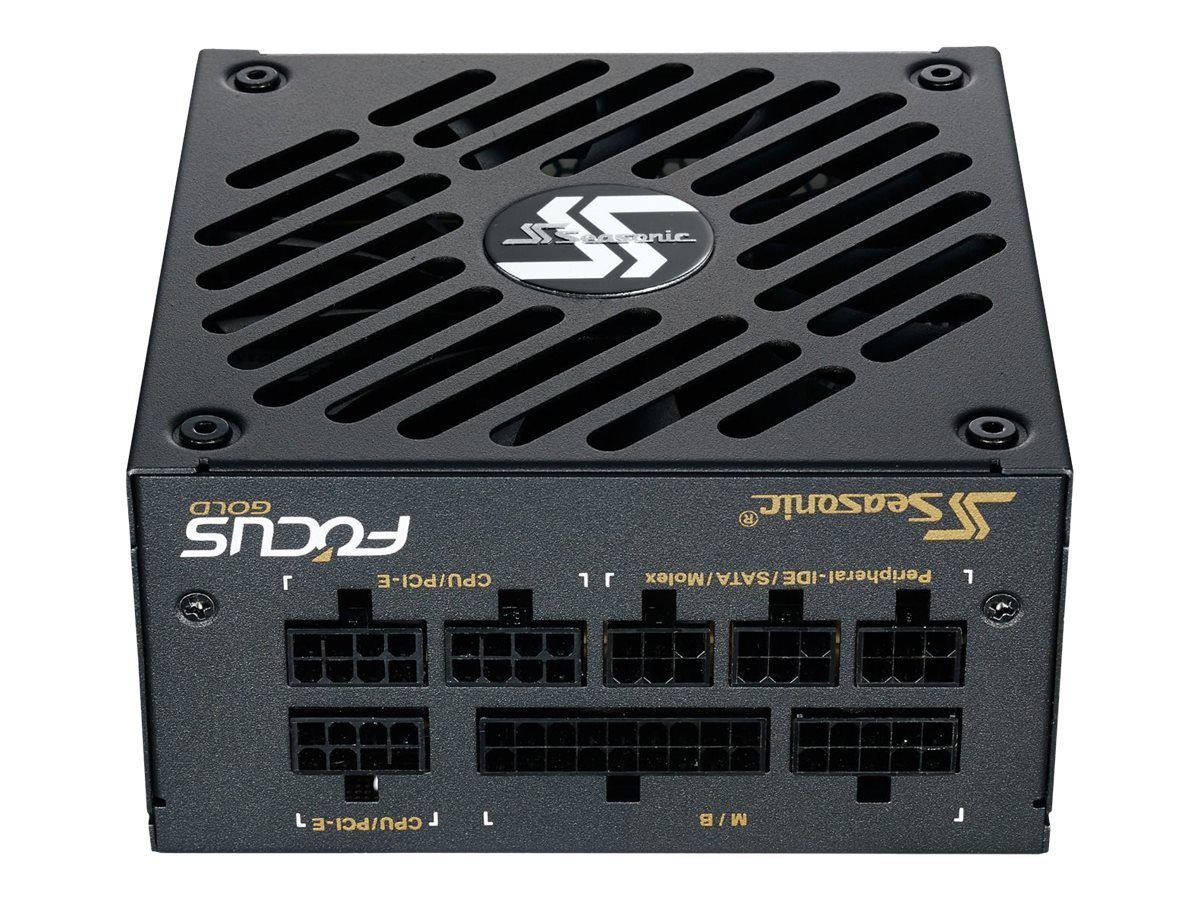

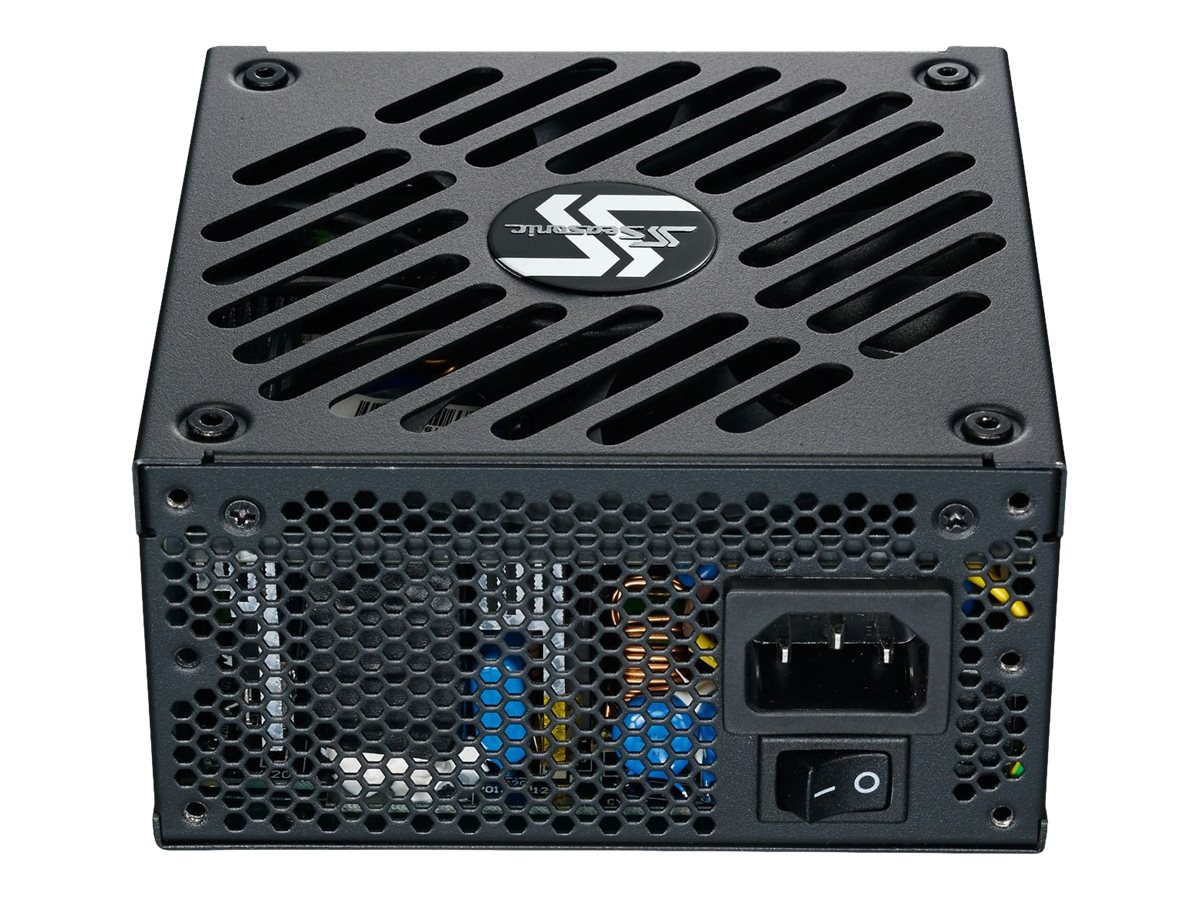

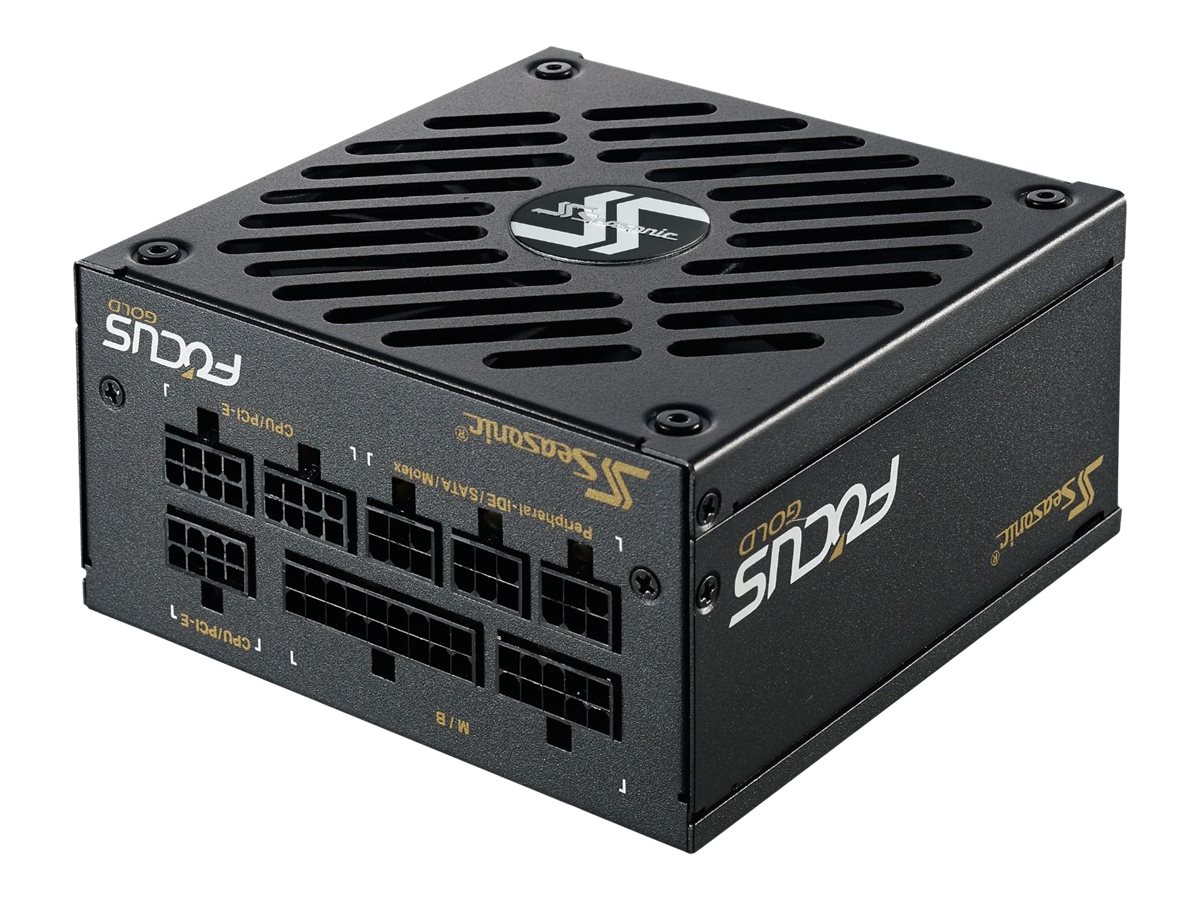

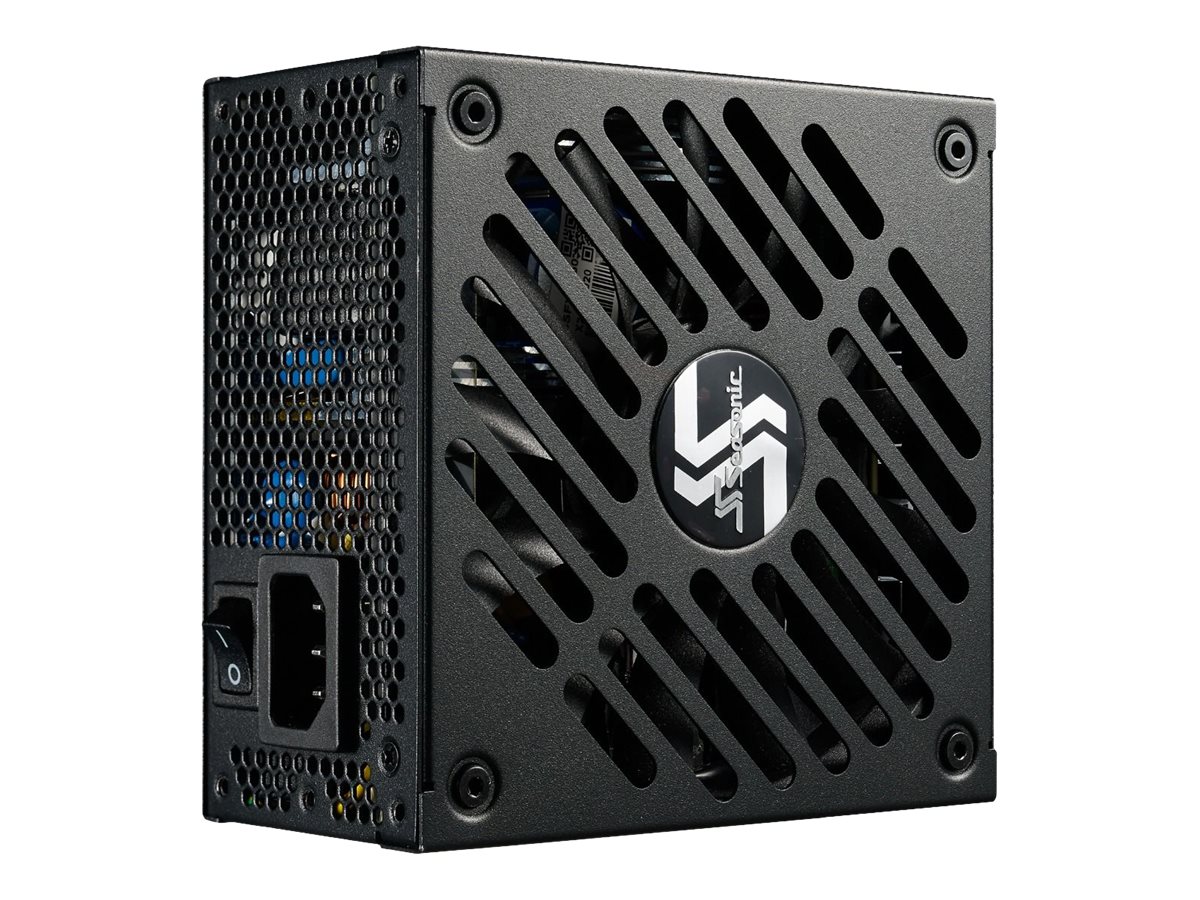

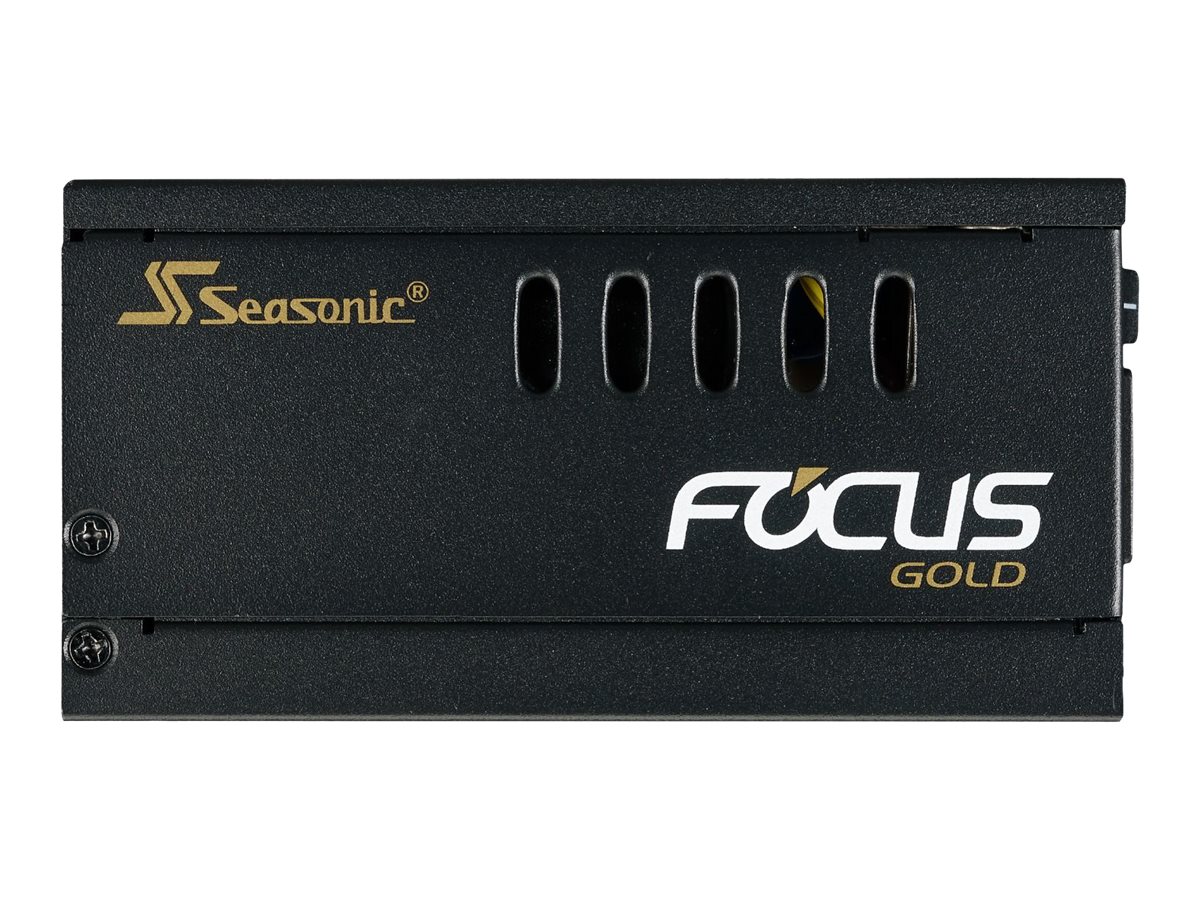

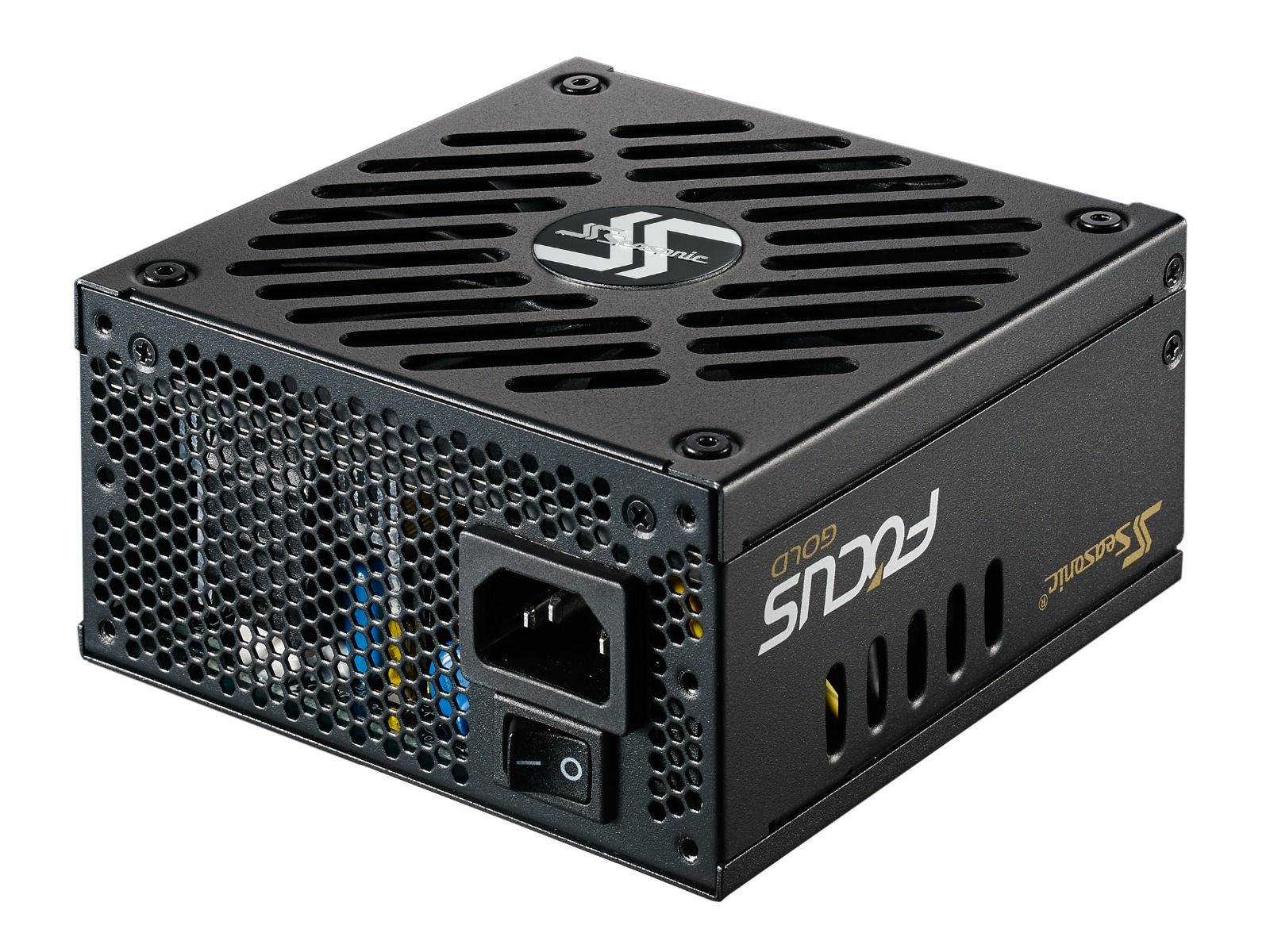

Seasonic FOCUS SGX 650 650Watt 80 PLUS Gold
Seasonic FOCUS SGX 650 - Strømforsyning (intern) - ATX12V / SFX12V - 80 PLUS Gold - AC 100-240 V - 650 watt
1 023,00 DKK
818,40 DKK excl. VAT
-
Product no 993674652
Model SGX-650
Brand Sea Sonic Electronic
EAN 4711173877127
Weight 2.01 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Total effekt | 650 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Motherboard, strømstik | 20+4 pin ATX |
| Perifere (Molex) strømstik (4-pin) | 3 |
| Formål | PC |
| Strømforsyningenhed (PSU) formfaktor | SFX |
| 80 PLUS certificering | 80 PLUS Gold |
| General | |
|---|---|
| Device Type | Power supply - internal |
| PSU Form Factor | SFX |
| Specification Compliance | ATX12V / SFX12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 20 A | +5V - 20 A | +12V - 54 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |

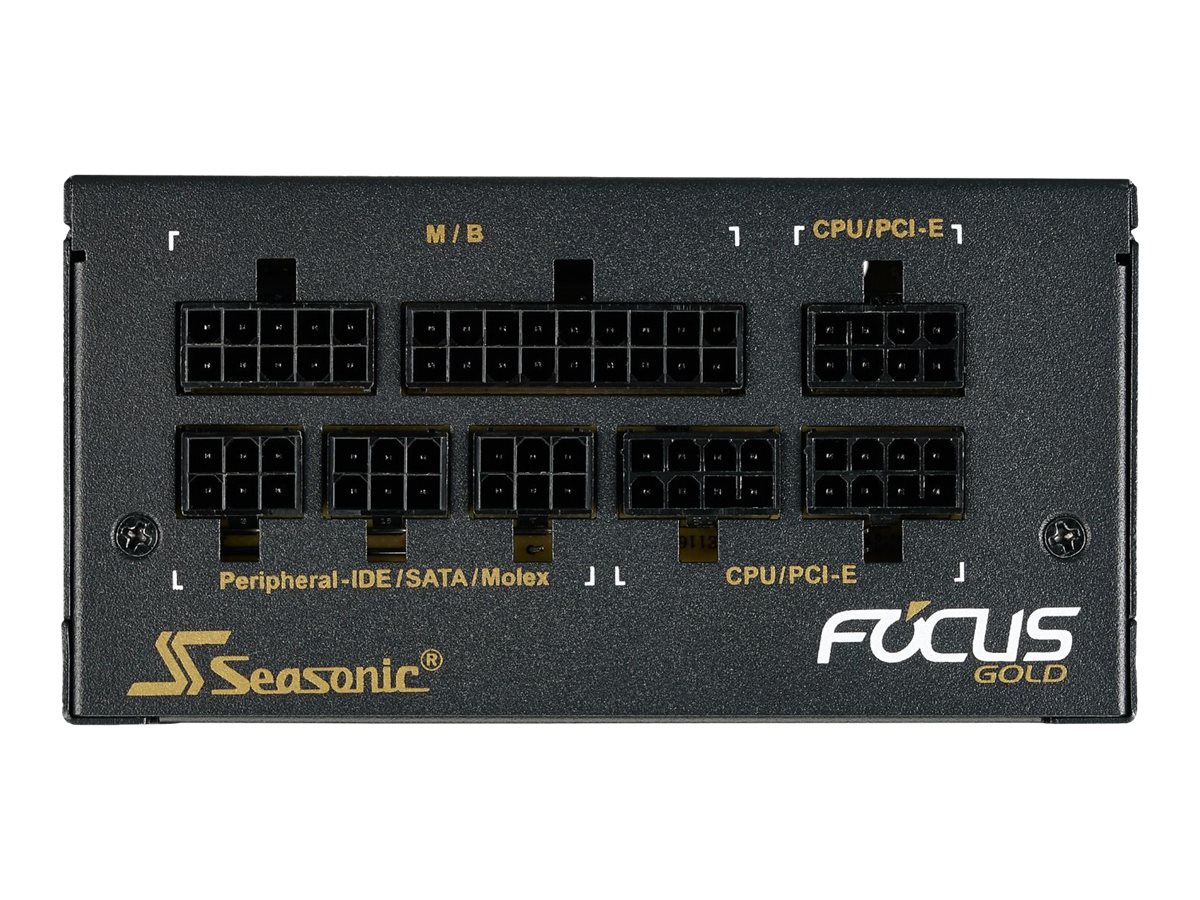

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 6 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x 4 pin mini-pow |
| Miscellaneous | |
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, cULus, Energy-Related Products (ErP) Lot 6, REACH, EAC |

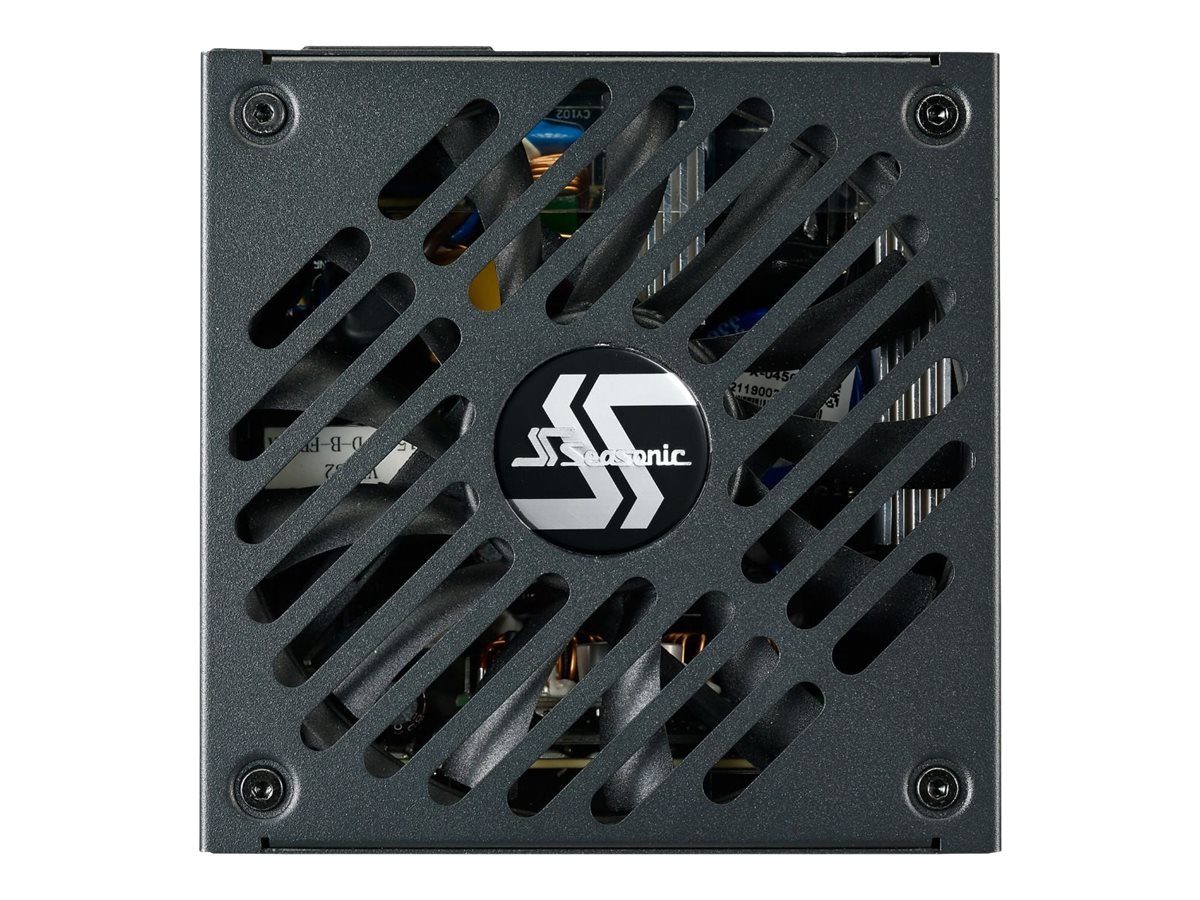

| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, Hybrid Silent Fan Control, fluid dynamic bearing cooling fan, fully modular |
| MTBF | 100,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 12.5 cm |
| Height | 6.35 cm |
| Width | 12.5 cm |
