Product no 994147355
Model 53043
Brand Qoltec
EAN 5901878530437
Weight kg
Produktbeskrivelse | Qoltec - UPS - 2.4 kW - 3000 VA |
Enhedstype | UPS - ekstern |
Indgangspænding | AC 80-285 V |
Udgangspænding | AC 230 V ± 1% |
Strømkapacitet | 2.4 kW / 3000 VA |
Input-stik | 1 |
Batteri | - 7 At |
Antal batterier | 8 |
Driftstid (op til) | Ved halv belastning |
Netværk | RS-232, USB |
Dimensioner (B x D x H) | 19 cm x 42.5 cm x 32.5 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Device Type | UPS - external |
Power Device | |
Circuit Protection | Circuit breaker |
Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
Frequency Provided | 50/60 Hz |
Frequency Required | 45 - 55 Hz ± 0.5Hz |
Input Connectors | 1 |
Input Voltage | AC 80-285 V |
Output Voltage | AC 230 V ± 1% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 2.4 kW / 3000 VA |
Power Factor (PF) | 0.8 |
Surge Suppression | Yes |
UPS Technology | On-line |
Battery | |
Capacity | 7 Ah |
Quantity | 8 |
Recharge Time | 8 hours |
Run Time (Up To) | 241 min at 100 Watts | 111 min at 200 Watts | 73 min at 300 Watts | 44 min at 500 Watts | 19 min at 1000 Watts |
Transfer Time | 0 ms |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x USB - 4 pin USB Type B |
Miscellaneous | |
Cables Included | Power cable - integrated |
Compliant Standards | RoHS |

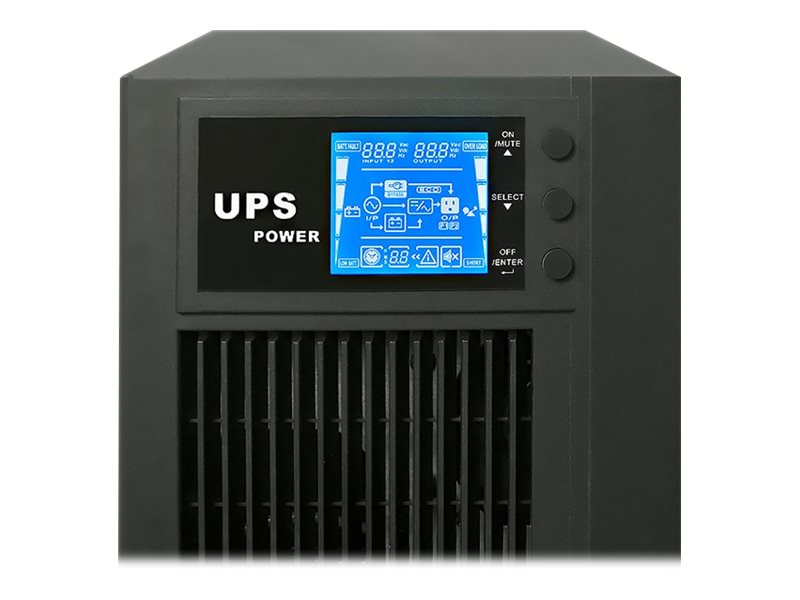

Features | Audible alarm, LCD display, voltage monitoring, internal bypass, overload protection, undervoltage protection, short-circuit protection, Eco-Mode, low voltage protection, double conversion, off-mode charging, Fast Charge technology, load monitoring |
Software / System Requirements | |
Software Included | Drivers & Utilities |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Humidity Range Operating | 20 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 50 dB |
Dimensions & Weight | |
Depth | 42.5 cm |
Height | 32.5 cm |
Width | 19 cm |
