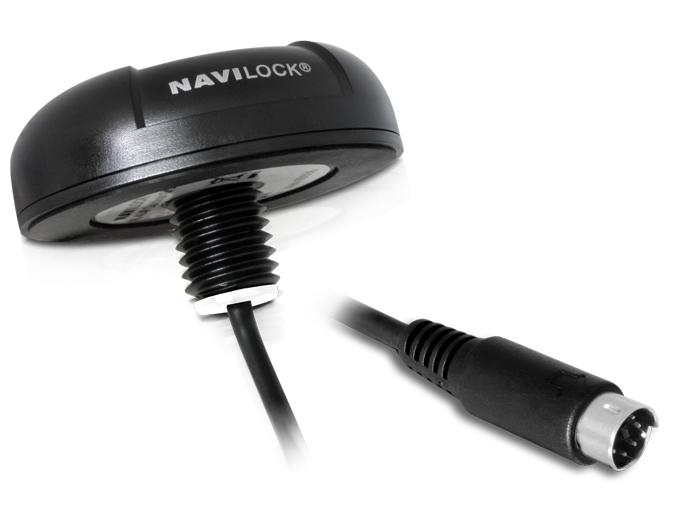

Navilock NL-8044P MD6 PPS Serial Multi GNSS Receiver
Navilock NL-8044P MD6 PPS Serial Multi GNSS Receiver - GPS/GLONASS/GALILEO-modtagermodul
878,00 DKK
702,40 DKK excl. VAT
-
Product no 989468224
Model 62528
Brand NAVILOCK
EAN 4043619625284
Weight 0.39 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Grænseflade | Seriel |
| Produktfarve | Sort |
| Genopladelig | Ingen |
| General | |
|---|---|
| Accuracy | Position - 2 m |
| Antenna | Built-in |
| Features | LED indicator |
| Interface | NMEA 0183 |
| Product Type | GPS/GLONASS/GALILEO receiver module |
| Receiver | U-blox 8 - 72-channel |
| SBAS | WAAS, EGNOS, MSAS |
| Tracking Sensitivity | -167 dBm |
| Acquisition Times | |
| Cold | 26 sec |
| Hot | 1 sec |
| PC System Requirements for GPS | |
| OS Required | Microsoft Windows 7, Microsoft Windows Vista, Linux Kernel 2.6.x, Windows 8 |
| Connections | |
| Interfaces | PS/2 - 6 pin mini-DIN (PS/2 style) |
| Miscellaneous | |
| Included Accessories | MD6 cable |
| Dimensions & Weight | |
| Depth | 6.2 cm |
| Height | 2.1 cm |
| Width | 6.2 cm |
| Environmental Parameters | |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -20 °C |
