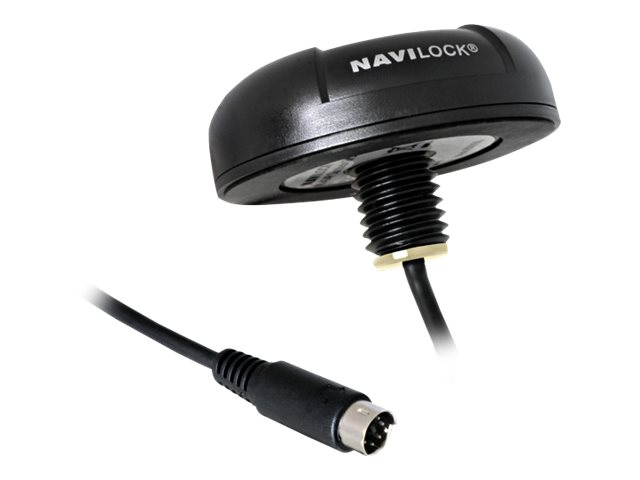

Navilock NL-6004P
Navilock NL-6004P - GPS modtagermodul
1 134,00 DKK
907,20 DKK excl. VAT
-
Product no 988727585
Model 62447
Brand NAVILOCK
EAN 4043619624478
Weight 0.28 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Navilock NL-6004P - GPS modtagermodul |
| Produkttype | GPS modtagermodul |
| Modtager | U-blox 6 - 50 kanaler |
| Grænseflade | NMEA 0183 |
| SBAS | WAAS, EGNOS (European Geostationary Navigation Overlay Service), MSAS (Multifunctional Transport Satellite-based Augmentation System) |
| DGPS | DGPS-klar |
| Antenne | Indbygget |
| Inkluderet software | AssistNow online |
| Egenskaber | Vandtæt, A-GPS teknologi |
| Dimensioner (B x D x H) | 6.2 cm x 6.2 cm x 2.1 cm |
| General | |
|---|---|
| Accuracy | Position - 2.5 m |
| Antenna | Built-in |
| DGPS | DGPS ready |
| Features | Waterproof, A-GPS technology |
| Included Software | AssistNow online |
| Interface | NMEA 0183 |
| Product Type | GPS receiver module |
| Receiver | U-blox 6 - 50-channel |
| SBAS | WAAS, EGNOS, MSAS |
| Tracking Sensitivity | -160 dBm |
| Acquisition Times | |
| Cold | 38 sec |
| Hot | 1 sec |
| PC System Requirements for GPS | |
| OS Required | Microsoft Windows XP, Microsoft Windows 2000, Microsoft Windows 7, Microsoft Windows Vista, Windows 8, Apple MacOS, Linux Kernel 2.4.x |
| Handheld Requirements | |
| OS Required | Microsoft Windows CE, Microsoft Windows Mobile 6, Microsoft Windows Mobile 5.0, Microsoft Windows Mobile 4 |
| Connections | |
| Interfaces | Serial - 6 pin mini-DIN (PS/2 style) |
| Dimensions & Weight | |
| Depth | 6.2 cm |
| Height | 2.1 cm |
| Width | 6.2 cm |
| Environmental Parameters | |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -20 °C |
