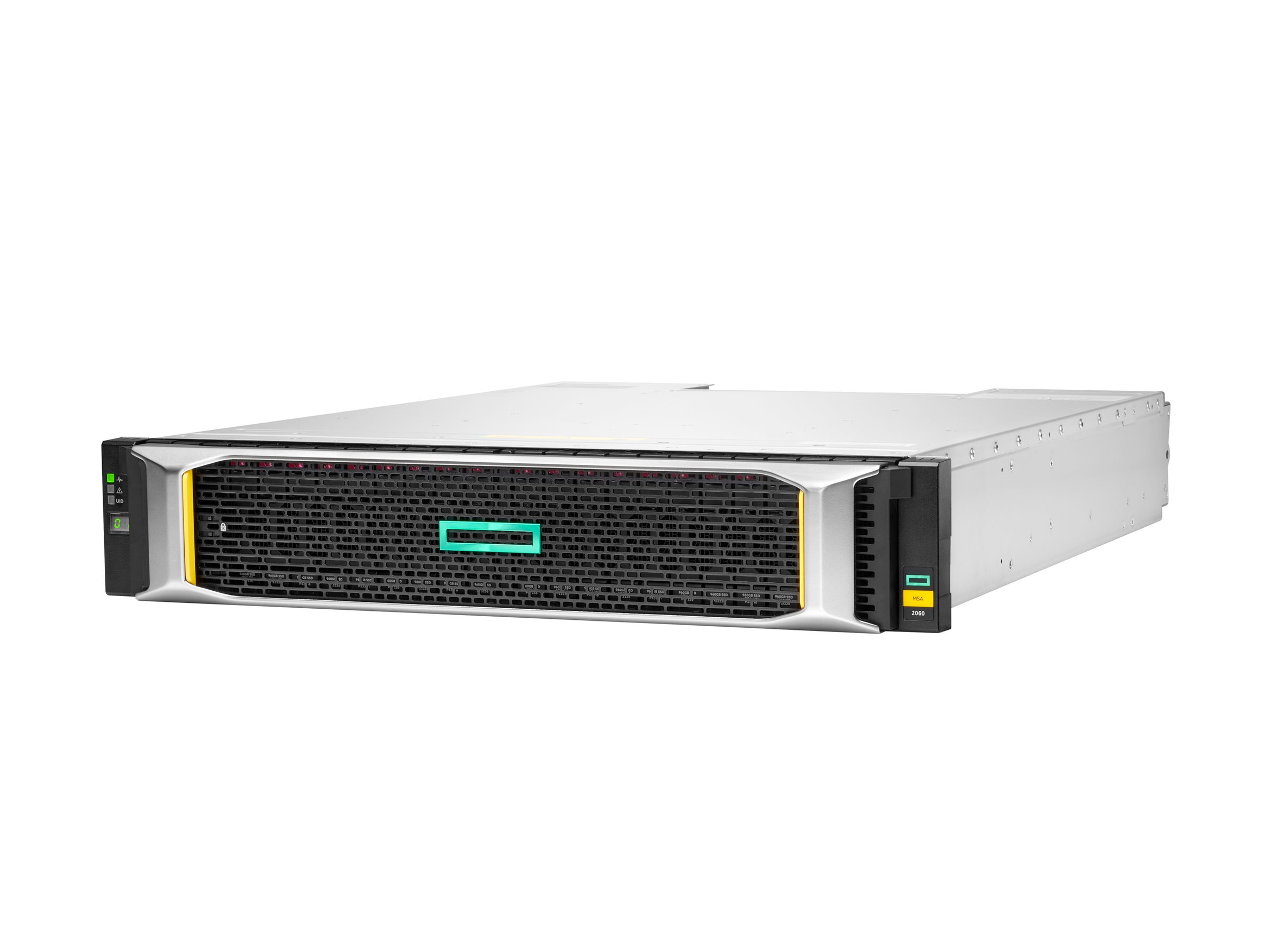

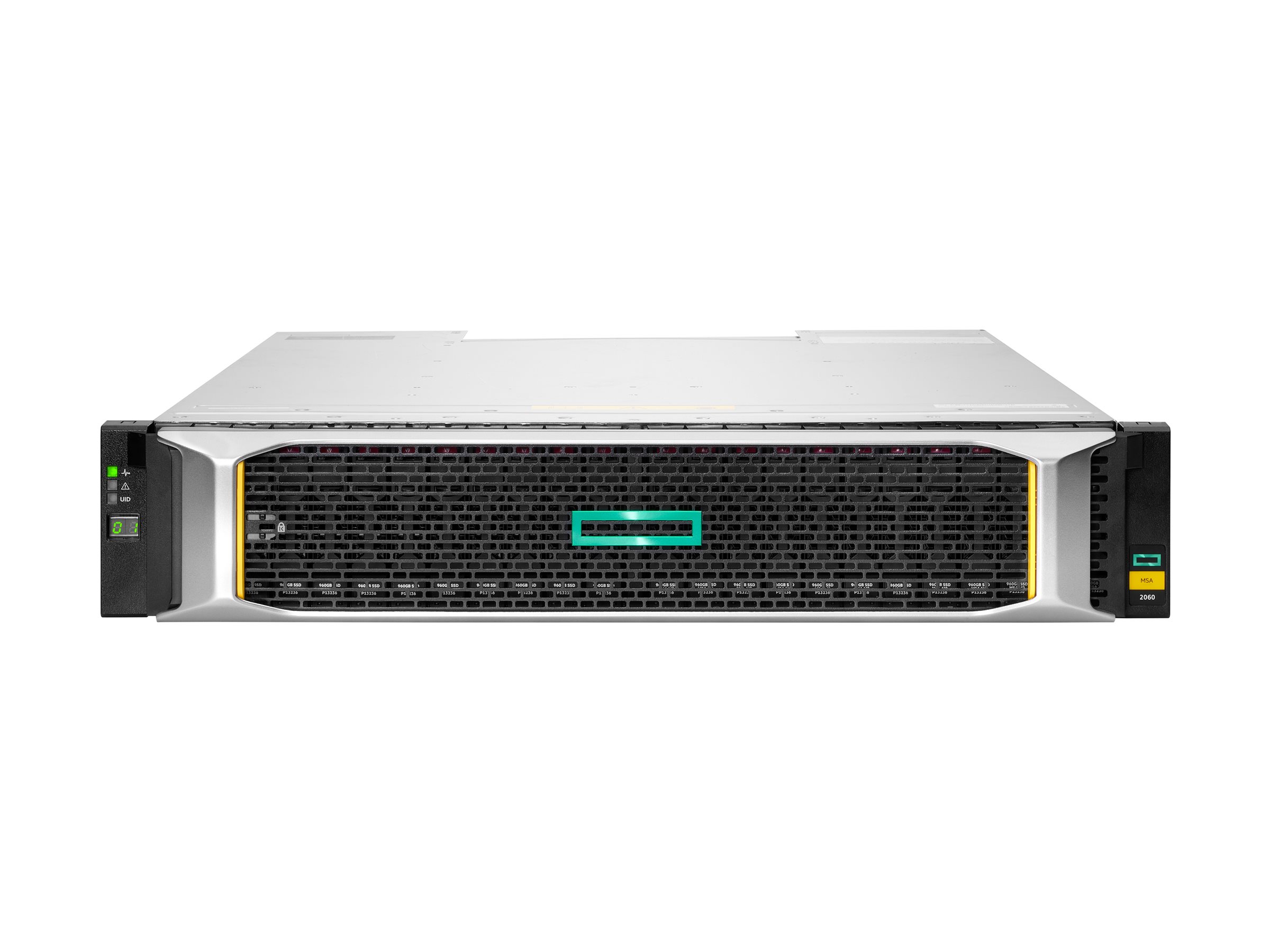

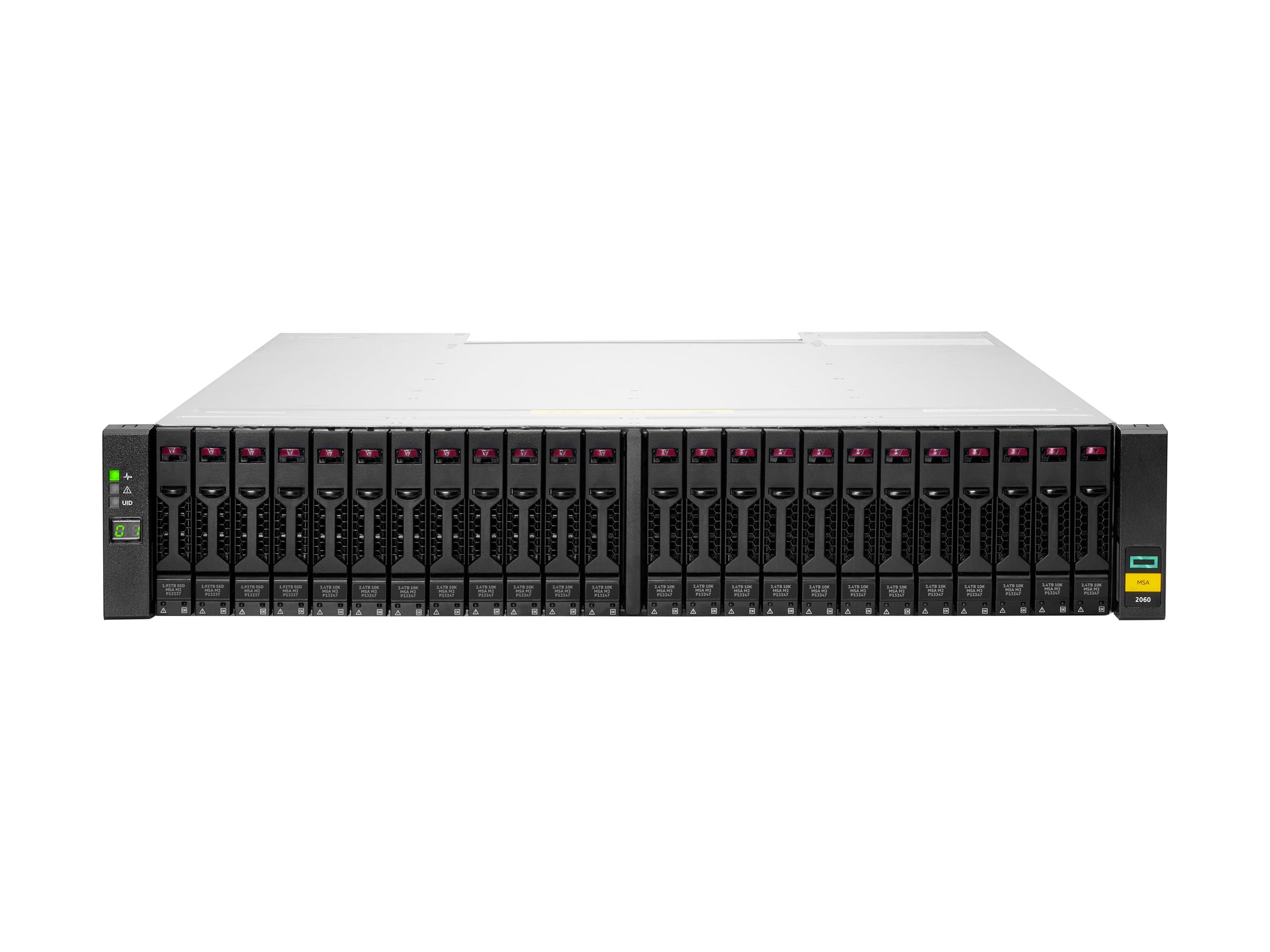

HPE Modular Smart Array 2060 12Gb SAS SFF Storage Harddisk-array 0TB 24bays
HPE Modular Smart Array 2060 12Gb SAS SFF Storage - Harddisk-array - 0 TB - 24 bays (SAS-3) - SAS 12Gb/s (ekstern) - rackversion - 2U
51 870,00DKK41 496,00DKK excl. VAT
-
Product no 1000773045
Model R0Q78B
Brand Hewlett Packard Ente
EAN 4549821495399
Weight 5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Modular Smart Array 2060 12Gb SAS SFF Storage - harddisk-array |
| Enhedstype | Harddisk-array |
| Pakningstype | Rackversion - 2U |
| Totale array-kapacitet | 0 TB |
| Maks. antal understøttet | 921.6 TB |
| Grænseflade | SAS 12Gb/s |
| Maksimum antal LUN'er | 512 |
| Installeret udstyr/antal moduler | 0 (installeret) / 24 (maks.) |
| Understøttede drev | SAS-3 |
| Controller for lagring | RAID (SAS 12Gb/s) - RAID RAID 0, 1, 3, 5, 6, 10, 50 |
| Controller for lagring Antal | 2 |
| Harddisk | Ingen HDD |
| OS nødvendig | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 med Hyper-V, VMware ESXi 6.x |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 44.5 cm x 50.8 cm x 8.9 cm |
| Vægt | 5 kg |
| Miljømæssige standarder | ENERGY STAR kvalificeret |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Storage | |
| HDD Array External Interface | SAS 12Gb/s |
| Max Supported Capacity | 921.6 TB |
| Maximum LUNs | 512 |
| Total Array Capacity | 0 TB |
| Processor | |
| CPU | No CPU |
| Storage Controller | |
| Cache / Buffer Size (Max) | 24 GB |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| Max Storage Devices Qty | 240 |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Type | RAID |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) - 2.5" SFF |
| Interfaces | 8 x SAS 12Gb/s | 2 x mini-USB 2.0 (management) | 2 x Ethernet 1000Base-T (management) - RJ-45 |
| System Requirements | |
| OS Required | HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x |
| Miscellaneous | |
| Features | SNMP support, SMTP support |
| Included Accessories | Rack mounting kit |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Power | |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 764 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 8.9 cm |
| Weight | 5 kg |
| Width | 44.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Sound Emission | 74 dBA |
HPE MSA 2060 12Gb SAS SFF Storage
Is your company looking for easy to use, affordable, high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.
Maximize the performance and value of entry-level, flash-based SAN storage solutions with new HPE MSA Gen6 Flash Bundle storage arrays.
Add cost-effective flash storage capacity expansion to MSA Gen6 Flash Bundle storage arrays with new HPE MSA Gen6 SSD 6-Pack drive options.
Accelerate Applications Affordably
- The HPE MSA 2060 is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.
- The HPE MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change.
HPE MSA’s 'Set It And Forget IT' Data Services Does Not Require a Dedicated Storage Administrator
- The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060’s new Storage Management Utility intuitive and easy to navigate.
- HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.
Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster
- The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.
- Remote replication via Fibre Channel (FC) or iSCSI facilitates a affordable disaster recovery solution.
- Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
Flexible, Modular Architecture That Facilitates Growth Into the Future
- The HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array).
- Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.
Specifications
| TechnicalSpecifications | |
|---|---|
| Capacity | 1843.2 TB with SFF expansion / 2344.32 TB with LFF expansion (with maximum expansion) |
| Form factor | 2U |
| Storage expansion options | 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9) |
| Systems Insight Manager support | No |
| Storage mirroring support | No |
| SAN backup support | Yes |
| Clustering support | Yes |
| Host interface | 8-ports 12 Gb SAS, 4 ports per controller |
| Drive description | Up to 24 SFF HDD and/or SSD per array model |
| Storage controller | (2) HPE MSA 2060 12Gb SAS storage controllers, 4-ports each |
| Compatible operating systems | Windows Server 2022 Windows Server 2019 Windows Server 2016 VMWare vSphere 6.7 Red Hat Linux 8 SuSE SLES 15 |
| Warranty | Three-year limited warranty, parts exchange next business day delivery. Disk enclosures, hard drives and options for the HPE MSA 2060 carry their own warranty. |
| Product dimensions (metric) | 8.9 x 44.5 x 50.8 cm |
| Weight | 5 kg |
