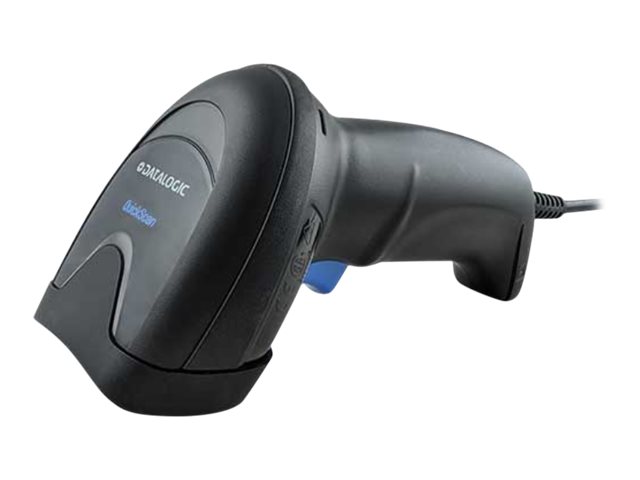

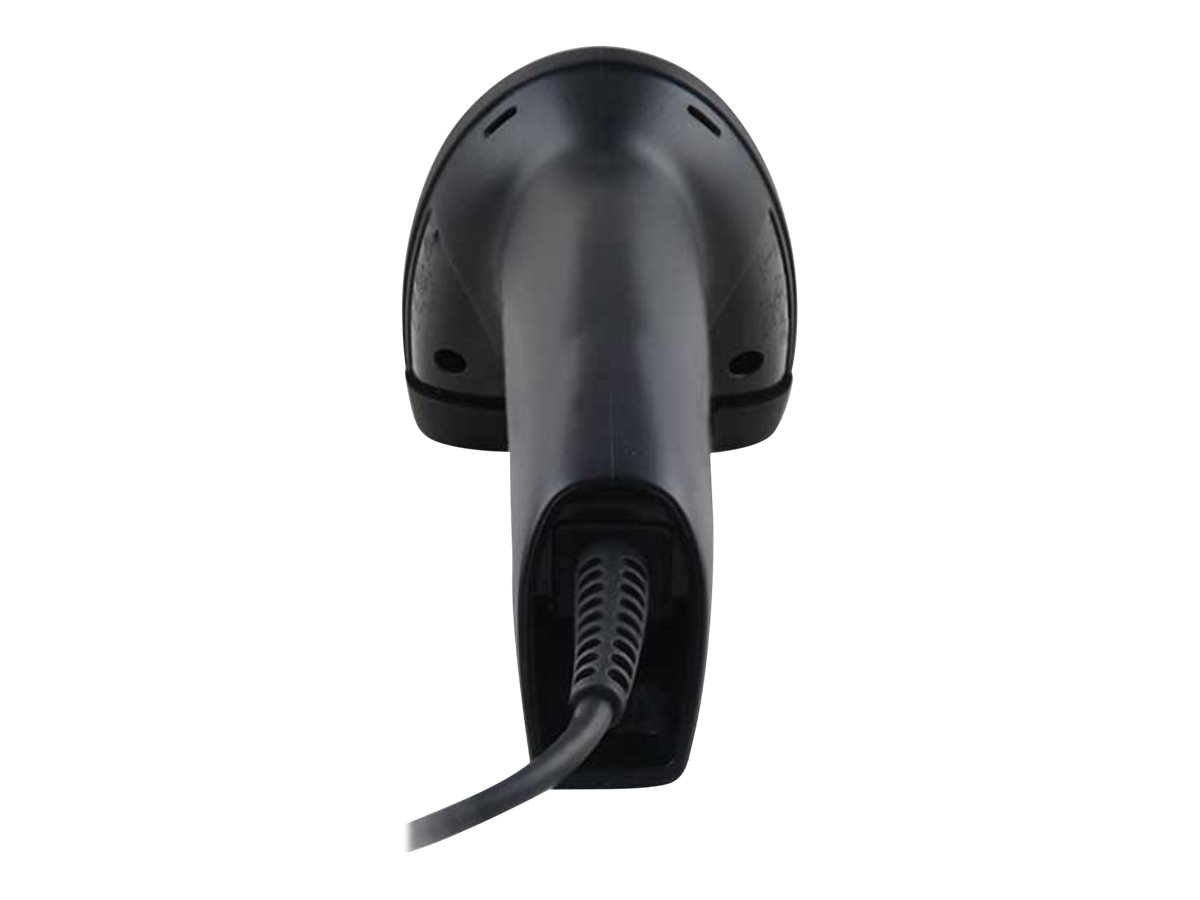

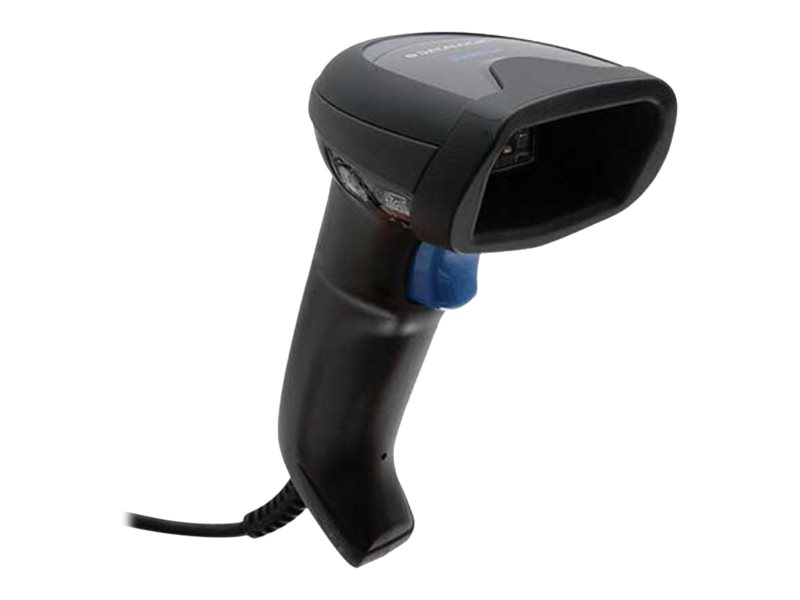

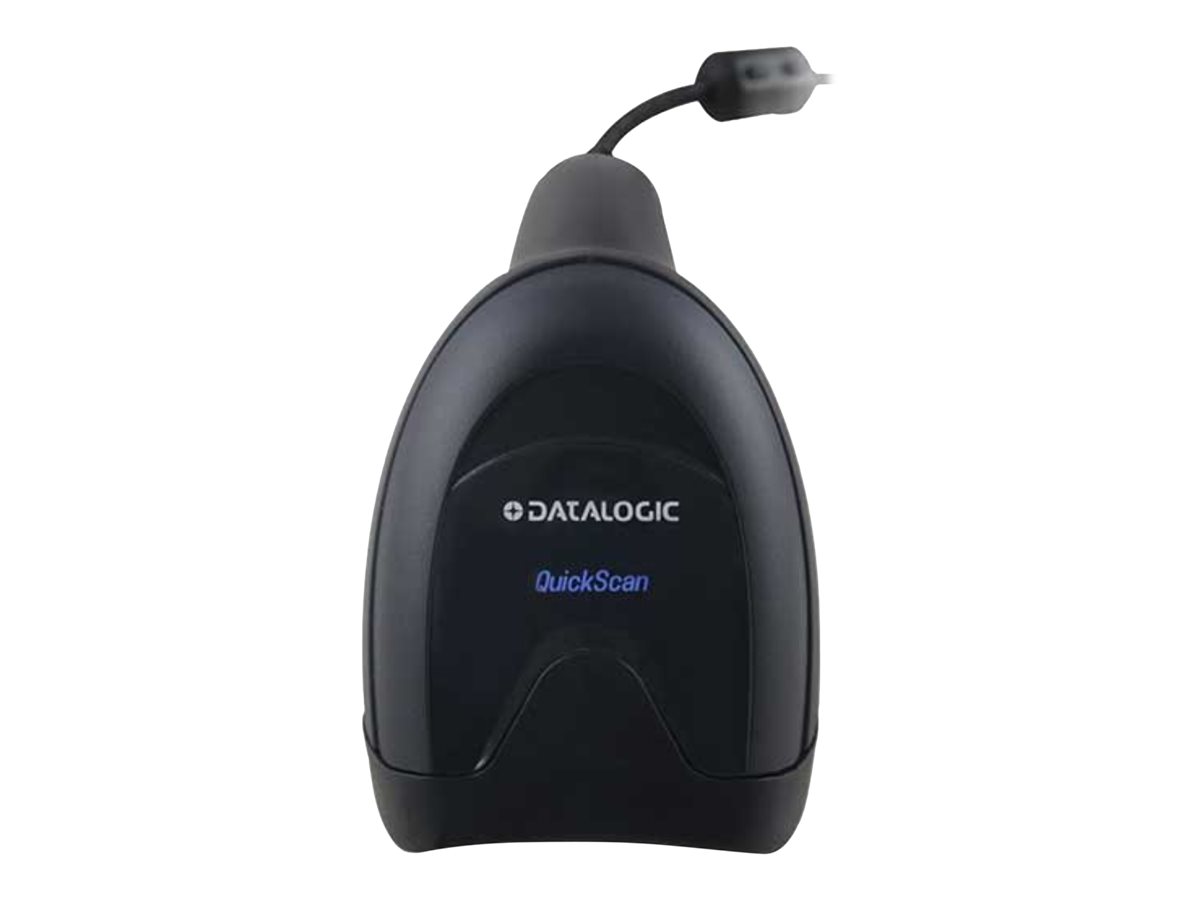

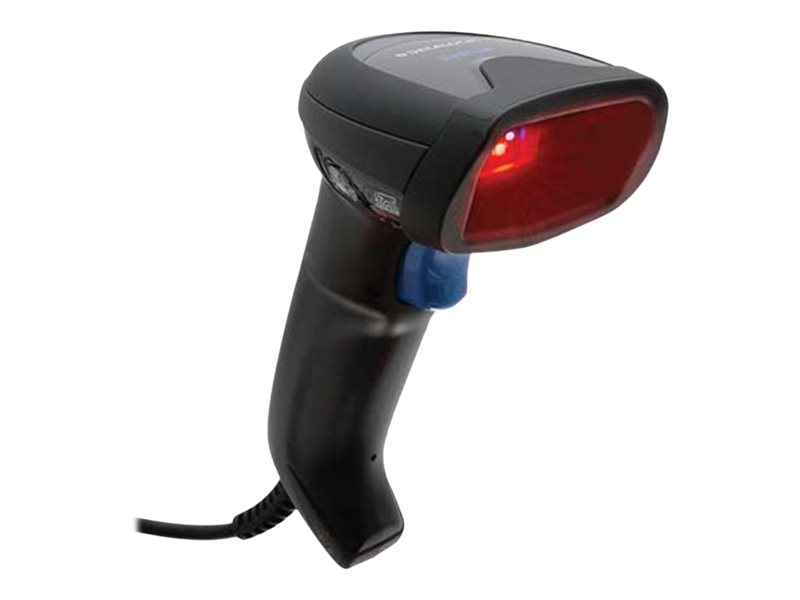

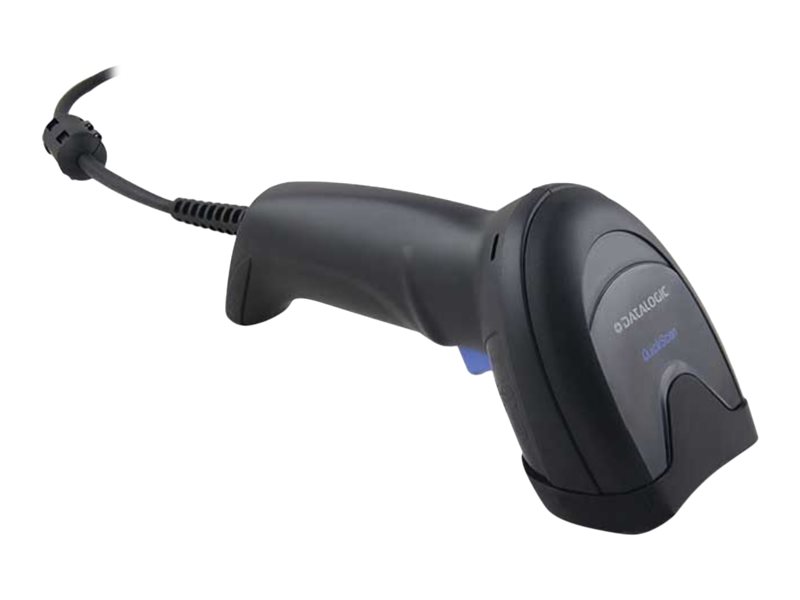

Datalogic QuickScan QD2590 Stregkodescanner Håndmodel
Datalogic QuickScan QD2590 - Kit - stregkodescanner - håndmodel - 2D imager - 60 billeder / sekunder - afkodet - tastaturkile, RS-232, USB
941,00DKK752,80DKK excl. VAT
-
Product no 998644954
Model QD2590-BKK1
Brand Datalogic
EAN 5704174529378
Weight 0.35 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Datalogic QuickScan QD2590 - Kit - stregkodescanner |
| Type | Stregkodescanner - håndmodel - tastaturkile, RS-232, USB - afkodet |
| Farve | Sort |
| Min. linjebredde | 3 mil |
| Scanningskomponenttype | 2D imager - Rød LED |
| Sensoropløsning | 1280 x 800 |
| Scanningshastighed | 60 billeder / sekunder |
| Forbindelsesteknologi | Kabling |
| Effekt | DC 5 V |
| Dimensioner (B x D x H) | 6.8 cm x 12.6 cm x 14.8 cm |
| Vægt | 145 g |
| Producentgaranti | 5 års garanti |
| General | |
|---|---|
| Color | Black |
| Type | Barcode scanner - handheld |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, Royal Mail, Micro QR cod |
| Features | Green Spot technology, Digimarc Barcode Technology |
| Frame Rate | 60 frames / sec |
| Interface Type | Keyboard wedge, RS-232, USB |
| Light Source Wave Length | 617 nm |
| Max Working Distance | 41 cm |
| Minimum Bar Width | 3 mil |
| OK Notification | Beeper, LED indicator |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Scan Element Type | 2D imager - red LED |
| Scan Mode | Single-pass |
| Sensor Resolution | 1280 x 800 |
| Skew (Degrees) | 65 |
| TTL Decoding | Decoded |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 | 1 x keyboard wedge | 1 x USB |
| Miscellaneous | |
| Cables Included | USB cable |
| Compliant Standards | RoHS, IP52 |
| Power | |
| Electric Current Required | 90 mA (standby), 450 mA (typical) |
| Voltage | DC 5 V |
| Software | |
| Software Included | Datalogic Aladdin |
| Dimensions & Weight | |
| Depth | 12.6 cm |
| Height | 14.8 cm |
| Weight | 145 g |
| Width | 6.8 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Drop Specification | 1.5 m to concrete |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
