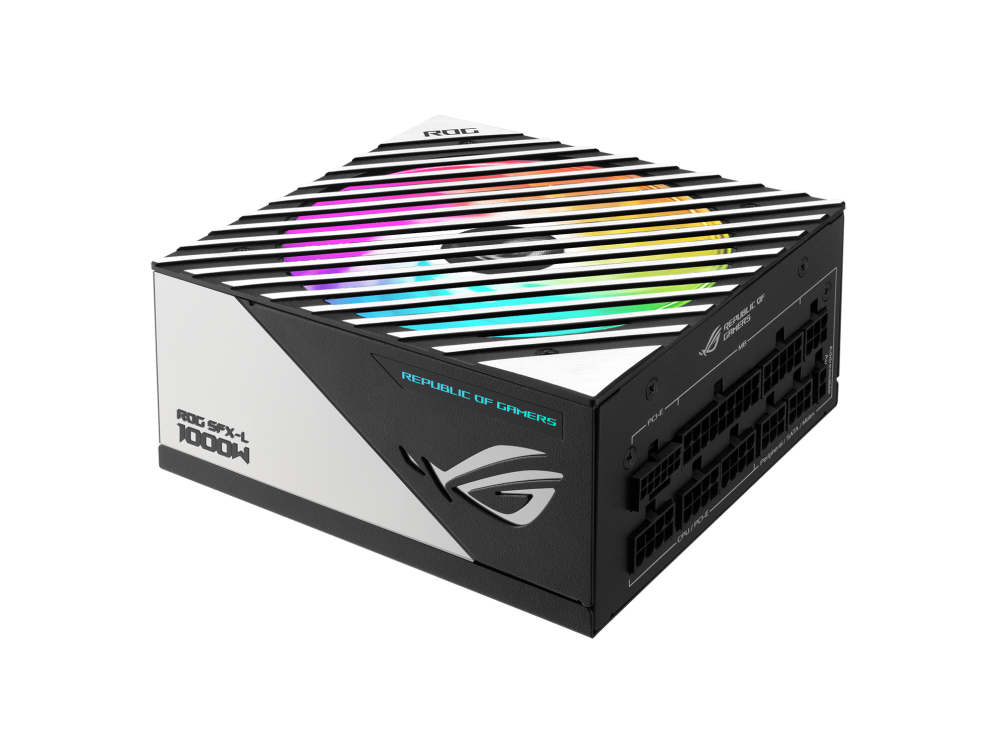

ASUS ROG Loki SFX-L Strømforsyning 1000Watt
ASUS ROG Loki SFX-L - Strømforsyning (intern) - ATX 3.0 / SFX-L - 80 PLUS Platinum - AC 100-240 V - 1000 Watt
1 843,00DKK1 474,40DKK excl. VAT
-
Product no 1000764152
Model 90YE00N1-B0NA00
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081721901
Weight 2.6 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS ROG Loki SFX-L - strømforsyning - 1000 Watt |
| Enhedstype | Strømforsyning - intern |
| Specifikationsoverensstemmelse | ATX 3.0 / SFX-L |
| 80 PLUS certificering | 80 PLUS Platinum |
| Vægt | 1.83 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 1000 Watt |
| Output Current | +3.3V - 20 A<br>+5V - 20 A<br>+12V - 83.3 A<br>-12V - 0.8 A<br>+5VSB - 2.5 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 16-pin PCI Express-strøm<br>3 x 8 pin PCI Express-strøm<br>6 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm |
| Modulær Kabel Administration | Ja |
| Udstyr inkluderet | SFX to ATX bracket |
| Dimensioner (B x D x H) | 12.5 cm x 12.5 cm x 6.35 cm |
| Producentgaranti | 10-års garanti |
| General | |
|---|---|
| Device Type | Power supply - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX 3.0 / SFX-L |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 20 A | +5V - 20 A | +12V - 83.3 A | -12V - 0.8 A | +5VSB - 2.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 16 pin PCI Express power | 3 x 8 pin PCI Express power | 6 x 15 pin Serial ATA power | 4 x 4 pin internal power |
| Miscellaneous | |
| Cables Included | AC input cable - external | Power 24 pin ATX modular cable 45 cm | 2 x power 8 pin +12V with detachable 4 pin section modular cable 55 cm | 16-pin 12VHPWR power cable 45 cm | 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 45 cm | 2 x 3x Serial A |
| Compliant Standards | RoHS |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, ARGB fan |
| Included Accessories | SFX to ATX bracket |
| Dimensions & Weight | |
| Depth | 12.5 cm |
| Height | 6.35 cm |
| Weight | 1.83 kg |
| Width | 12.5 cm |
