Patton SmartNode 4131 VoIP-gateway Ethernet ISDN Fast Ethernet Sort

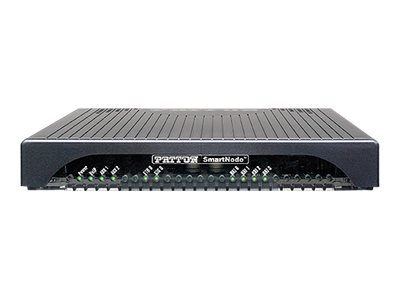

Patton SmartNode 4131 - VoIP-gateway - ISDN, 100Mb LAN - ISDN DSS1/ETSI - digitale porte: 4
12 878,00 DKK
10 302,40 DKK excl. VAT
-
Product no 1000869257
Model SN4131/8BIS16VHP/EUI
Brand Patton Electronics
EAN 0847840011632
Weight 0.45 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Patton SmartNode 4131 - VoIP-gateway |
| Enhedstype | VoIP-gateway |
| Formfaktor | Ekstern |
| Dataforbindelsesprotokol | Ethernet, ISDN, Fast Ethernet |
| Kapacitet | VoIP opkald: 16 |
| VoIP-protokoller | SIP v2 |
| Protokol for digital signaltransmission | ISDN DSS1/ETSI |
| Protokoller og specifikationer | ITU G.168, ITU Q.921, ITU Q.931, ITU T.38 |
| Antal digitalporte | 4 |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 20.8 cm x 16.5 cm x 3.4 cm |
| Vægt | 450 g |
| Producentgaranti | 1 års garanti |
| General | |
|---|---|
| Built-in Devices | LED panel |
| Depth | 16.5 cm |
| Device Type | VoIP gateway |
| Height | 3.4 cm |
| Weight | 450 g |
| Width | 20.8 cm |
| Networking | |
| Capacity | VoIP calls: 16 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, ISDN, Fast Ethernet |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, firmware upgradable, SNTP support, Access Control List (ACL) support, Quality of Service (QoS), DHCP client, Management Information Base (MIB), High Precision 5ppm Clock Source |
| Form Factor | External |
| Network / Transport Protocol | PPPoE, DHCP, DNS, DDNS |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI |
| IP Telephony | |
| IP Telephony Features | Comfort noise generation (CNG), echo cancellation (G.168), call hold, call transfer, silence suppression, DTMF generation/detection, Least Cost Routing, Number blocking, Calling Line Identification Presentation (CLIP), Calling Line Identification Res |
| Voice Codecs | G.711, G.723.1, G.729, G.729a, G.729ab, G.726, T.38 |
| VoIP Protocols | SIP v2 |
| Communications | |
| Digital Ports Qty | 4 |
| Digital Signaling Protocol | ISDN DSS1/ETSI |
| Protocols & Specifications | ITU G.168, ITU Q.921, ITU Q.931, ITU T.38 |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 | 4 x ISDN BRI - RJ-45 |
| Miscellaneous | |
| Compliant Standards | EN 60950, EMC, FCC Part 15 A, TBR3, LVD, R&TTE Directive 1999/5/EC |
| Power | |
| Power Consumption Operational | 10 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
