Produktbeskrivelse
|
Lenovo ThinkPad Universal USB-C Dock - dockingstation - USB-C - HDMI, 2 x DP - 1GbE
|
|
Produkttype
|
Dockingstation
|
|
Docking-interface
|
USB-C
|
|
Videointerfacer
|
HDMI, 2 x DP
|
|
Dimensioner (B x D x H)
|
17.1 cm x 8 cm x 3.075 cm
|
|
Vægt
|
340 g
|
|
Farve
|
Sort
|
|
Lokalisering
|
Engelsk / Vietnam, Sydkorea, Europa
|
|
Netværk
|
Gigabit Ethernet
|
|
Effekt
|
Strømforsyningsadapter 90 watt Strømforsyning
|
|
Fabrikant Sælger Program
|
Lenovo Campus
|
|
Producentgaranti
|
3 års garanti
|
|
Designet for
|
ThinkPad T16 Gen 4 21QN
|
FREE SHIPPING TO PACKAGE SHOP ON ALL ORDERS OVER 1000,- DKK
Lenovo ThinkPad Universal USB-C Dock Dockingstation
1 x mic / headphones combo, 1 x HDMI, 1 x USB Type-C, 1 x RJ45, 2 x DisplayPort, 2 x USB 2.0 Type-A, 3 x USB 3.1 Type - 65 Watt
Output Power: 65W with 90W power adapter connected;100W with 135W power adapter connected
Varenummer:
998411556
Model:
40AY0090EU
EAN:
0195348192095
Brand:
Vægt:
1 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Depth
|
8 cm
|
|
Enclosure Color
|
Black
|
|
Height
|
3.075 cm
|
|
Localization
|
English / Vietnam, South Korea, Europe
|
|
Product Type
|
Docking station
|
|
Weight
|
340 g
|
|
Width
|
17.1 cm
|
|
Video
|
|
|
Max Resolution Details
|
3840 x 2160 - 60 Hz (Dual Display) | 3840 x 2160 - 30 Hz (Triple Display)
|
|
Networking
|
|
|
Data Link Protocol
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
USB 3.2 Gen 2 with Always-on charging | 2 x USB 3.2 Gen 2 | 1 x USB-C - 24 pin USB-C | 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 | 2 x audio / video - DisplayPort - 20 pin DisplayPort | 1 x audio / video - HDMI - 19 pin HDMI Type A | 1 x a
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x USB-C to USB-C cable - external
|
|
Compliant Standards
|
VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, DisplayPort 1.4, LoA, TUV Mark
|
|
Features
|
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, pass through MAC address, 65W output power with 90W power adapter connected, 100W output power with 135W power adapter connected
|
|
Security Slot Type
|
Kensington NanoSaver security slot / Kensington MicroSaver security slot
|
|
Power
|
|
|
Power Device
|
Power adapter
|
|
Power Provided
|
90 Watt
|
|
System Requirements
|
|
|
OS Required
|
Microsoft Windows 7 / 10
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - replacement - 3 years
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
15.8 cm
|
|
Shipping Height
|
7.5 cm
|
|
Shipping Weight
|
955 g
|
|
Shipping Width
|
21 cm
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
35 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Compatibility Information
|
|
|
Designed For
|
Lenovo 13w Yoga 82S1, 82S2 | Lenovo IdeaPad 5 14ABA7 82SE | Lenovo IdeaPad 5 14IAL7 82SD | Lenovo IdeaPad Slim 7 Pro 16ACH6 82QR | Lenovo K14 Gen 1 21CU, 21CV | Lenovo Lenovo Slim 7 14IAP7 82SX | Lenovo ThinkBook 13s G4 IAP 21AR | Lenovo ThinkBook 13
|
Product guide
| Product type | Dock |
|---|---|
| Connectivity | |

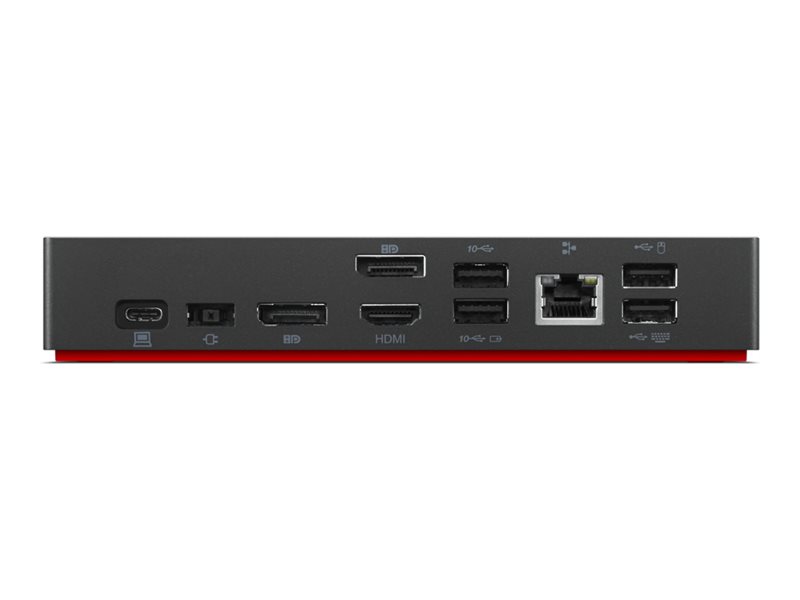

| Connectors | 1 x mic / headphones combo, 1 x HDMI, 1 x USB Type-C, 1 x RJ45, 2 x DisplayPort, 2 x USB 2.0 Type-A, 3 x USB 3.1 Type-A |
| Security | |
| Security | Kensington nano slot, Kensington standard slot |
| Performance | |
| Resolution (max.) | 3840 x 2160 at 60 Hz |
| Effective power (W) | 65 W |
| Physical properties | |
| Dimensions (W x H x D) | 171 x 31 x 80 mm |
| Weight | 0.340 kg |
| Includes | |
| Includes | Power supply (90 W) |
