Produktbeskrivelse
|

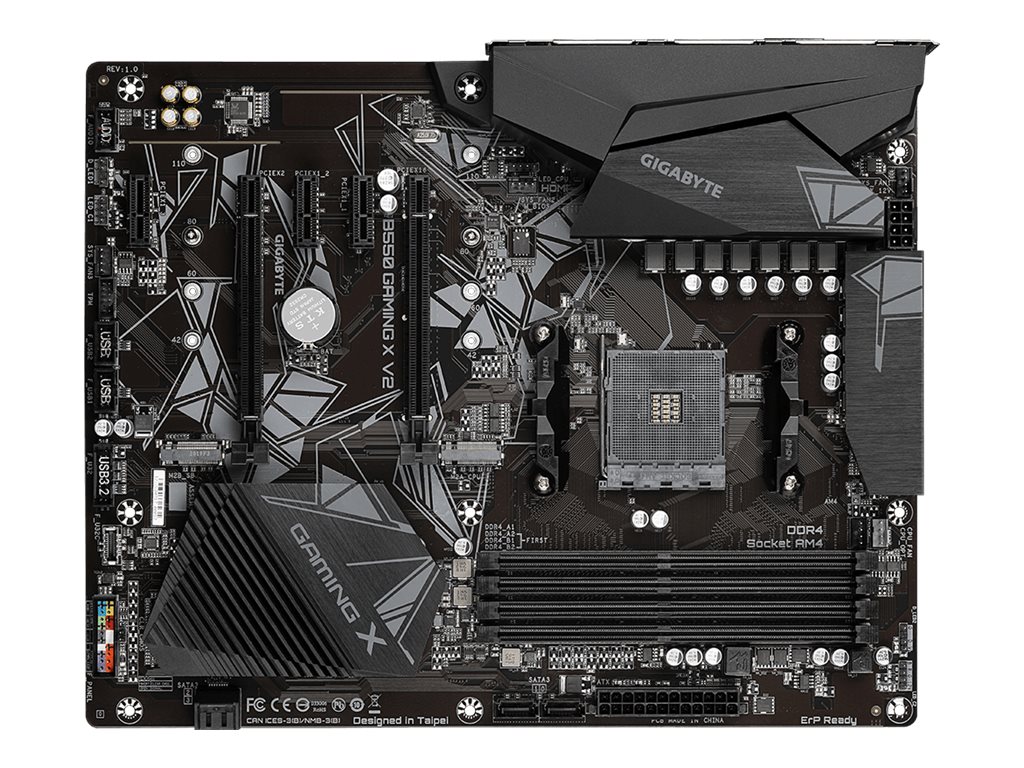

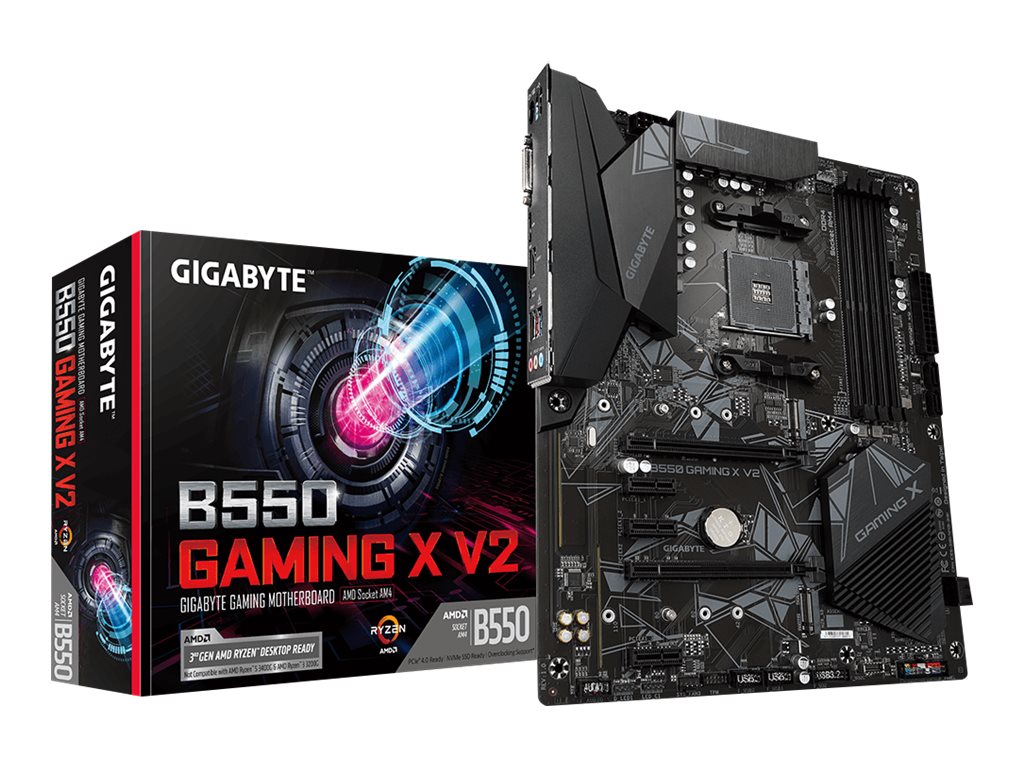

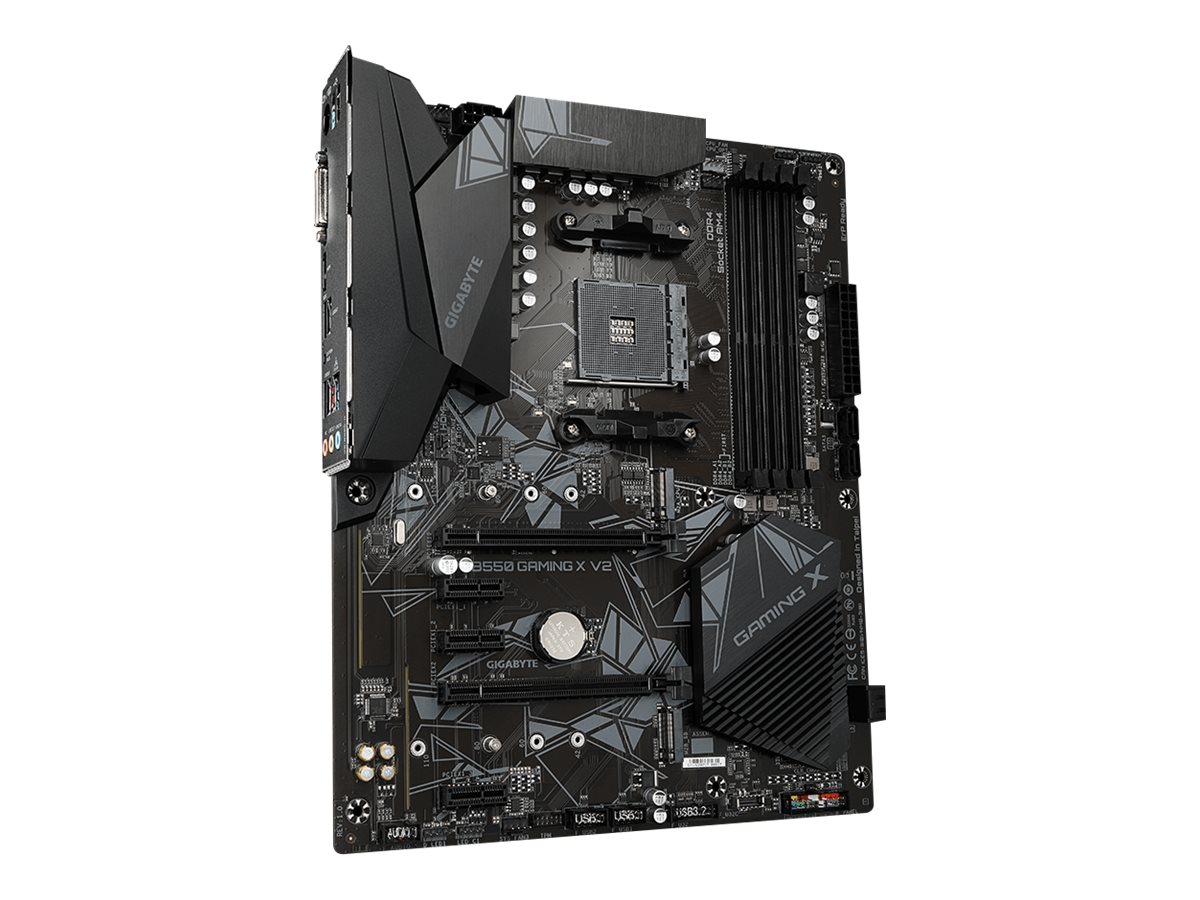

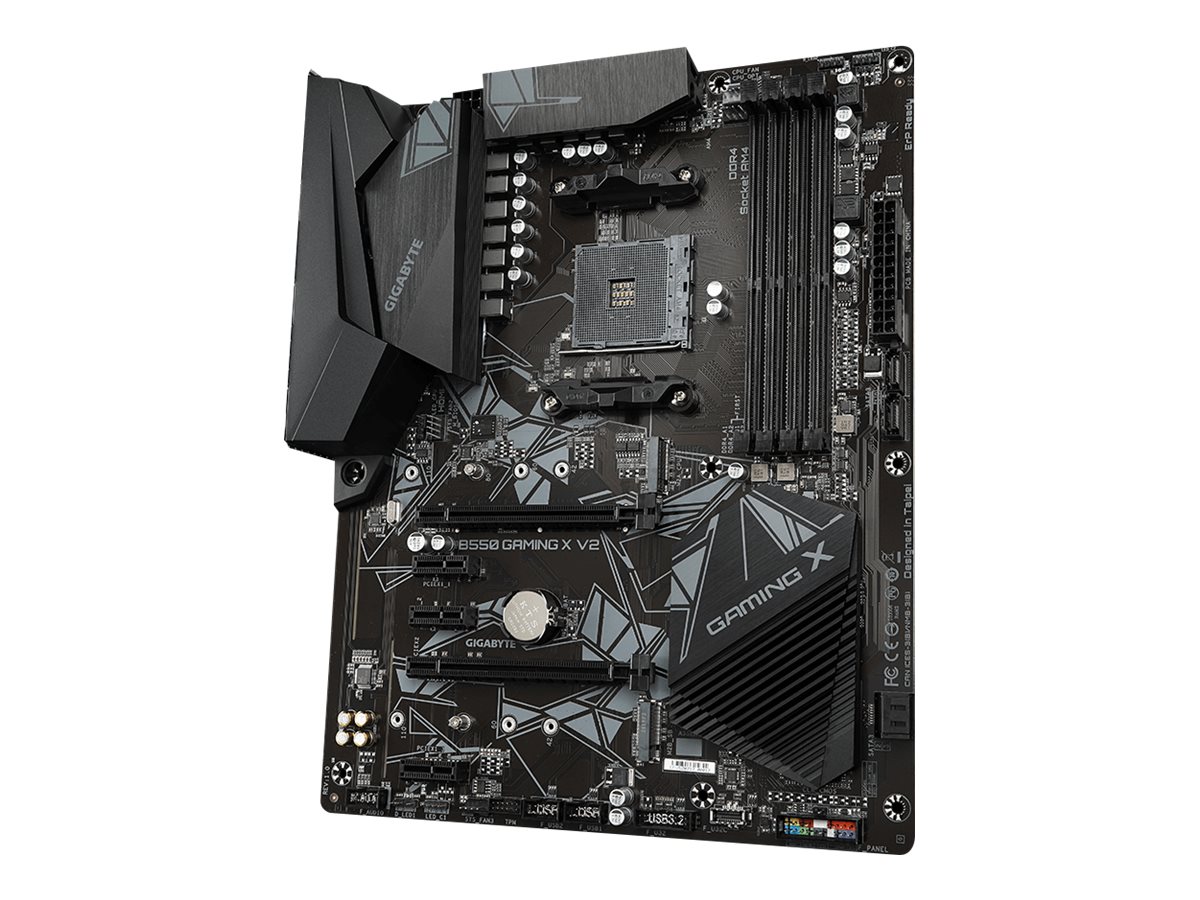

Gigabyte B550 GAMING X V2 - 1.0 - bundkort - ATX - Socket AM4 - AMD B550
|
|
Produkttype
|
Bundkort - ATX
|
|
Chipsættype
|
AMD B550
|
|
Processor-socket
|
1 x Socket AM4
|
|
Kompatible processorer
|
Ryzen (understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics)
|
|
Max RAM-størrelse
|
128 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
|
|
Lagringsporte
|
4 x SATA-600 (RAID), 2 x M.2
|
|
USB / FireWire porte
|
1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
Gigabit Ethernet
|
FREE SHIPPING TO PACKAGE SHOP ON ALL ORDERS OVER 1000,- DKK
Gigabyte B550 GAMING X V2 ATX AM4 AMD B550
Gigabyte B550 GAMING X V2 - 1.0 - bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
DKK 778,00
DKK 622,40 excl. VAT
DKK 778,00
DKK 622,40 excl. VAT
Shipping from DKK 39,00 (PostNord Pakkeshop u/1.000,- DKK)
Product no:
996716873
Model:
B550 GAMING X V2
EAN:
4719331810702
Brand:
Weight:
1.55 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B550
|
|
Compatible Processors
|
Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM4
|
|
Product Type
|
Motherboard - ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.)
|
|
Features
|
Dual channel memory architecture, supported ECC modules operate in non-ECC mode
|
|
Max Size
|
128 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
Non-ECC, ECC (operate in non-ECC mode)
|
|
Technology
|
DDR4
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALC887
|
|
Compliant Standards
|
High Definition Audio
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Interfaces
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)) | 1 x PCIe 3.0 x16 (x2 mode) | 3 x PCIe 3.0 x1
|
|
Interfaces
|

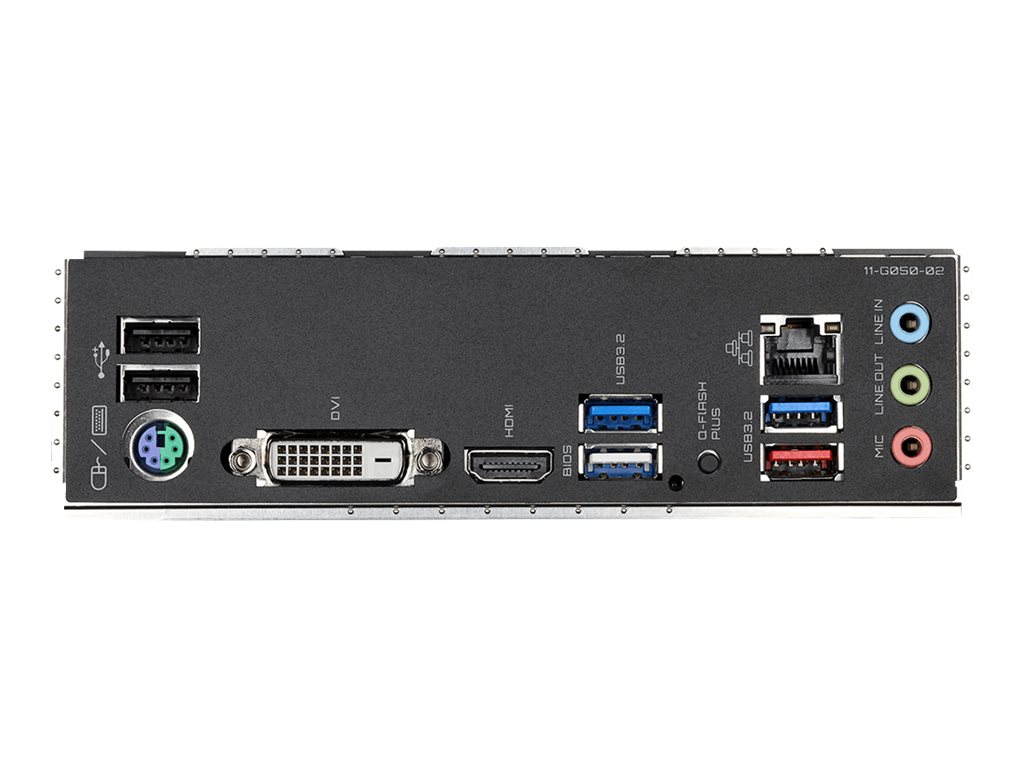

1 x LAN (Gigabit Ethernet) | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x HDMI | 1 x DVI-D | 2 x USB 2.0 | 3 x USB 3.2 Gen 1 | 1 x PS/2 keyboard / mouse
|
|
Internal Interfaces
|
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header
|
|
Power Connectors
|
24-pin main power connector, 8-pin ATX12V connector
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | PCIe 3.0 -connectors: 1 x M.2
|
|
Features
|
|
|
BIOS Features
|
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|
Q-Flash, HDCP compliant, On/Off Charge, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, 10+3 Phase Power Design, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.
|
|
Hardware Monitoring
|
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
|
|
Miscellaneous
|
|
|
Compliant Standards
|
Plug and Play, HDCP 2.3
|
|
Depth
|
24.4 cm
|
|
Software Included
|
Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
|
|
Width
|
30.5 cm
|
