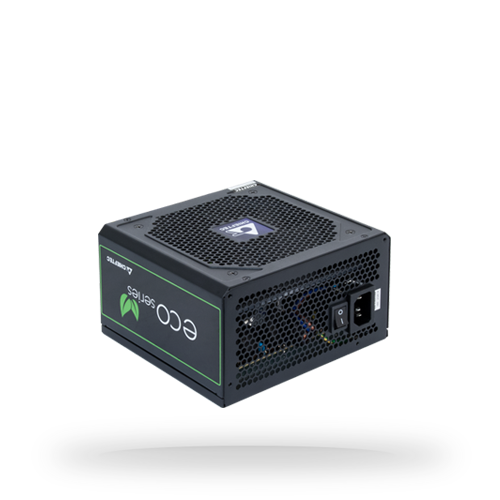

Chieftec ECO Series GPE-500S 500Watt
Chieftec ECO Series GPE-500S - Strømforsyning (intern) - ATX12V 2.3 - AC 230 V - 500 watt - aktiv PFC
493,00 DKK
394,40 DKK excl. VAT
-
Product no 990221195
Model GPE-500S
Brand Chieftec Industrial
EAN 4710713234185
Weight 1.7 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Total effekt | 500 W |
| Vekselstrømsindgangsspænding | 230 V |
| Motherboard, strømstik | 24-pin ATX |
| Perifere (Molex) strømstik (4-pin) | 2 |
| Formål | PC |
| Strømforsyningenhed (PSU) formfaktor | PS/2 |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3 |
| Power Device | |
| Efficiency | 85% |
| Frequency Required | 50 Hz |
| Input Voltage | AC 230 V |
| Output Current | +5V - 20 A | +3.3V - 21 A | +12V1 - 37.5 A | -12V - 0.3 A | +5VSB - 2.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX | 4 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 8 pin PCI Express power with detachable 2 pin section | 1 x power 4 pin ATX12V connector |
| Miscellaneous | |
| Compliant Standards | TUV, RoHS, ERP |
| Cooling System | 120 mm fan |
| Features | Overvoltage protection, overload protection, undervoltage protection, short-circuit protection, fan speed control, non-modular |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 8.6 cm |
| Width | 15 cm |
