Produktbeskrivelse
|

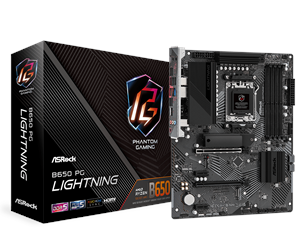

ASRock B650 PG Lightning - bundkort - ATX - Socket AM5 - AMD B650
|
|
Produkttype
|
Bundkort - ATX
|
|
Chipsættype
|
AMD B650
|
|
Processor-socket
|
1 x Socket AM5
|
|
Kompatible processorer
|
Ryzen (understøtter Ryzen 7000 Series)
|
|
Max RAM-størrelse
|
128 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
|
|
Lagringsporte
|
4 x SATA-600 (RAID), 1 x M.2, 1 x Hyper M.2, 1 x Blazing M.2
|
|
USB / FireWire porte
|
1 x USB-C 3.2 Gen 2x2 + 7 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
2.5 Gigabit Ethernet
|
FREE SHIPPING TO PACKAGE SHOP ON ALL ORDERS OVER 1000,- DKK
ASRock B650 PG Lightning Bundkort - AMD B650 - AMD AM5 socket - DDR5 RAM - ATX
ASRock B650 PG Lightning Bundkort - AMD B650 - AMD AM5 socket - DDR5 RAM - ATX
DKK 1 044,00
DKK 835,20 excl. VAT
DKK 1 044,00
DKK 835,20 excl. VAT
Free shipping (PostNord Pakkeshop o/1.000,- DKK)
Product no:
1000805430
Model:
90-MXBK20-A0UAYZ
EAN:
4710483940910
Brand:
Weight:
1.72 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B650
|
|
Compatible Processors
|
Ryzen (supports Ryzen 7000 Series)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM5
|
|
Product Type
|
Motherboard - ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
6400 MHz (O.C.)
|
|
Features
|
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
|
|
Max Size
|
128 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
Non-ECC
|
|
Technology
|
DDR5
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALC897
|
|
Compliant Standards
|
High Definition Audio
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Controller
|
Dragon RTL8125BG
|
|
Network Interfaces
|
2.5 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x2 mode) | 2 x PCIe 4.0 x1 | 1 x M.2 socket (2230 M.2 Key E slot) | 3 x M.2 socket (2280 M.2 Key M slot)
|
|
Interfaces
|
1 x USB-C 3.2 Gen2x2 | 7 x USB 3.2 Gen 1 | 1 x LAN (2.5Gigabit Ethernet) | 4 x USB 2.0 | 1 x HDMI | 1 x audio line-in - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (front surround) - mini-jack
|
|
Internal Interfaces
|
1 x USB-C 3.2 Gen 2 - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x SPI - header | 1 x audio - header | 1 x speaker - header
|
|
Power Connectors
|
24-pin main power connector, 2 x 8-pin ATX12V connectors
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
|
|
Features
|
|
|
BIOS Features
|
UEFI BIOS
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|
ASRock Instant Flash, 15µ Gold Contact, 8 Layer PCB, ASRock Full HD UEFI, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), ASRock Auto Driver Installer, 60A Smart Power Stage, BIOS FlashBack button, 14+2+1 Phase Power Desi
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Compliant Standards
|
FCC, EuP Ready, ErP Ready, HDCP 2.3
|
|
Depth
|
24.4 cm
|
|
Included Accessories
|
3 x M.2 screws
|
|
Software Included
|
ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC
|
|
Width
|
30.5 cm
|
