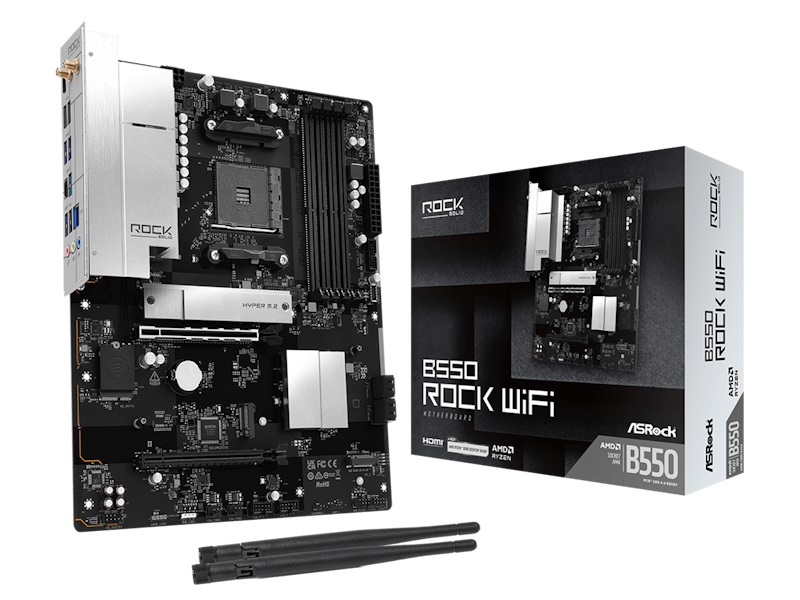

Asrock B550 Rock WiFi ATX AM4

Asrock B550 Rock WiFi - ATX - Socket AM4 - 4x DDR4 slots - HDMI 2.1 - USB 3.2 Gen1 - Dragon RTL8125BG - WiFi 6E

867,00 DKK 693,60 DKK excl. VAT
Add colli (5 qty.)

  • Product no 1004260812

    Model 90-MXBV20-A0UAYZ

    Brand
    Go to brand's website

    EAN 4711581494732

    Weight 1.56 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Power Phase 8+2
CPU Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Chipset AMD B550
Memory 4x DDR4 DIMM Slots (Dual Channel), Up to 128GB
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics output 1x HDMI 2.1
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Wireless LAN 802.11axe Wi-Fi 6E Module, Bluetooth 5.3
Slots 2x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE2: Gen3 x2 mode), 1x M.2 Socket (Key E) 2230 WiFi/BT PCIe WiFi module
Storage 3x M.2 Key M 2280, 4x SATA3 6.0 Gb/s
USB 2x USB 3.2 Gen1 Type-C (Rear), 6x USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 7x USB 2.0 (3 Rear, 4 Front)

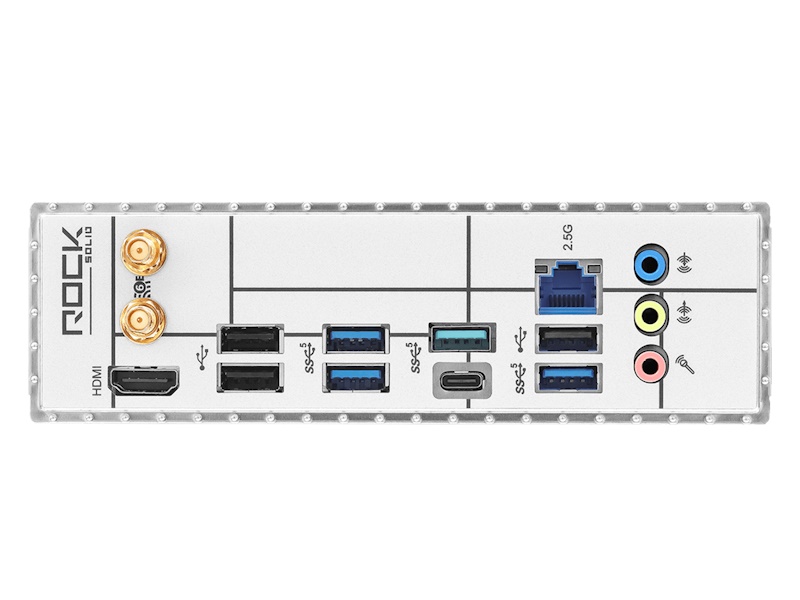

Rear Panel I/O 2x Antenna Ports, 1x HDMI Port, 1x USB 3.2 Gen1 Type-C Port, 4x USB 3.2 Gen1 Type-A Ports, 3x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories 2x ASRock WiFi 2.4/5/6 GHz Antennas, 2x SATA Data Cables
Form Factor ATX Form Factor: 30.5 cm x 24.4 cm
Certifications FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
