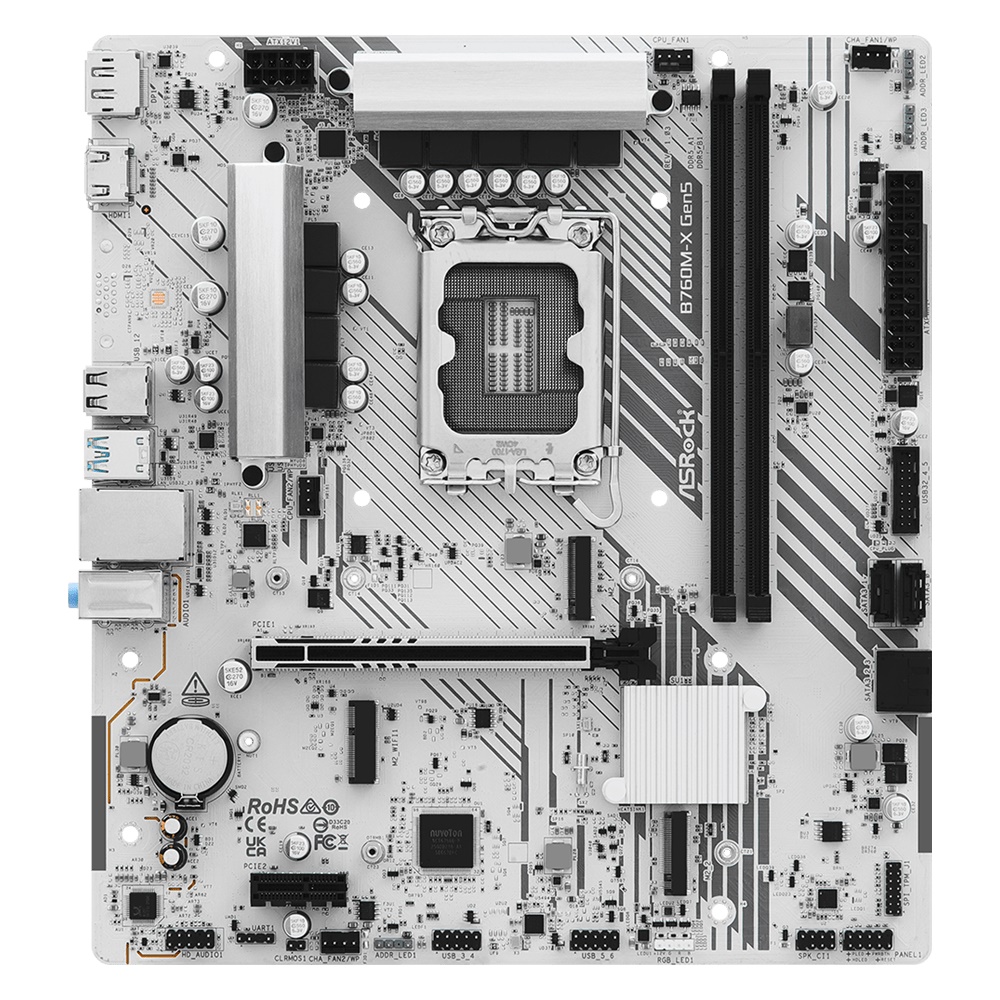

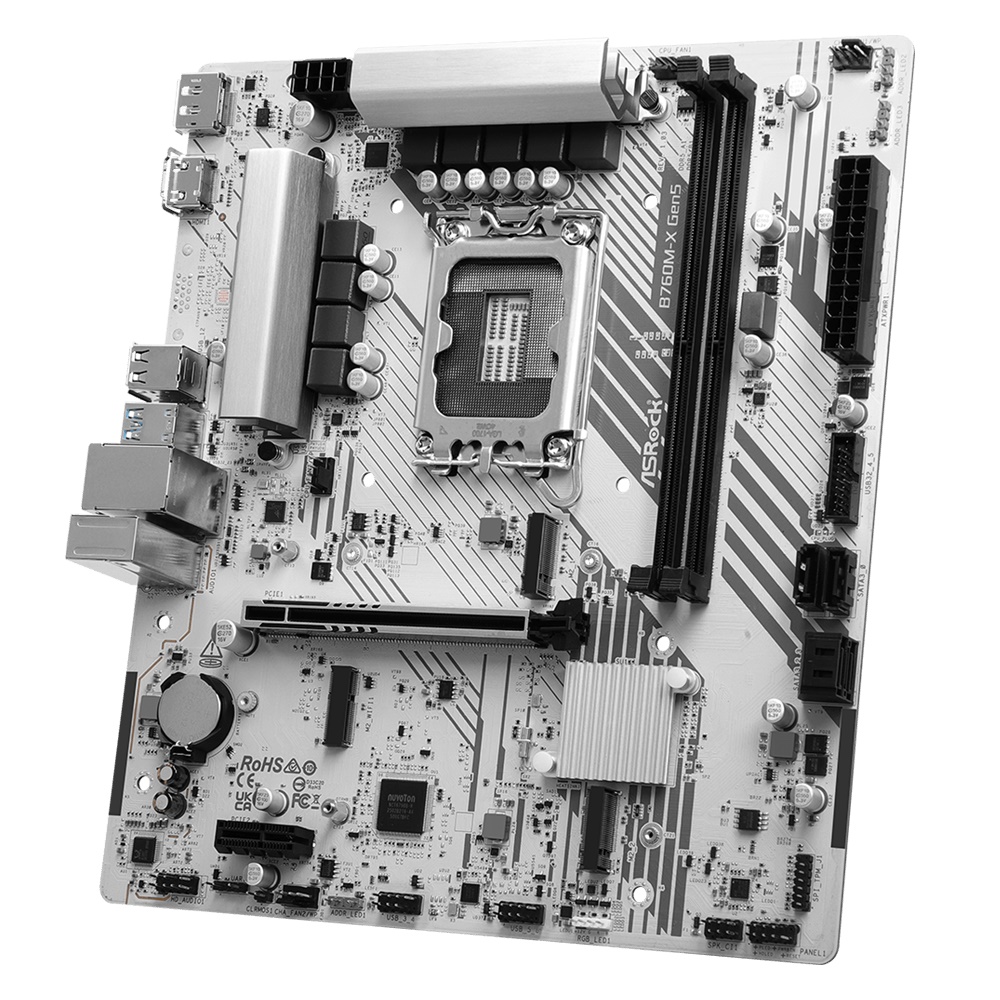

Asrock B760M-X Gen5 Micro-ATX LGA1700

Asrock B760M-X Gen5 - Bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

DKK 730,00
DKK 584,00 excl. VAT

Shipping from DKK 39,00 (PostNord Pakkeshop u/1.000,- DKK)
Product no: 1003862740
Model: 90-MXBTR0-A0UAYZ
EAN: 4711581492356
Brand:
Weight: 0.99 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

CPU
Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Chipset
Intel® B760
Memory
2x DDR5 DIMM Slots - Up to 7200+ - Max 128GB
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Graphics output
1x HDMI 2.1, 1x DisplayPort 1.4
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
Dragon RTL8125BG 2.5 Gigabit LAN
Slots
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 3.0 x1 Slots (PCIE2), 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
1x Hyper M.2 2260/2280 PCIe Gen4x4, 1x Ultra M.2 2280 PCIe Gen3x4, 4x SATA3 6.0 Gb/s
USB
1x USB 3.2 Gen1 Type-C (Rear), 5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front)

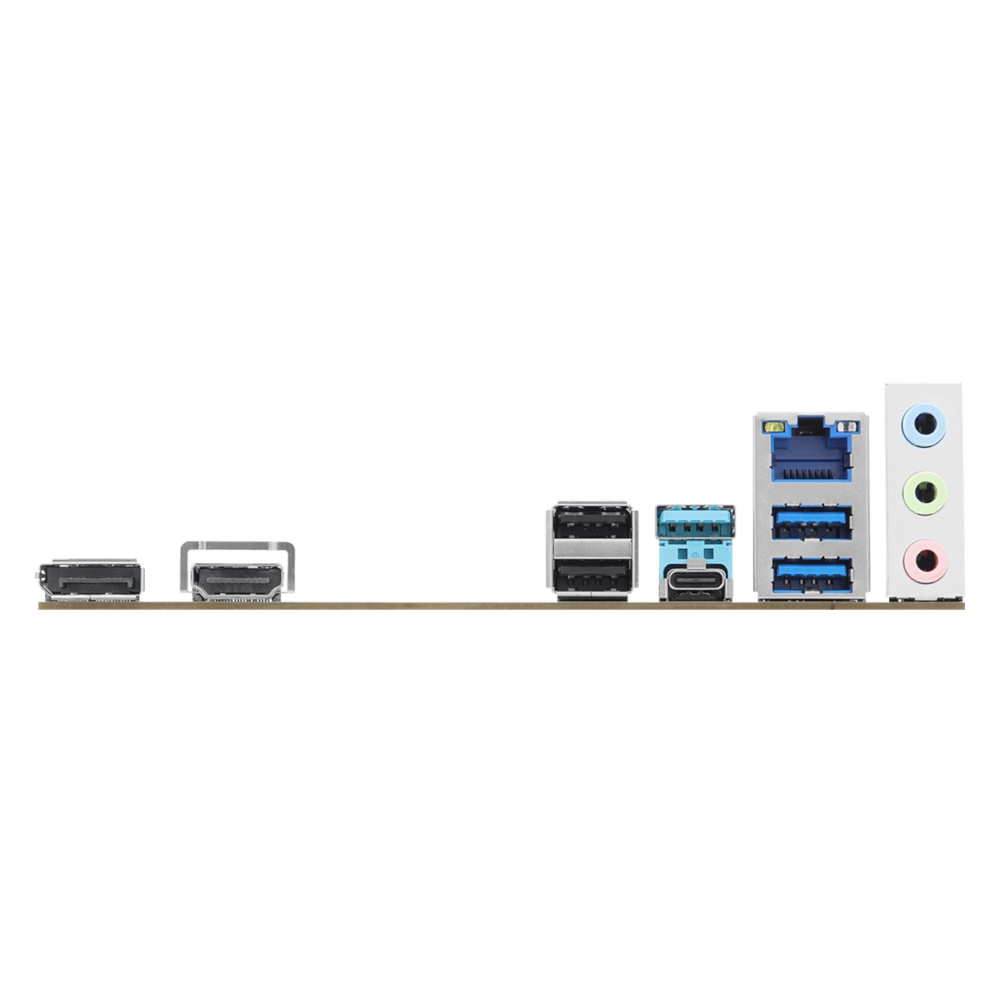

Rear Panel I/O
2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen1 Type-C Port, 3x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories
1x I/O Shield, 2x SATA Data Cables, 3x Screws for M.2 Sockets
Form Factor
Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm
