CPU
|
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
|
|
Chipset
|
Intel H810
|
|
Memory
|
2x DDR5 DIMM Slots, up to 6400, 128GB maks
|
|
BIOS
|
256Mb AMI UEFI Legal BIOS with GUI support
|
|
Graphics
|
1x HDMI 2.1, 1x DisplayPort 1.4 with DSC, 1x D-Sub
|
|
Audio
|
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
LAN
|
2.5 Dragon RTL8125BG Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Wireless LAN
|
802.11ac Wi-Fi Module, Bluetooth 5.0
|
|
Slots
|
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 4.0 x1 Slot (PCIE2), 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
Storage
|
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4 x SATA3 6.0 Gb/s Connectors
|
|
USB
|
1 x USB 3.2 Gen1 Type-C (Front), 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front), 6 x USB 2.0 (4 Rear, 2 Front)
|
|

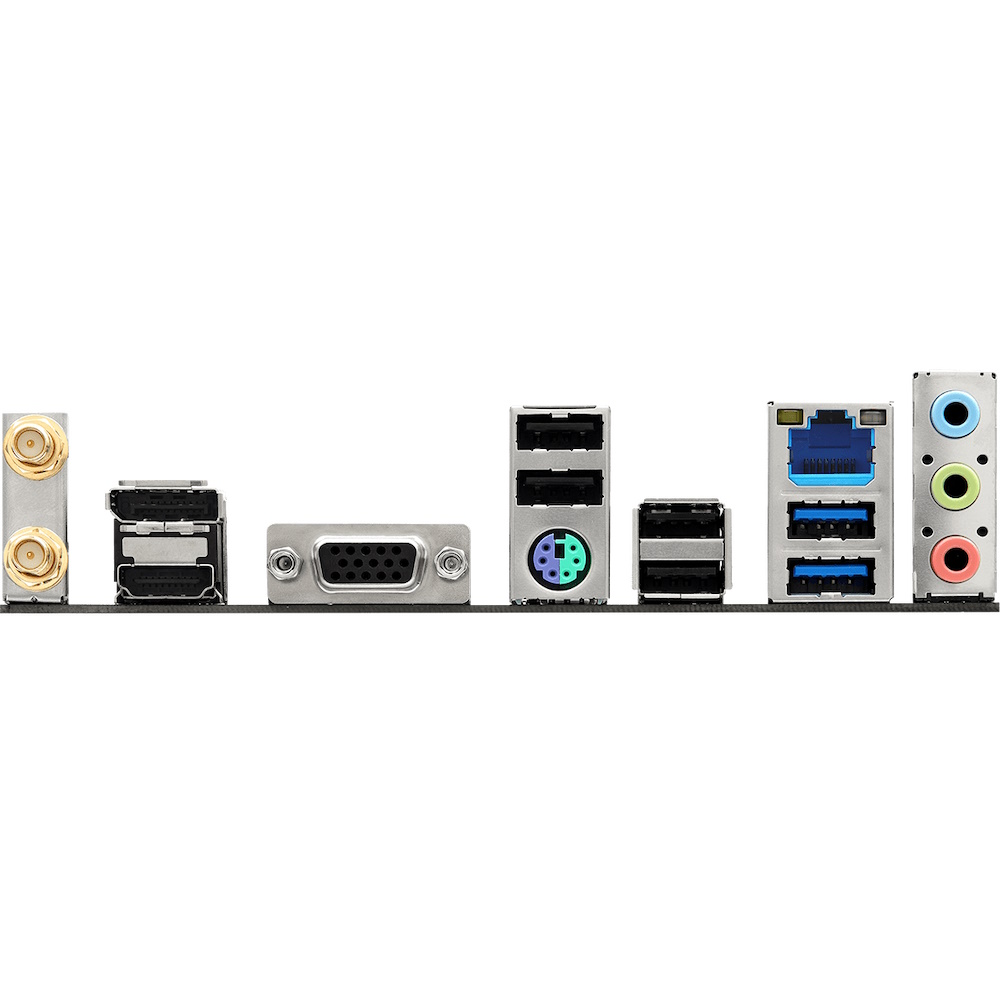

Rear Panel I/O
|
2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
Accessories
|
1 x I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5 GHz Antennas
|
|
Form Factor
|
Micro ATX Form Factor, 22.0 cm x 19.3 cm
|
|
Power Phase
|
6+1+1+1+1
|
|
Certifications
|
FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
|
FREE SHIPPING TO PACKAGE SHOP ON ALL ORDERS OVER 1000,- DKK

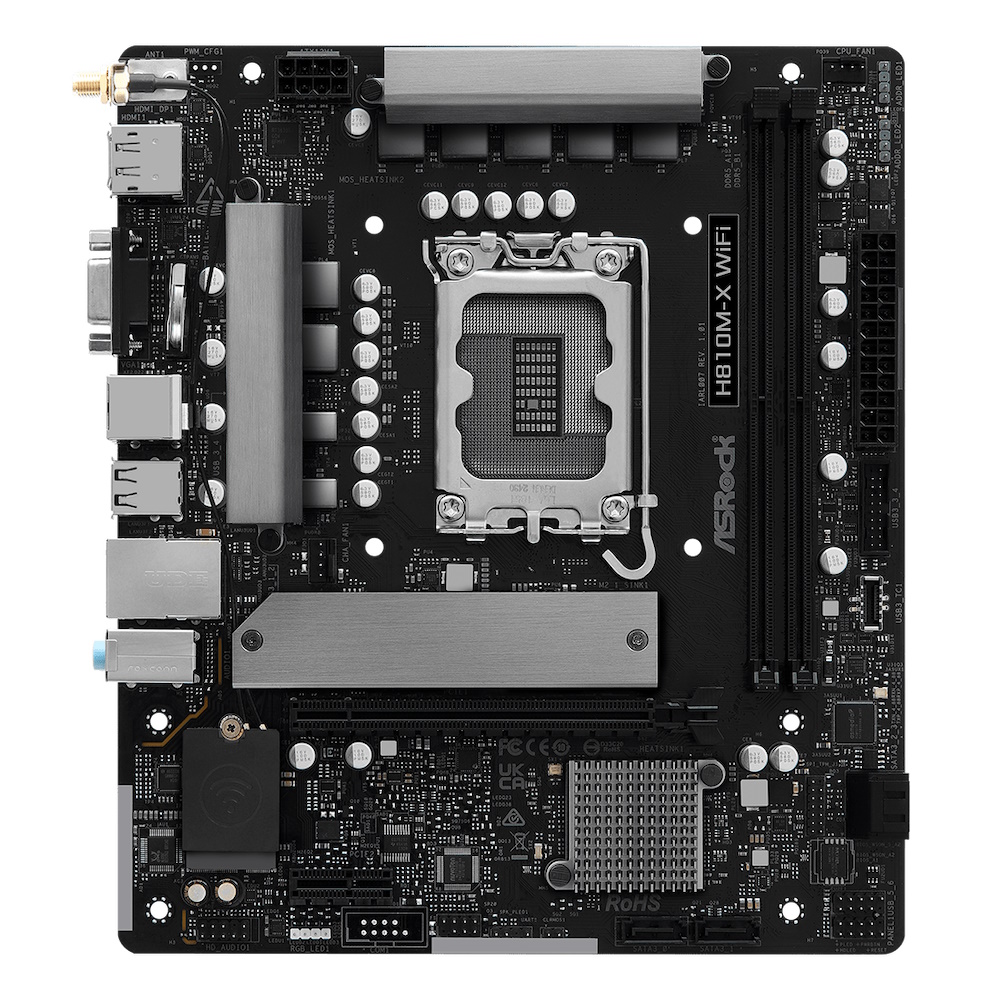

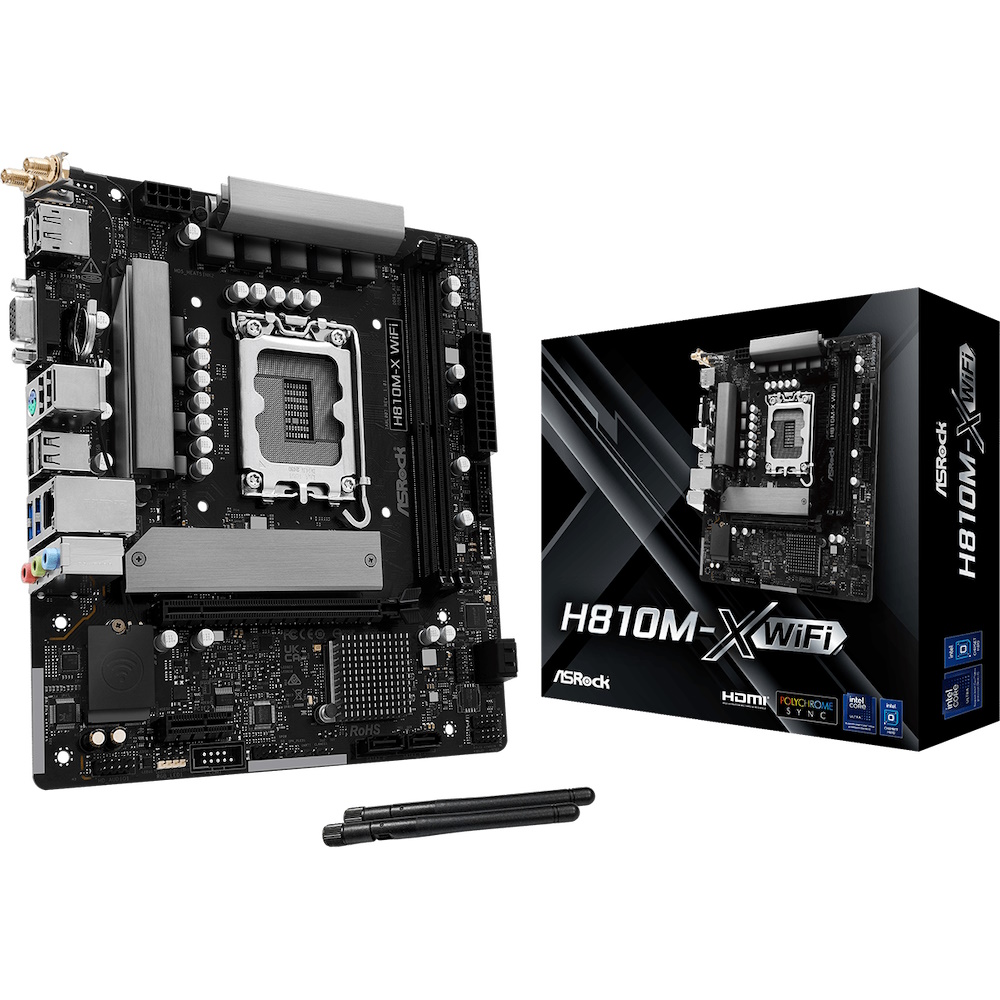

ASRock H810M-X WiFi Micro-ATX LGA1851
ASRock H810M-X WiFi - bundkort - micro ATX - LGA1851 sokkel - H810 Chipset - USB 3.2 Gen 1 - Gigabit LAN - Wi-Fi 6 - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Varenummer:
1003124020
Model:
90-MXBS6-A0UAYZ
EAN:
4711581490659
Brand:
Vægt:
0.91 kg
