Type
|
ATX
|
|
ATX Version
|
ATX 12V Ver. 3.1
|
|
PFC
|
Active PFC
|
|
Input Voltage
|
100-240V, 50-60Hz
|
|
Dimensions (L x W x H)
|
160 x 150 x 86 mm
|
|
Fan
|
120mm HDB
|
|
Efficiency
|
≥90% @ Typical Load
|
|
80 PLUS Rating
|
80 PLUS Gold
|
|
ErP 2014 Lot 3
|
Yes
|
|
Power Good Signal
|
100 - 150 ms
|
|
Hold Up Time
|
≥ 16ms
|
|
MTBF
|
>100,000 Hours
|
|
Protections
|
UVP / OVP / OPP / OTP / SCP / OCP
|
|
Regulatory
|
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
|
|

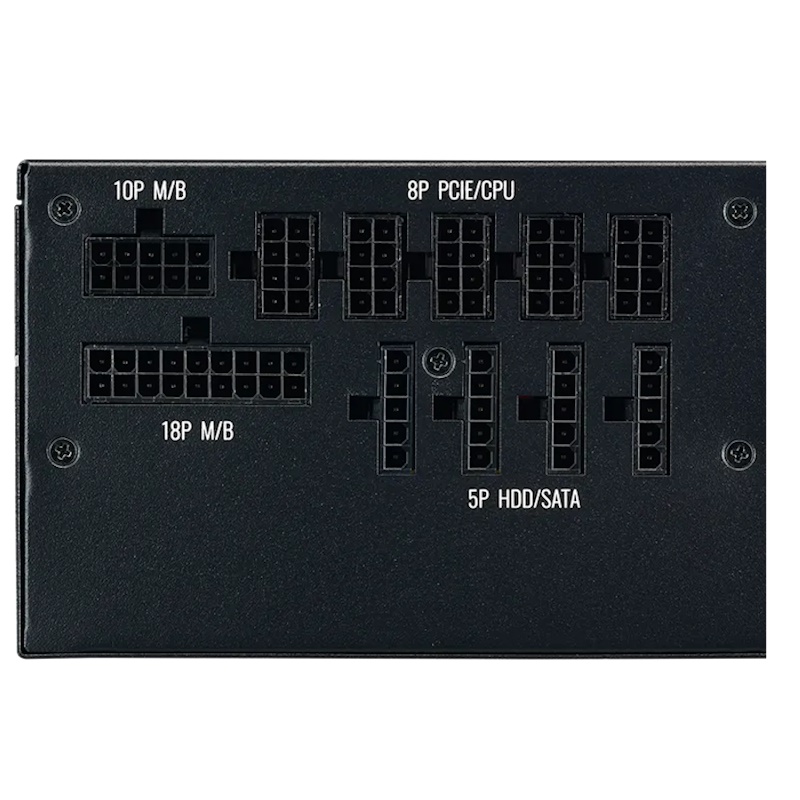

Cables
|
1x ATX 24 Pin, 1x EPS 4+4 Pin, 1x EPS 8 Pin, 12x SATA, 4x Peripheral 4 Pin, 4x PCI-e 6+2 Pin, 1x (1 to 3) 12V-2x6
|
|
Modular
|
Fully Modular
|
|
Watts
|
850W
|
