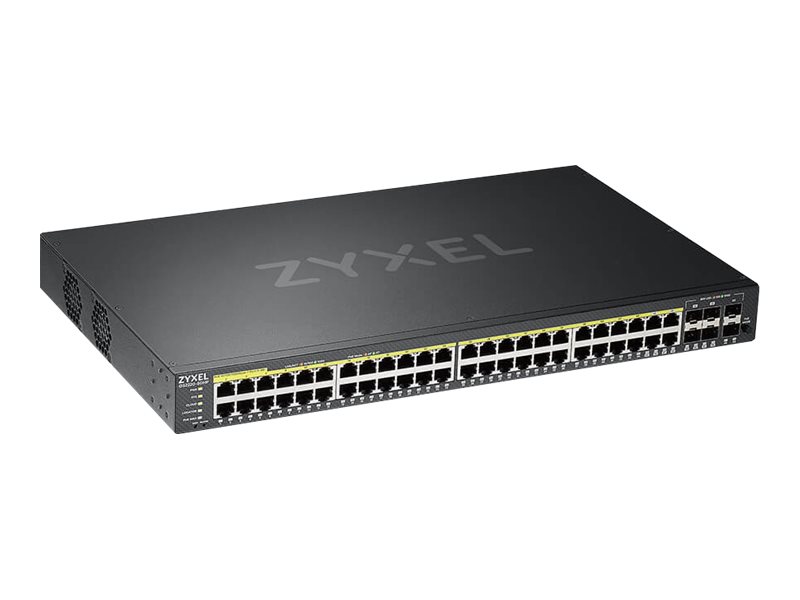

Zyxel GS2220-50HP Switch 48-porte Gigabit PoE+
Zyxel GS2220-50HP - Switch - Administreret - 44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP - monterbar på stativ - PoE+ (375 W)
5 727,00DKK4 581,60DKK excl. VAT
-
Product no 996083683
Model GS2220-50HP-EU0101F
Brand ZyXEL Communications
EAN 4718937607563
Weight 5.28 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Zyxel GS2220-50HP - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |

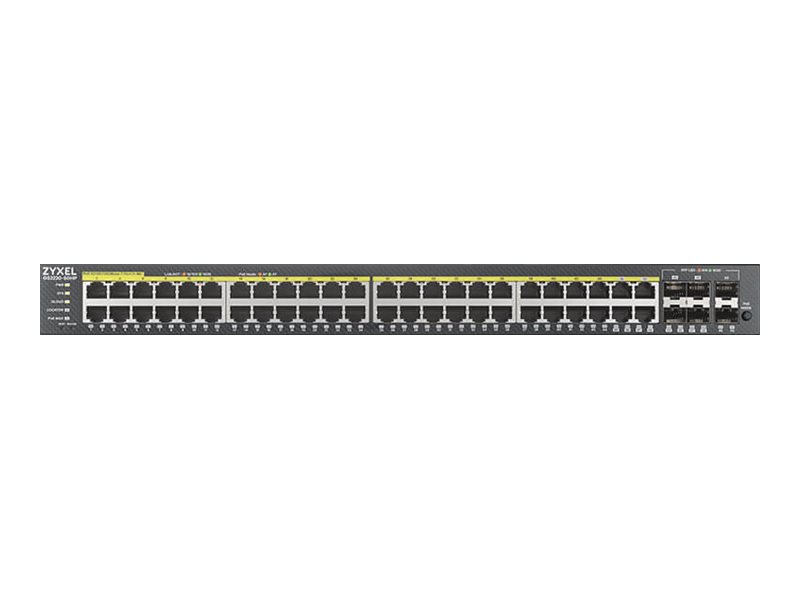

| Porte | 44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 375 W |
| Præstation | Omkoblingskapacitet: 100 Gbps<br>Videresendelseshastighed: 74 Mpps<br>Pakkebufferstørrelse: 1,5 MB |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLD, MSTP, RSTP, STP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Egenskaber | Datatransport, IGMP snooping, Syslog understøttet, portspejling, IP-adresse filtrering, ZyXEL iStacking Technology, sFlow, QoS, MDL snooping, LACP support, LLDP support, DHCP videresendelse, Port Security, DHCP klient, MIB, MVR, portisolering, CoS, GVRP, sky-administreret, DSCP support, ErrDisable Recovery, IP-kildebekyttelse, ARP-inspektion, dobbelt billedsupport, Root Guard, Loop Guard, LLDP-MED, EEE, VLAN Tagging, MRSTP |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.1 cm x 27 cm x 4.4 cm |
| Vægt | 4.1 kg |
| Lokalisering | Europa |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | SSL |
| Features | Flow control, IGMP snooping, Syslog support, port mirroring, IP address filtering, ZyXEL iStacking Technology, sFlow, Quality of Service (QoS), MLD snooping, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Management Information B |
| Flash Memory | 32 MB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 100 Gbps | Forwarding rate: 74 Mpps | Packet buffer size: 1.5 MB |
| PoE Budget | 375 W |
| Ports | 44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD, MSTP, RSTP, STP |
| Status Indicators | Status |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |

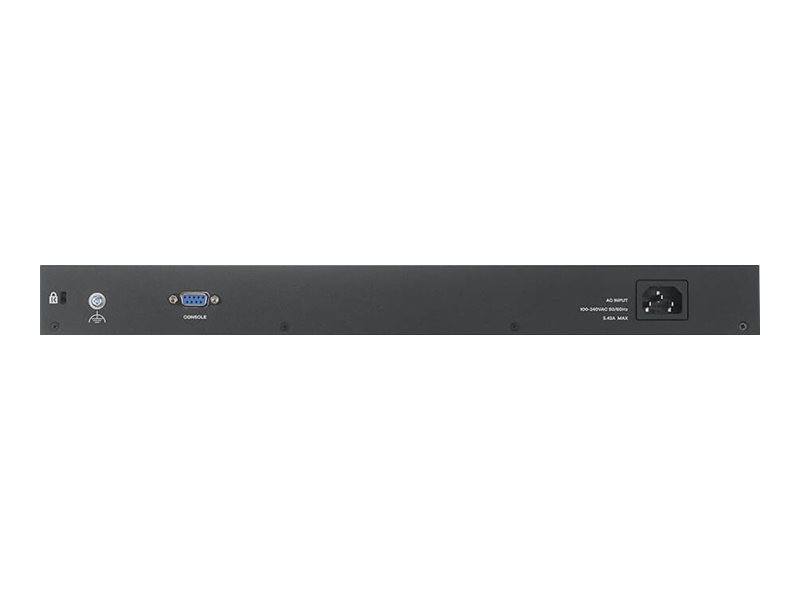

| Interfaces | 48 x 1000Base-T RJ-45 PoE+ | 6 x 1000Base-X SFP | 1 x serial (RS-232) |
| Power | |
| Power Consumption Operational | 474.3 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
| Localization | Europe |
| MTBF | 466,921 hours |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 27 cm |
| Height | 4.4 cm |
| Weight | 4.1 kg |
| Width | 44.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35.5 cm |
| Shipping Height | 10.7 cm |
| Shipping Weight | 5.25 kg |
| Shipping Width | 61.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
