WD Ultrastar DC HC310 Harddisk HUS726T4TAL5204 4TB 3.5" SAS 3 7200rpm

WD Ultrastar DC HC310 HUS726T4TAL5204 - Harddisk - 4 TB - intern - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 256 MB
1 339,00DKK1 071,20DKK excl. VAT
  • Product no 993792710

    Model 0B36048

    Brand Western Digital
    Go to brand's website

    EAN 8717306631181

    Weight 0.76 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse WD Ultrastar DC HC310 HUS726T4TAL5204 - harddisk - 4 TB - SAS 12Gb/s
Type Harddisk - intern
Kapacitet 4 TB
Model 3.5"
Grænseflade SAS 12Gb/s
Dataoverførselshastighed 1.2 GBps
Buffer størrelse 256 MB
Spindelhastighed 7200 rpm
Egenskaber Secure Erase funktion, avanceret format 512e, 24x7 tilgængelighed
Dimensioner (B x D x H) 101.6 mm x 147 mm x 26.1 mm
Vægt 715 g
Producentgaranti 5 års garanti
General
Buffer Size 256 MB
Bytes per Sector 512
Capacity 4 TB
Depth 147 mm
Device Type Hard drive - internal
Features Secure Erase function, advanced format 512e, 24x7 availability
Form Factor 3.5"
Height 26.1 mm
Interface SAS 12Gb/s
Weight 715 g
Width 101.6 mm
Performance
Average Latency 4.16 ms
Drive Transfer Rate 1.2 GBps (external)
Internal Data Rate 255 MBps
Seek Time 8 ms (average)
Spindle Speed 7200 rpm
Reliability
24x7 Operation Yes
Load / Unload Cycles 600,000
MTBF 2,000,000 hours
Non-Recoverable Errors 1 per 10^15
Expansion & Connectivity
Compatible Bay 3.5"
Interfaces 1 x SAS 12 Gb/s
Power
Power Consumption 7 Watt (idle) | 12.1 Watt (typical)
Miscellaneous
Compliant Standards VCCI, BSMI, CB, UL 60950-1, KCC, ICES, REACH, RCM, RoHS 2 (2011/65/EU)
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature 60 °C
Max Storage Temperature 70 °C
Min Operating Temperature 5 °C
Min Storage Temperature -40 °C
Shock Tolerance (non-operating) 300 g @ 2 ms half-sine wave
Shock Tolerance (operating) 70 g @ 2 ms half-sine wave
Vibration Tolerance (non-operating) 1.04 g @ 2-200 Hz
Vibration Tolerance (operating) 0.67 g @ 5-500 Hz

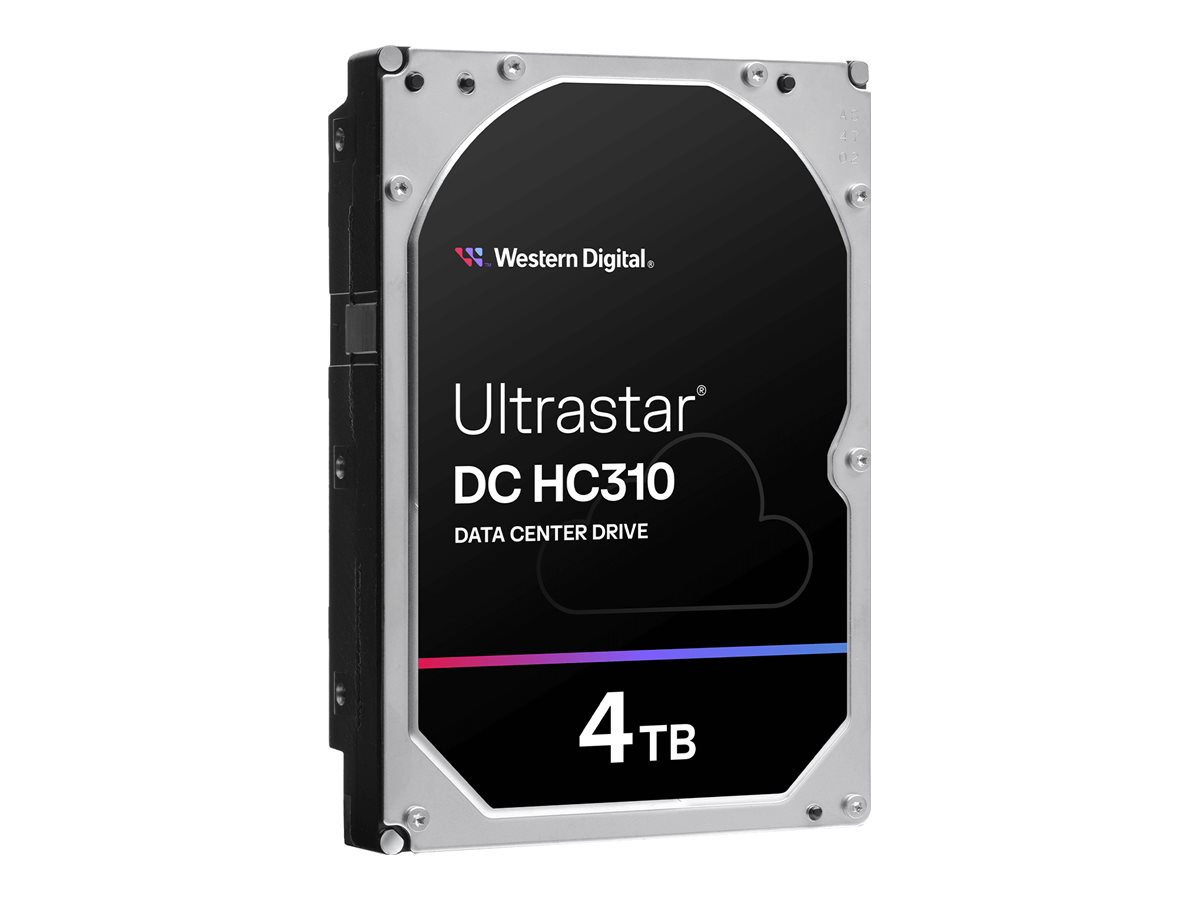

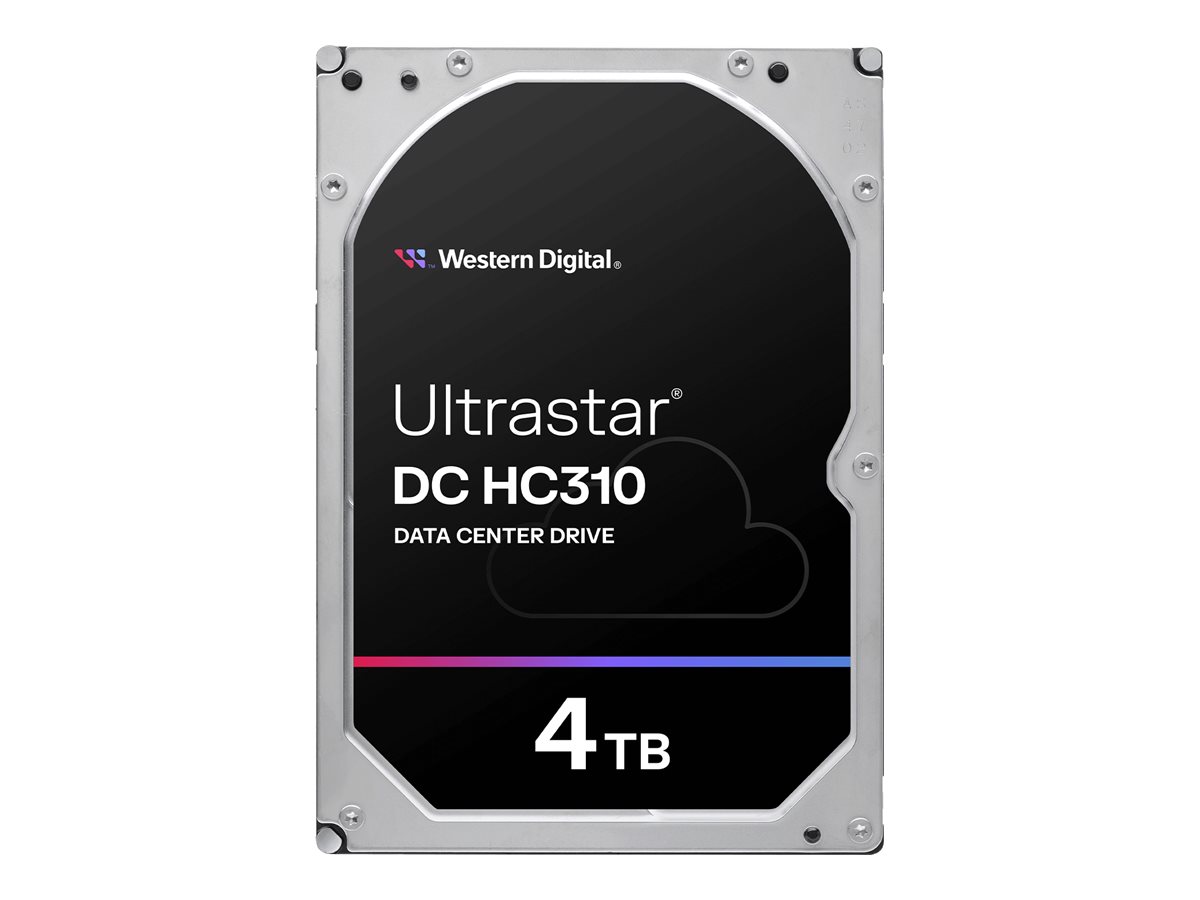

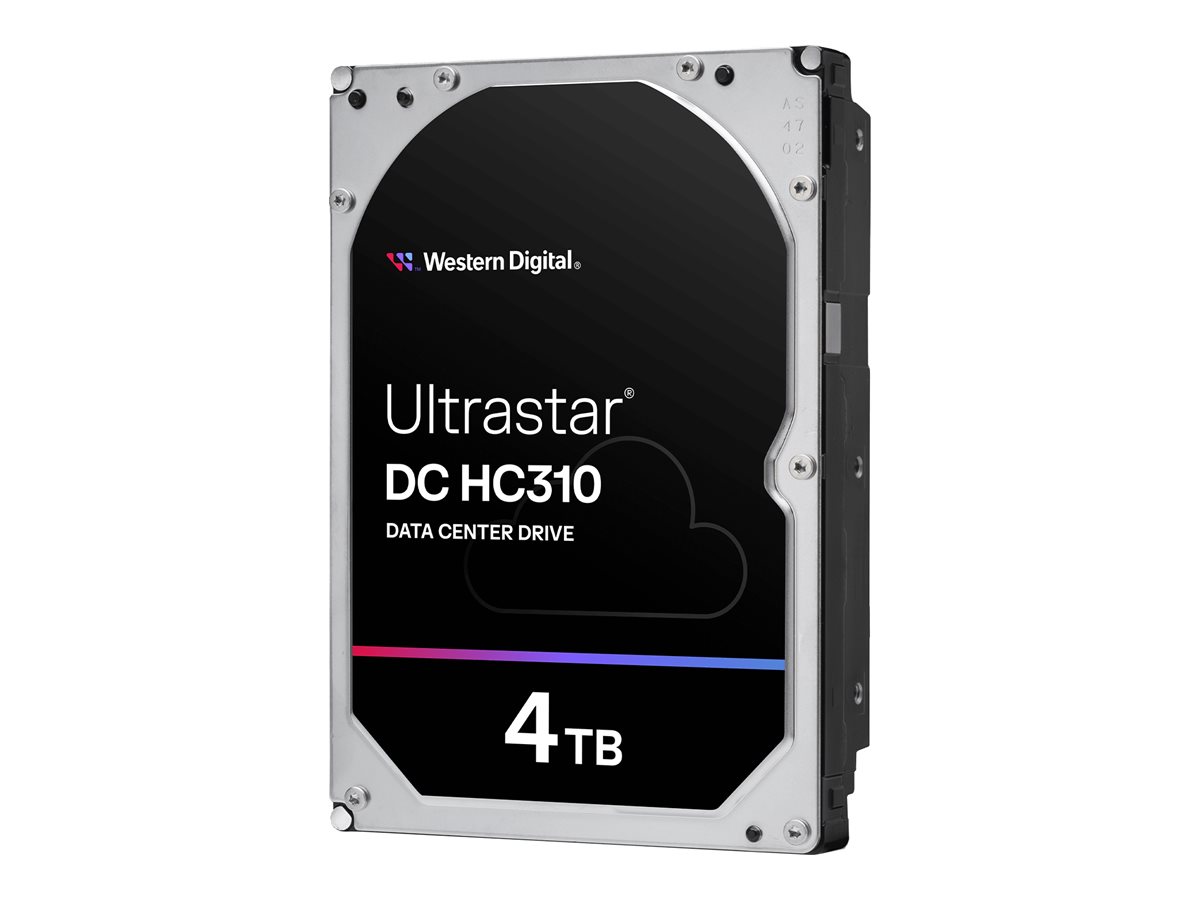

Ultrastar® DC HC310 4TB

The Ultrastar DC HC300-series provides low to mid-capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications.
Ultrastar<sup>®</sup> DC HC310 4TB
slide {0} of {1}, zoom in, Ultrastar® DC HC310 4TB
slide {0} of {1}, zoom in, Ultrastar® DC HC310 4TB
slide {0} of {1}, zoom in, Ultrastar® DC HC310 4TB

Economical Capacities and Fast Data Access Key Requirements for HDDs in the Data Center

IT managers need to offer storage tiers as they deploy purpose-built solutions to meet their on-prem, off-prem & cloud storage requirements. While helium filled drives enable the highest capacities, air-filled drives offer important benefits. With a lower TCA (total cost of acquisition), legacy options, and higher access density (IOPs/TB), they are the perfect choice for maintaining a desired level of performance while allowing customers to tailor budgets to meet their needs. The Ultrastar® DC HC300-series help to address data center requirements by providing capacities from 4TB to 10TB1 while increasing performance over prior generations. They are designed for a variety of applications including traditional storage arrays, rack-mounted storage enclosures and server-based distributed storage systems, as well as distributed and scalable computing, including block and file storage architectures. They are offered at 7,200 RPM with either 6Gb/s SATA or 12Gb/s SAS interface in Advanced Format 4Kn and512e format2. A 512n option is also available on 4TB models to support legacy systems with native 512-byte block sizes.

Technology Innovation Delivers Efficiency and Performance for Traditional and Legacy Systems

Ultrastar DC HC300-series are based on a proven and cost-efficient air-based HDD platform design, with Conventional Magnetic Recording (CMR) technology in a 3.5-inch large form factor. These HDDs leverage common hardware and firmware while featuring a second-generation, dual-stage microactuator to enhance head positioning accuracy for better drive performance. Write performance gains are also supported by Western Digital’s media cache architecture, a disk-based caching technology that provides a large cache area on the disk, improving reliability and data integrity. Finally, the addition of a flash-based non-volatile cache (NVC) on both SATA and SAS models helps improve write performance.

General
Capacity4 TB
InterfaceSAS
SecuritySE
Sector Format512e
compatibilityWindows, Windows Server, Linux
Dimension147mm x 101.6mm x 26.1mm
Product Weight0.715kgs
Transfer Rateup to 255MB/s
Interface DetailsSATA 6Gb/s SAS 12Gb/s
