Product no 995346951
Model STU-430-CH2
Brand Wacom Technology
EAN 4949268622608
Weight 0.68 kg

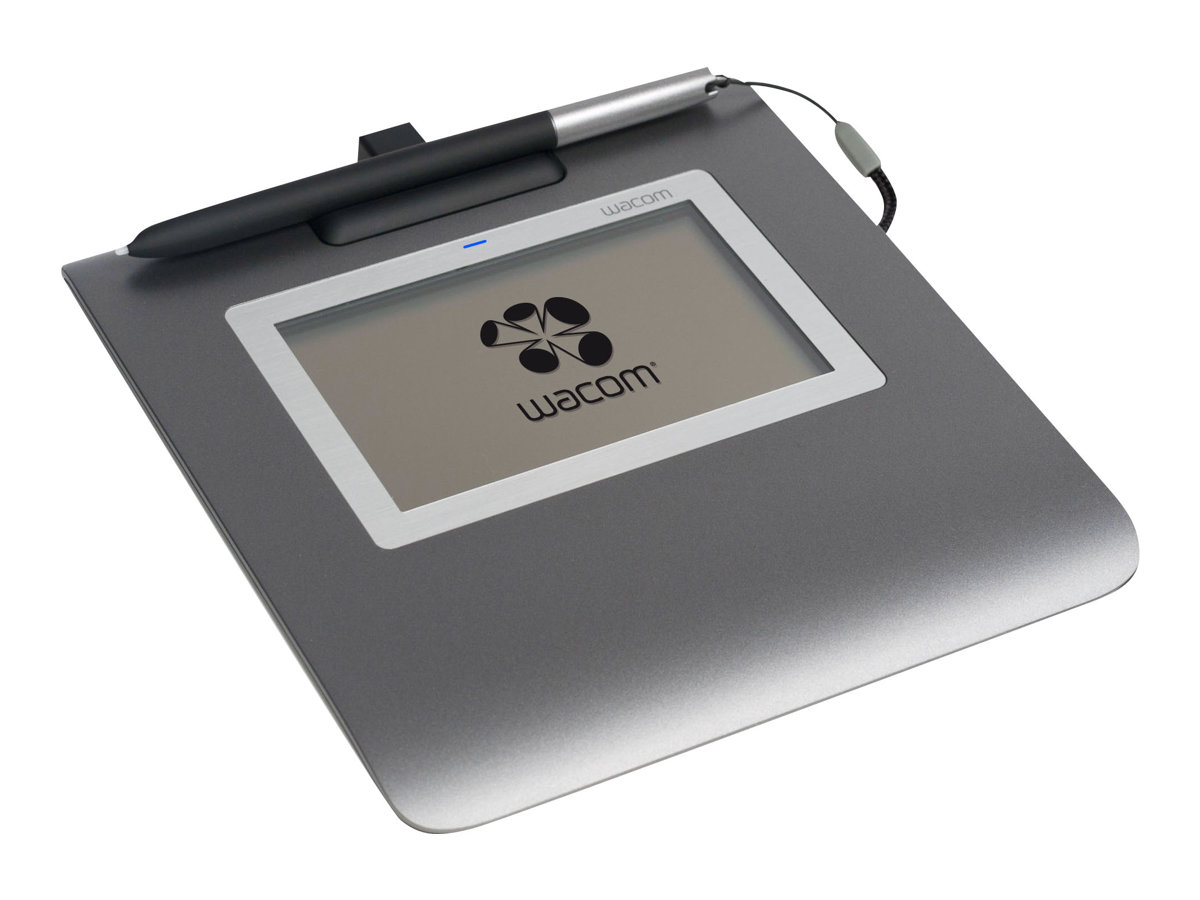

Produktbeskrivelse | Wacom STU-430 - signaturterminal - USB |
Enhedstype | Signaturterminal |
Forbindelsesteknologi | Kablet - USB |
Billedskærm | LCD-skærm - 4.5" - 320 x 200 |
Dimensioner (B x D x H) | 16.1 cm x 17.4 cm x 1.1 cm |
Vægt | 279 g |
Teknologi i detektering af bevægelse | Elektromagnetisk |
Bevægelsesopløsning | 2540 lpi |
Precision | ± 0.5 mm |
Præstation | 200 punkter pr. sekund |
Egenskaber | Trykfølsom pen, USB bus-drevet, penneåbninger, hærdet glas, sikkerhedslåseåbning |
OS nødvendig | Microsoft Windows Vista / 7 / 8, Microsoft Windows XP 32-bit |
General | |
---|---|
Depth | 17.4 cm |
Device Type | Signature terminal |
Height | 1.1 cm |
Weight | 279 g |
Width | 16.1 cm |
Input Device | |
Accuracy | ± 0.5 mm |
Active Area | 9.6 cm x 6 cm |
Connectivity Technology | Wired |
Features | Pressure sensitive pen, USB bus powered, pen slot, tempered glass, security lock slot |
Interface | USB |
Movement Detection Technology | Electromagnetic |
Movement Resolution | 2540 lpi |
Performance | 200 points per second |
Pressure Levels | 1024 |
Display | |
Diagonal Size | 4.5" |
Native Resolution | 320 x 200 |
Pixel Pitch | 0.3 mm |
Type | LCD display |
Expansion / Connectivity | |
Interfaces | 1 x USB - 4 pin USB Type A |
Miscellaneous | |
Compliant Standards | AES, RSA; USB 2.0 |
Included Accessories | Electronic pen, stylus tether, USB cable (3 m) |
Power | |
Power Consumption | 1 Watt |
Software / System Requirements | |
OS Required | Microsoft Windows Vista / 7 / 8, Microsoft Windows XP 32-bit |
Software Included | Wacom sign | pro PDF |
Environmental Parameters | |
Humidity Range Operating | 30 - 80% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 5 °C |
