Product no 993736491
Model TPE-LG50
Brand
Go to brand's website
EAN 0710931161304
Weight 0.53 kg

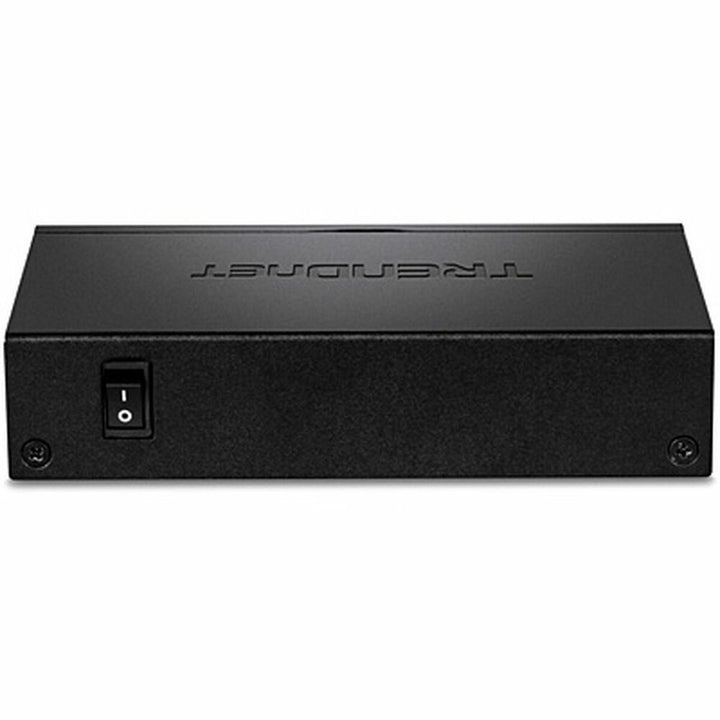

Produktbeskrivelse | TRENDnet TPE LG50 - switch - 5 porte - ikke administreret - TAA-kompatibel |
Enhedstype | Switch - 5 porte - ikke administreret |
Undertype | Gigabit Ethernet |
Porte | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 32 W |
Præstation | Omkoblingskapacitet: 10 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 7,44 Mpps |
MAC adresse table størrelse | 2K indtastningshukommelse |
Jumborammesupport | 9KB |
Egenskaber | VLAN-understøttet, halv dupleksmodus, fuld dupleksmodus, til vægmontering, QoS, blæserløs, indbygget DIP switch, portisolering, CoS, metalkabinet, lang rækkevidde PoE+ op til 200 m ved 10M bps |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at |
Effekt | AC 120/230 V (50/60 Hz) |
Dimensioner (B x D x H) | 12.1 cm x 7.5 cm x 2.6 cm |
Vægt | 246 g |
TAA kompatibel | Ja |
Producentgaranti | Begrænset livtidsgaranti |
General | |
---|---|
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at |
Device Type | Switch - 5 ports - unmanaged |
Enclosure Type | Desktop |
Features | VLAN support, half duplex mode, full duplex mode, wall mountable, Quality of Service (QoS), fanless, built-in DIP switch, port isolation, Class of Service (CoS), metal housing, long range PoE+ up to 200m at 10Mbps |
Jumbo Frame Support | 9KB |
MAC Address Table Size | 2K entries |
Performance | Switching capacity: 10 Gbps | Forwarding performance (64-byte packet size): 7.44 Mpps |
PoE Budget | 32 W |
Ports | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
RAM | 128 KB |
Status Indicators | Power, alert, PoE, link/activity, link/speed |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 4 x Gigabit LAN RJ-45 PoE+ | 1 x Gigabit LAN RJ-45 |
Power | |
Power Consumption Operational | 36.3 Watt |
Power Device | External power adapter |
Power Provided | 54 V - 0.7 A |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
Compliant Standards | Plug and Play, FCC, RoHS, WEEE |
Dimensions & Weight | |
Depth | 7.5 cm |
Height | 2.6 cm |
Weight | 246 g |
Width | 12.1 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
Humidity Range Operating | 0 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
