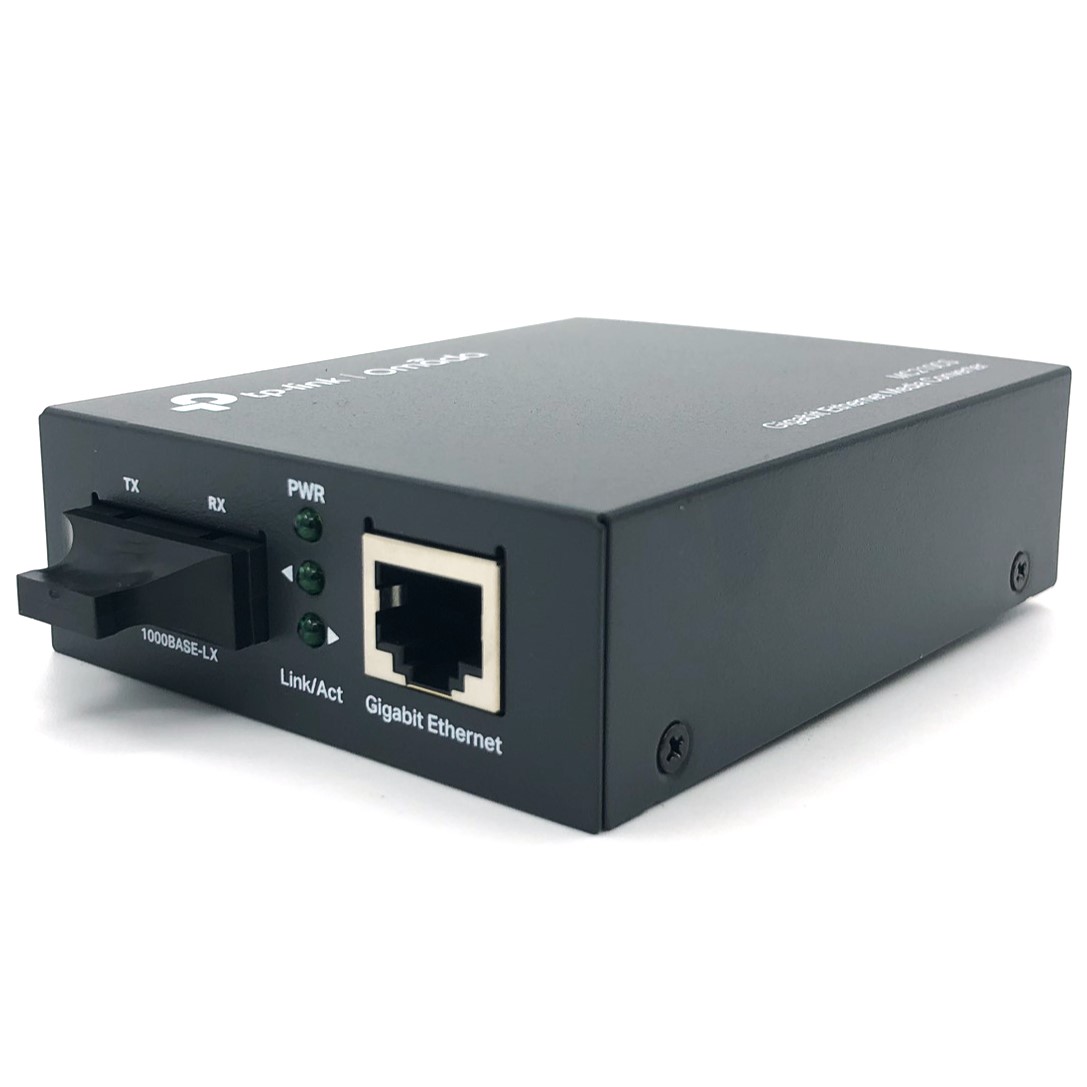

TP-Link MC210CS Fibermedieomformer Gigabit Ethernet
TP-Link MC210CS - Fibermedieomformer - 1GbE - 1000Base-FX, 1000Base-T - RJ-45 / SC enkelttilstand - op til 15 km - 1310 nm - for P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1
-
Product no 987666395
Model MC210CS
Brand
Go to brand's websiteEAN 6935364030445
Weight 0.46 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TP-Link MC210CS - fibermedieomformer - 1GbE |
| Enhedstype | Fibermedieomformer - RJ-45 / SC enkelttilstand |
| Model | Ekstern |
| Kabeltype | 1000Base-FX, 1000Base-T |
| Dataoverførselshastighed | 1 Gbps |
| Optisk bølgelængde | 1310 nm |
| Dataforbindelsesprotokol | 1GbE |
| Maks. overføringsafstand | 15 km |
| Dimensioner (B x D x H) | 9.5 cm x 7.3 cm x 2.7 cm |
| Designet for | P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1 |
| General | |
|---|---|
| Device Type | Fiber media converter |
| Form Factor | External |
| Networking | |
| Cabling Type | 1000Base-FX, 1000Base-T |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode |
| Max Transfer Distance | 15 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, receive, link/activity |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-FX - SC single-mode female x 2 |
| Power | |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Depth | 7.3 cm |
| Height | 2.7 cm |
| Width | 9.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Compatibility Information | |
| Designed For | P/N: TL-MC1400, TL-SG3452XP V1 |
