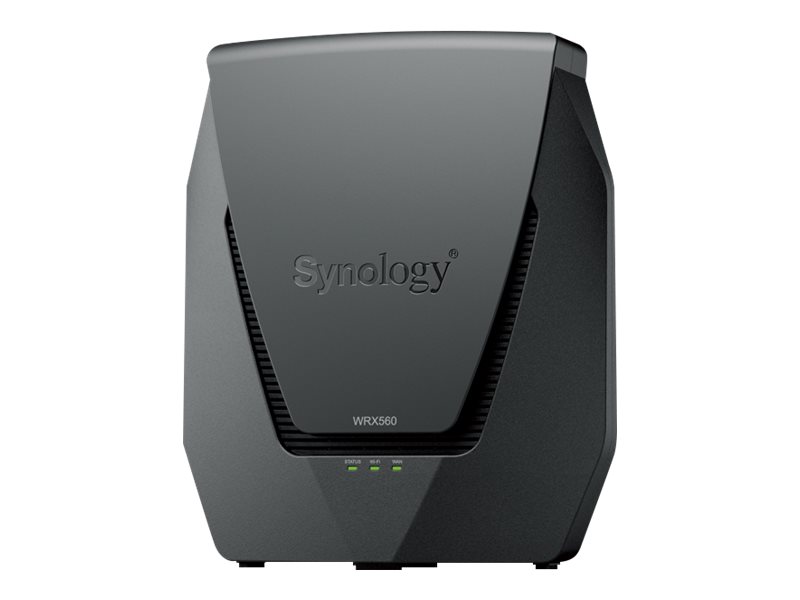

Synology WRX560 Trådløs router Desktop
Synology WRX560 - - trådløs router - - mesh 4-port switch - 1GbE, 2.5GbE - WAN-porte: 2 - Wi-Fi 6
2 009,00DKK1 607,20DKK excl. VAT
-
Product no 1000842257
Model WRX560
Brand Synology
EAN 4711174724970
Weight 1.31 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Synology WRX560 - trådløs router - Wi-Fi 6 - desktop |
| Enhedstype | Trådløs router - mesh - 4-port switch (integreret) |
| Pakningstype | Desktop |
| Antal WAN porte | 2 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax |
| Dataoverførselshastighed | 3 Gbps |
| Præstation | Maksimum datahastighed (2,4 GHz): 600 Mbps<br>Maksimum datahastighed (5 GHz): 2400 Mbps |
| Kapacitet | Maksimalt antal VLANs: 5<br>Maksimale MAC-filtre: 64<br>Maksimale enheder på per MAC-filter: 256<br>Maksimalt antal konfigurerede SSID'er: 10<br>Maksimale antal samtidige brugere: 150<br>Maksimale DHCP-reservationer: 500<br>IPv4 ruter (statisk): 100<br>IPv6 ruter (statisk): 100<br>Maksimalt antal VLANs: 5 |
| Netværks/overføselsprotokol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, SMB, IPv6, FTPS, CIFS, OpenVPN, DS-Lite, LPR |
| Routingprotokol | IGMP |
| Protokol til fjernadministration | SNMP, IPP, SSH |
| Egenskaber | NAT-understøtning, WOL, DoS attack beskyttelse, VPN passthrough, forældrekontrol, Tilgangspunkt, drift, QoS, dual WAN tilslutning, DHCP server, FTP server, SMS alarmer, port fremsendelse, nulstillingsknap, 2T2R MIMO teknologi, DNS server, port triggering, 3G/4G USB Dongle Support, Traffic Control, DHCP klient, e-mail meddelelse, 4T4R MIMO-teknologi, VPN-server, stråleformeteknologi, Web Filtering, VPN-klient, dobbeltbånd, push-notifikation, Smart Connect, DFS, routertilstand, WebDAV-serversupport, DMZ-support, skystationsserver, trafikovervågning, 2-faktorautentificering, WPS-knap, VLAN-segmentering, Guest Network, Android-binding, Wi-Fi til/fra-knap, Quad-core CPU, RADIUS Server, plan til/fra, tidsmaskinereserve, VPN Plus Server, primært Wi-Fi-punkt, Wi-Fi-punkt, iPhone-tøjring, politikrute, statisk rute, NAT loopback, trafikrapport |
| Overensstemmelsesstandarder | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, WiFi-certificeret, IEEE 802.11n, IEEE 802.11k, UPnP, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 19.4 cm x 6.6 cm x 23.3 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Capacity | Maximum number of VLANs: 5 | Maximum MAC filters: 64 | Maximum devices on per MAC filter: 256 | Maximum number of configured SSIDs: 10 | Maximum number of concurrent users: 150 | Maximum DHCP reservations: 500 | IPv4 routes (static): 100 | IPv6 route |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11k, UPnP, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, VCCI, BSMI, JATE, IC, FCC, RoHS, TELEC, KC, NCC, iDA, RCM, UKCA |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax |
| Data Transfer Rate | 3 Gbps |
| Device Type | Wireless router - mesh - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | SSL, WPA-Enterprise, WPA2-Enterprise, WPS2, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE), WPA2-Personal, WPA-Personal |
| Features | NAT support, wake on LAN (WOL), DoS attack prevention, VPN passthrough, parental control, Access Point operational mode, Quality of Service (QoS), dual WAN connection, DHCP server, FTP server, SMS alert, port forwarding, reset button, 2T2R MIMO techn |
| Mesh Networking | Yes |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, SMB, IPv6, FTPS, CIFS, OpenVPN, DS-Lite, LPR |
| Performance | Maximum data rate (2.4 GHz): 600 Mbps | Maximum data rate (5 GHz): 2400 Mbps |
| Processor | 1 x 1.4 GHz |
| RAM | 512 MB DDR4 SDRAM |
| Remote Management Protocol | SNMP, IPP, SSH |
| Routing Protocol | IGMP |
| Status Indicators | Status, WAN, Wi-Fi |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | USB 3.2 Gen 1: 1 x 9 pin USB Type A | WAN / LAN: 1 x 2.5GBase-T - RJ-45 |
| Antenna | |
| Antenna Qty | 6 |
| Directivity | Omni-directional |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Software / System Requirements | |
| OS Provided | Synology Router Manager |
| Dimensions & Weight | |
| Depth | 6.6 cm |
| Height | 23.3 cm |
| Width | 19.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
