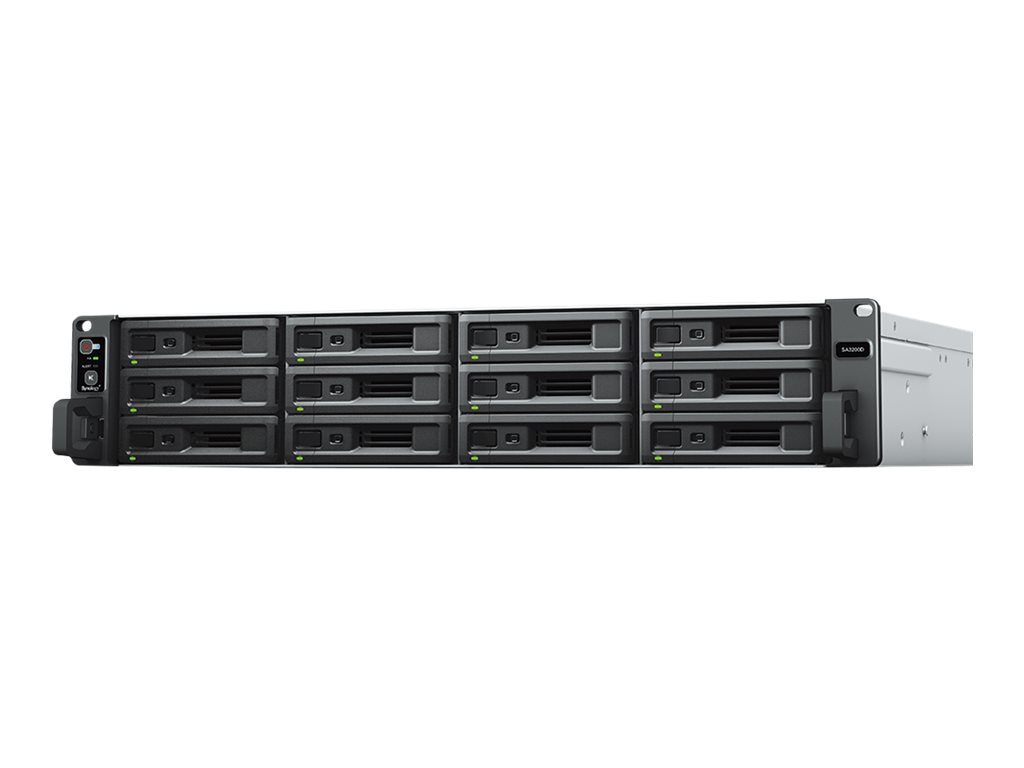

Synology SA3200D 12Moduler
Synology SA3200D har en arkitektur med to controllere, der sikrer, at drift og centrale forretningsfunktioner ikke påvirkes af en katastrofe eller uplanlagt hændelse, der sætter kritiske systemer offline. Redundansmekanismen for hardware udnytter controllere, strømforsyninger og blæsere til at forhindre en enkelt fejl. SA3200D, der drives af det intuitive og funktionsrige operativsystem DiskStation Manager (DSM), leverer omfattende beskyttelse af netværk, filtjenester og applikationer.
-
Product no 995649797
Model SA3200D
Brand Synology
EAN 4711174723713
Weight 20 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Synology SA3200D - NAS-server |
| Enhedstype | NAS-server |
| Vært Tilslutning | Gigabit Ethernet / 10 Gigabit Ethernet |
| Pakningstype | Rackversion - 2U |
| Maks. antal understøttet | 192 TB |
| Installeret udstyr/antal moduler | 0 (installeret) / 12 (maks.) |
| Dimensioner (B x D x H) | 48.2 cm x 72.4 cm x 8.8 cm |
| Vægt | 19.7 kg () |
| Processor | 2 x Intel Xeon D-1521 2.4 GHz (Quad-Core) |
| Controller for lagring | RAID RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 |
| Netværk | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Understøttede IP Kameraer | 100 |
| RAM | 16 GB |
| Effekt | AC 120/230 V (50/60 Hz) |
| Systemkrav | Microsoft Windows 7 eller senere, Apple MacOS X 10.11 eller nyere |
| Producentgaranti | 5 års garanti |
| General | |
|---|---|
| Depth | 72.4 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 2U |
| Height | 8.8 cm |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Max Supported Capacity | 192 TB |
| Total Storage Capacity | 0 GB |
| Weight | 19.7 kg () |
| Width | 48.2 cm |
| Processor / Memory | |
| Features | ECC |
| Max Supported Qty | 2 |
| Max Turbo Speed | 2.7 GHz |
| Number of Cores | Quad-Core |
| Processors Installed | 2 x Intel Xeon D-1521 2.4 GHz |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Storage Controller | |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1 |
| Type | RAID |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 10 GigE |
| Encryption Algorithm | AES-NI |
| Features | Firewall protection, VPN support, LDAP support, wake on LAN (WOL), antivirus analysis, High Availability, download client, anti-malware protection, Access Control List (ACL) support, e-mail server, reset button, bandwidth control, surveillance statio |
| Network / Transport Protocol | PPTP, L2TP, iSCSI, SMTP, FTP, SMB, NFS, HTTPs |
| Network Services Compatibility | Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
| Remote Management Protocol | SNMP, Telnet, HTTPS, SSH, SMTP, LDAP |
| Security DVR | |
| Compression Format | H.264 |
| IP Cameras Supported | 100 |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 x PCI Express 3.0 x8 |
| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 | 2 x serial - DB-9 | 2 x Ethernet 10Gb - RJ-45 |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, CCC, FCC, RoHS, EAC, RCM |
| Features | Built-in 4 cooling fans |
| Included Accessories | Accessory pack |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 417.48 Watt |
| Power Device | Internal power supply |
| Power Provided | 500 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 or later, Apple MacOS X 10.11 or later |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 51.3 dBA |
