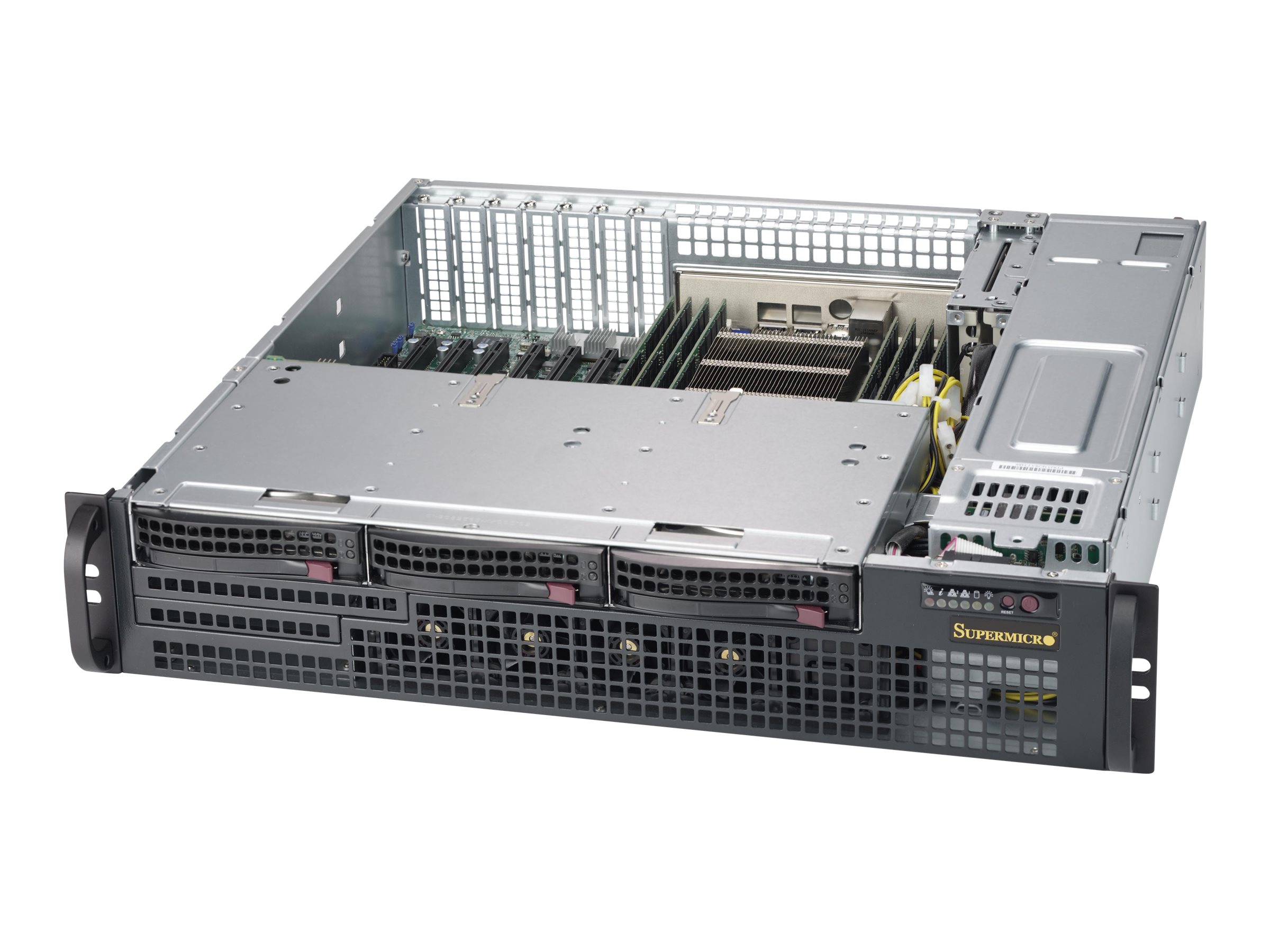

Supermicro SC825M BTQC-R802LPB Rackversion Forstærket forlænger ATX 800Watt Strømforsyning Sort
Supermicro SC825M BTQC-R802LPB - Rack-monterbar 2U - forstærket forlænger ATX - SATA/SAS - hot-swap 800 watt - sort
6 584,00 DKK
5 267,20 DKK excl. VAT
-
Product no 995768237
Model CSE-825MBTQC-R802LPB
Brand Super Micro Computer
EAN 0672042291595
Weight 20.08 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Supermicro SC825M BTQC-R802LPB - rack-monterbar - 2U - forstærket forlænger ATX |
| Produkttype | Systemkabinet |
| Model | Rack-monterbar - 2U |
| Farve | Sort |
| Indbygget udstyr | LED-panel |
| I/O-kontakter | 2 x USB 2.0 - (valgfri)<br>1 x seriel - (valgfri) |
| Understøttede motherboards | Enhanced extended ATX |
| Server-lagringsenheder | SATA/SAS - hot-swap |
| Egenskaber, systemkabinet | Understøttelse til SCSI Enclosure Services (SES2) |
| Strømenhed | Strømforsyning 800 watt |
| Overskudsspænding | Ja |
| Nødvendig spænding | AC 120/230 V (50 - 60 Hz) |
| Dimensioner (B x D x H) | 43.7 cm x 45 cm x 8.9 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Built-in Devices | LED panel |
| Color | Black |
| Cooling System | 40 x 40 x 56 mm fan x 4 / 11000-13000 rpm / Pulse-width modulation (PWM) support | 40 x 40 x 56 mm fan mount x 1 |
| Form Factor | Rack-mountable - 2U |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 3 |
| Max Mainboard Size | Enhanced extended ATX |
| Server Swappable Drive Interface | SATA/SAS |
| Supported Motherboards | Enhanced extended ATX |
| System Cabinet Features | SCSI Enclosure Services (SES2) support |
| Expansion / Connectivity | |
| Expansion Bays | 3 (total) / 3 (free) x hot-swap - 3.5" | 1 (total) / 1 (free) x front accessible - 5.25" Slim Line |
| Expansion Slots | 7 x low-profile |
| Interfaces | 2 x USB 2.0 - (optional) | 1 x serial - DB-9 - (optional) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV, BSMI, cUL, CB, CCC, RoHS, REACH, CE/EMC |
| Included Accessories | Mounting rails, SAS / SATA backplane, air shroud |
| Power | |
| 80 PLUS Certification | 80 PLUS Titanium |
| Installed Qty | 2 |
| Power Device | Power supply |
| Power Provided | 800 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Dimensions & Weight | |
| Depth | 45 cm |
| Height | 8.9 cm |
| Width | 43.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 82.6 cm |
| Shipping Height | 25.1 cm |
| Shipping Weight | 19.05 kg |
| Shipping Width | 59.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year | Limited warranty - labor - 3 years | Limited warranty - advance parts replacement - 30 days |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
