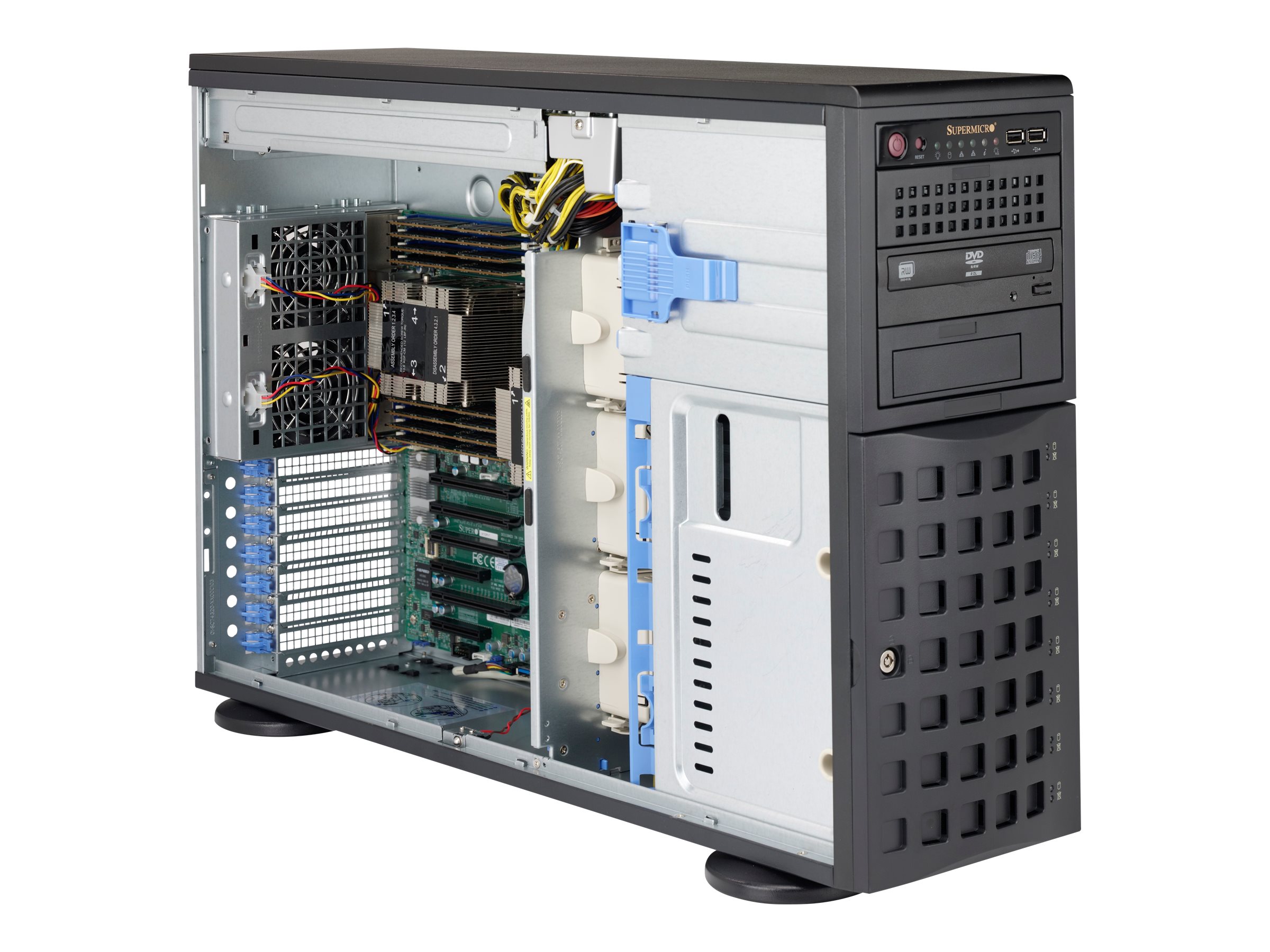

Supermicro SC745 BAC-R1K23B Tårn Udvidet ATX 1200Watt Strømforsyning Sort
Supermicro SC745 BAC-R1K23B - Tower 4U - udvidet ATX - SATA/SAS - hot-swap 1200 watt - sort - USB
9 459,00 DKK
7 567,20 DKK excl. VAT
-
Product no 998627347
Model CSE-745BAC-R1K23B
Brand Super Micro Computer
EAN 0672042429936
Weight 28.12 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Supermicro SC745 BAC-R1K23B - tower - 4U - udvidet ATX |
| Produkttype | Systemkabinet |
| Model | Tower - 4U |
| Farve | Sort |
| I/O-kontakter | 2 x USB 3.0 |
| Understøttede motherboards | ATX, microATX, Extended ATX |
| Server-lagringsenheder | SATA/SAS - hot-swap |
| Egenskaber, systemkabinet | Lås til frontpanel, chassis intrusion styring |
| Strømenhed | Strømforsyning 1200 watt |
| Overskudsspænding | Ja |
| Nødvendig spænding | AC 120/230 V (50 - 60 Hz) |
| Dimensioner (B x D x H) | 17.8 cm x 64.7 cm x 45.2 cm |
| Vægt | 26.76 kg |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Color | Black |
| Cooling System | Internal: 80 x 80 x 38 mm fan x 3 / 9400 rpm / hot-swap | Rear: 80 x 80 x 38 mm fan x 2 / exhaust / 9400 rpm / Pulse-width modulation (PWM) support, hot-swap |
| Form Factor | Tower - 4U |
| Front Accessible Bays Qty | 3 |
| Hot-Swap Bays Qty | 8 |
| Max Mainboard Size | Extended ATX |
| Server Swappable Drive Interface | SATA/SAS |
| Supported Motherboards | ATX, microATX, Extended ATX |
| System Cabinet Features | Front panel lock, chassis intrusion detection |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" shared | 3 (total) / 3 (free) x front accessible - 5.25" |
| Expansion Slots | 7 x full-length, full-height |
| Interfaces | 2 x USB 3.0 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, BSMI, CB, CCC, CE/EMC |
| Included Accessories | SAS / SATA backplane, air shroud |
| Power | |
| 80 PLUS Certification | 80 PLUS Titanium |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Capacity (of Single Unit) | 1200 Watt |
| Power Device | Power supply |
| Power Provided | 1200 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Dimensions & Weight | |
| Depth | 64.7 cm |
| Height | 45.2 cm |
| Weight | 26.76 kg |
| Width | 17.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 28.12 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labor - 3 years | Limited warranty - parts - 1 year | Limited warranty - advance parts replacement - 30 days |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
