StarTech.com PCI-X Seriel adapter
Startech 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050 - Seriel adapter - PCI-X - RS-422/485 x 2
-
Product no 988492674
Model PCI2S4851050
Brand StarTech.com
EAN 0065030842587
Weight 0.15 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Startech 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050 - seriel adapter - PCI-X - RS-422/485 x 2 |
| Enhedstype | Seriel adapter |
| Model | Indstikskort |
| Grænseflade (bus) type | PCI-X |
| Porte | RS-422/485 x 2 |
| Dimensioner (B x D x H) | 4.5 cm x 12 cm x 1.8 cm |
| Vægt | 56 g |
| Dataforbindelsesprotokol | RS-422, RS-485 |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI-X |
| Networking | |
| Data Link Protocol | RS-422, RS-485 |
| Features | Flow control |
| Ports | RS-422/485 x 2 |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI-X |
| Interfaces | 2 x RS-422/485 - 9 pin D-Sub (DB-9) |
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 1.8 cm |
| Weight | 56 g |
| Width | 4.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

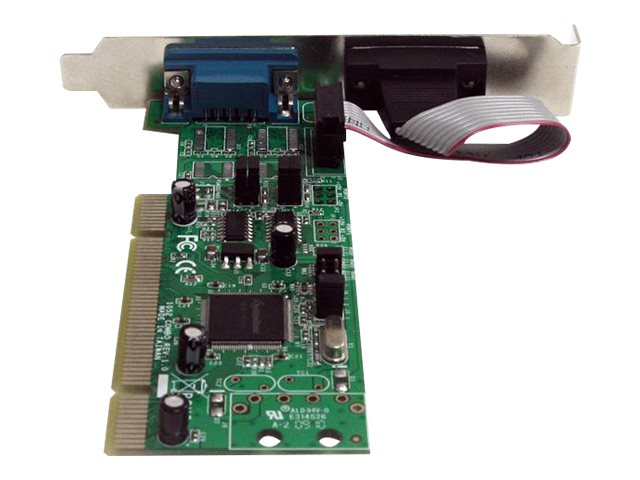

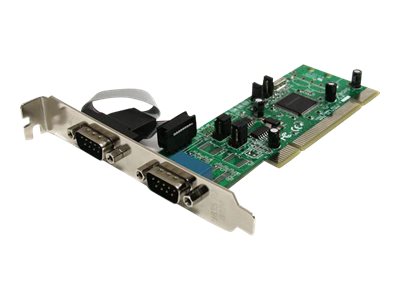

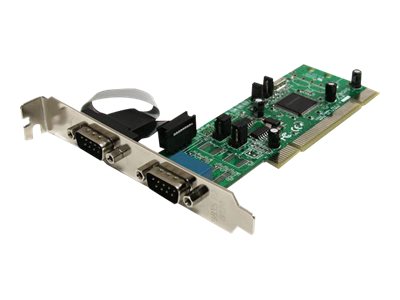

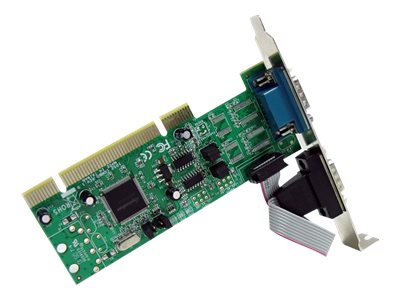

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

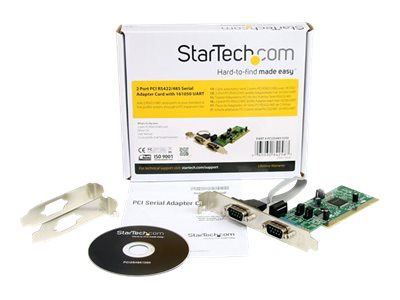

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
