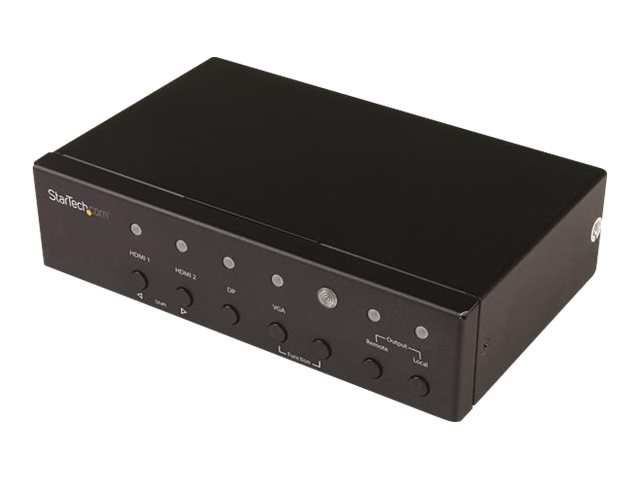

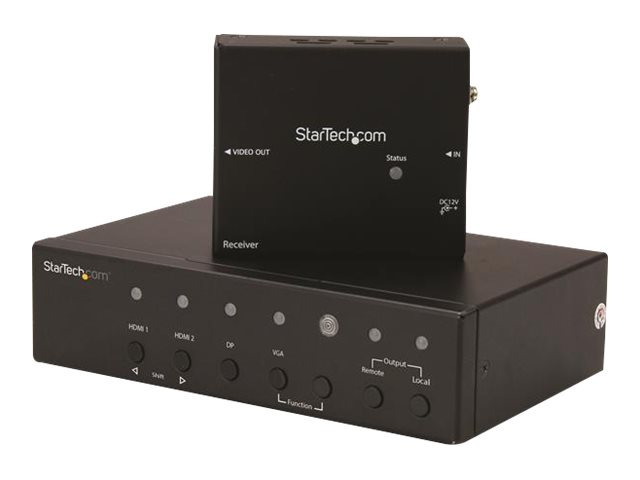

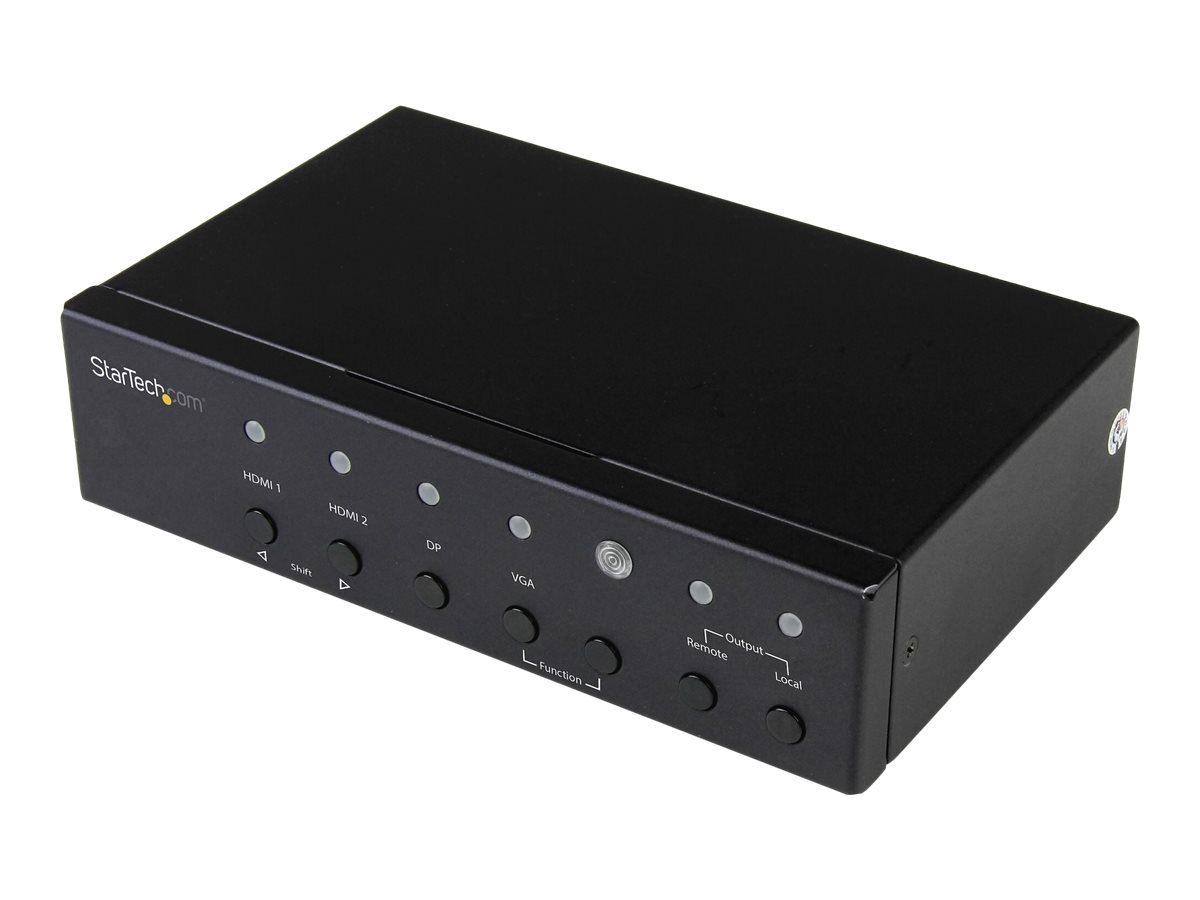

StarTech.com Multi-Input HDBaseT Extender Built-in - DisplayPort VGA and HDMI Over CAT5 or CAT6 - Up to 4K - up to 230 ft (STDHVHDBT) Video/audio ekspander

StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort VGA and HDMI Over CAT5e or CAT6 - Up to 4K - up to 230 ft (STDHVHDBT) - Video/audio ekspander - HDMI - over CAT 5e/6 - op til 70 m
5 952,00DKK4 761,60DKK excl. VAT

  • Product no 992021032

    Model STDHVHDBT

    Brand StarTech.com

    EAN 0065030864572

    Weight 1.68 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort VGA and HDMI Over CAT5e or CAT6 - Up to 4K - up to 230 ft (STDHVHDBT) - video/audio ekspander - HDMI
Enhedstype Video/audio ekspander
Model Rackmonterbar
Dataforbindelsesprotokol HDMI
Transmissionsmedie CAT 5e/6
Maks. overføringsafstand 70 m
Effekt AC 120/230 V / DC 12 V
Producentgaranti 2 års garanti
General
Device Type Video/audio extender
Form Factor Rack-mountable
Networking
Connectivity Technology Wired
Data Link Protocol HDMI
Features 4K resolution support, 7.1 channel audio support, Dolby TrueHD support, DTS-HD Master Audio support, 1080p resolution support
Max Transfer Distance 70 m
Status Indicators Status
Expansion / Connectivity

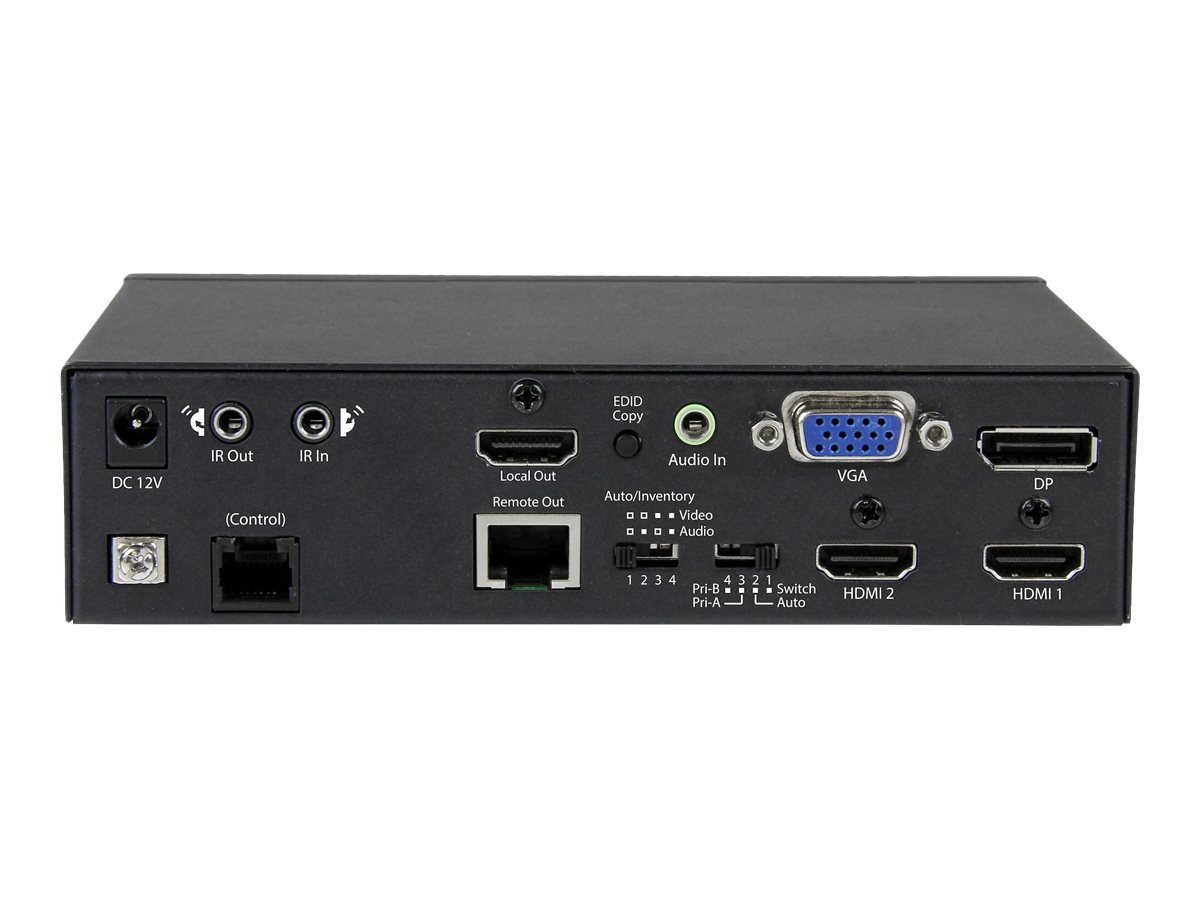

Interfaces 1 x HDBaseT (input) - RJ-45 female | 1 x HDMI (output) - 19 pin HDMI Type A female | 2 x HDMI (input) - 19 pin HDMI Type A female | 1 x DisplayPort (input) female | 1 x VGA (input) - DB-15 female | 2 x IrDA female | 1 x (output) - RJ-45 female
Miscellaneous

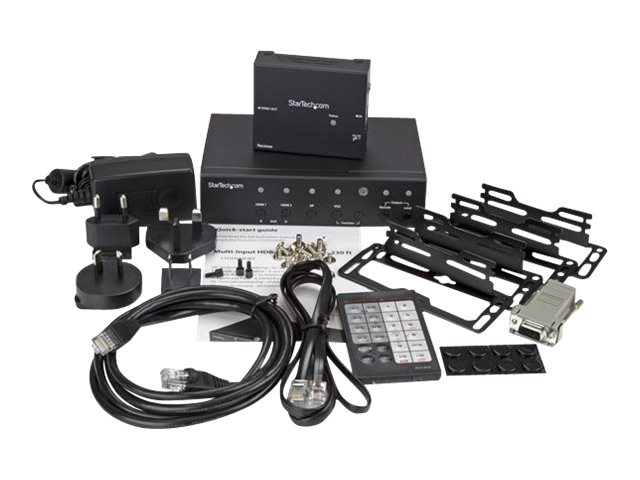

Cables Included 1 x network cable | 1 x RJ-11 phone cable

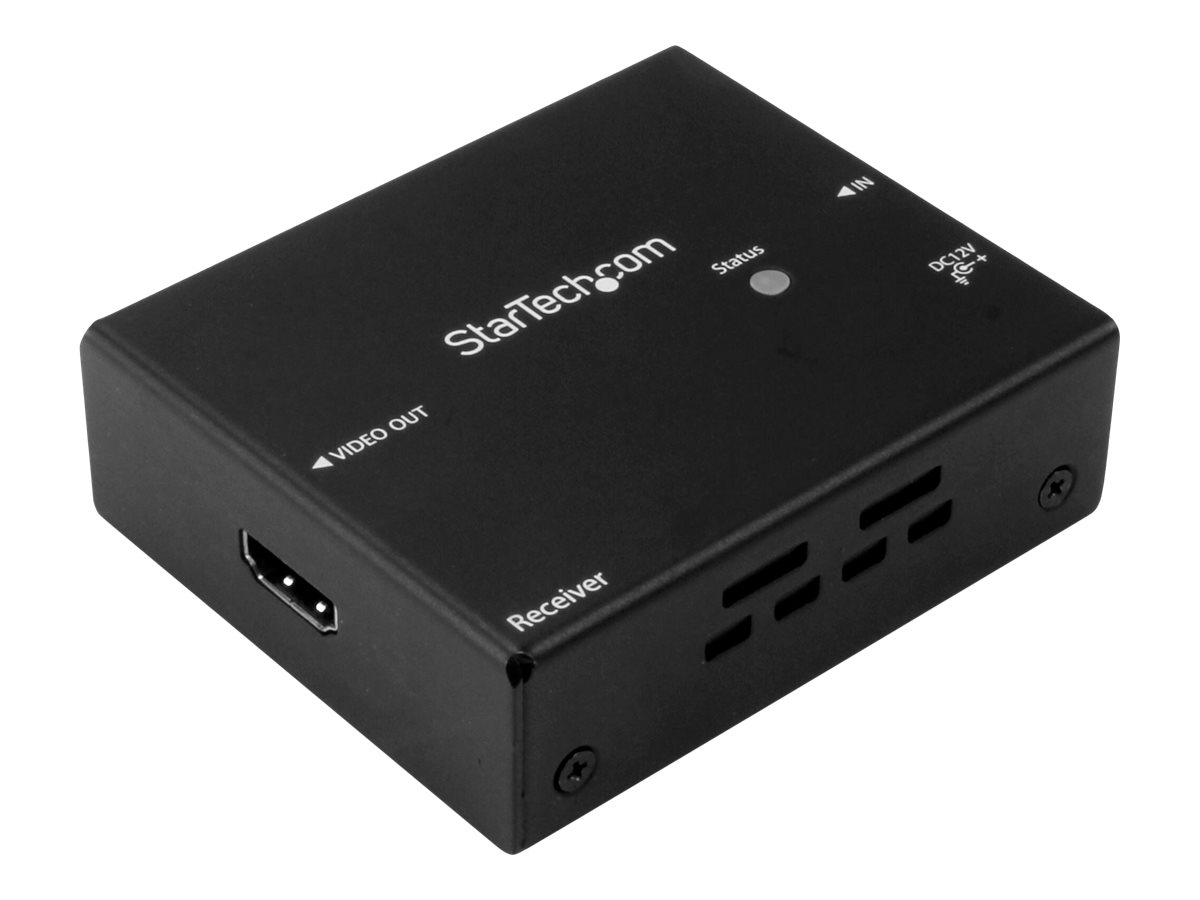

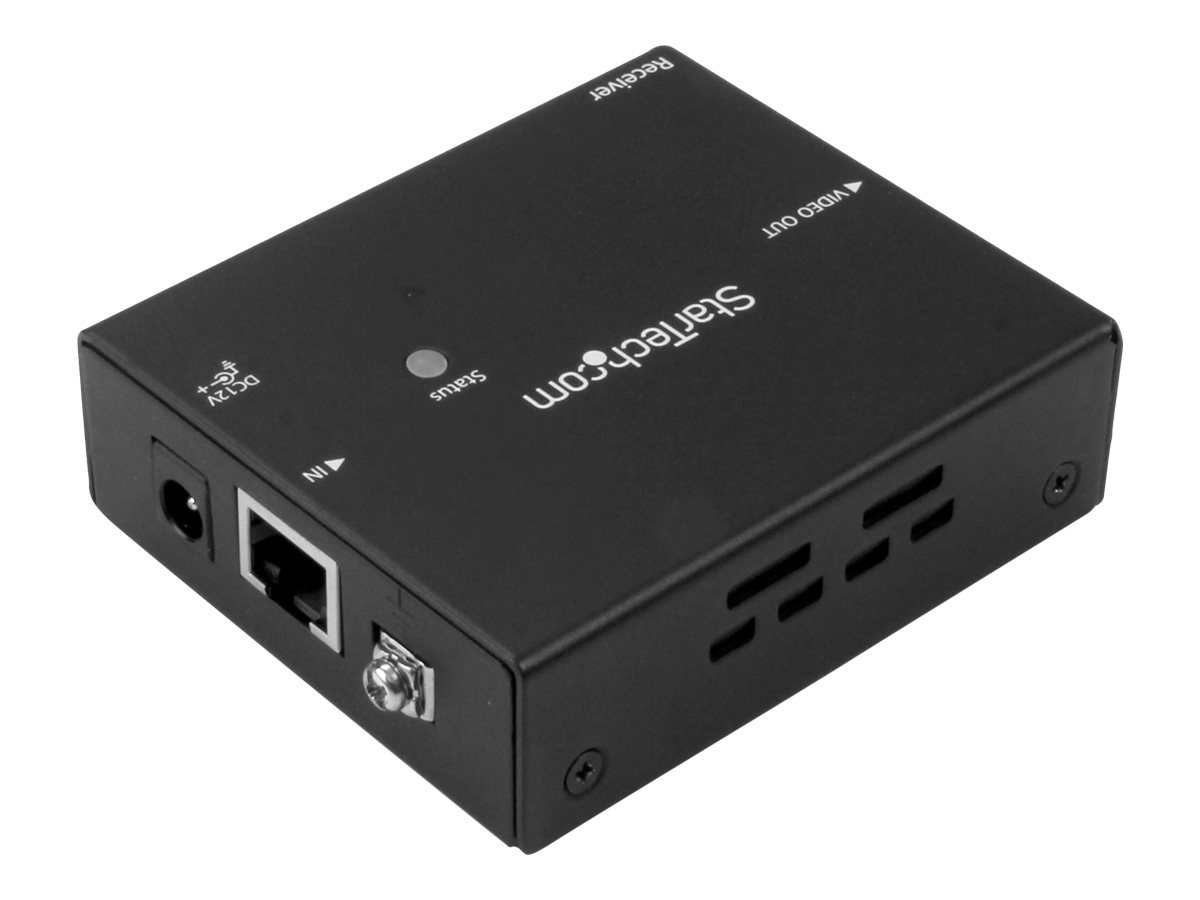

Included Accessories Remote control, 2 mounting brackets, foot pad set, HDBaseT receiver
Power
Power Device External power adapter
Voltage Required AC 120/230 V / DC 12 V
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 0 - 80% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C

Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources

  • Savethe hassle and expense of using multiple hardware devices, with a switch and extender in one device that accommodates VGA, DP and HDMI inputs
  • Maintain astonishing picture quality up to 130 feet away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
  • Supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70 m)
  • Tidy, professional installation with included mounting brackets
  • No software or drivers required with plug-and-play installation
  • Dolby TrueHD, DTS-HD MA Audio
Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
slide {0} of {1}, zoom in, Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
slide {0} of {1}, zoom in, Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
slide {0} of {1}, zoom in, Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
slide {0} of {1}, zoom in, Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
slide {0} of {1}, zoom in, Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
slide {0} of {1}, zoom in, Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
Seamless multi-interface operation, with a switch and extender in one

Seamless multi-interface operation, with a switch and extender in one

This HDBaseT extender features a built-in converter switch, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same remote HDMI display, without having to use additionaladapters or scalers or a separate video switch.

With support for multiple video sources and HDBaseT, this extender isthe perfect solution for adding a large display to your boardroom or classroom, enabling BYOD laptops with HDMI, DisplayPort or VGA outputs to share their display with the room.
Effortless control with automatic or priority switching

Effortless control with automatic or priority switching

The extender switch ensures hassle-free operation, with two differentauto-switching modes: auto-detect switching, which detects and selects anewly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching.

The multi-input video extender kit is perfect for digital signage applications, where an automatic switch can replace a failed source witha secondary input to avoid embarrassing video outages. Plus, the combined built-in HDBaseT functionality means you can connect a remote digital signage display with one kit that reduces failure points.
Hassle-free integration with your existing infrastructure

Hassle-free integration with your existing infrastructure

The kit extends your video signal over a single cable, unlike some video extender systems that require two cables and only offer minimal audio support. Extending your video with one cable reduces potential failure points and also lowers your cabling costs.

Using standard CAT5e, CAT6 or CAT7 cables, the HDBaseT extender workswith existing Ethernet infrastructure that's already built into large commercial buildings such as shopping centers, stadiums, schools, and hospitals, making it the perfect solution for deploying digital signage.

Applications

  • Use in your classroom or boardroom display, to enable presenters to connect a wide range of devices
  • Automatically switch between your set-top box or computer, for remote entertainment displays, in hospitality settings, such as restaurants, bars or hotels
  • Create brilliant digital signage displays in large commercial settings such as hospitals, shopping centers or stadiums
