StarTech.com Industrial USB 2.0 Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD Level 4 Protection, DIN/Wall/Desk Mountable USB-A Hub, Multiport USB Hub Locking Ports - Metal Construction (USB210AIND-USB-A-HUB) Hub 10 porte USB

StarTech.com 10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD Level 4 Protection, DIN/Wall/Desk Mountable USB-A Hub, Multiport USB Hub with Locking Ports - Metal Construction (USB210AIND-USB-A-HUB) - Hub - industriel - 10 x USB 2.0 - desktop, DIN monterbar på skinne, væg-monterbar - TAA-kompatibel
1 207,00DKK965,60DKK excl. VAT

  • Product no 1000894315

    Model USB210AIND-USB-A-HUB

    Brand StarTech.com

    EAN 0065030894616

    Weight 0.34 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD Level 4 Protection, DIN/Wall/Desk Mountable USB-A Hub, Multiport USB Hub with Locking Ports - Metal Construction (USB210AIND-USB-A-HUB) - hub - industriel - 10 porte - TAA-kompatibel
Enhedstype Hub - 10 porte
Undertype USB
Porte 10 x USB 2.0
Egenskaber 8KV ESD Protector (kontaktafladning), 15KV ESD Protector (lufthulsafladning), stålkabinet, integreret monteringsbøjle, låsbare porte
Overensstemmelsesstandarder USB 1.1, USB 2.0
Dimensioner (B x D x H) 5.6 cm x 19.8 cm x 3.1 cm
Vægt 340 g
Farve Sort
TAA kompatibel Ja
Producentgaranti 2 års garanti
General
Compliant Standards USB 1.1, USB 2.0
Device Type Hub - 10 ports
Enclosure Type Desktop, DIN rail mountable, wall-mountable
Features 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), steel housing, integrated mounting bracket, lockable ports
Ports 10 x USB 2.0
Processor X Terminus Tech FE2.1
Status Indicators Power
Subtype USB
Expansion / Connectivity
Interfaces 10 x USB 2.0 Type A | 1 x USB 2.0 Type B host | 1 x terminal block
Miscellaneous
Cables Included 1 x USB-B to USB-A screw-lock cable - 1.8 m
Color Black
Compliant Standards WEEE, RCM
Included Accessories Mounting screws, 2 DIN-rail mounting brackets
TAA Compliant Yes
Dimensions & Weight
Depth 19.8 cm
Height 3.1 cm
Weight 340 g
Width 5.6 cm
Dimensions & Weight (Shipping)
Shipping Depth 24.5 cm
Shipping Height 5.5 cm
Shipping Weight 600 g
Shipping Width 16.8 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years | Technical support - assistance - lifetime
Environmental Parameters
Humidity Range Operating 5 - 95% RH
Max Operating Temperature 60 °C
Max Storage Temperature 75 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image
slide {0} of {1}, zoom in, Product image

Metal Construction | 6ft (1.8m) USB Host Cable Included

Rugged Construction
Connect 10 USB Type-A USB Devices
Compatibility

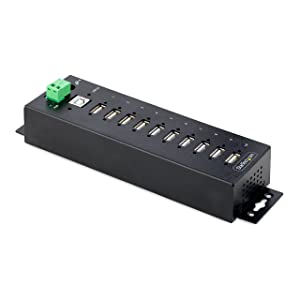

Rugged Construction

This industrial USB 2.0 Hub delivers reliable performance in the most challenging conditions where operating temperatures range from 32 to 140°F (0 to 60°C) at 95% relative humidity.

The ESD level 4 protection (15kV air and 8kV contact) ensures your equipment is protected from electrostatic damage. An external power source is required, 5 to 24V DC. Optionally, StarTech.com offers part ITB20D3250 to power the Hub via the 2-wire terminal block port.

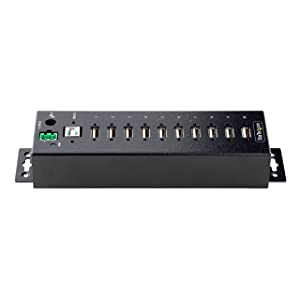

Connect 10 USB Type-A USB Devices

The USB Hub features screw-lock USB ports for the upstream and downstream connections to prevent accidental disconnects. Driverless installation and OS-independent speed up any deployment ensuring little downtime and compatibility with many USB peripherals.

The rugged USB Hub supports 480Mbps total bandwidth of USB 2.0 and is backward compatible with USB 1.1 and 1.0 devices.

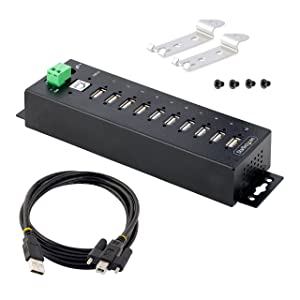

Compatibility

The installation options include DIN rail mounting dual-bracket horizontal or single-bracket vertical and wall or desk mounting using the integrated mounting brackets. To finish the installation, the Hub includes a 6ft (1.8m) USB cable with screw-lock to prevent accidental disconnects during operation.

The industrial USB hub is USB 2.0 compliant and supports DC and terminal block power inputs 5 to 24V DC that provide compatibility and flexibility in different scenarios such as product and repair labs, conference rooms, or office workstations.
Product image

  • 1 Industrial USB Hub
  • 1 6 ft Screw Locking USB-B to USB-A Cable
  • 2 DIN Rail Mounting Brackets
  • 1 Screw Kit
  • 1 Quick-Start Guide
