StarTech.com Cisco GLC-TE Compatible Module - SFP to RJ45 - 1000BASE-T 1G Copper Cat6/Cat5e Industrial Transceiver - Extended Temp 100m SFP (mini-GBIC) transceiver modul
-
Product no 995541237
Model GLCTEST
Brand StarTech.com
EAN 0065030884037
Weight 0.05 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com Cisco GLC-TE Compatible Module, 1000BASE-T Copper Industrial Gigabit Ethernet Transceiver, SFP to RJ45 Cat6/Cat5e 100m Extended Temp, Cisco Firepower, IE 2000, C9500, C2960 - Lifetime Warranty (GLCTEST) - SFP (mini-GBIC) transceiver modul - 1GbE |
| Enhedstype | SFP (mini-GBIC) transceiver modul - RJ-45 |
| Model | Indstiksmodul |
| Kabeltype | 1000Base-T |
| Dataoverførselshastighed | 1 Gbps |
| Dataforbindelsesprotokol | 1GbE |
| Maks. overføringsafstand | 100 m |
| OEM-producentækvivalent delnummer | Cisco GLC-TE |
| Dimensioner (B x D x H) | 1.4 cm x 6.5 cm x 1.2 cm |
| Vægt | 72 g |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Cabling Type | 1000Base-T |
| Compliant Standards | IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Full duplex capability, hot swap module replacement |
| Max Transfer Distance | 100 m |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE, REACH, MSA |
| MTBF | 4,655,371 hours |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-TE |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 1.2 cm |
| Weight | 72 g |
| Width | 1.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 30 - 75% |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

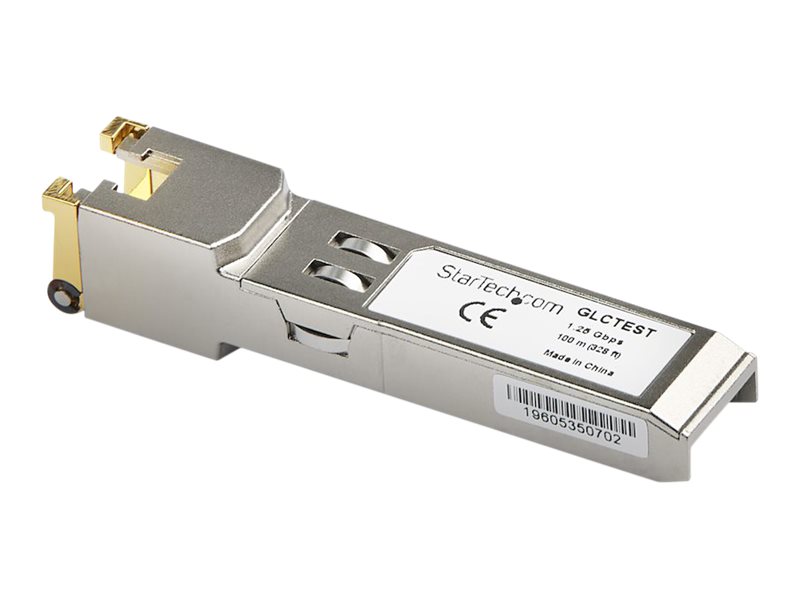

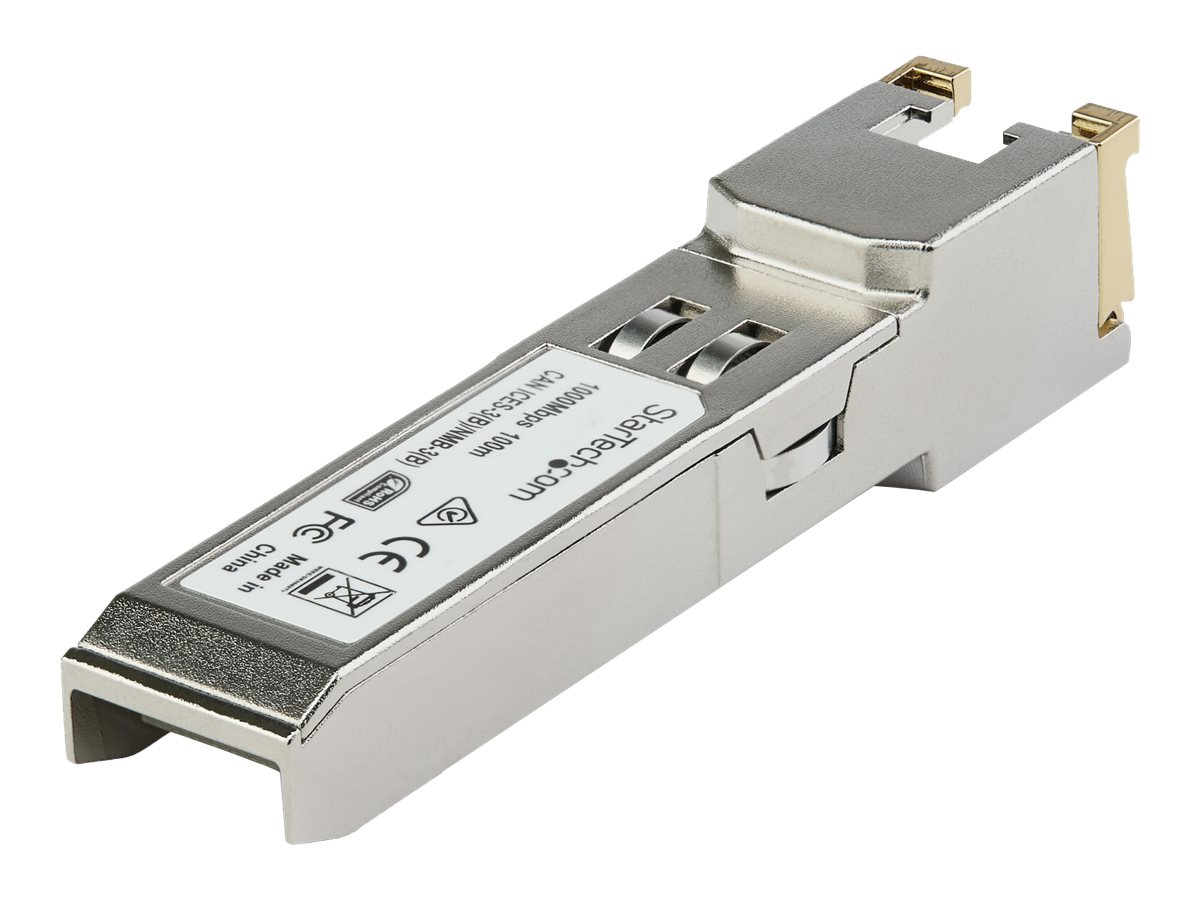

The GLCTEST is a Cisco GLC-TE compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers for extended temperatures. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
- Maximum Data Transfer Rate: 1000 Mbps
- Type: Copper

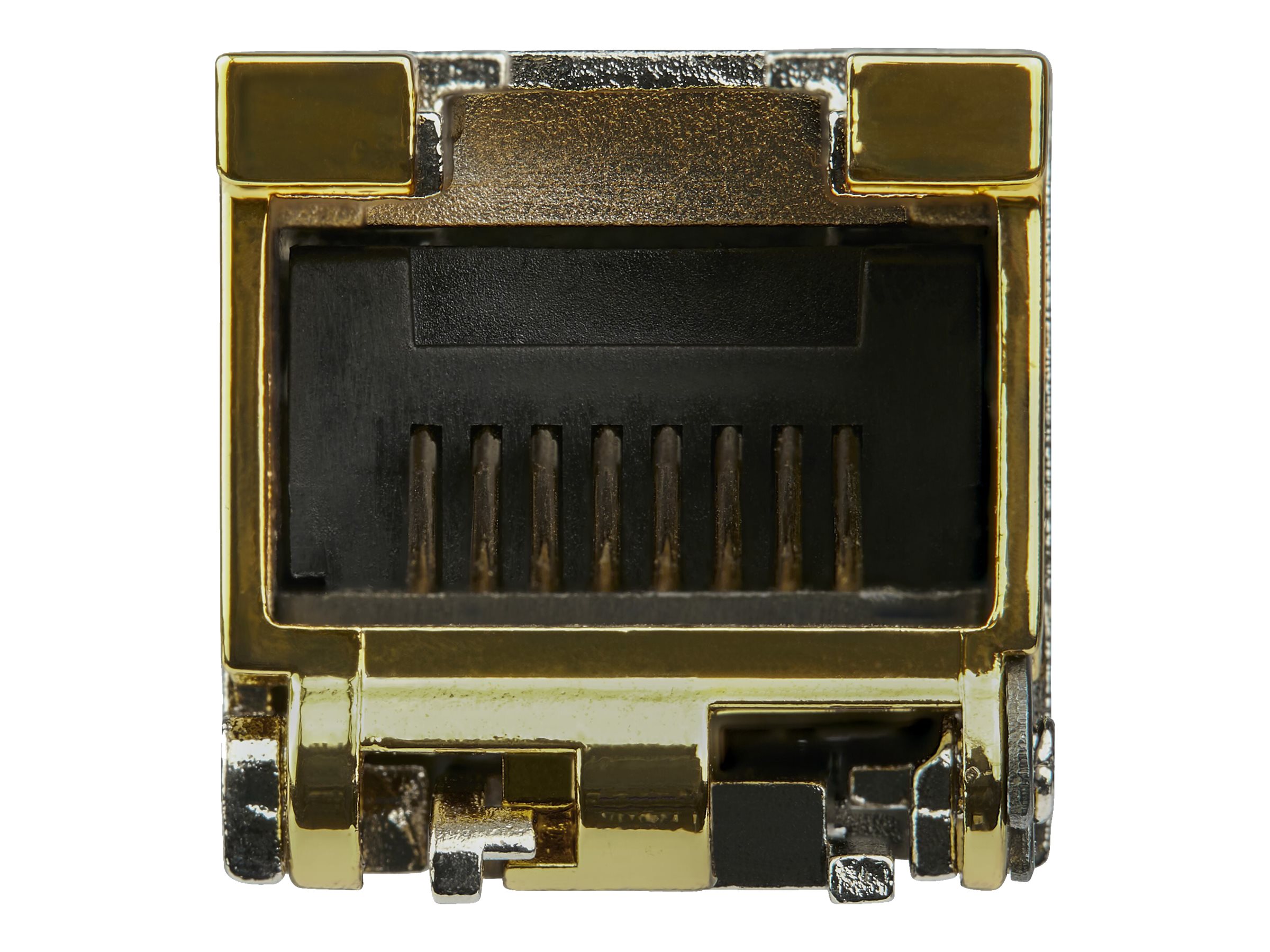

- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 100 m (328 ft)
- MTBF: 4,655,371 hours
- Power Consumption: Less than 1.3 Watts
- Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
