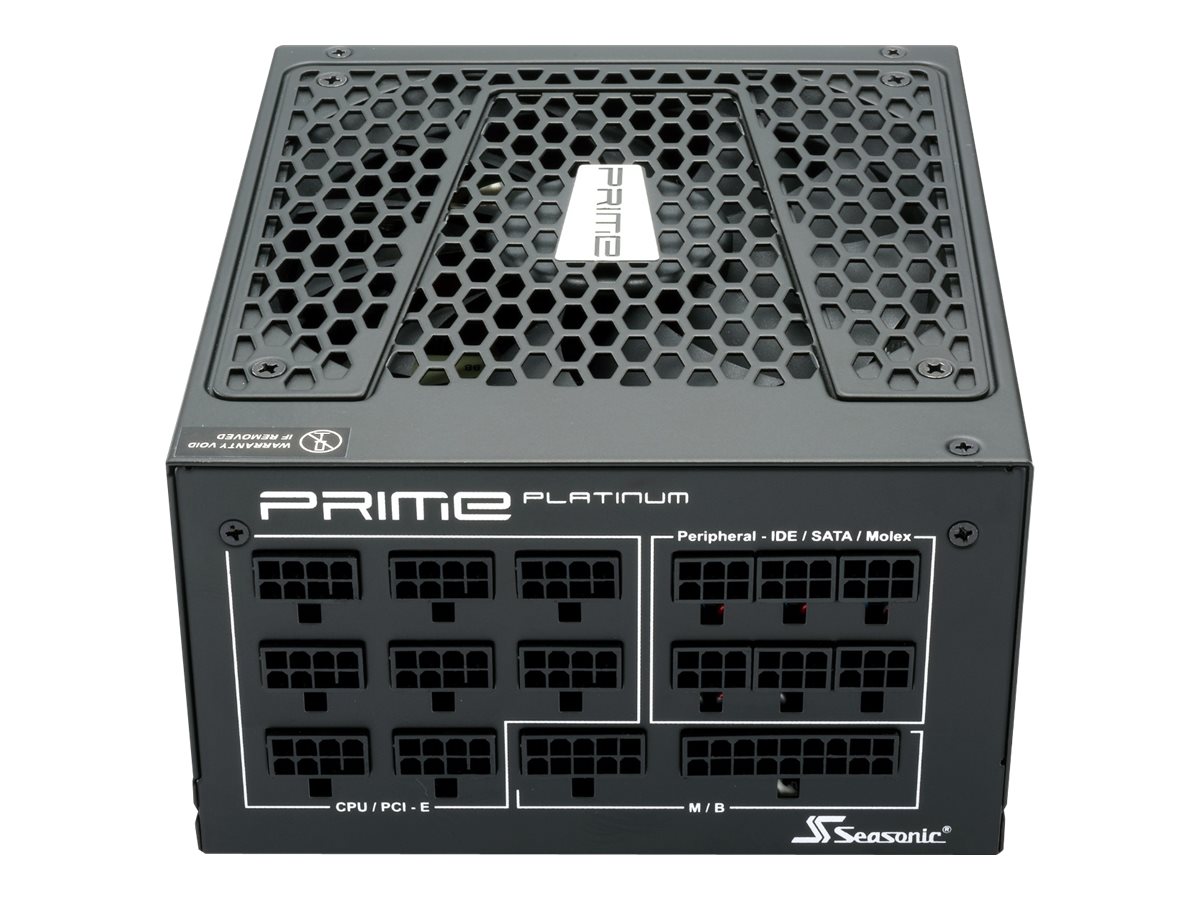

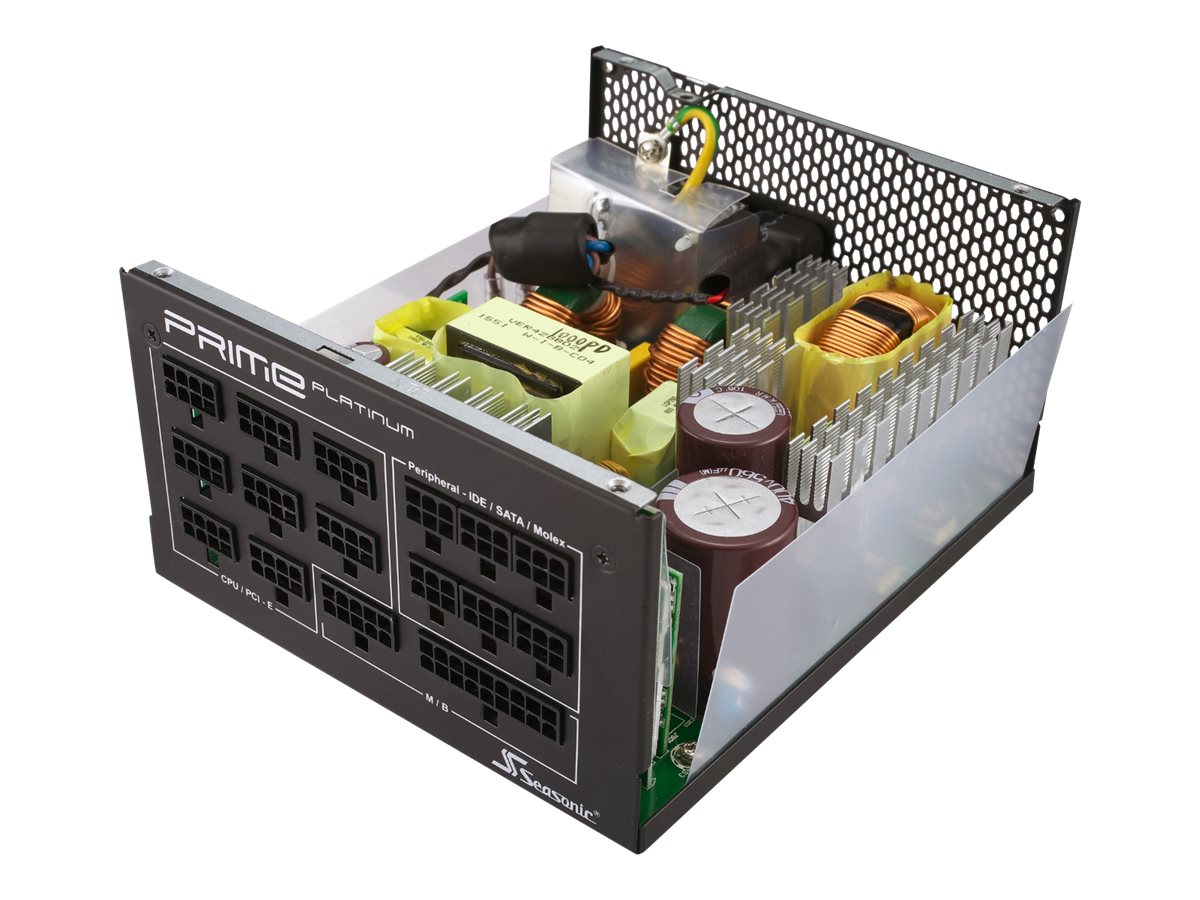

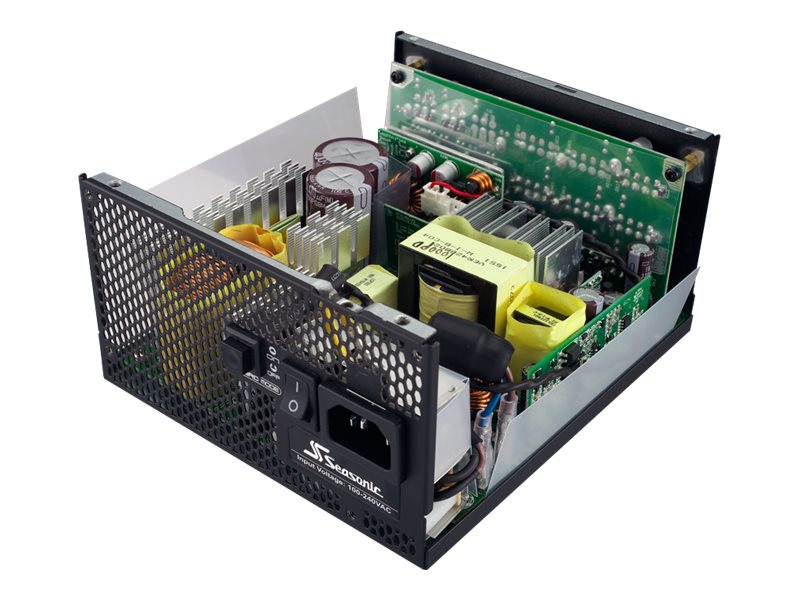

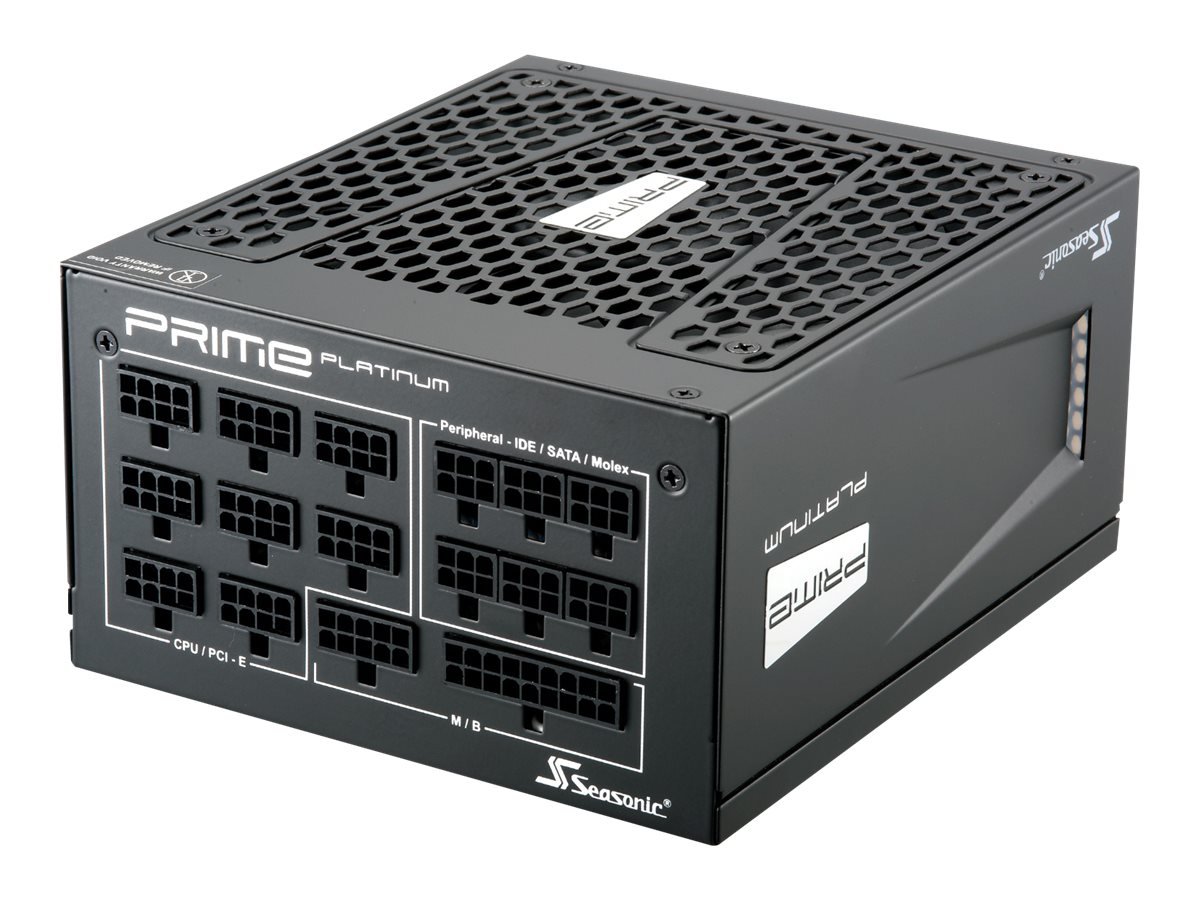

Seasonic Prime SSR-1300PD Strømforsyning 1300Watt
Seasonic Prime SSR-1300PD - Strømforsyning (intern) - ATX12V - 80 PLUS Platinum - AC 100-240 V - 1300 watt
2 152,00 DKK
1 721,60 DKK excl. VAT
-
Product no 993114839
Model SSR-1300PD
Brand Sea Sonic Electronic
EAN 4711173873907
Weight 4.04 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Seasonic Prime SSR-1300PD - strømforsyning - 1300 watt |
| Enhedstype | Strømforsyning - intern |
| Specifikationsoverensstemmelse | ATX12V |
| 80 PLUS certificering | 80 PLUS Platinum |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 1300 watt |
| Output Current | +3.3V - 25 A<br>+5V - 25 A<br>+12V - 108 A<br>-12V - 0.3 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>12 x 15 pin Serial ATA strøm<br>5 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>12 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion |
| Modulær Kabel Administration | Ja |
| Kølesystem | 135 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 17 cm x 8.6 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 12 års garanti |
| General | |
|---|---|
| Device Type | Power supply - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 25 A | +5V - 25 A | +12V - 108 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1300 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin +12V with detachable 4 pin section | 12 x 15 pin Serial ATA power | 5 x 4 pin internal power | 1 x 4 pin mini-power connector | 12 x 8 pin PCI Express power with detachable 2 pin se |
| Miscellaneous | |
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, Energy-Related Products (ErP) Lot 6, REACH, EAC |
| Cooling System | 135 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fluid dynamic bearing cooling fan, Premium Hybrid Fan Control, fully modular |
| MTBF | 150,000 hours |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 12 years |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 17 cm |
| Height | 8.6 cm |
| Width | 15 cm |
