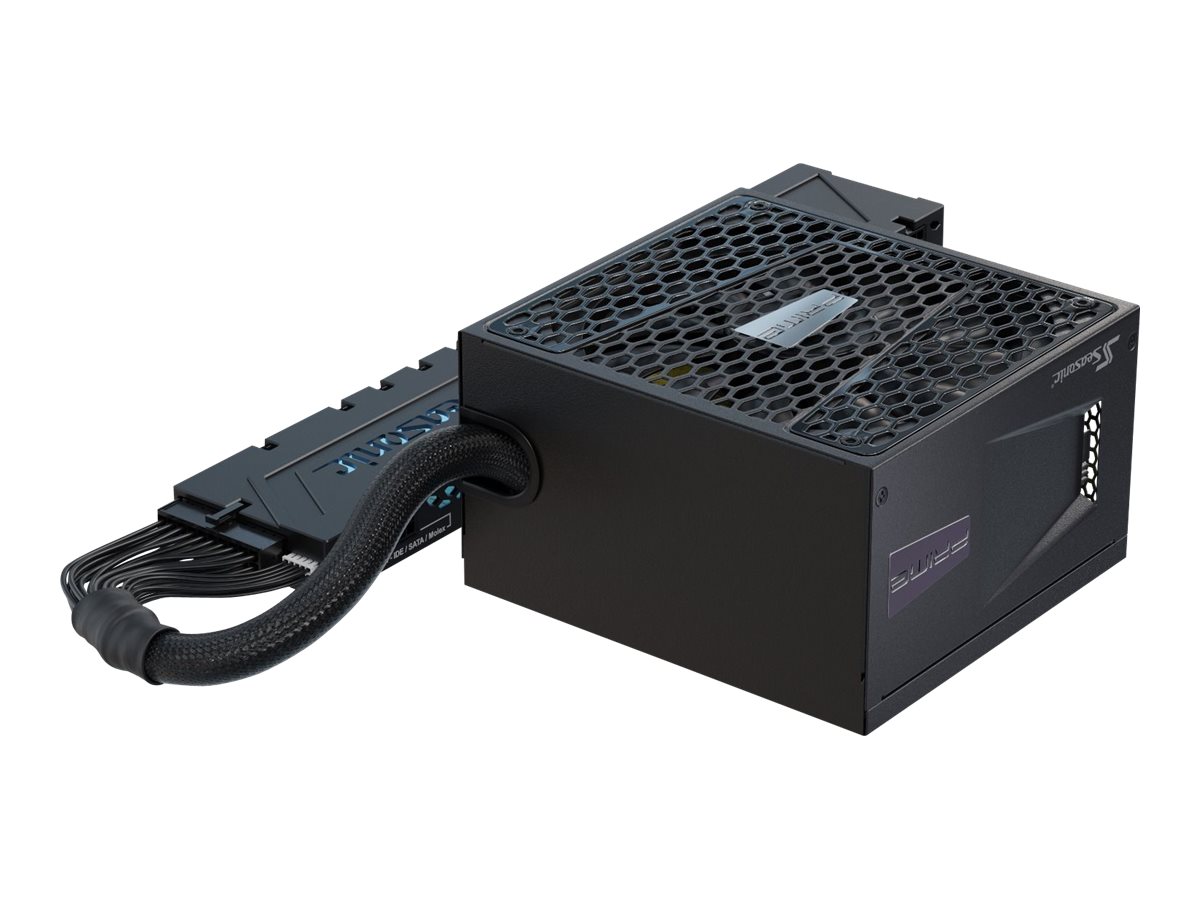

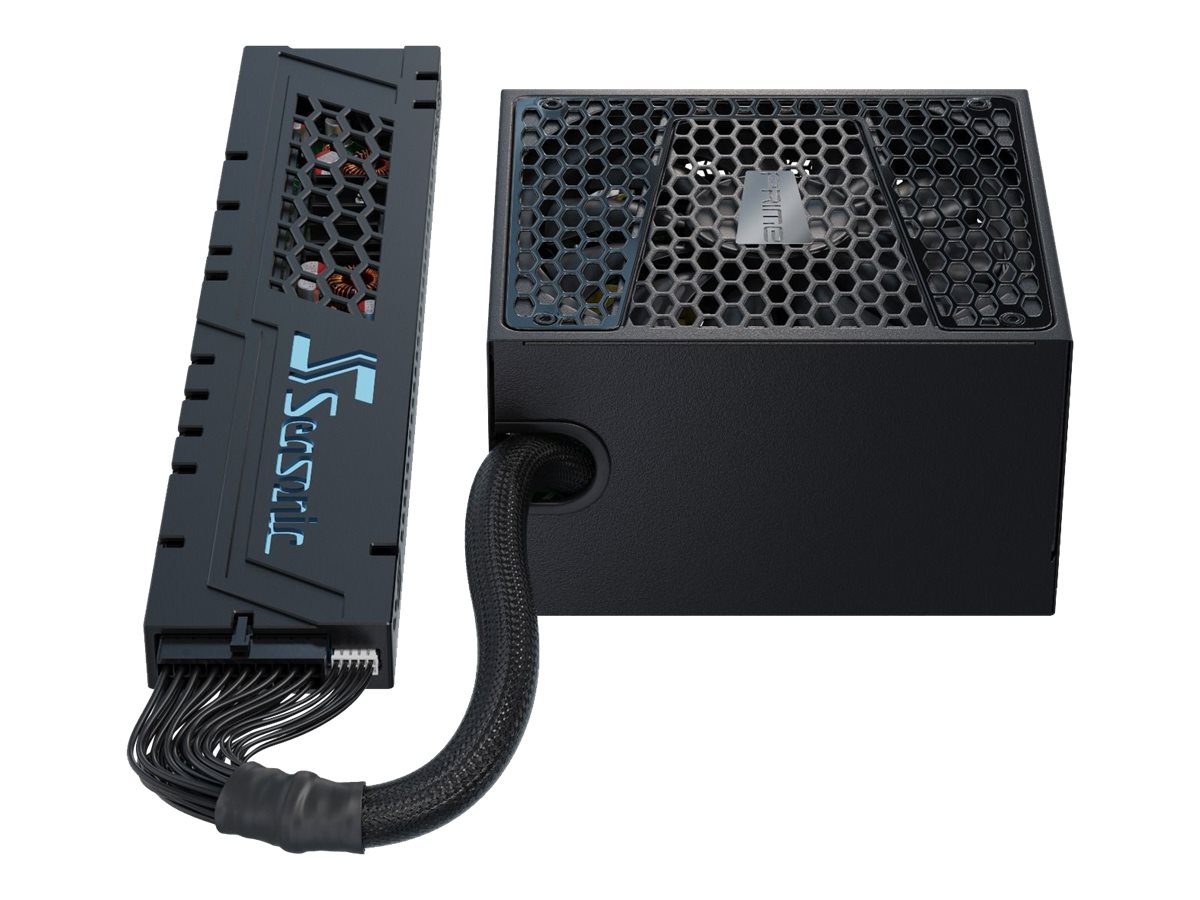

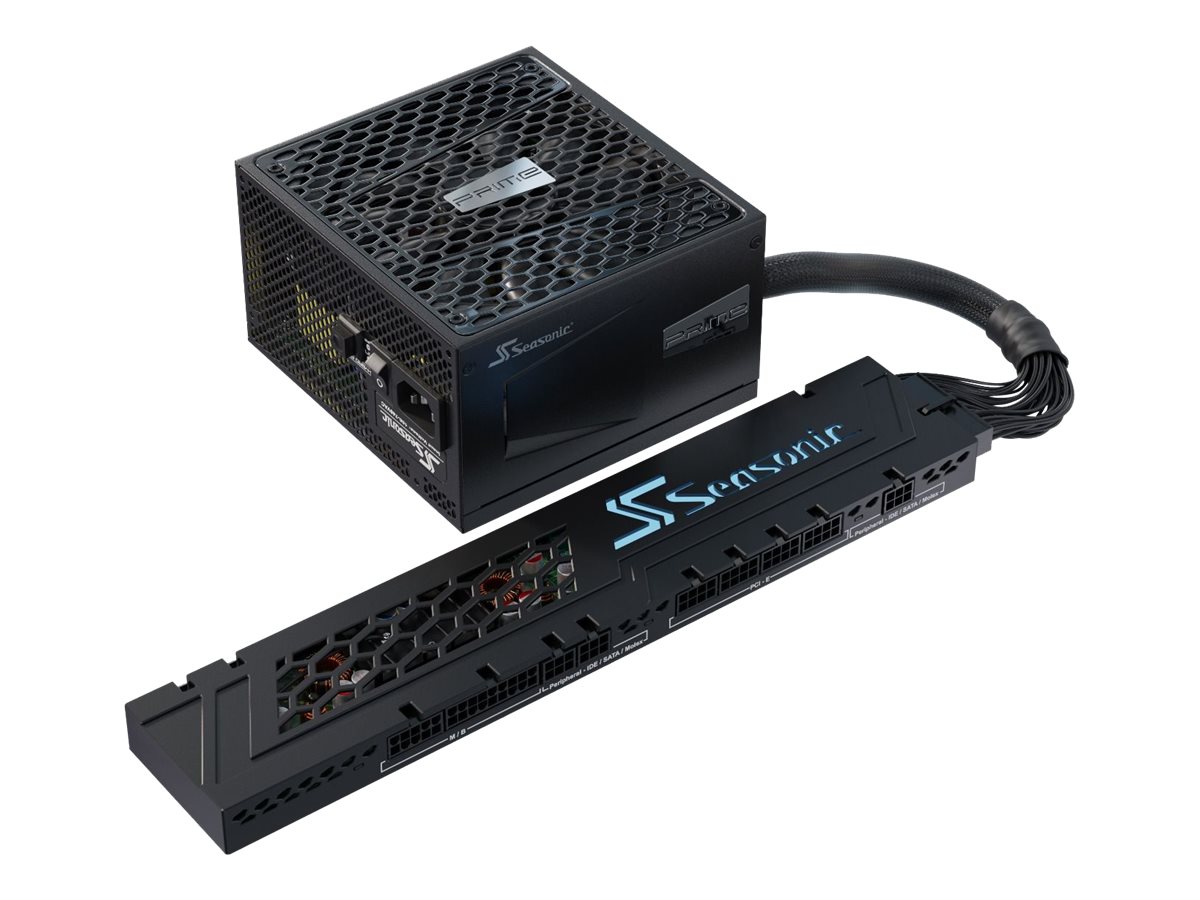

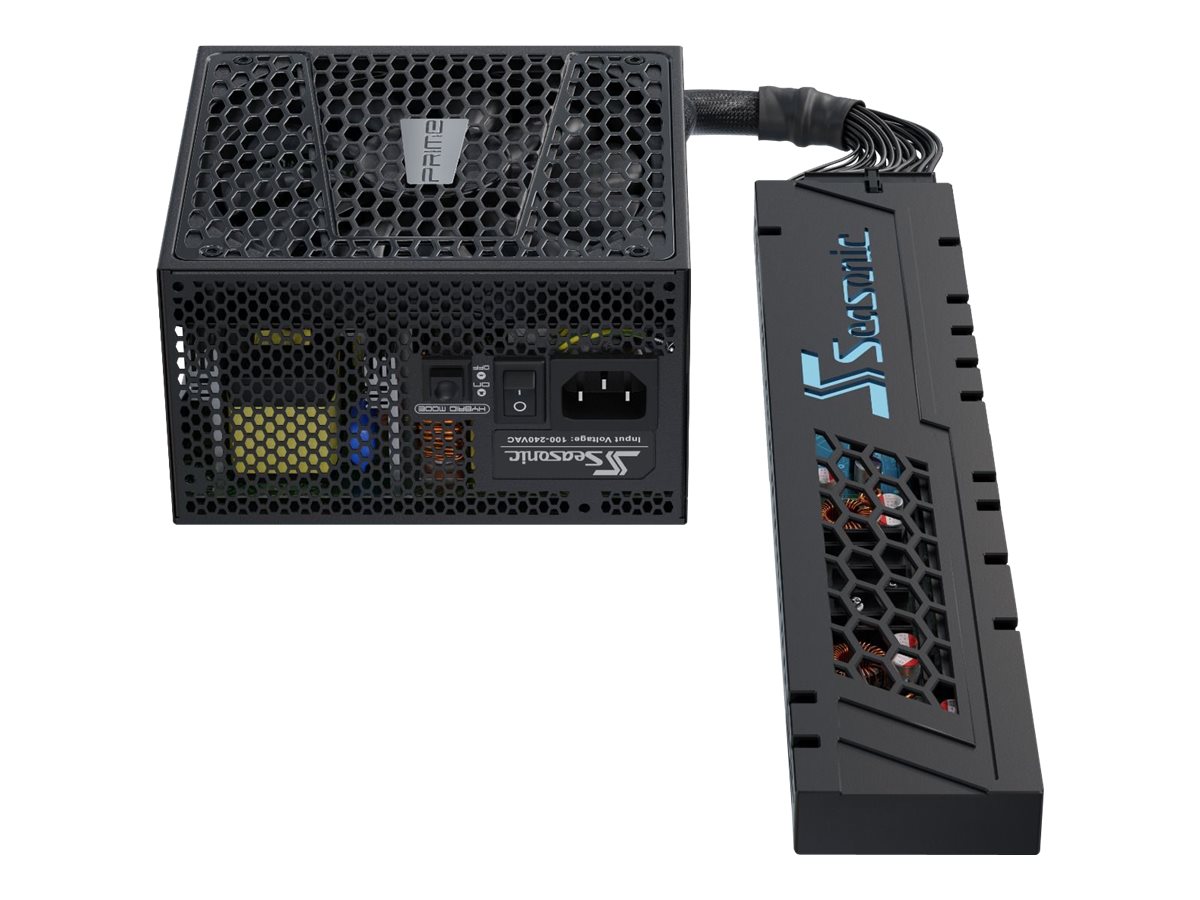

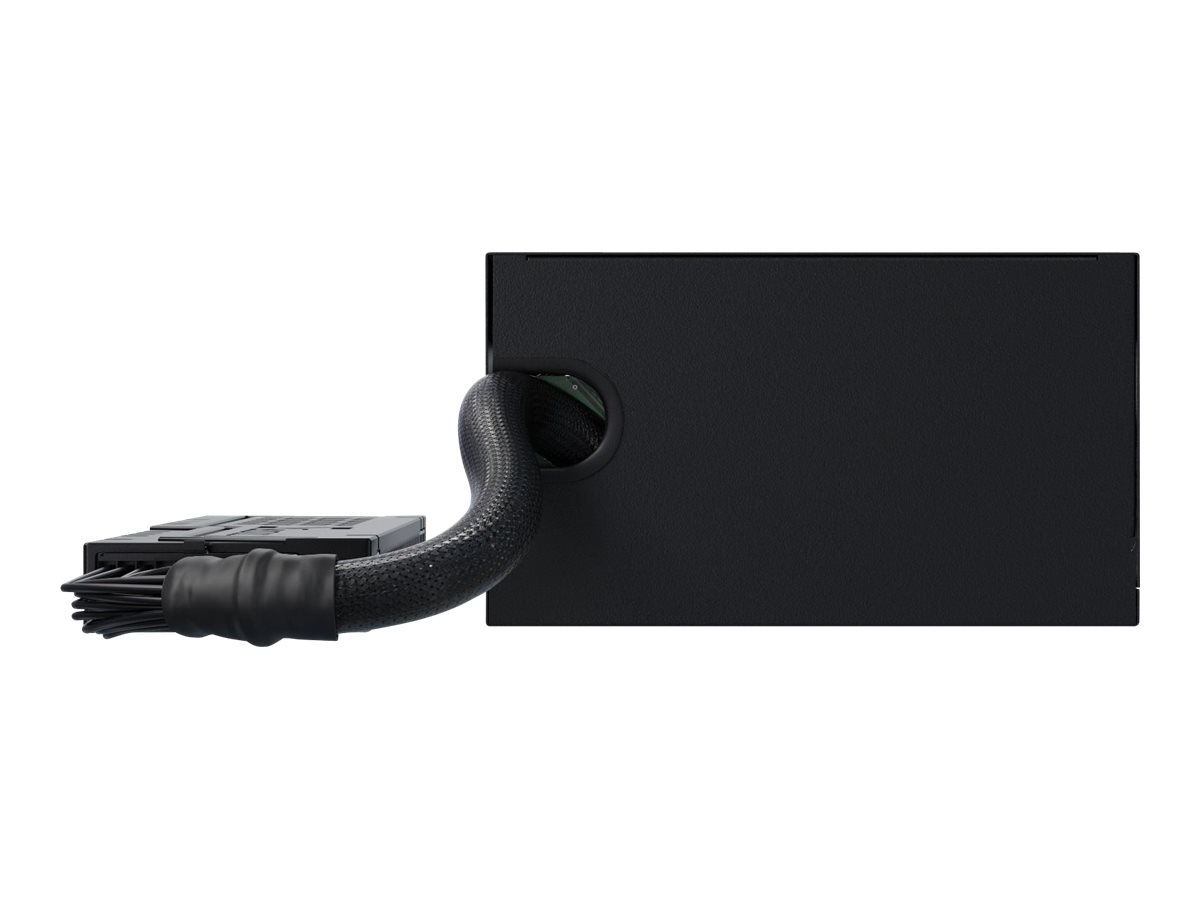

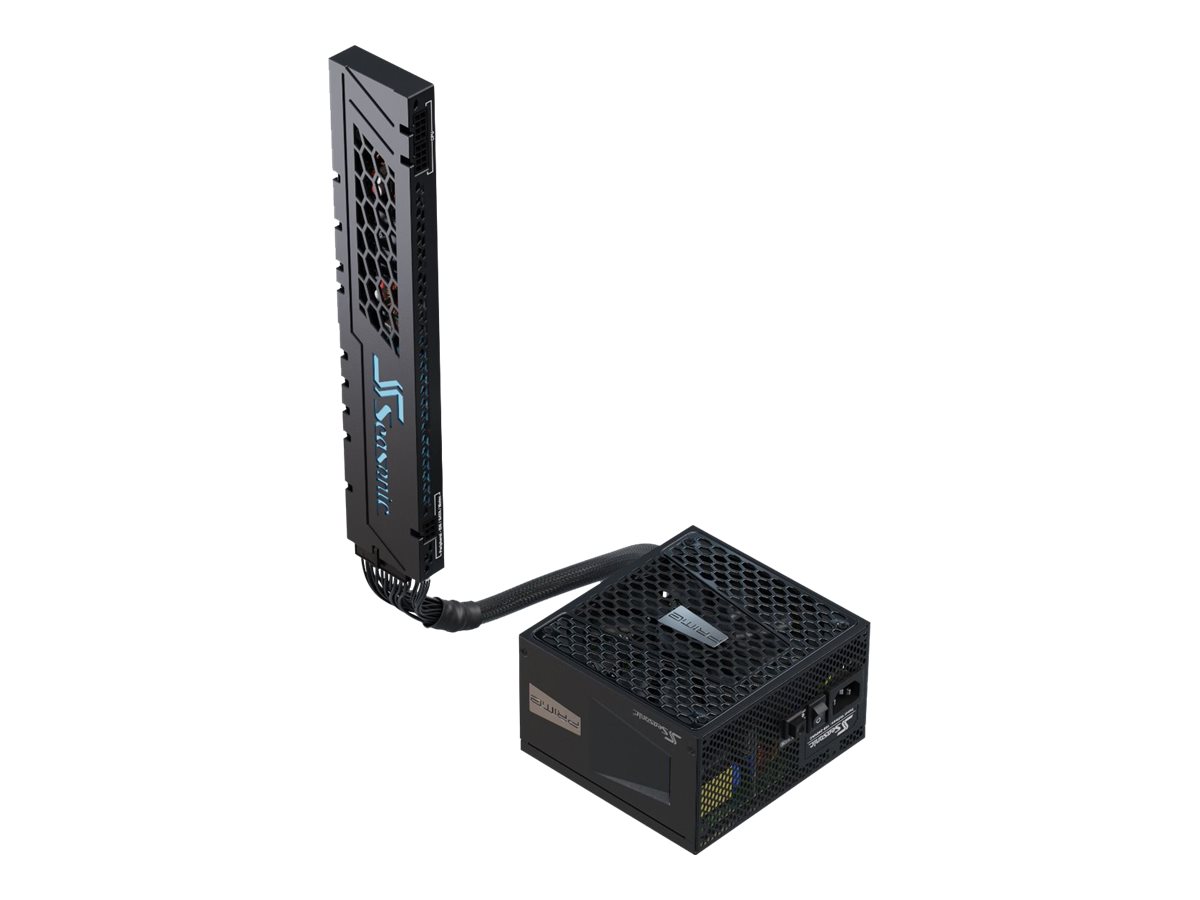

Seasonic CONNECT SSR-750FA Strømforsyning 750Watt

Seasonic CONNECT SSR-750FA - Strømforsyning (intern) - ATX12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - med Seasonic One Clean Solution
895,00DKK716,00DKK excl. VAT
  • Product no 995817659

    Model SSR-750FA

    Brand Sea Sonic Electronic

    EAN 4711173875611

    Weight 3.36 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Seasonic CONNECT SSR-750FA - strømforsyning - 750 Watt - med Seasonic One Clean Solution
Enhedstype Strømforsyning - intern
Specifikationsoverensstemmelse ATX12V
80 PLUS certificering 80 PLUS Gold
Indgangspænding AC 100-240 V
Udgangspænding +3.3, +5, ±12 V
Strømkapacitet 750 Watt
Output Current +3.3V - 20 A<br>20 A<br>+12V - 62 A<br>-12V - 0.3 A<br>+5VSB - 3 A
Output-stikforbindelser 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm<br>8 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration Ja
Dimensioner (B x D x H) 15 cm x 14 cm x 8.6 cm
Miljømæssige standarder ENERGY STAR
Producentgaranti 10-års garanti

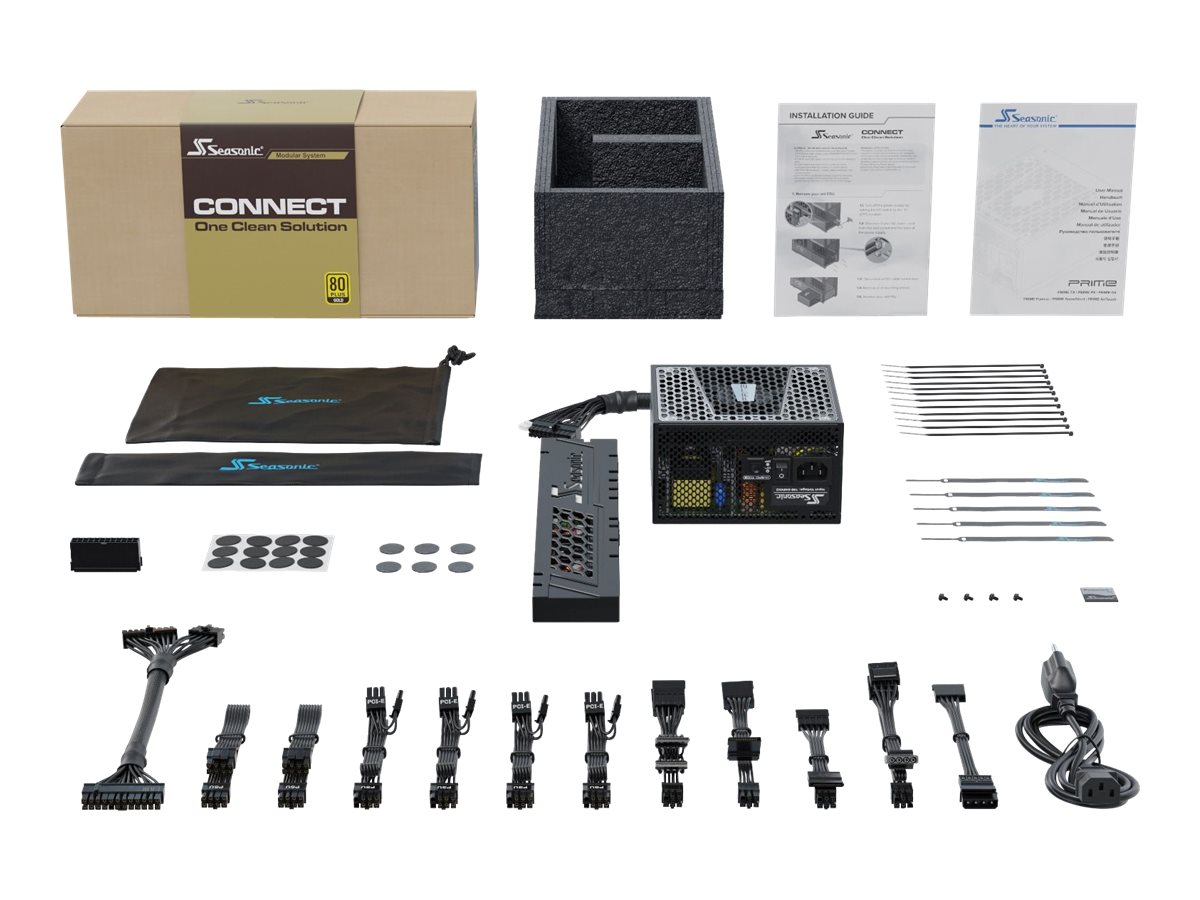

Bundtet med Seasonic One Clean Solution
General
Bundled with Seasonic One Clean Solution
Device Type Power supply - internal
PSU Form Factor ATX
Specification Compliance ATX12V
Power Device
80 PLUS Certification 80 PLUS Gold
Efficiency 90% at 50% Load
Frequency Required 50 - 60 Hz
Input Voltage AC 100-240 V
Modular Cable Management Yes
Output Current +3.3V - 20 A | 20 A | +12V - 62 A | -12V - 0.3 A | +5VSB - 3 A
Output Voltage +3.3, +5, ±12 V
Power Capacity 750 Watt
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 2 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 8 x 15 pin Serial ATA power | 1 x 4 pin mini-pow
Miscellaneous
Compliant Standards TUV, BSMI, CB, CCC, EMC, RoHS, WEEE, cTUVus, REACH, EAC, ErP Lot 6 2013 Ready
Features On/off switch, overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, fully modular
MTBF 150,000 hours
Environmental Standards
ENERGY STAR Yes
Manufacturer Warranty
Service & Support Limited warranty - 10 years
Environmental Parameters
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
Dimensions & Weight
Depth 14 cm
Height 8.6 cm
Width 15 cm
