Product no 1000619232
Model 5503020
Brand Rittal
EAN 4028177966246
Weight 3.8 kg

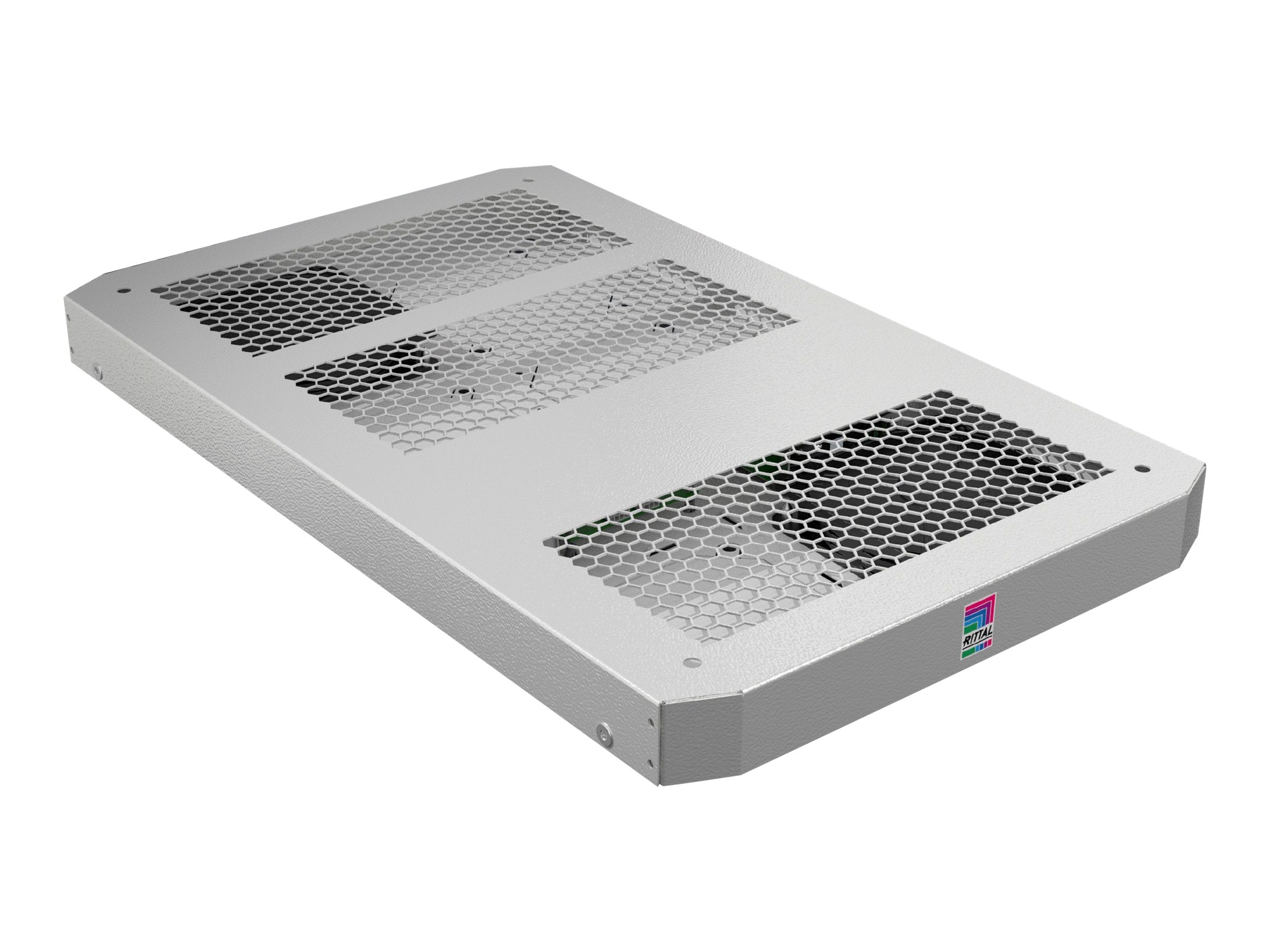

Produktbeskrivelse | Rittal SK - blæsermodul |
Produkttype | Blæsermodul |
Pakke Indhold | 2 blæsere, installationsguide, blæsermodul, samlingsdele |
Farve | RAL 7035 |
Antal blæsere | Dual |
Luftstrøm | 235.4 cfm |
Produktmateriale | Kulstofstål |
Dimensioner (B x D x H) | 55 cm x 34 cm x 4.2 cm |
Vægt | 3.8 kg |
General | |
---|---|
Color | RAL 7035 |
Depth | 34 cm |
Finish | Spray |
Height | 4.2 cm |
Package Content | 2 fans, installation guide, fan module, assembly parts |
Product Material | Carbon steel |
Product Type | Fan module |
Weight | 3.8 kg |
Width | 55 cm |
Heatsink & Fan | |
Air Flow | 235.4 cfm |
Fans Qty | 2 |
Operation Voltage | 100/240 V |
Rated Current | 0.7 A |
Interface Provided | |
Connector Provided | Power IEC 60320 C13 |
Miscellaneous | |
Compliant Standards | UL, EN 50581:2012, IEC 529/IP20, EN 62368-1:2014, cUL+UL, EN ISO 12100:2010, EN 61000-6-2:2005+AC:2005, ETIM 7.0, EN 55035:2017/A11:2020, ECLASS 8.0, EN IEC 61000-6-3:2007+A1:2011+A1/AC:2012, EN 55035:2012+AC:2012+AC:2013 |
Environmental Parameters | |
Max Operating Temperature | 55 °C |
Min Operating Temperature | 5 °C |
