Product no 994147356
Model 53044
Brand Qoltec
EAN 5901878530444
Weight 56.1 kg
Produktbeskrivelse | Qoltec - UPS - 8 kW - 10000 VA |
Enhedstype | UPS - ekstern |
Vægt | 56.1 kg |
Indgangspænding | AC 120-275 V |
Strømkapacitet | 8 kW / 10000 VA |
Batteri | - 7 At |
Antal batterier | 16 |
Netværk | RS-232, USB |
Dimensioner (B x D x H) | 25 cm x 61 cm x 50.5 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Device Type | UPS - external |
Power Device | |
Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
Frequency Required | 45 - 55 Hz ± 0.5Hz |
Input Voltage | AC 120-275 V |
Output Waveform | Sinewave |
Power Capacity | 8 kW / 10000 VA |
Power Factor (PF) | 0.8 |
Surge Suppression | Yes |
UPS Technology | On-line |
Battery | |
Capacity | 7 Ah |
Features | Maintenance free |
Quantity | 16 |
Recharge Time | 8 hours |
Run Time (Up To) | 457 min at 100 Watts | 230 min at 200 Watts | 151 min at 300 Watts | 97 min at 500 Watts | 43 min at 1000 Watts |
Transfer Time | 0 ms |
Voltage Provided | 192 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x expansion slot |

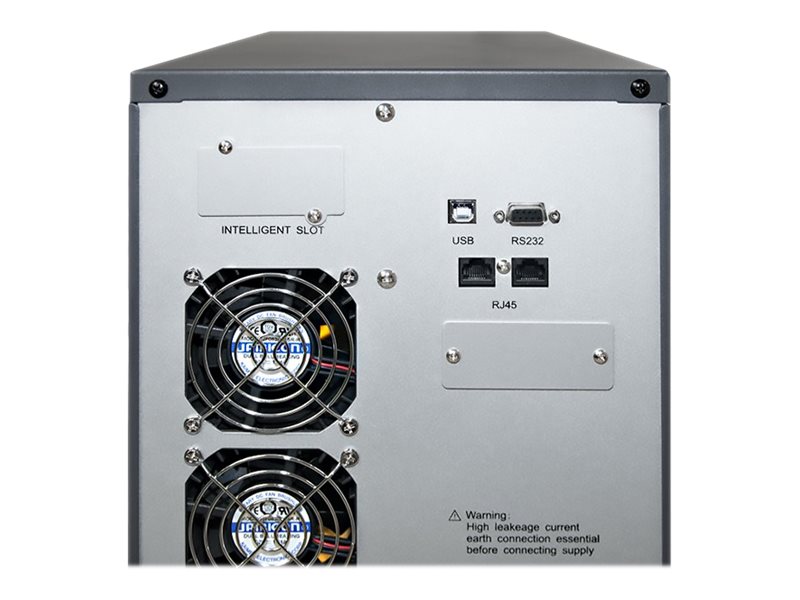

Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
Miscellaneous | |

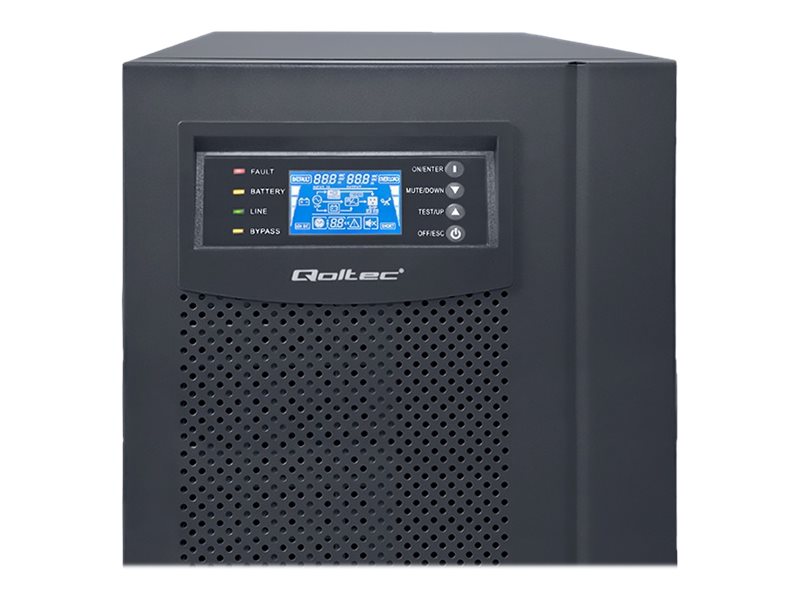

Features | Audible alarm, LCD display, LED indicators, overvoltage protection, overload protection, undervoltage protection, short-circuit protection |
Software / System Requirements | |
Software Included | Drivers & Utilities |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Sound Emission | 50 dBA |
Dimensions & Weight | |
Depth | 61 cm |
Height | 50.5 cm |
Weight | 56.1 kg |
Width | 25 cm |
