QNAP TVS-H1288X 12Moduler

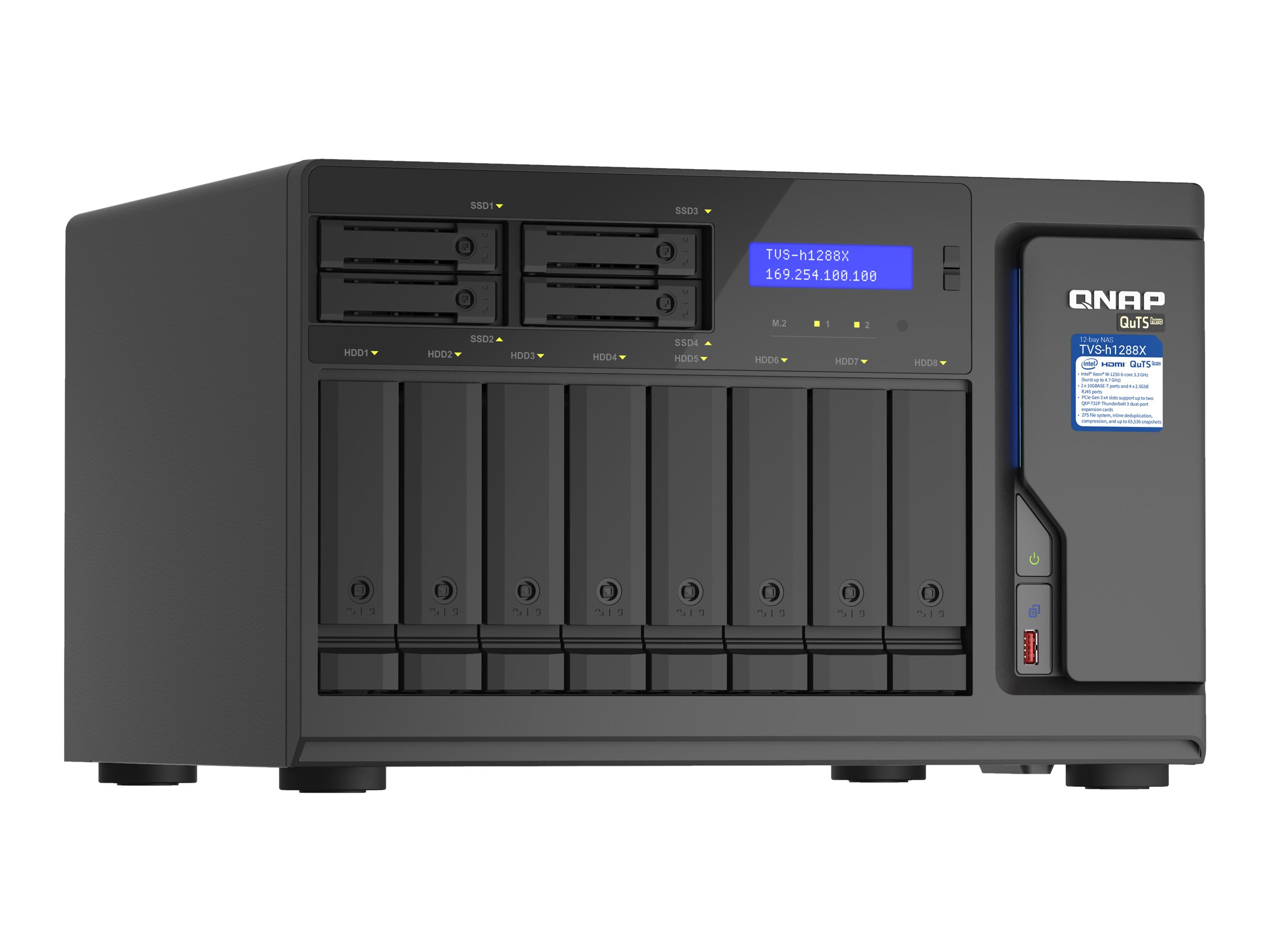

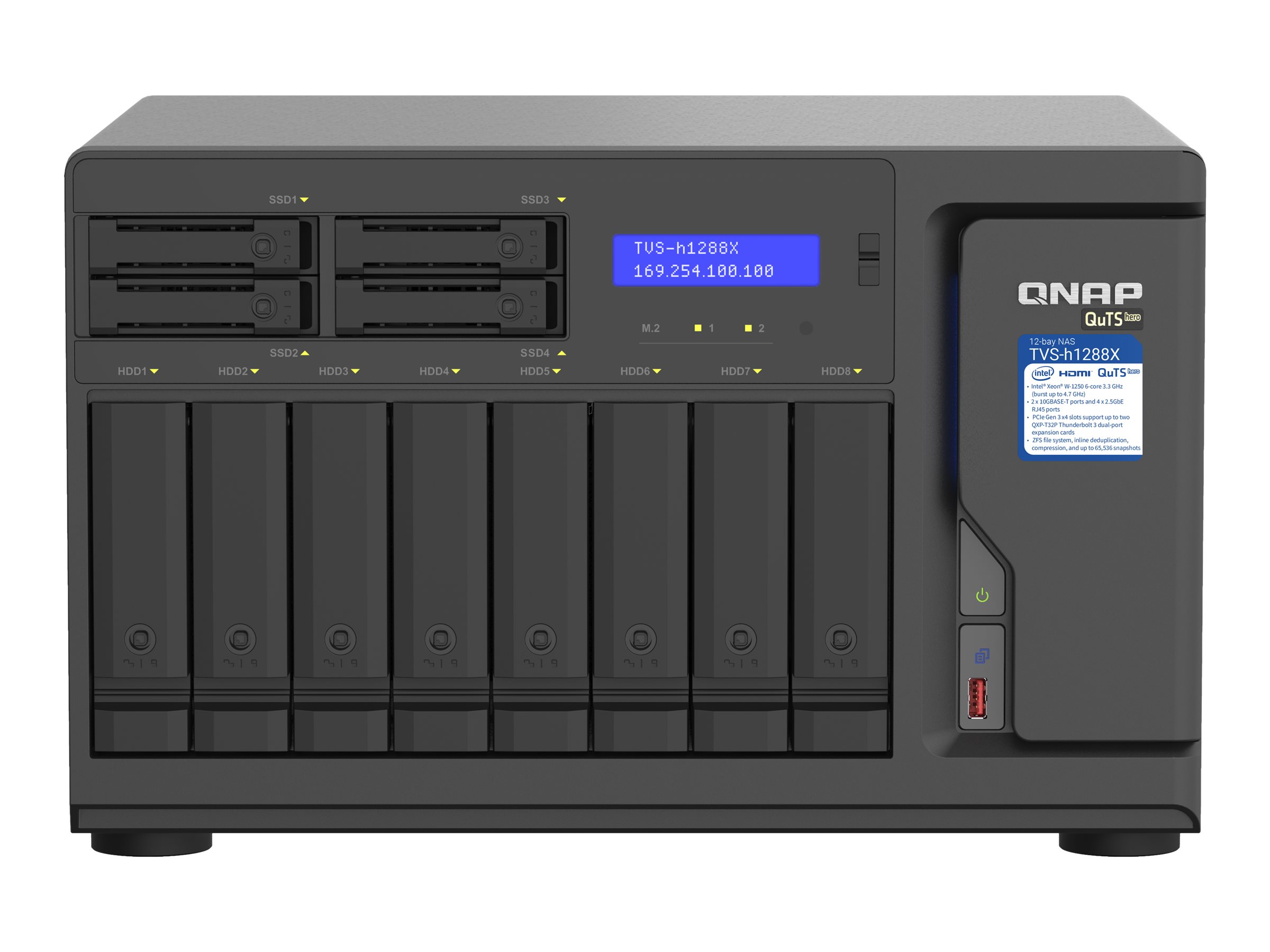

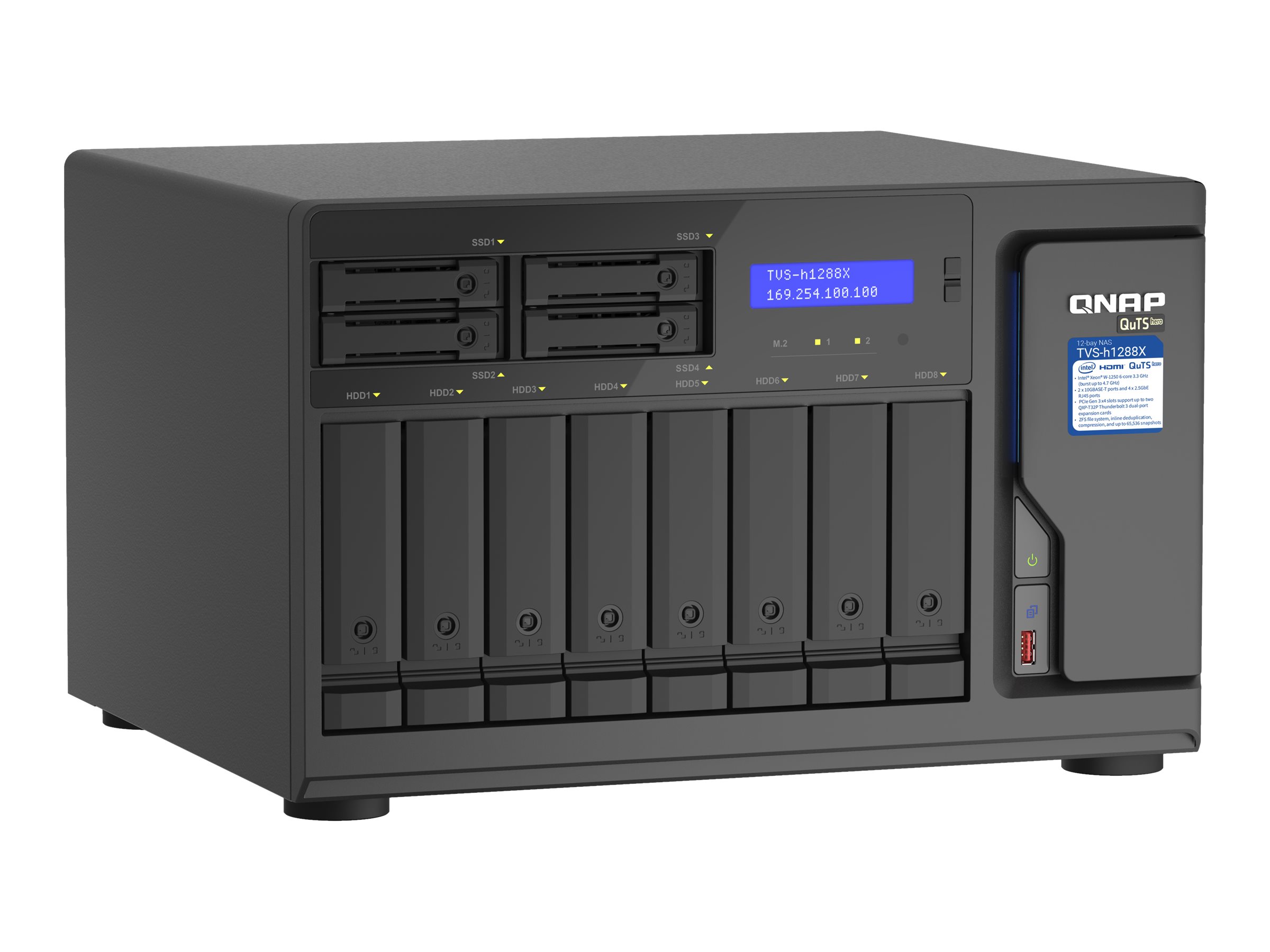

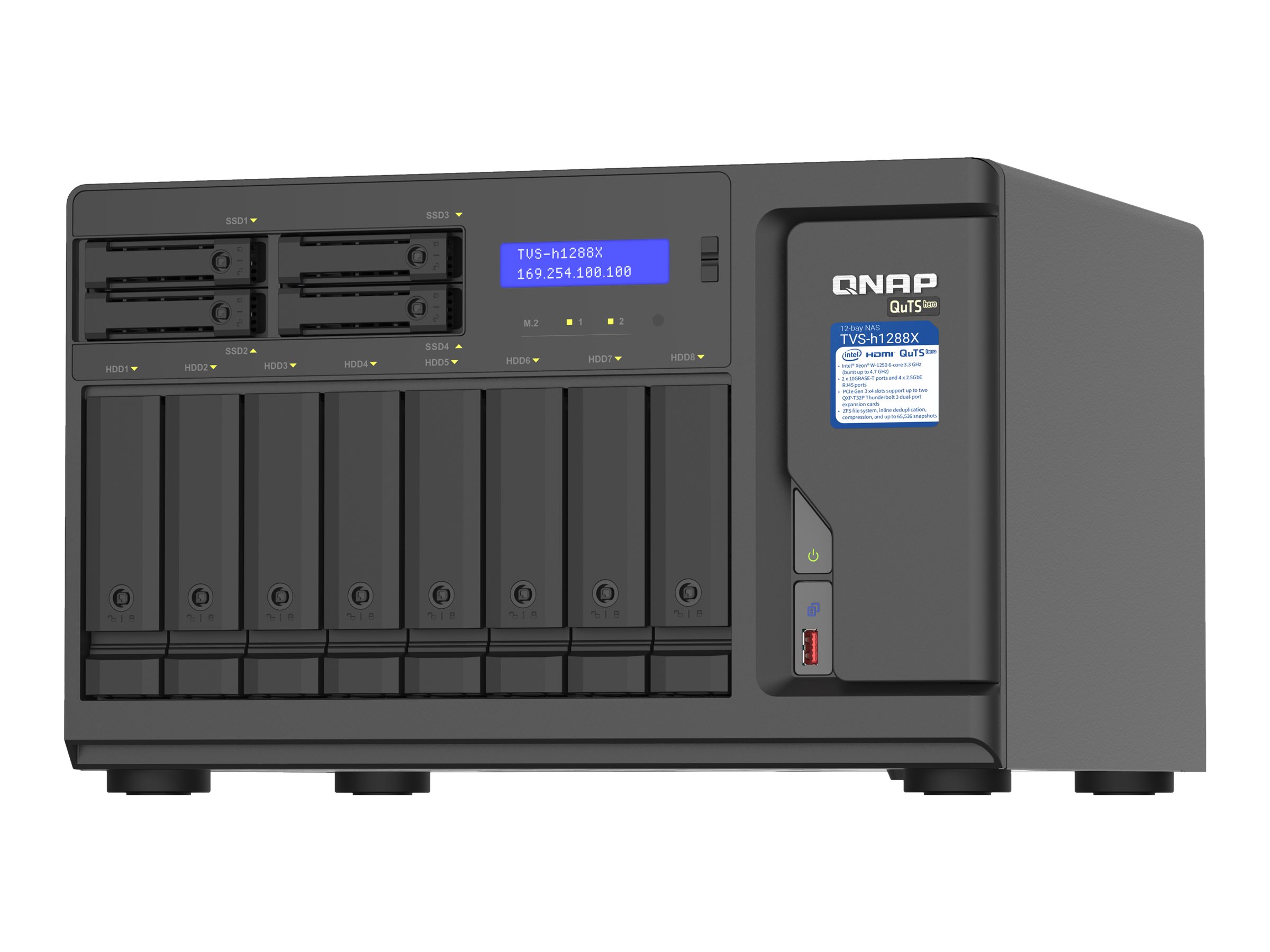

QNAP TVS-h1288X - NAS-server - 12 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot reserve, RAID TP - RAM 16 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support
26 548,00DKK21 238,40DKK excl. VAT
-
Product no 996607925
Model TVS-H1288X-W1250-16G
Brand "QNAP Systems, Inc"
EAN 4713213518410
Weight 14.76 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | QNAP TVS-h1288X - NAS-server |
| Enhedstype | NAS-server |
| Vært Tilslutning | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installeret udstyr/antal moduler | 0 (installeret) / 12 (maks.) |
| Dimensioner (B x D x H) | 36.99 cm x 31.98 cm x 23.46 cm |
| Vægt | 11.27 kg () |
| Processor | 1 x Intel Xeon W-1250 3.3 GHz (6 kerner) |
| Controller for lagring | RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot reserve, RAID TP |
| Netværk | 100Mb LAN, 1GbE, 10GbE, 2.5GbE |
| RAM | 16 GB |
| Effekt | AC 120/230 V |
| Operativsystem til lagring | QNAP QuTS hero 4.5.0 |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Depth | 31.98 cm |
| Device Type | NAS server |
| Height | 23.46 cm |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Total Storage Capacity | 0 GB |
| Weight | 11.27 kg () |
| Width | 36.99 cm |
| Processor / Memory | |
| Features | ECC |
| Flash Memory Installed | 5 GB |
| Max Supported Qty | 1 |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | 6-core |
| Processors Installed | 1 x Intel Xeon W-1250 3.3 GHz |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 10 hot spare, RAID TP |
| Type | RAID |
| Networking | |
| Compliant Standards | UPnP |
| Data Link Protocol | 100Mb LAN, GigE, 10 GigE, 2.5 GigE |
| Encryption Algorithm | AES-NI |
| Features | ALERT notification, LDAP support, VLAN support, wake on LAN (WOL), Syslog support, Access Control List (ACL) support, iTunes server, Jumbo Frames support, DLNA Media Server, Apple Time Machine compatible, VPN Server, Apple AirPlay, anti-virus protect |
| Network / Transport Protocol | TCP/IP, Telnet |
| Network Services Compatibility | Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP) |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 3.5" | 4 (total) / 4 (free) x hot-swap - 2.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 3.0 x4 | 2 (total) / 2 (free) x M.2 22110/2280 | 4 (total) / 2 (free) x DIMM 288-pin | 1 (total) / 1 (free) x PCI Express 3.0 x8 |

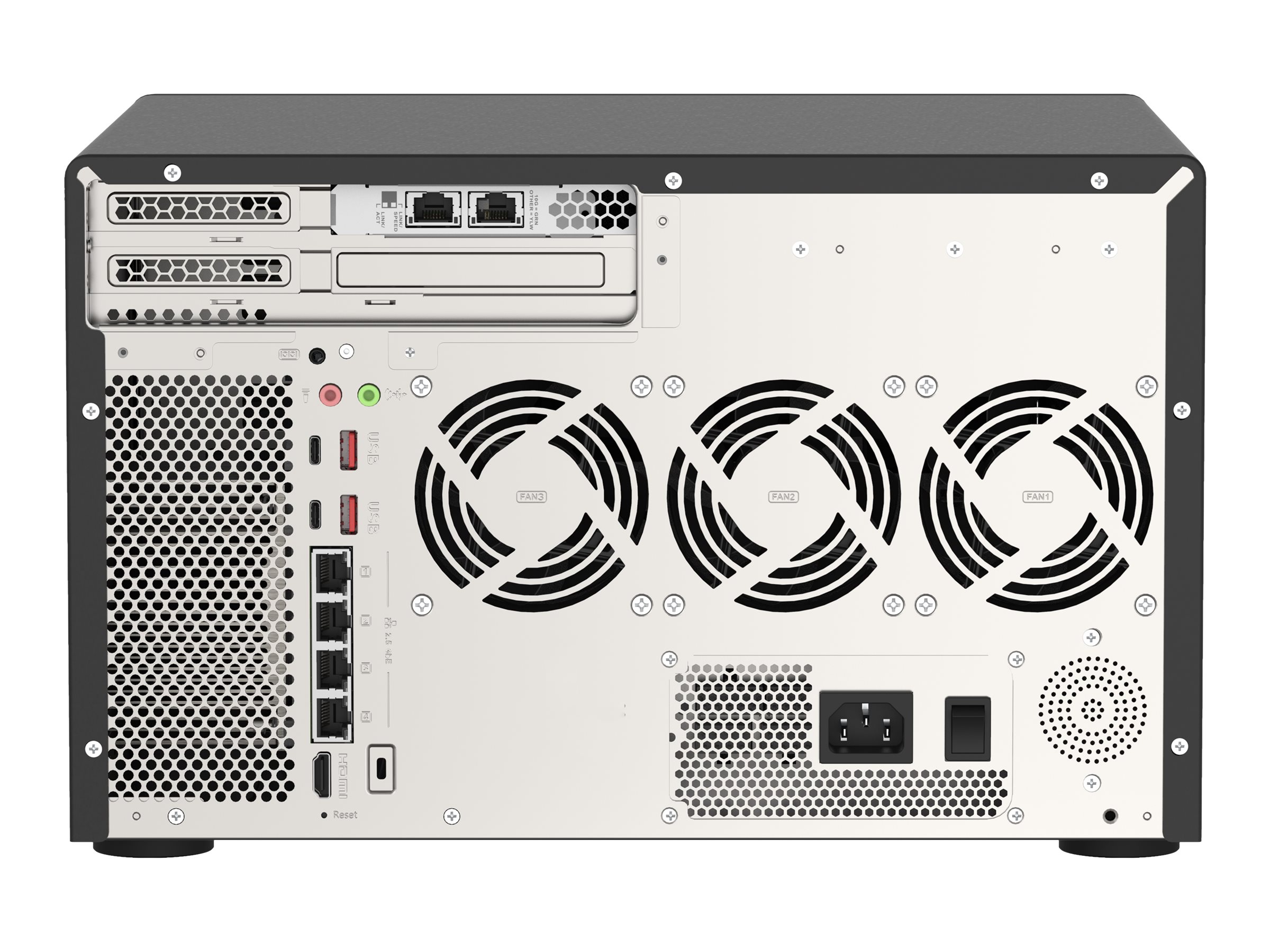

| Interfaces | 2 x Ethernet 10Gb - RJ-45 | 4 x 2.5 Gigabit Ethernet - RJ-45 | 2 x USB 3.2 Gen 2 - Type C | 3 x USB 3.2 Gen 2 - Type A | 1 x HDMI output |
| Miscellaneous | |
| Cables Included | 1 x 10GBase-T cable |
| Features | Security lock slot (cable lock sold separately), built-in cooling fan |
| Included Accessories | 2 x hard drive security key, 2 x M.2 SSD heatsink, 24 x flat head screws (for 2.5" HDD), 24 x flat head screws (for 3.5" HDD), power cable |
| Security Slot Type | Kensington security slot |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Consumption Operational | 97.492 Watt |
| Power Device | Internal power supply |
| Power Provided | 550 Watt |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| Storage Operating System | QNAP QuTS hero 4.5.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 14.95 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 26 dBA |
