QNAP TS-H973AX-8G 9Moduler

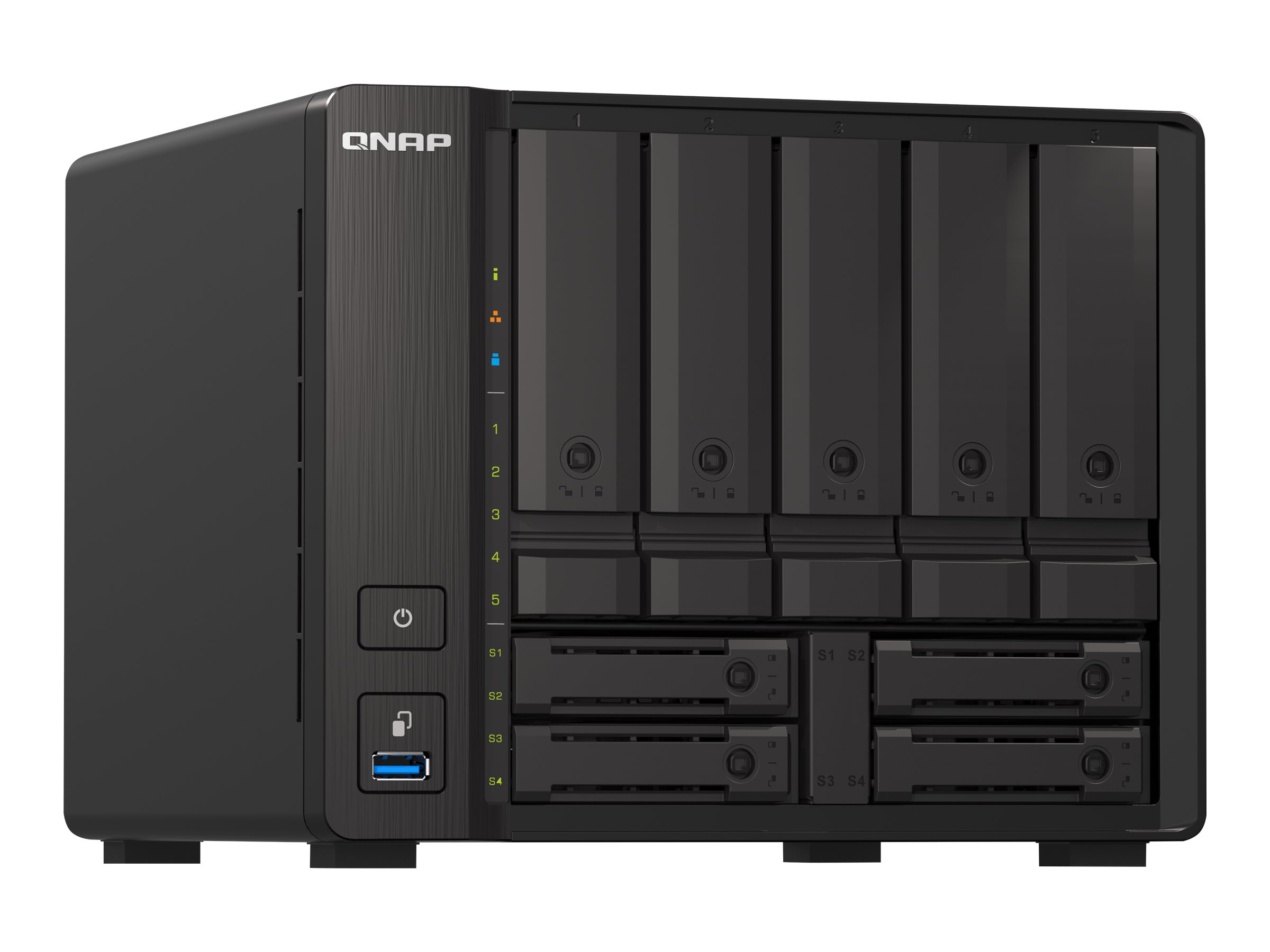

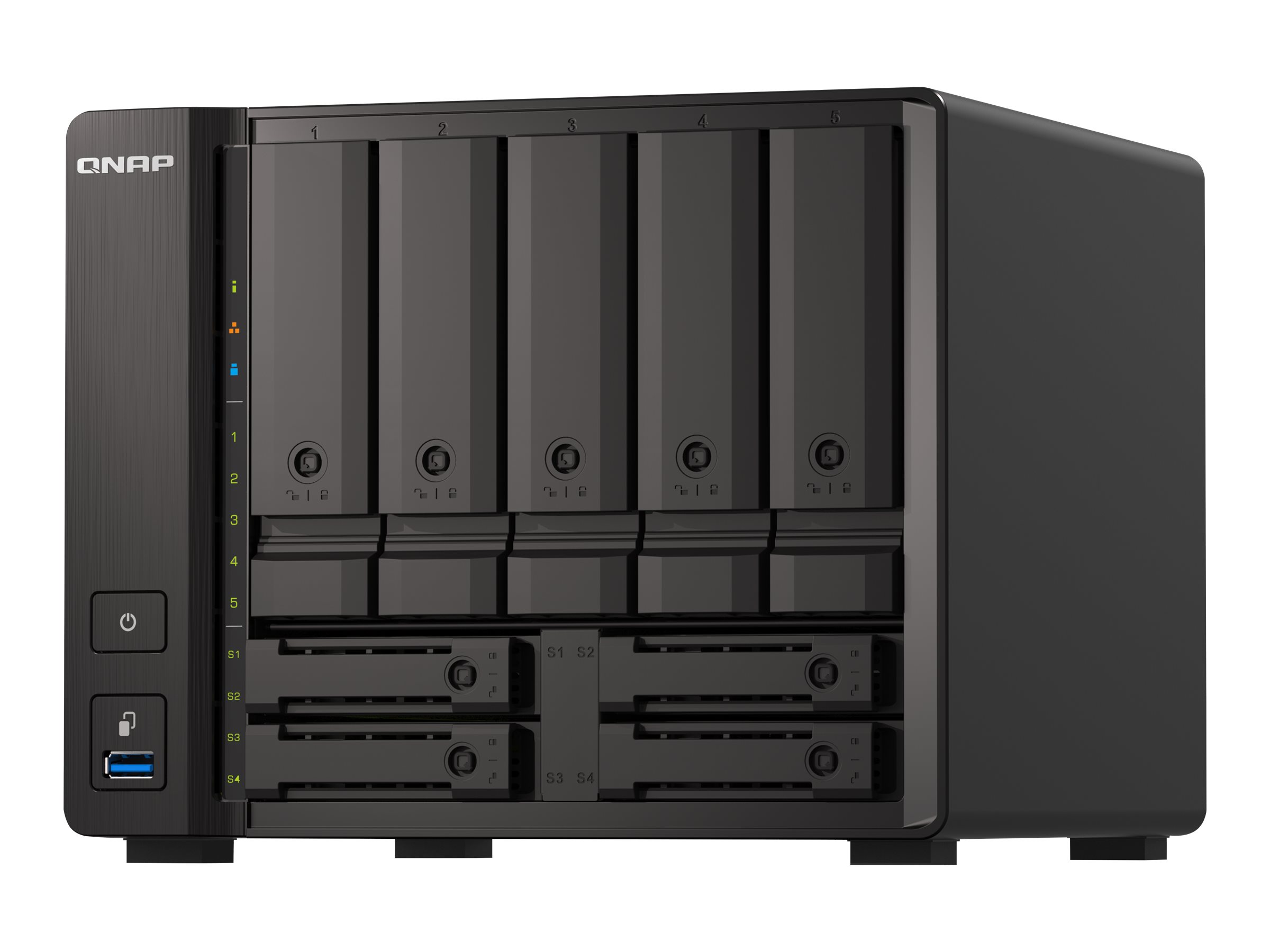

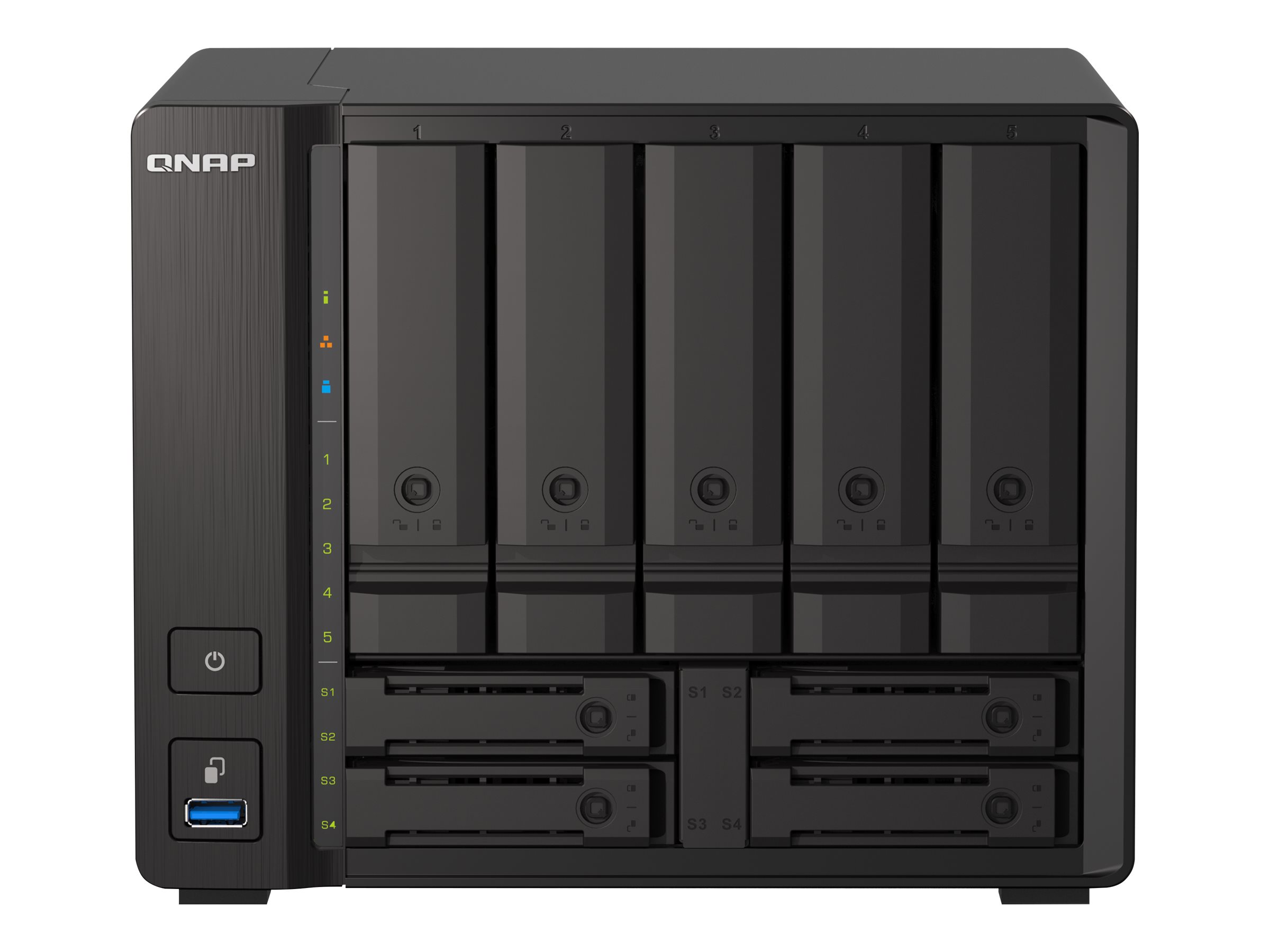

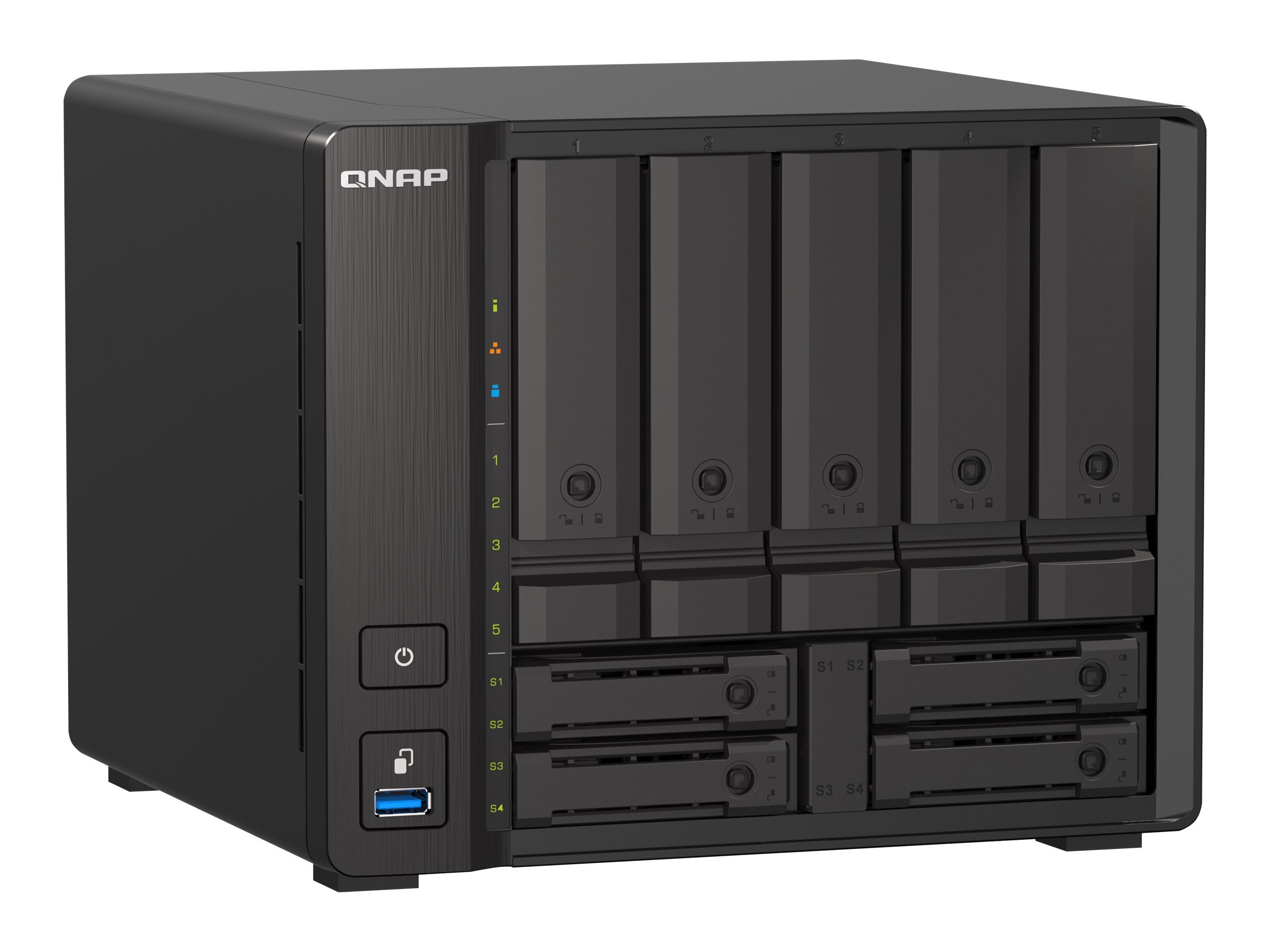

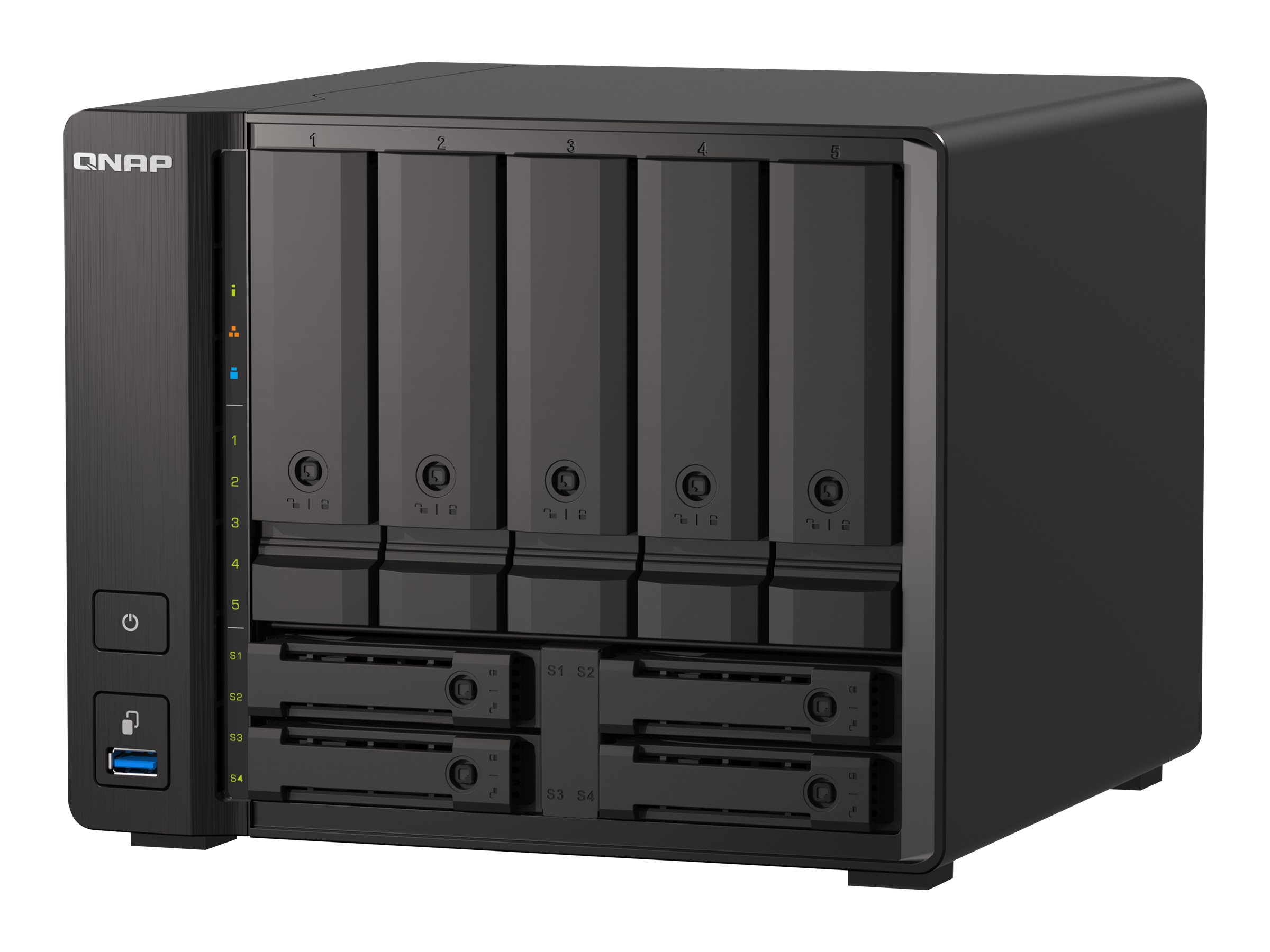

QNAP TS-H973AX-8G - NAS-server - 9 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP - RAM 8 GB - 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support
10 548,00DKK8 438,40DKK excl. VAT
  • Product no 996761152

    Model TS-H973AX-8G

    Brand "QNAP Systems, Inc"

    EAN 4713213518649

    Weight 5.06 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse QNAP TS-H973AX-8G - NAS-server
Enhedstype NAS-server
Vært Tilslutning 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Installeret udstyr/antal moduler 0 (installeret) / 9 (maks.)
Dimensioner (B x D x H) 22.46 cm x 22.41 cm x 18.265 cm
Vægt 3.52 kg ()
Processor 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core)
Controller for lagring RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP
Netværk 10GbE, 2.5GbE
RAM 8 GB
Effekt AC 120/230 V
Operativsystem til lagring QNAP QuTS hero 4.5.0
Systemkrav Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Apple OS X 10.10 Yosemite eller senere, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 eller nyere, Oracle Solaris 10 eller senere
General
Depth 22.41 cm
Device Type NAS server
Height 18.265 cm
Host Connectivity 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty 0 (installed) / 9 (max)
Total Storage Capacity 0 GB
Weight 3.52 kg ()
Width 22.46 cm
Processor / Memory
Flash Memory Installed 5 GB
Max Supported Qty 1
Number of Cores Quad-Core
Processors Installed 1 x AMD Ryzen Embedded V1500B 2.2 GHz
RAM 8 GB (installed) / 32 GB (supported) - DDR4
Storage Controller
Interface Type SATA 6Gb/s
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP
Type RAID
Networking
Compliant Standards UPnP
Data Link Protocol 10 GigE, 2.5 GigE
Encryption Algorithm SSL, FIPS 140-2, 128-bit AES, 256-bit AES
Features NAT support, load balancing, wake on LAN (WOL), IPv6 support, Spanning Tree Protocol (STP) support, download client, Jumbo Frames support, DHCP server, IPv4 support, DHCP client, link aggregation trunking, DLNA support, port trunking, IFTTT agent, FX
Network / Transport Protocol PPTP, L2TP, IPSec, FTP, DHCP, DDNS, SFTP, SMSC, HTTP, HTTPs
Network Services Compatibility Microsoft Active Directory (AD), DDNS, Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV)
Remote Management Protocol SNMP 2, Telnet, SNMP 3, IPMI 1.0, HTTP, HTTPS, TFTP, SSH, SMTP
Expansion / Connectivity
Expansion Bays 5 (total) / 5 (free) x hot-swap - 3.5" | 4 (total) / 4 (free) x hot-swap - 2.5"

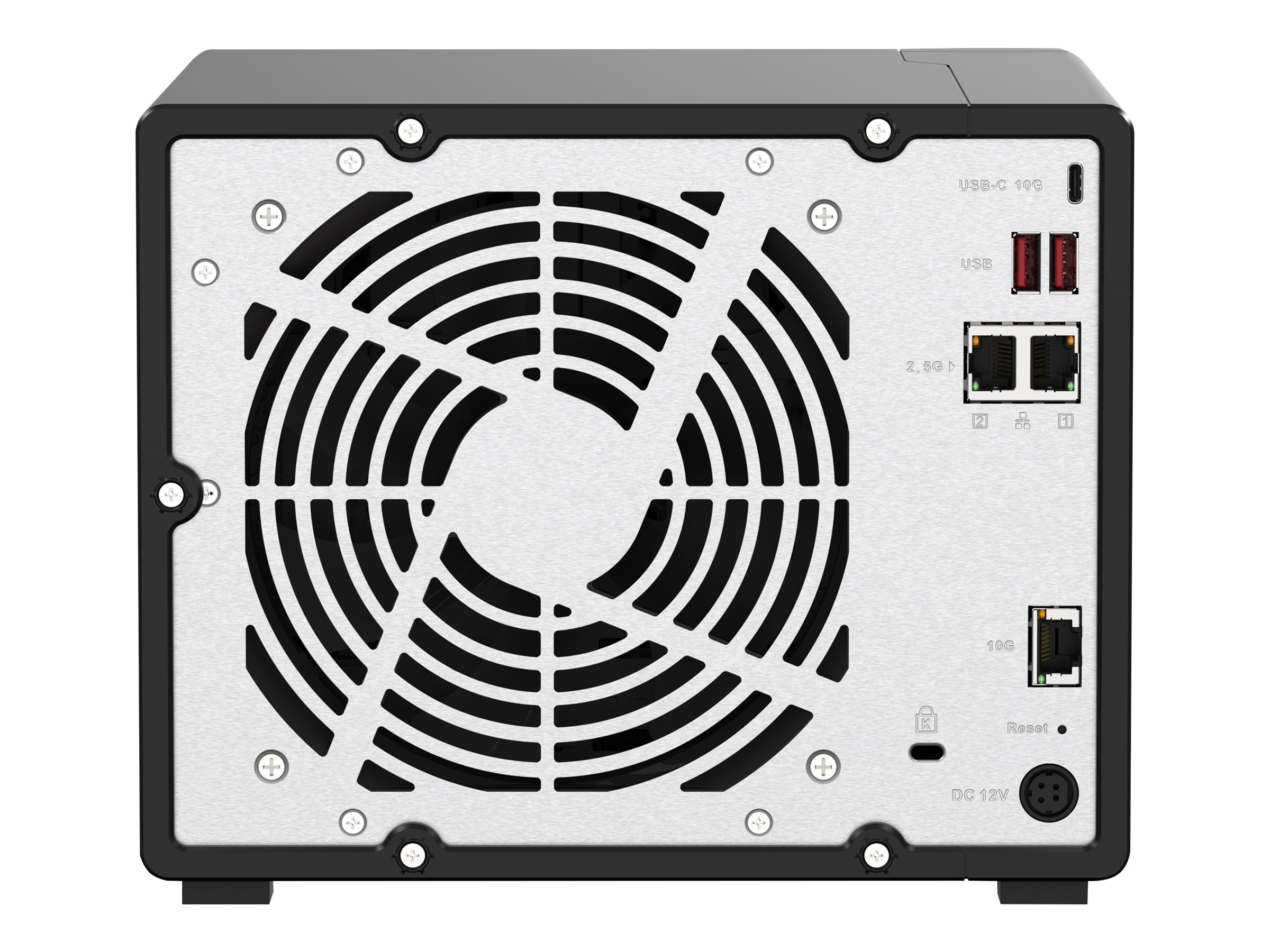

Interfaces 1 x Ethernet 10Gb | 3 x USB 3.2 Gen 2 - Type A | 1 x USB 3.2 Gen 2 - Type C | 2 x 2.5 Gigabit Ethernet
Miscellaneous
Cables Included 1 x 10GBase-T cable
Features Security lock slot (cable lock sold separately), built-in cooling fan
Included Accessories 2 x hard drive security key, 24 x flat head screws (for 3.5" HDD), 32 x flat head screws (for 2.5" HDD), power cable
Security Slot Type Kensington security slot
Power
Power Device External power adapter
Power Provided 120 Watt
Voltage Required AC 120/230 V
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Apple OS X 10.10 Yosemite or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016,
Storage Operating System QNAP QuTS hero 4.5.0
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Sound Emission 22.9 dBA
