Product no 989774418
Model 90Y6454
Brand
Go to brand's website
EAN 0883436134910
Weight 0.1 kg

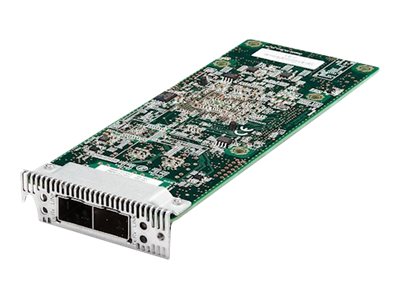

Produktbeskrivelse | QLogic Dual Port 10GbE SFP+ Embedded VFA - netværksadapter - Advanced Mezzanine Card (AMC) - 2 porte |
Enhedstype | Netværksadapter |
Grænseflade (bus) type | Advanced Mezzanine Card (AMC) |
Dimensioner (B x D x H) | 1.7 cm x 16 cm x 6 cm |
Antal porte | 2 porte |
Dataforbindelsesprotokol | 10GbE |
Dataoverførselshastighed | 10 Gbps |
Netværks/overføselsprotokol | TCP/IP, UDP/IP |
Overensstemmelsesstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
Systemkrav | SUSE Linux Enterprise Server, Microsoft Windows Server, VMware ESX Server, Red Hat Enterprise Linux Server |
Designet for | System x3550 M4; x3650 M4; x3650 M4 HD |
General | |
---|---|
Device Type | Network adapter - 2 ports |
Interface (Bus) Type | Advanced Mezzanine Card (AMC) |
Networking | |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 10 Gbps |
Features | Fault tolerance, load balancing, VLAN support, IPv6 support, Jumbo Frames support, TCP Chimney Offload support, IPv4 support, teaming support, PXE support, Large Send Offload (LSO), adaptive load balancing (ALB) |
Network / Transport Protocol | TCP/IP, UDP/IP |
Expansion / Connectivity | |
Compatible Slots | 1 x Advanced Mezzanine Card (AMC) |
Interfaces | 2 x network - SFP+ |
Software / System Requirements | |
OS Required | SUSE Linux Enterprise Server, Microsoft Windows Server, VMware ESX Server, Red Hat Enterprise Linux Server |
Dimensions & Weight | |
Depth | 16 cm |
Height | 6 cm |
Width | 1.7 cm |
Environmental Parameters | |
Humidity Range Operating | 5 - 93% (non-condensing) |
Max Operating Temperature | 55 °C |
Min Operating Temperature | 0 °C |
Compatibility Information | |
Designed For | Lenovo System x3550 M4 | Lenovo System x3650 M4 | Lenovo System x3650 M4 HD |
