Product no 995418438
Model 10121132
Brand BlueWalker
EAN 4260074982046
Weight 19.83 kg

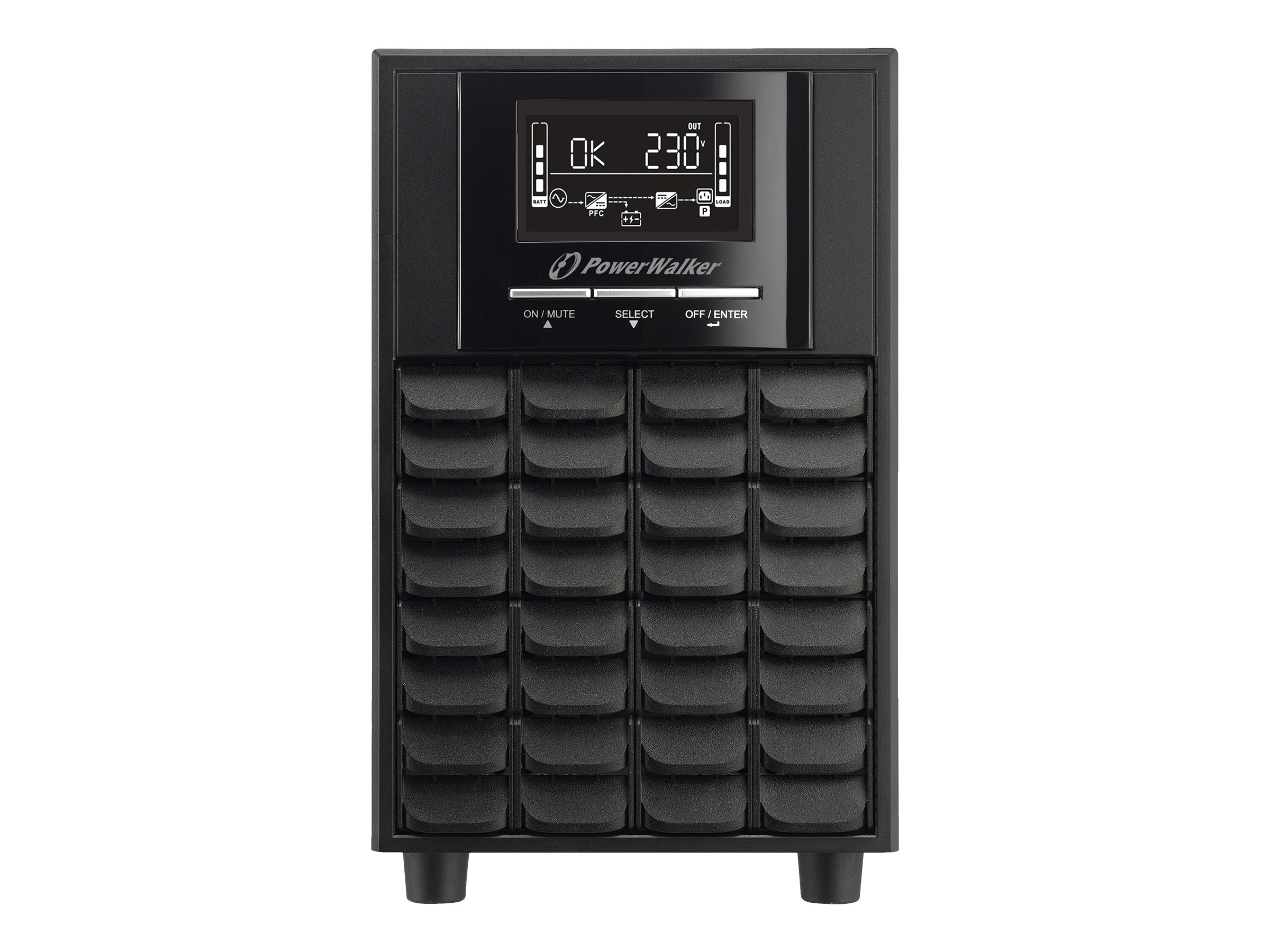

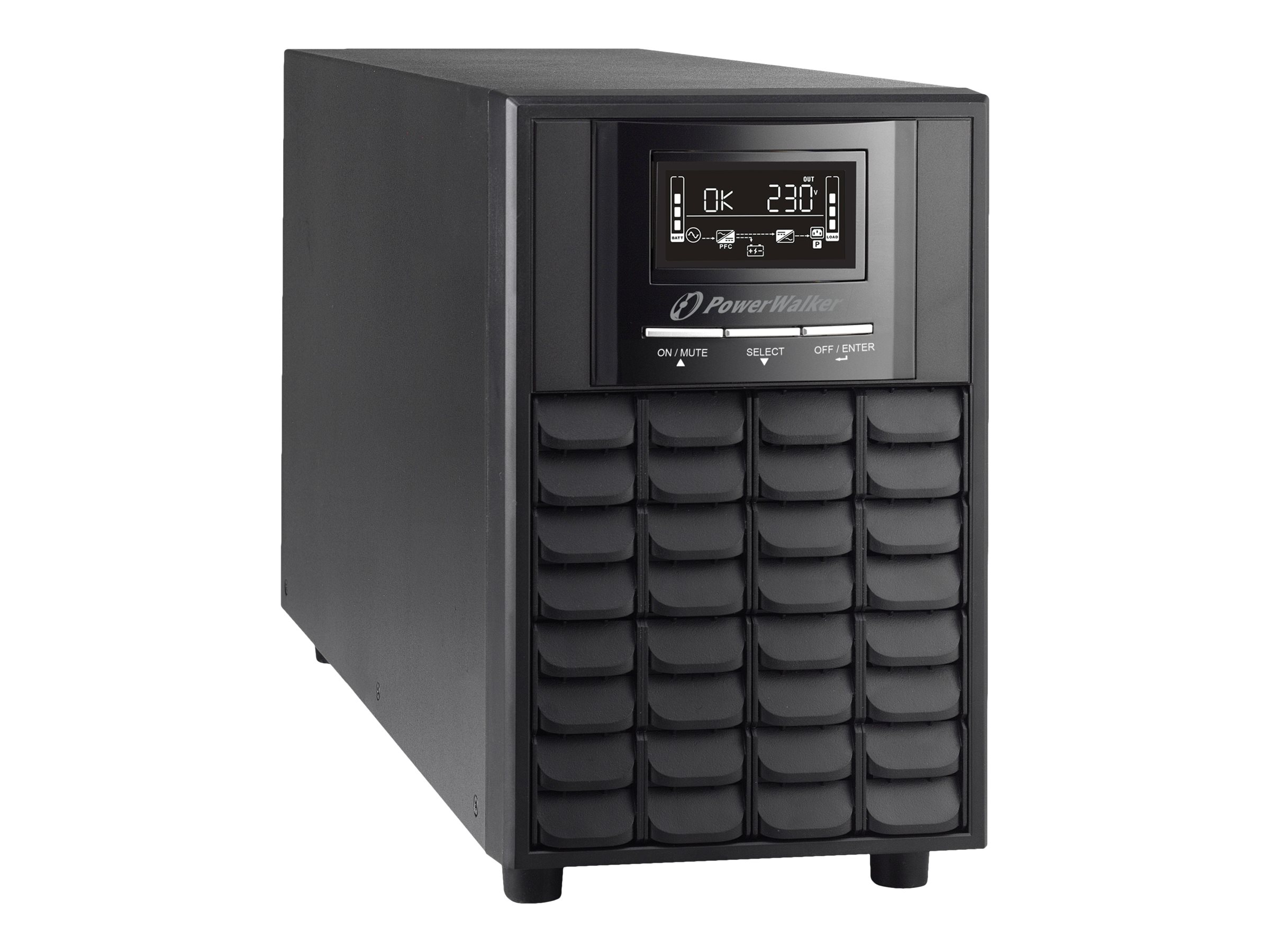

Produktbeskrivelse | PowerWalker VI 2000 CW - UPS - 1400 Watt - 2000 VA |
Enhedstype | UPS - ekstern |
Vægt | 18.1 kg |
Indgangspænding | AC 162 - 290 V |
Udgangspænding | AC 208/220/230/240 V ± 1.5% |
Strømkapacitet | 1400 Watt / 2000 VA |

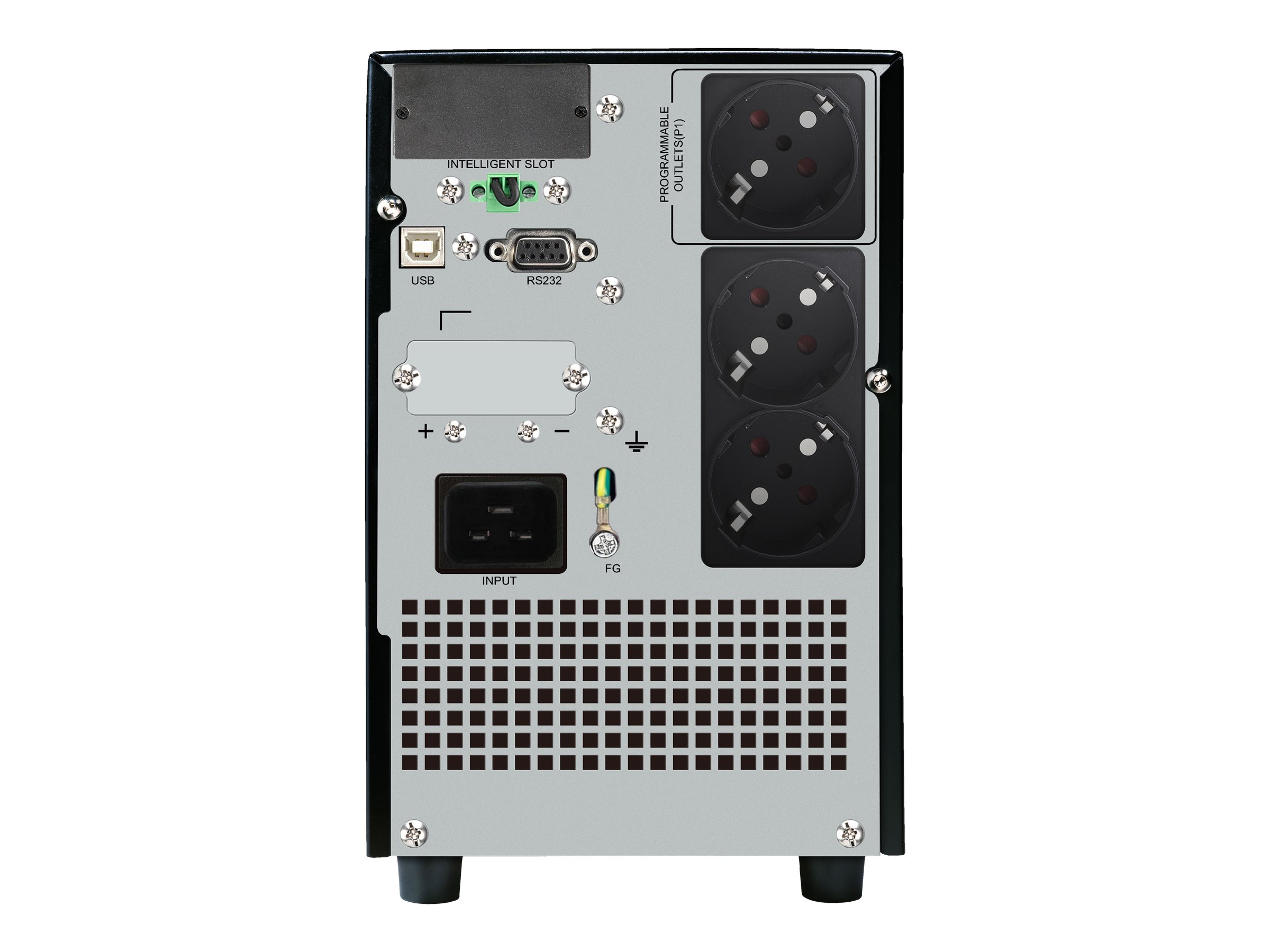

Input-stik | 1 x strøm IEC 60320 C14 |
Output-stikforbindelser | 8 x power IEC 60320 C13 |
Batteri | - 7 At |
Antal batterier | 4 |
Driftstid (op til) | 3.9 min ved fuld belastning |
Netværk | RS-232, USB |
Dimensioner (B x D x H) | 14.5 cm x 45.5 cm x 22 cm |
General | |
---|---|
Device Type | UPS - external |
Power Device | |
Efficiency | 90% Battery mode, 96% AC mode |
Frequency Provided | 50/60 Hz ± 1Hz |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Input Voltage | AC 162-290 V |
Output Voltage | AC 208/220/230/240 V ± 1.5% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 1400 Watt / 2000 VA |
Power Factor (PF) | 0.7 |
Power Output Connectors Details | 8 x power IEC 60320 C13 |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Capacity | 7 Ah |
Quantity | 4 |
Recharge Time | 4 hours |
Run Time (Up To) | 3.9 min at full load | 12.5 min at half load |
Transfer Time | 10 ms |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | Expansion slot |
Interfaces | 1 x EPO (emergency power off) |
Miscellaneous | |

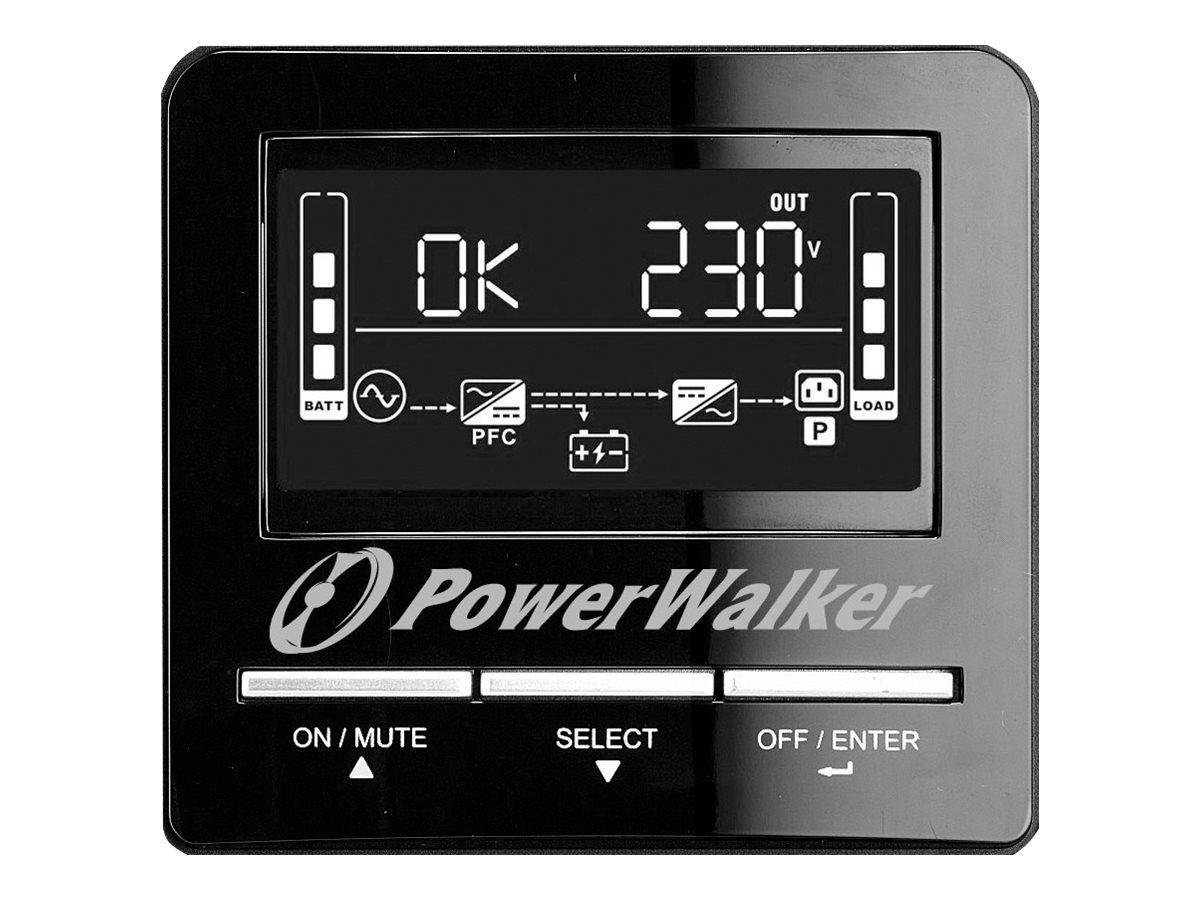

Features | LCD display, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, programmable load outlets, Human Interface Device (HID) support, Advanced ECO Mode |
Software / System Requirements | |
Software Included | ViewPower |
Environmental Parameters | |
Humidity Range Operating | 20 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 45 dB |
Dimensions & Weight | |
Depth | 45.5 cm |
Height | 22 cm |
Weight | 18.1 kg |
Width | 14.5 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 54 cm |
Shipping Height | 32.5 cm |
Shipping Weight | 20.1 kg |
Shipping Width | 23.5 cm |
