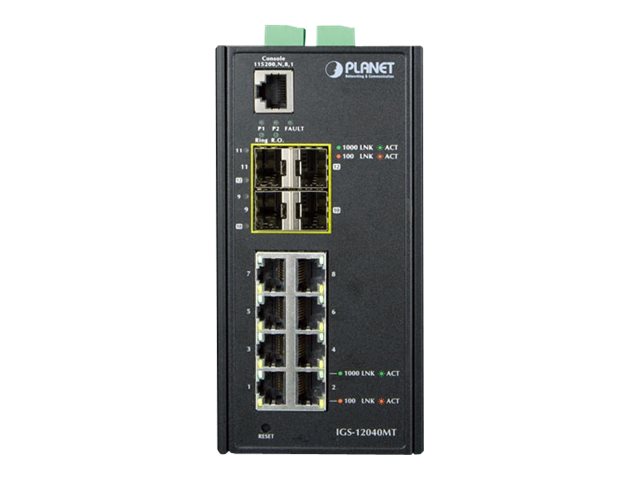

Product no 992933580
Model IGS-12040MT
Brand PLANET Technology
EAN 4711605281010
Weight 1.01 kg
Produktbeskrivelse | PLANET IGS-12040MT - switch - 12 porte - Administreret |
Enhedstype | Switch - 12 porte - Administreret |
Undertype | Gigabit Ethernet |
Porte | 8 x 10/100/1000 + 4 x Gigabit SFP |
Præstation | Skift af stofbåndbredde: 24 Gbps<br>Kapacitet: 17,85 Mpps |
Kapacitet | Virtuelle grænseflader (VLANs): 4095<br>Routing table bidrag: 32 |
Jumborammesupport | 9KB |
Routingprotokol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
Protokol til fjernadministration | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
Egenskaber | Datatransport, routing, DHCP-understøttelse, auto-negotiation, understøttet af BOOTP, VLAN-understøttet, Syslog understøttet, portspejling, gem og send, IPv6 understøttet, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DAI, IPv4 support, LLDP support, LACP, SNMP fælde, CoS, DoS, 6KV ESD Protector, DSCP support, ERPS, IP-kildebekyttelse, ICMP |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad |
Effekt | AC 24 V / DC 12 -72 V |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 10.7 cm x 7.2 cm x 15.2 cm |
Vægt | 1.01 kg |
General | |
---|---|
Authentication Method | RADIUS, TACACS+ |
Capacity | Virtual interfaces (VLANs): 4095 | Routing table entries: 32 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad |
Device Type | Switch - 12 ports - managed |
Enclosure Type | DIN rail mountable, wall-mountable |
Encryption Algorithm | SSL |
Features | Flow control, routing, DHCP support, auto-negotiation, BOOTP support, VLAN support, Syslog support, port mirroring, store and forward, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning |
Jumbo Frame Support | 9KB |
Performance | Switching fabric bandwidth: 24 Gbps | Throughput: 17.85 Mpps |
Ports | 8 x 10/100/1000 + 4 x Gigabit SFP |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
Status Indicators | Power, fail, alarm, link/activity |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 | 4 x 1000Base-X SFP | 1 x serial (console) |
Power | |
Power Consumption Operational | 12 Watt |
Power Device | Internal power supply |
Power Redundancy | Yes |
Voltage Required | AC 24 V / DC 12 -72 V |
Miscellaneous | |
Compliant Standards | IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
Dimensions & Weight | |
Depth | 7.2 cm |
Height | 15.2 cm |
Weight | 1.01 kg |
Width | 10.7 cm |
Environmental Parameters | |
Humidity Range Operating | 5 - 95% (non-condensing) |
Humidity Range Storage | 5 - 95% (non-condensing) |
Max Operating Temperature | 75 °C |
Max Storage Temperature | 85 °C |
Min Operating Temperature | -40 °C |
Min Storage Temperature | -40 °C |
