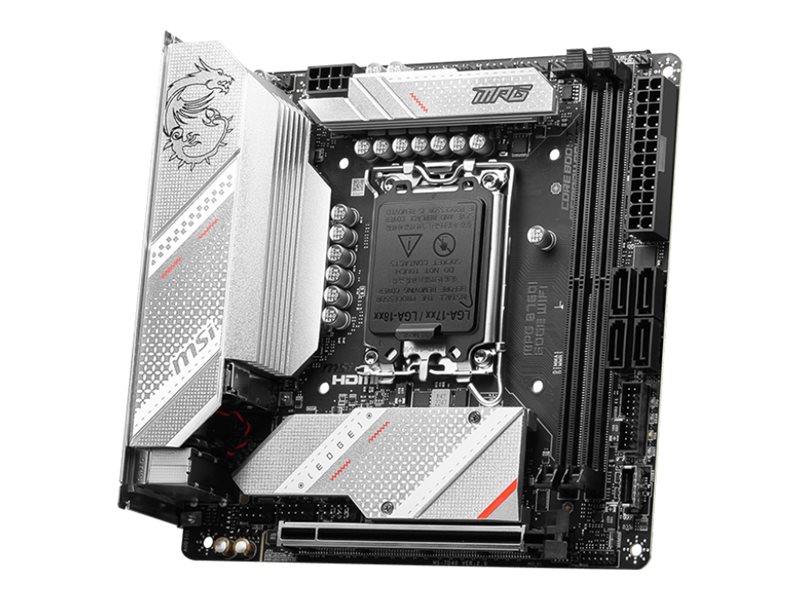

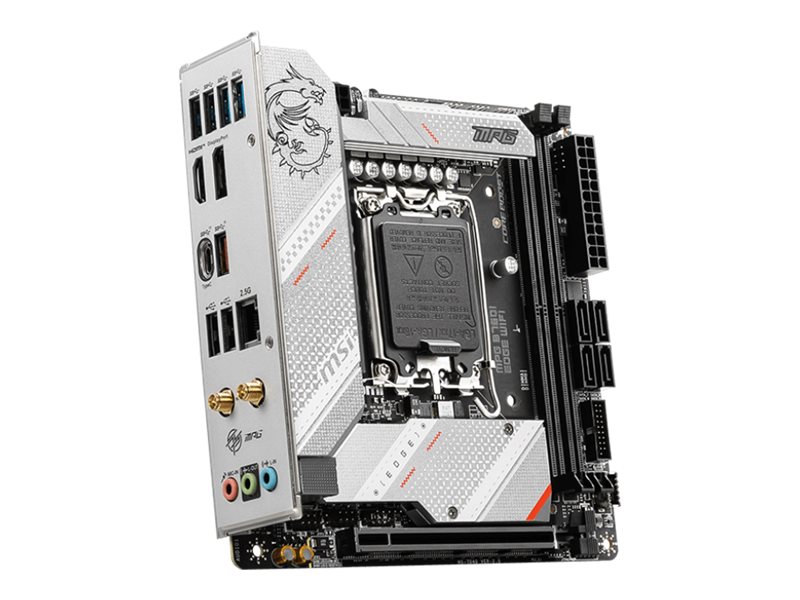

MSI MPG B760I EDGE WIFI Mini ITX LGA1700 Intel B760
MSI MPG B760I EDGE WIFI - mITX DDR5 S1700
1 693,00DKK1 354,40DKK excl. VAT
-
Product no 1001088023
Model MPG B760I EDGE WIFI
Brand
Go to brand's websiteEAN 4711377069632
Weight 0.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| General | |
|---|---|
| Chipset Type | Intel B760 / Nuvoton NCT6687D-M |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - mini ITX |
| Supported RAM | |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 5.0 x16 | 2 x M.2 socket (2280 M.2 Key M slot) | 1 x M.2 socket (Key E) | 2 x M.2 socket (2280 M.2 Key M slot) |

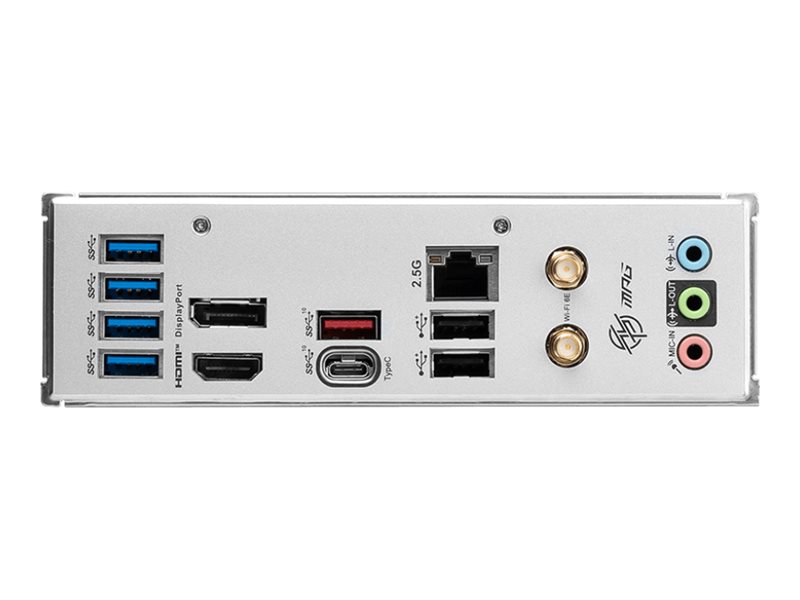

| Interfaces | 4 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x USB-C 3.2 Gen 2 | 1 x USB 3.2 Gen 2 | 2 x antenna | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio line-out - mini-jack | 1 x headphones output - mini-jack | 1 x microphone - mini-jack | 1 x HDMI | 1 x DisplayPort |
| Internal Interfaces | 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C 3.2 Gen 2 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | Multilingual BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support |
| BIOS Type | AMI |
| Hardware Features | MSI Audio Boost, 8 Layer PCB, Debug LED, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, pre-mounted I/O shield, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Firmware Trusted Platform Module ( |
| Miscellaneous | |
| Cables Included | 1 x Serial ATA cable |
| Compliant Standards | BSMI, WEEE, FIPS, FISMA, FCC Part 15 Class B, DisplayPort 1.4 |
| Depth | 17 cm |

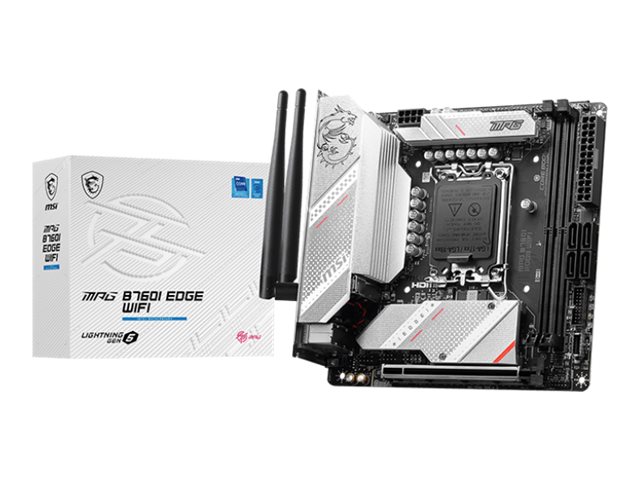

| Included Accessories | Rainbow RGB LED extension cable, Wi-Fi antenna, cable stickers, 2 x M.2 screw package |
| Width | 17 cm |
