Product no 996020826
Model MPG B550 GAMING PLUS
Brand
Go to brand's website
EAN 4719072731885
Weight 1.92 kg

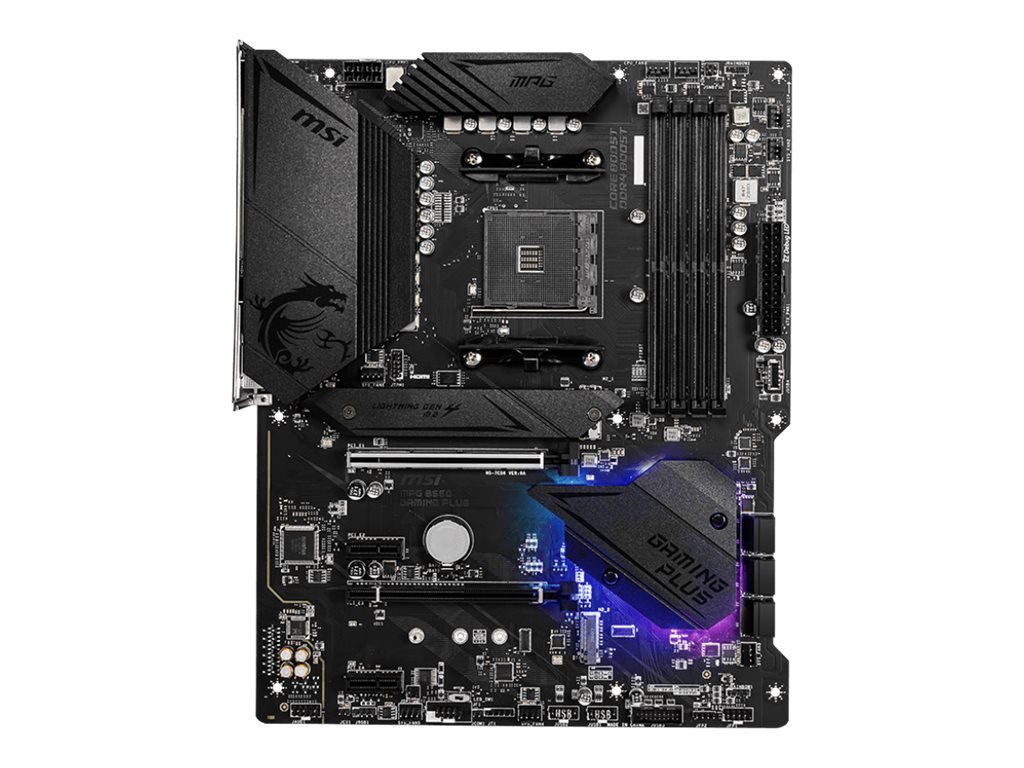

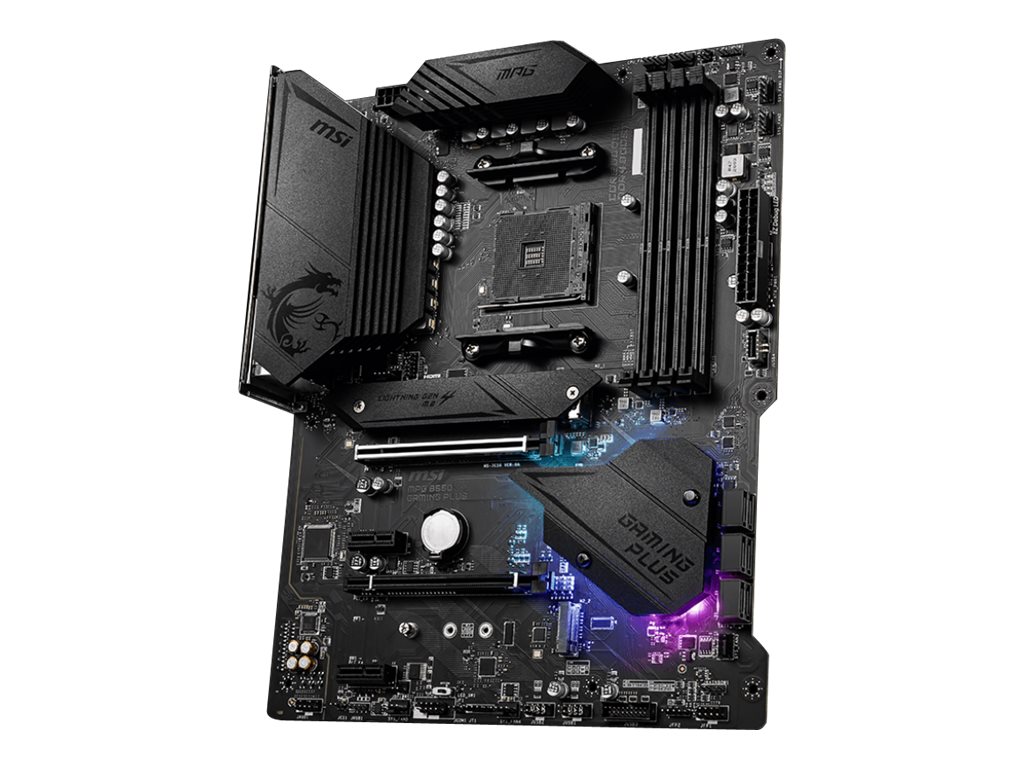

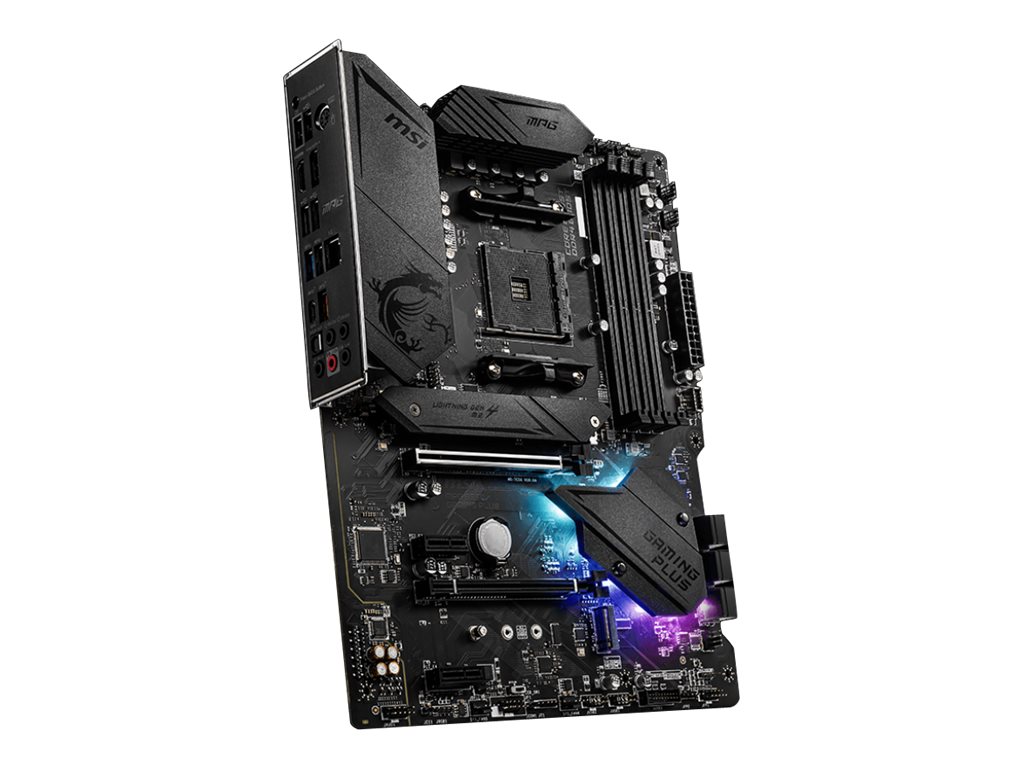

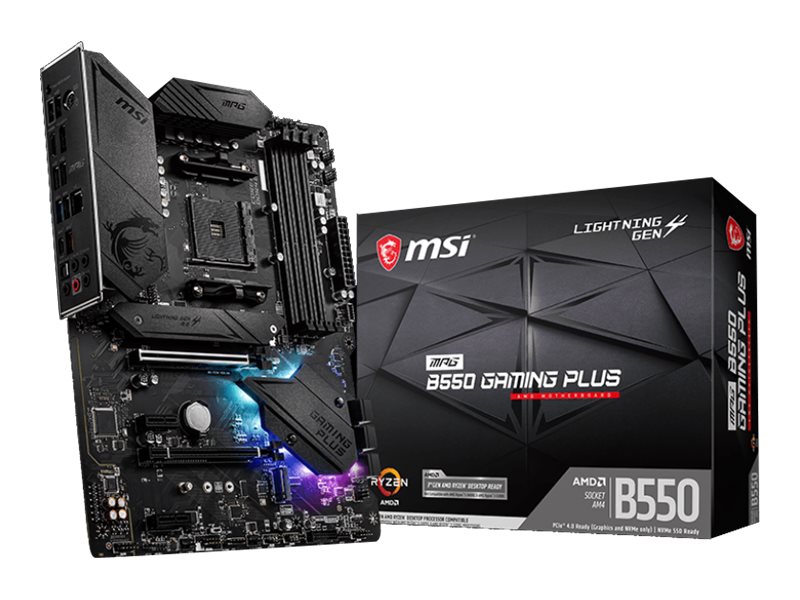

Produktbeskrivelse | MSI MPG B550 GAMING PLUS - bundkort - ATX - Socket AM4 - AMD B550 |
Produkttype | Bundkort - ATX |
Chipsættype | AMD B550 / Nuvoton NCT6687 |
Processor-socket | 1 x Socket AM4 |
Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics) |
Max RAM-størrelse | 128 GB |
RAM understøttet | 4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet |
Lagringsporte | 6 x SATA-600 (RAID), 2 x M.2 |
USB / FireWire porte | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
Audio | HD Audio (8-kanaler) |
LAN | Gigabit Ethernet |
General | |
---|---|
Chipset Type | AMD B550 / Nuvoton NCT6687 |
Compatible Processors | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
Max Processors Qty | 1 |
Processor Socket | Socket AM4 |
Product Type | Motherboard - ATX |
Supported RAM | |
Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz |
Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
Max Size | 128 GB |
Registered or Buffered | Unbuffered |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
Technology | DDR4 |
Audio | |
Audio Codec | Realtek ALC892 |
Compliant Standards | High Definition Audio |
Type | HD Audio (8-channel) |
LAN | |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x16 (x4 mode) | 2 x PCIe 3.0 x1 |

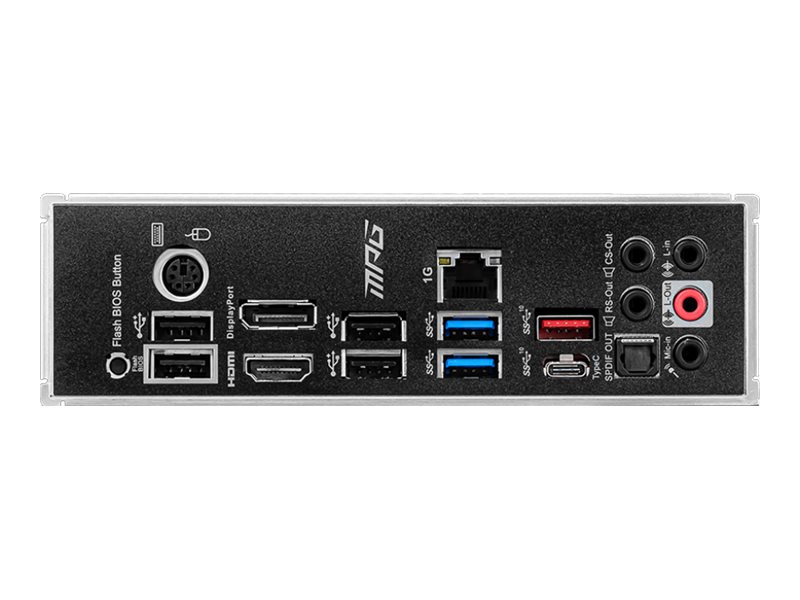

Interfaces | 1 x LAN (Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x TOSLINK | 2 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (r |
Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 | PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
Features | |
Hardware Features | AMD CrossFireX technology support, MSI Audio Boost, Debug LED, MSI Mystic Light, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer |
Miscellaneous | |
Cables Included | 2 x Serial ATA cable |
Depth | 24.4 cm |
Included Accessories | Case badge |
Software Included | Drivers & utilities |
Width | 30.5 cm |
