Product no 995595328
Model ACS-5602
Brand LevelOne
EAN 4015867222126
Weight 0.62 kg

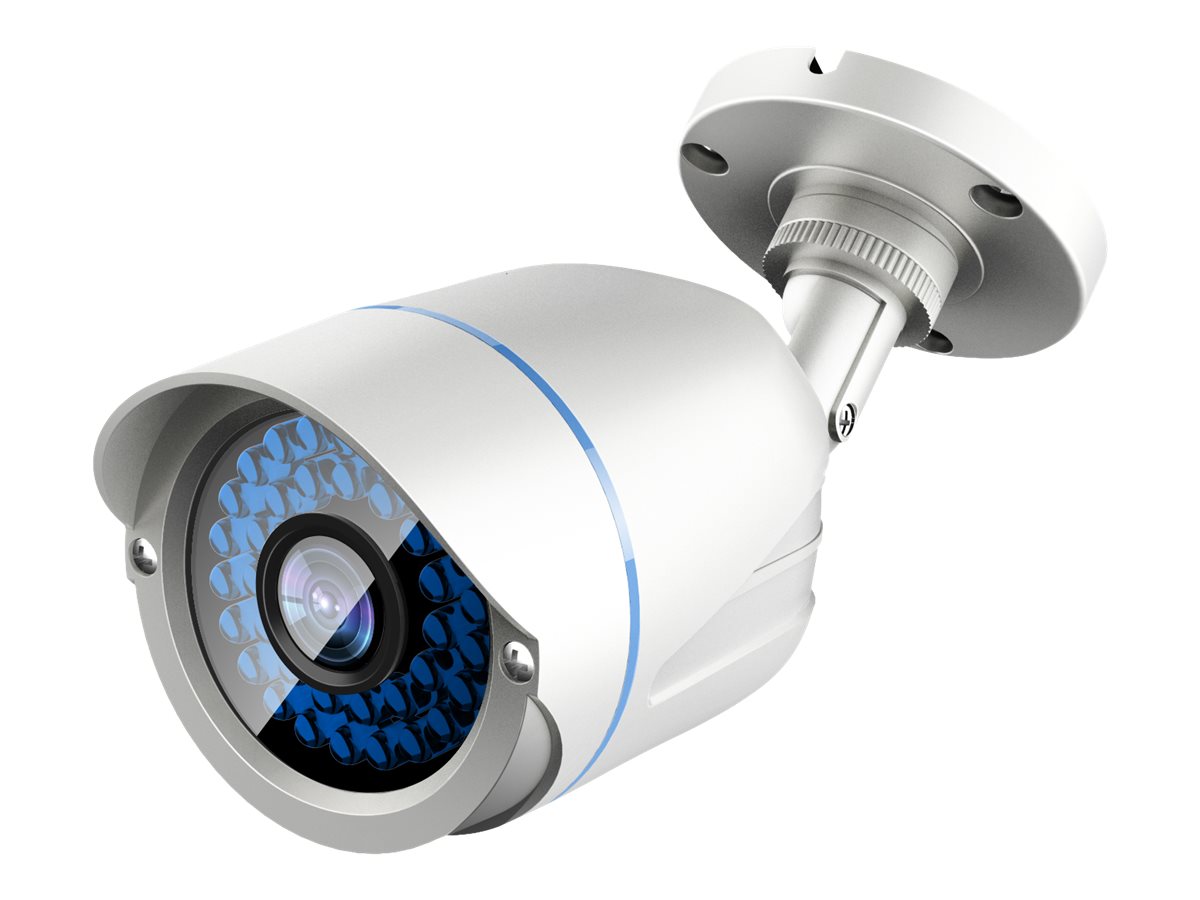

Produktbeskrivelse | LevelOne ACS-5602 - overvågningskamera |
Enhedstype | Overvågningskamera - fast - vejrbestandig |
Dimensioner (B x D x H) | 16.5 cm x 6.2 cm x 6.4 cm |
Vægt | 420 g |
Farve | Hvid |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Video Modes | 1080p |
Billedsensortype | CMOS - 1/3" |
Brændviddekontrol | Fast brændvidde |
Brændvidde | 3.6 mm |
Interface | Kompositvideo, HD-CVI, HD-TVI, AHD |
Medfølgende ledninger | 1 - BNC-kabel - ekstern |
Spænding | DC 12 V |
Egenskaber | Backlight Compensation (BLC), progressiv scanning, infrarød skære filter, Highlight Compensation (HLC), Automatic Tracing White (ATW), 1280H-teknologi |
Miljømæssige parametre (operativ) | -20 °C - 55 °C; 80 % (ikke-kondenserende) relativ luftfugtighed |
General | |
---|---|
Connectivity Technology | Wired |
Depth | 6.2 cm |
Device Type | Surveillance camera |
Height | 6.4 cm |
Weight | 420 g |
Width | 16.5 cm |
Camera | |
Features | Backlight Compensation (BLC), progressive scanning, infrared cut filter, Highlight Compensation (HLC), Automatic Tracing White (ATW), 1280H technology |
Infrared Distance | 30 m |
Infrared LEDs | 36 |
Type | Color - Day&Night - fixed - weatherproof |
Video Modes | 1080p |
Image Sensor | |
Type | CMOS 1/3" |
Lens Construction | |
Focal Length | 3.6 mm |
Type | Fixed focal |
Interfaces | |
Video | Composite video, HD-CVI, HD-TVI, AHD |
Expansion / Connectivity | |
Ports | Composite video/AHD/HD-CVI/HD-TVI - BNC |
Miscellaneous | |
Cables Included | 1 x BNC cable - external |
Color | White |
Compliant Standards | FCC, IP67 |
Power | |
Power Device | 6 Watt |
Power Requirements | DC 12 V - 1 A |
Environmental Parameters | |
Max Operating Temperature | 55 °C |
Min Operating Temperature | -20 °C |
Relative Humidity (operating) | 80% (non-condensing) |
