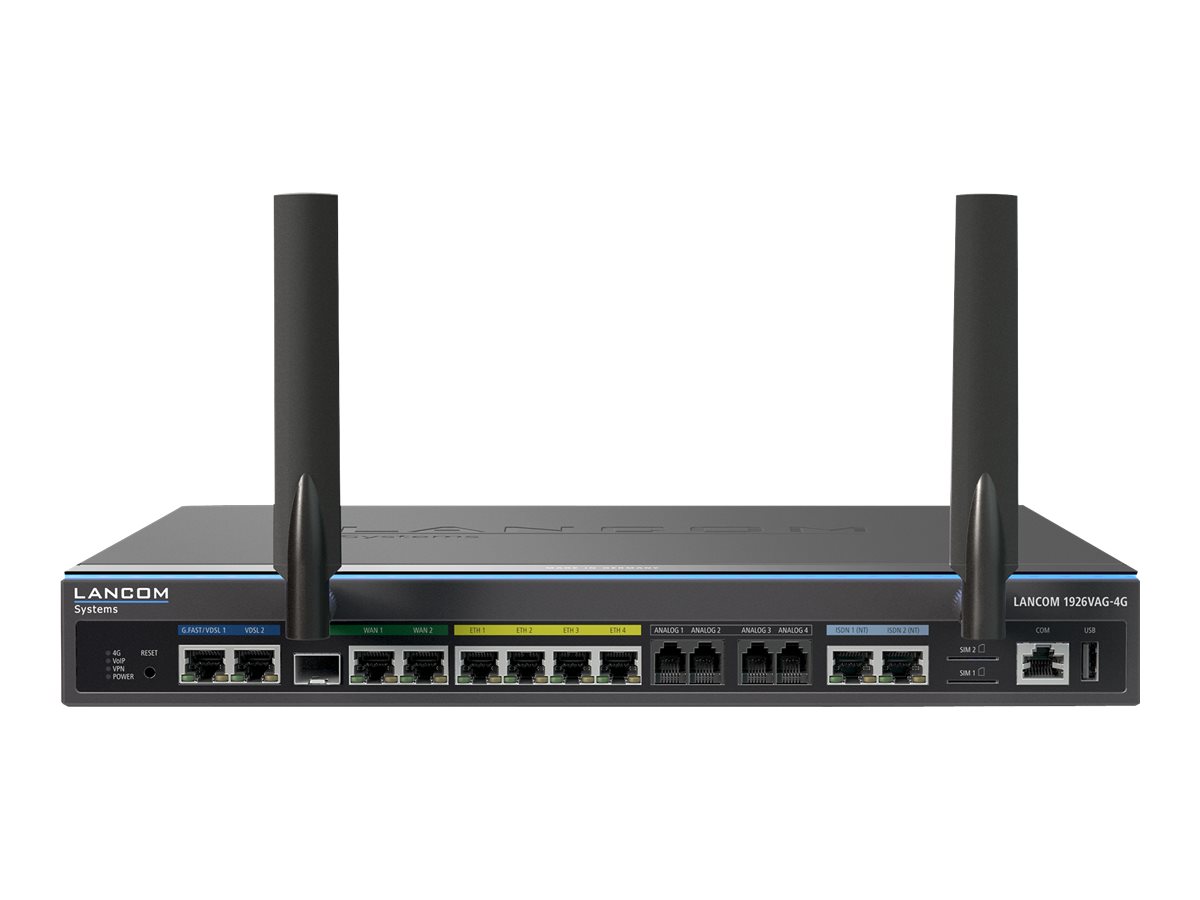

LANCOM 1926VAG-4G Router 4-port switch Kabling
LANCOM 1926VAG-4G - - router - - ISDN/WWAN/DSL 4-port switch - 1GbE, PPP - WAN-porte: 2 - VoIP-telefonadapter
14 234,00DKK11 387,20DKK excl. VAT
-
Product no 998335716
Model 62123
Brand LANCOM Systems
EAN 4044144621239
Weight 2.5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LANCOM 1926VAG-4G - router - ISDN/WWAN/DSL - desktop |
| Enhedstype | Router - ISDN / trådløs mobilmodem / DSL-kombi - 4-port switch (integreret) |
| Pakningstype | Desktop - 1U |
| Protokol for digital signaltransmission | ADSL, ADSL over ISDN, ADSL2, ADSL2+, ADSL2+ over ISDN, VDSL2 |
| Mobilprotokol | GPRS, UMTS, EDGE, HSPA, LTE |
| Antal WAN porte | 2 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
| Netværks/overføselsprotokol | TCP/IP, PPTP, UDP/IP, NetBEUI/NetBIOS, L2TP, NTP, ICMP/IP, IPSec, PPPoE, IPoE, ARP, BOOTP, DHCP, DNS, DDNS |
| Routingprotokol | BGP-4, RIP-1, RIP-2, VRRP, OSPFv2, GRE, police-baseret routing (PBR) |
| Protokol til fjernadministration | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| VoIP-funktionalitet | VoIP-telefonadapter |
| VoIP-protokoller | SIP, RTP, SRTP |
| Grænseflader til telefoni | 4 telefoner (FXS) |
| Egenskaber | DMZ-port, VPN support, understøttet af BOOTP, understøttet af ARP, aktivitet, VLAN-understøttet, IGMP snooping, Syslog understøttet, SPI, E-mail advarsel, IPv6 understøttet, IPS, STP support, RSTP support, ACL support, QoS, IPSec NAT-T, DHCP server, port fremsendelse, nulstillingsknap, 2T2R MIMO teknologi, IPv4 support, LACP support, LLDP support, DHCP videresendelse, SNMP fælde, DHCP klient, metalkabinet, IP-spoofing, DoS protection |
| Overensstemmelsesstandarder | IEEE 802.1Q, X.509 |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 34.5 cm x 25.3 cm x 4.4 cm |
| Vægt | 2.5 kg |
| Lokalisering | Europa |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Authentication Method | RADIUS, PAP, CHAP, X.509 certificates, TACACS+, MS-CHAP, MS-CHAP v.2, XAUTH authentication |
| Compliant Standards | IEEE 802.1Q, X.509, EN55022, EN55024, EN 60950-1 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop - 1U |
| Encryption Algorithm | DES, Triple DES, Blowfish, RSA, MD5, IKE, SHA-1, CAST-128, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2 |
| Features | DMZ port, VPN support, BOOTP support, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), E-mail alert, IPv6 support, Intrusion Prevention System (IPS), Spanning Tree Protocol (STP) support, Rap |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, NetBEUI/NetBIOS, L2TP, NTP, ICMP/IP, IPSec, PPPoE, IPoE, ARP, BOOTP, DHCP, DNS, DDNS |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Routing Protocol | BGP-4, RIP-1, RIP-2, VRRP, OSPFv2, GRE, policy-based routing (PBR) |
| Communications | |
| Cellular Protocol | GPRS, UMTS, EDGE, HSPA, LTE |
| Digital Signaling Protocol | ADSL, ADSL over ISDN, ADSL2, ADSL2+, ADSL2+ over ISDN, VDSL2 |
| Protocols & Specifications | ITU T.38, ITU G.992.1 (G.DMT) Annex B, ITU G.993.2, ITU G.992.5 Annex B, ITU G.992.3 Annex B, ITU G.992.5 Annex J, ITU G.993.5 |
| Type | ISDN / wireless cellular modem / DSL combo |
| IP Telephony | |
| Telephony Interfaces | 4 phone (FXS) |
| Voice Codecs | G.711u, G.711a, T.38 |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | SIP, RTP, SRTP |
| Expansion / Connectivity | |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN: 2 x VDSL2 / ADSL2+ over ISDN | WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Gain Level | 2 dBi |
| Power | |
| Power Consumption Operational | 36 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Localization | Europe |
| Software / System Requirements | |
| OS Provided | LCOS |
| Software Included | Drivers & Utilities |
| Dimensions & Weight | |
| Depth | 25.3 cm |
| Height | 4.4 cm |
| Weight | 2.5 kg |
| Width | 34.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
