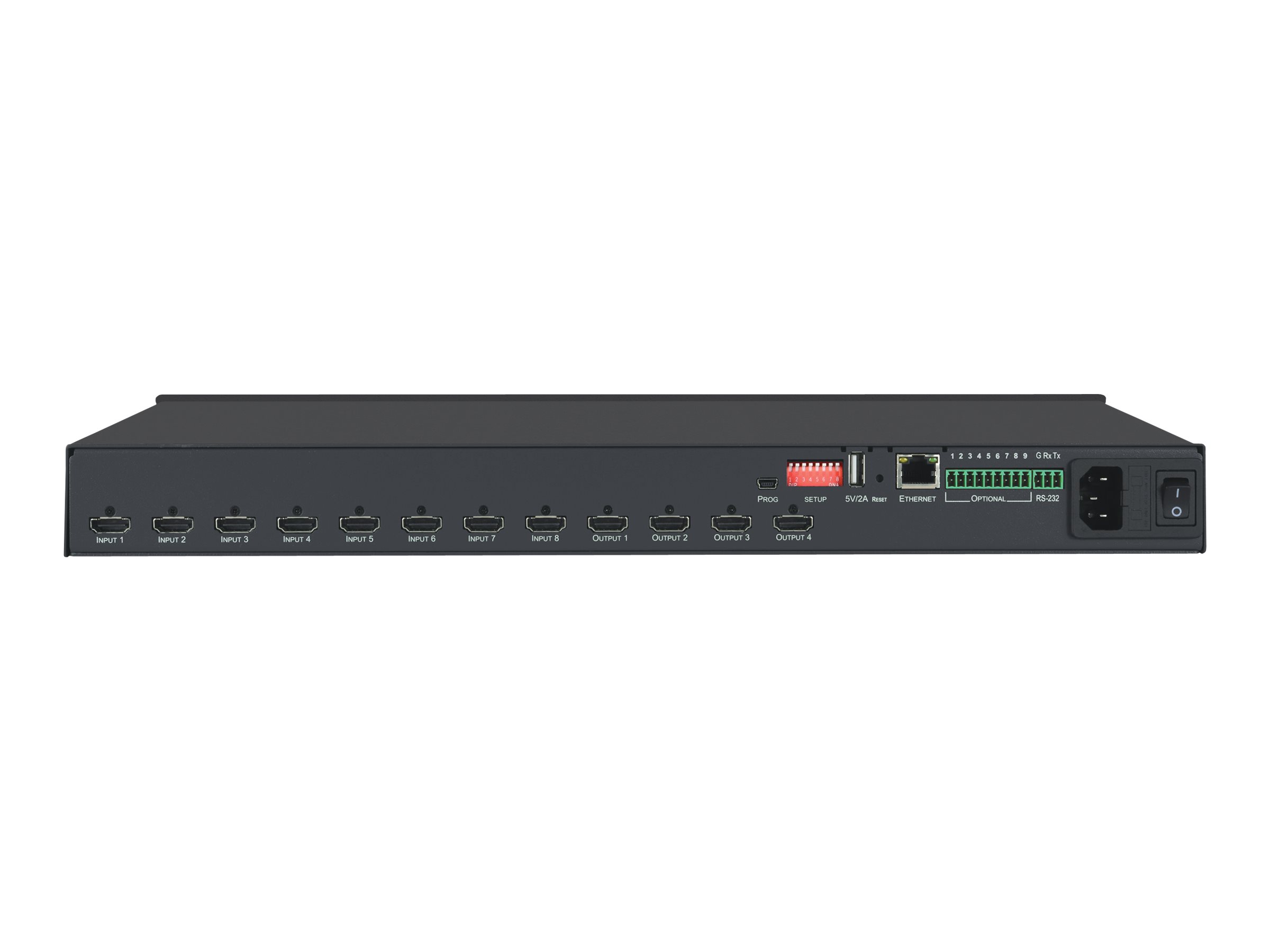

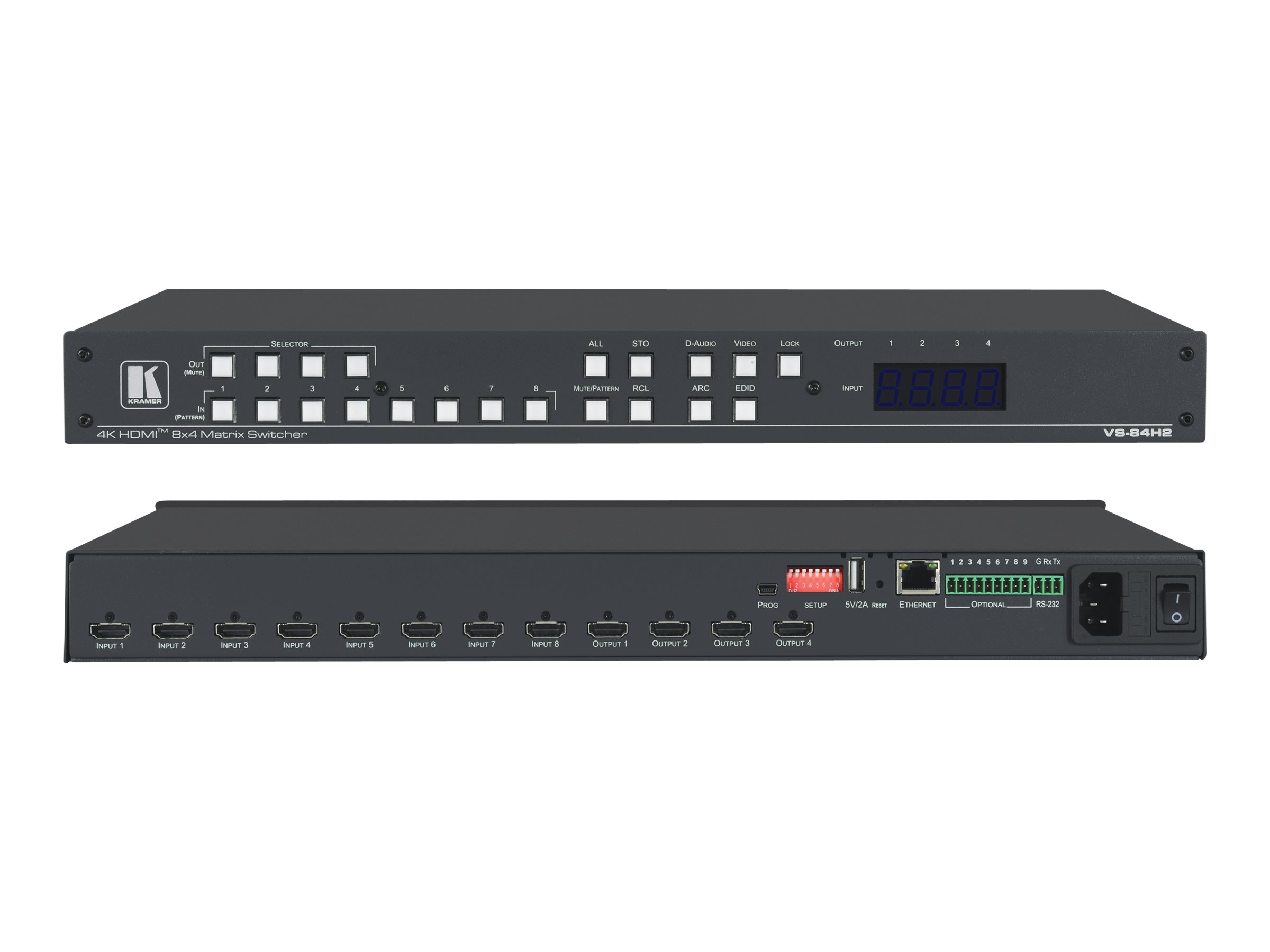

Kramer VS-84H2 8x4 4K HDR HDCP 2.2 Matrix er Digital Audio Routing Video-/audioswitch HDMI
Kramer VS-84H2 8x4 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing - Video-/audioswitch - desktop, monterbar på stativ
30 760,00 DKK
24 608,00 DKK excl. VAT
-
Product no 998322239
Model 20-00011730
Brand Kramer Electronics
EAN 7291063091767
Weight 2.87 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Kramer VS-84H2 8x4 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing - video-/audioswitch - monterbar på stativ |
| Enhedstype | Video-/audioswitch |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | HDMI |
| Præstation | Kapacitet: 18 Gbps |
| Egenskaber | HDCP kompatibel, 3D-support, 4K opløsningssupport, 7,1 kanals audiosupport, Kramer Equalization & re-Klocking Technology, EDID Management, ARC support, HDR-support |
| Overensstemmelsesstandarder | HDCP 1.4, HDCP 2.2 |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 43.64 cm x 18.3 cm x 4.36 cm |
| Vægt | 2.1 kg |
| General | |
|---|---|
| Built-in Devices | LED display |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | HDCP compliant, 3D support, 4K resolution support, 7.1 channel audio support, Kramer Equalization & re-Klocking Technology, EDID Management, ARC support, HDR support |
| Max Resolution | 4K @ 60 Hz |
| Performance | Throughput: 18 Gbps |
| Subtype | HDMI |
| Expansion / Connectivity | |
| Interfaces | 8 x HDMI input | 4 x HDMI output | 1 x management (mini-USB) Type B | 1 x management (RS-232) 3 pin terminal block | 1 x management (LAN) RJ-45 | 1 x USB Type A |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Included Accessories | 4 rubber feet |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 18.3 cm |
| Height | 4.36 cm |
| Weight | 2.1 kg |
| Width | 43.64 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 33 cm |
| Shipping Height | 10.7 cm |
| Shipping Weight | 2.9 kg |
| Shipping Width | 52.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
