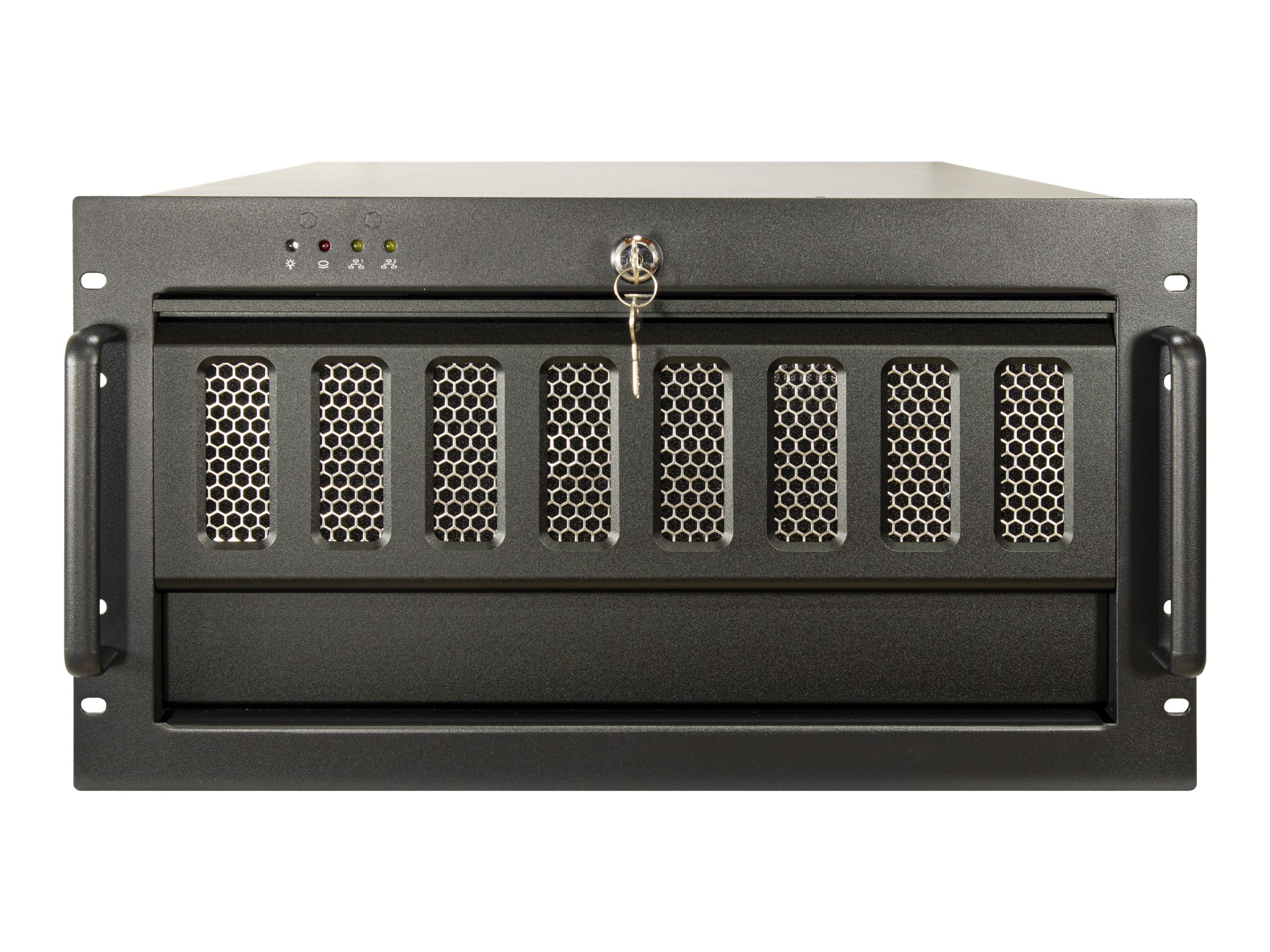

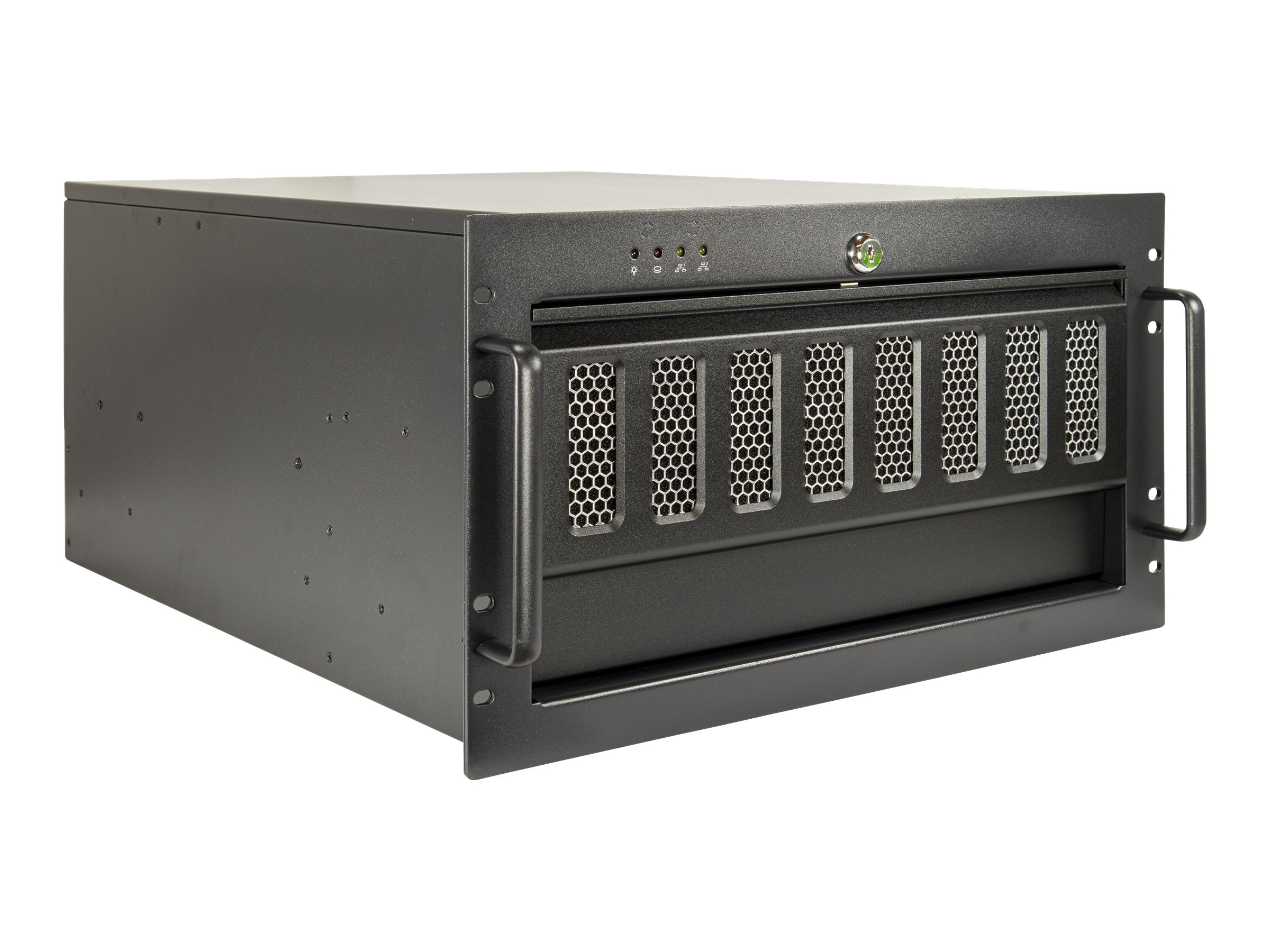

Inter-Tech IPC 6U-6606 Rackversion Udvidet ATX Ingen strømforsyning Sort
Inter-Tech IPC 6U-6606 - Rack-monterbar - udvidet ATX - SATA - hot-swap - ingen strømforsyning (ATX) - USB
-
Product no 1000921058
Model 88887339
Brand Inter-Tech Elektroni
EAN 4260455646468
Weight 20.14 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Inter-Tech IPC 6U-6606 - rack-monterbar - udvidet ATX |
| Produkttype | Systemkabinet |
| Model | Rack-monterbar |

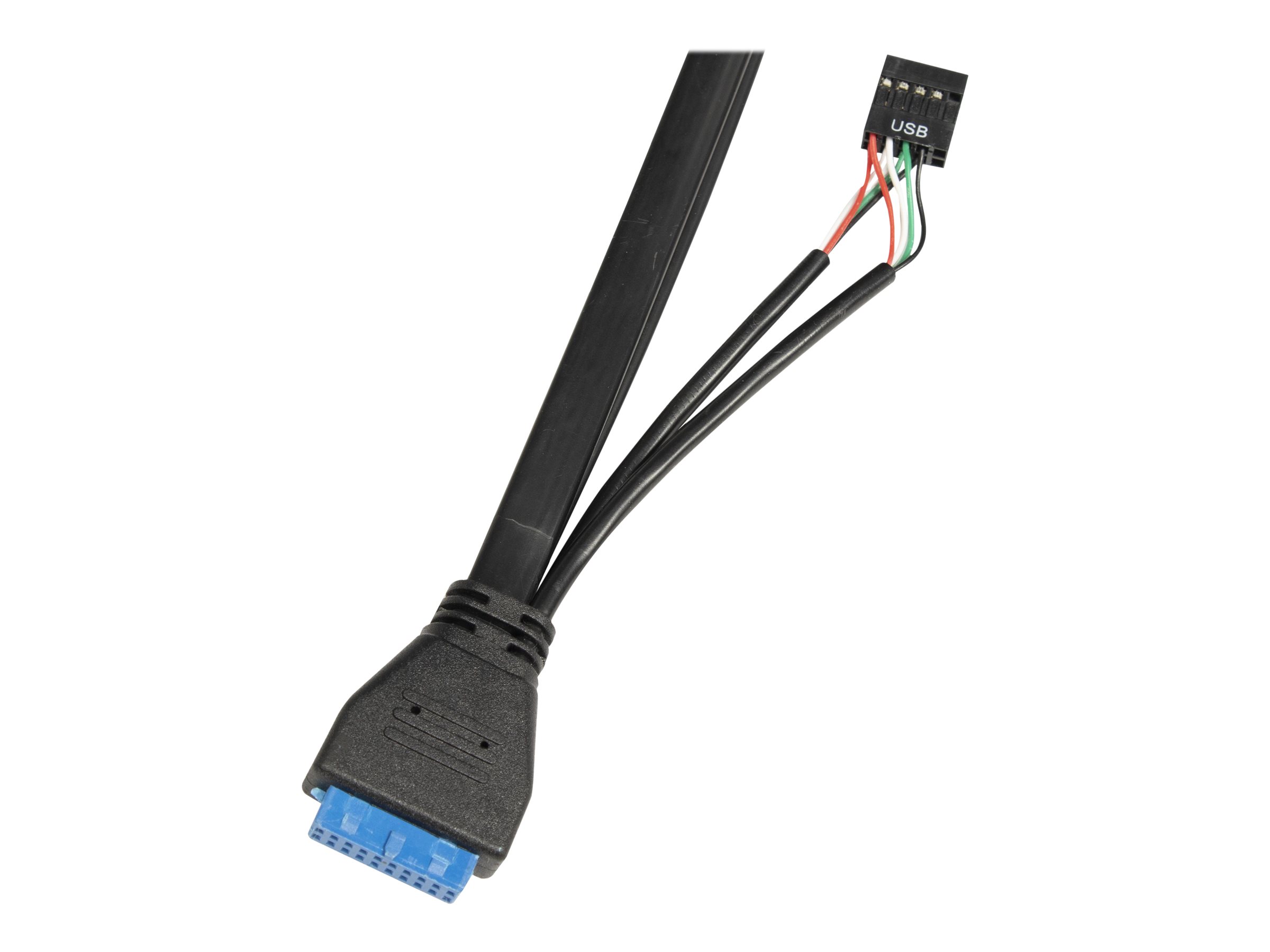

| I/O-kontakter | 2 x USB 3.0 |
| Understøttede motherboards | ATX, microATX, Mini-ITX, Extended ATX |

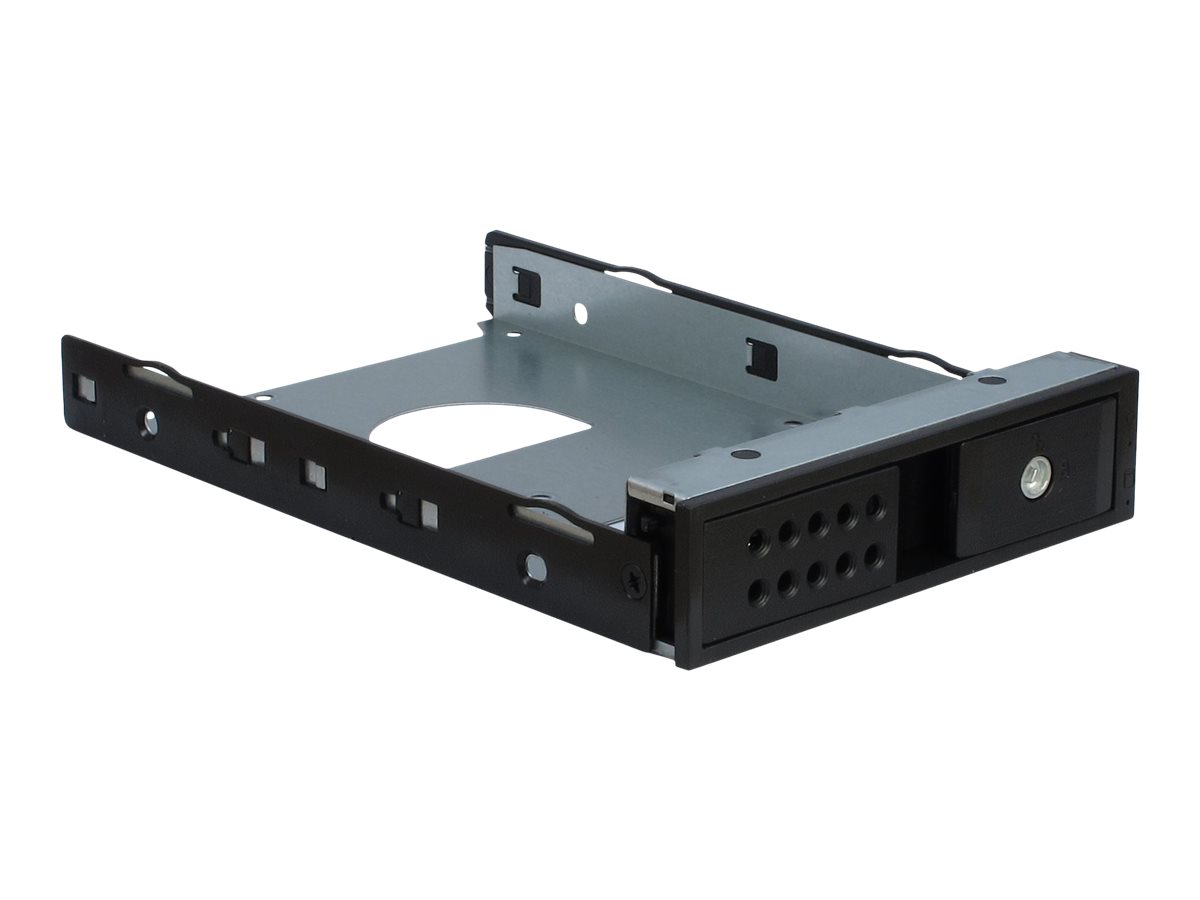

| Server-lagringsenheder | SATA - hot-swap |

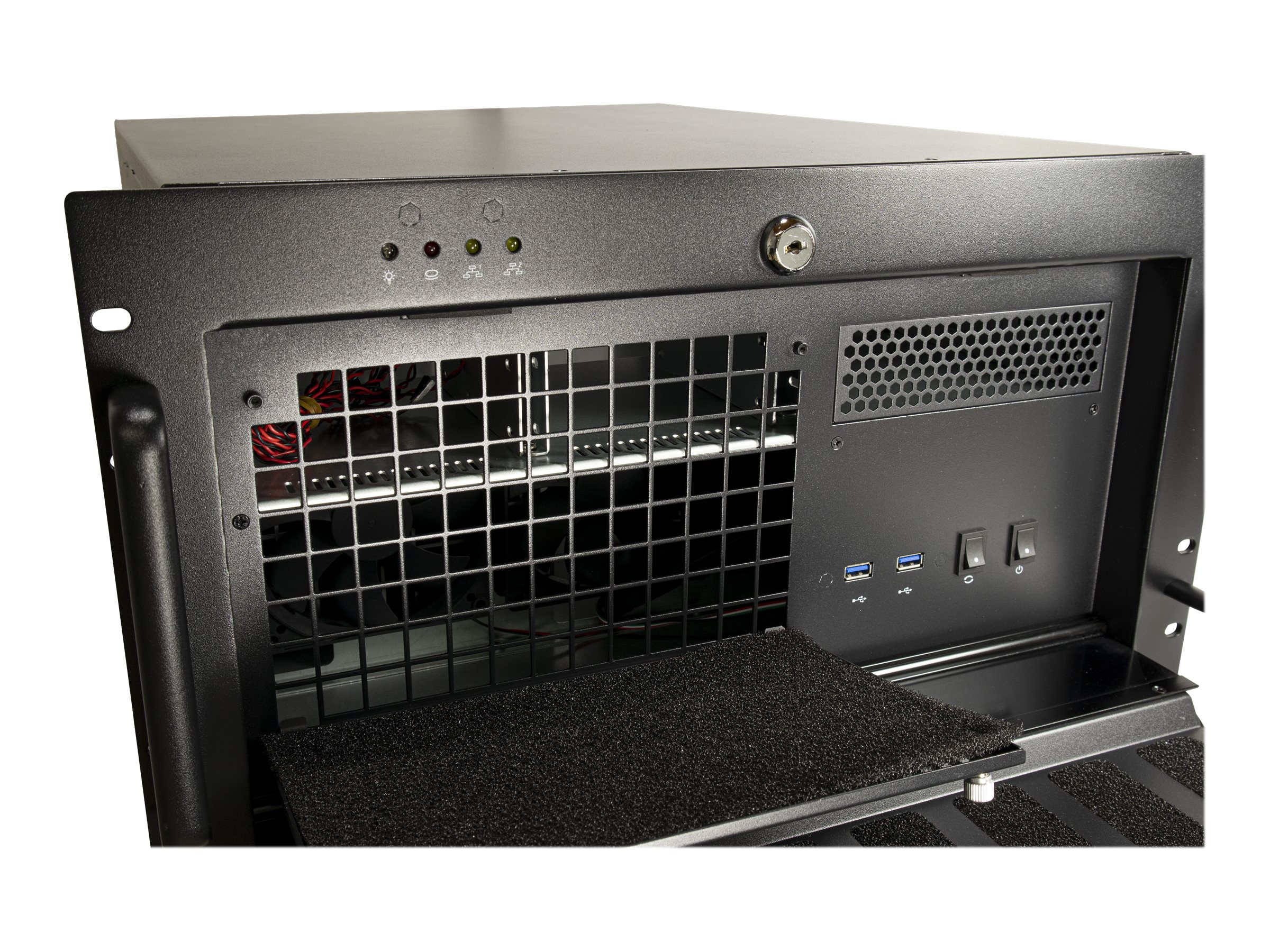

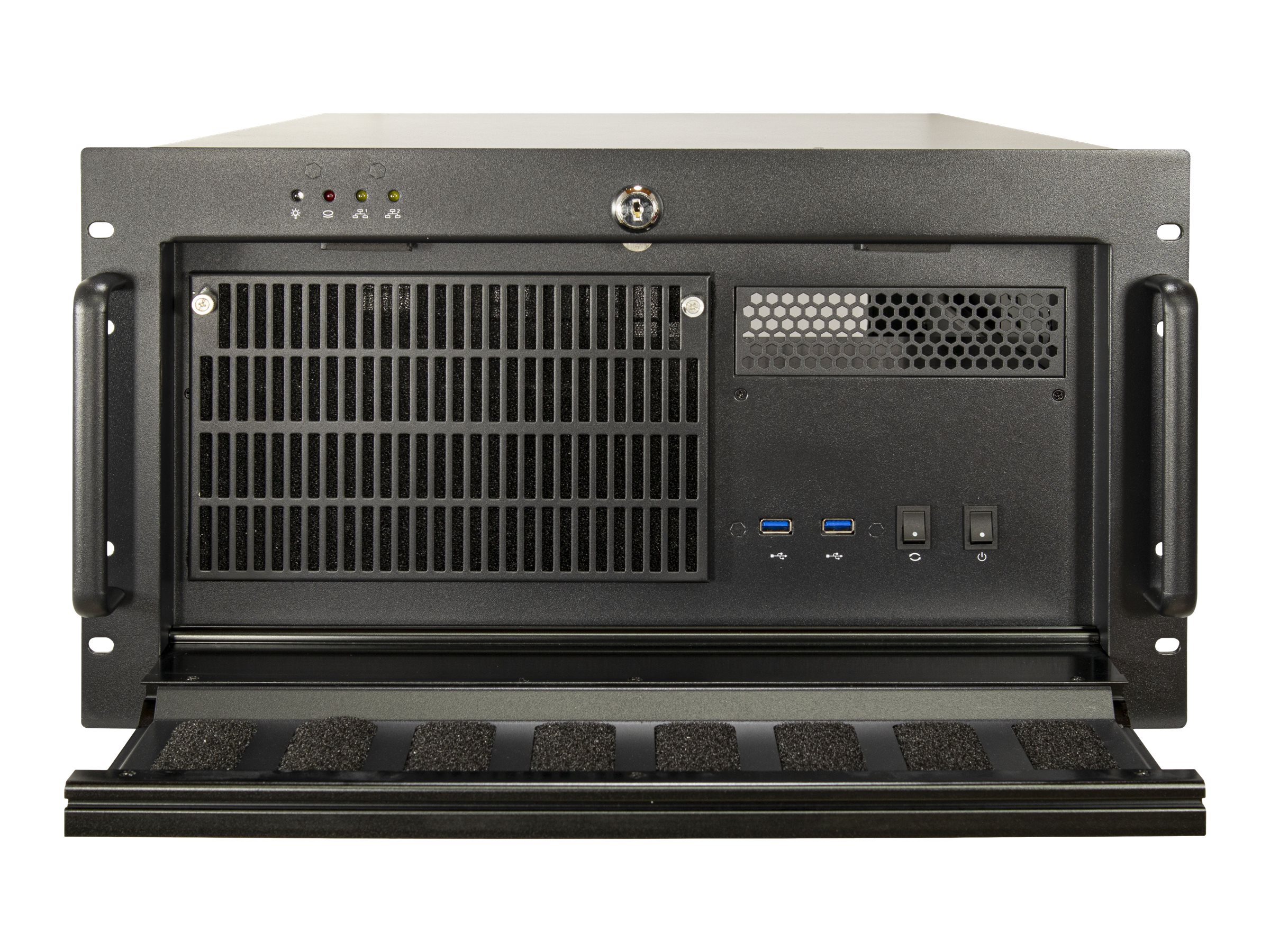

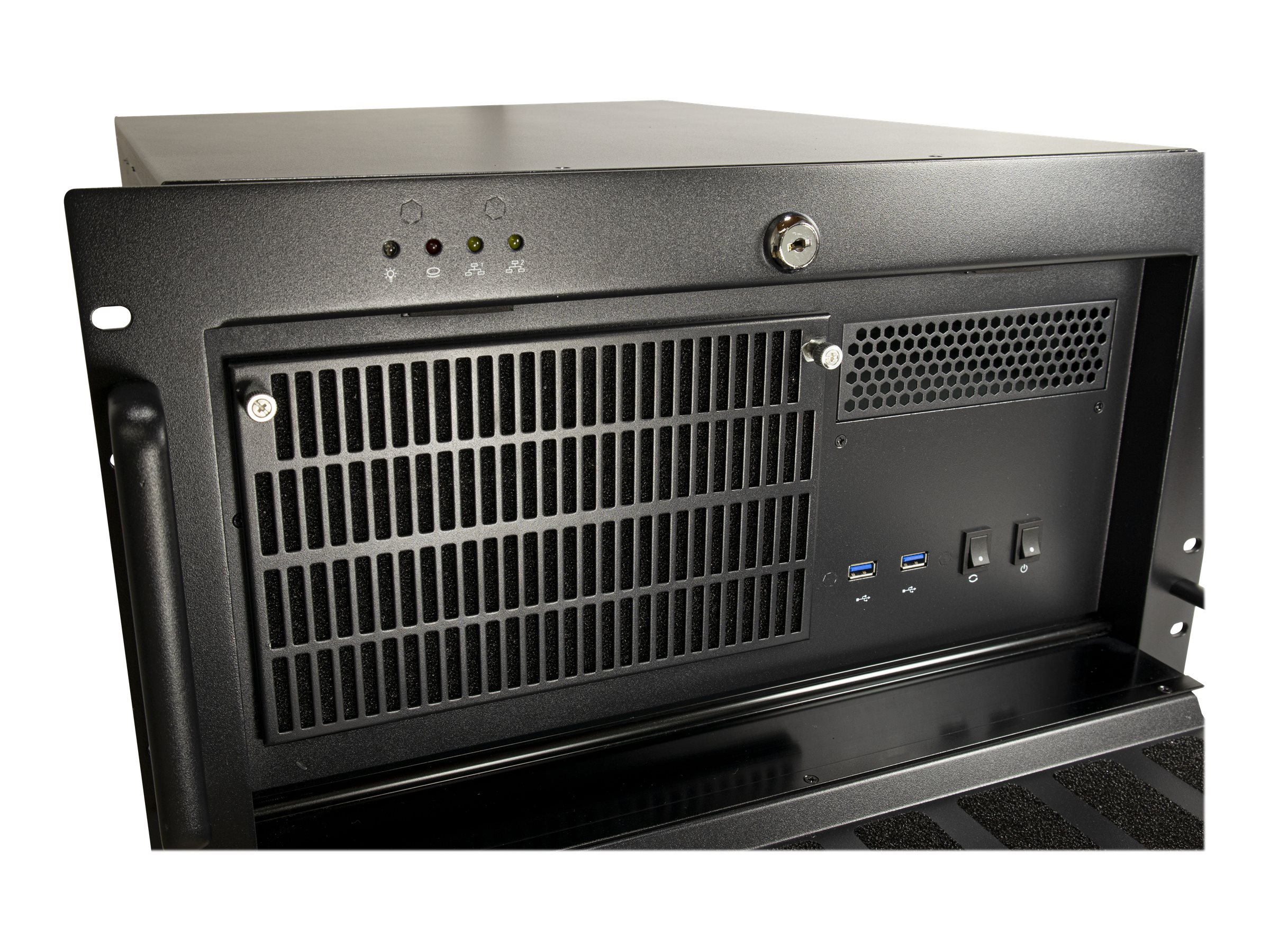

| Egenskaber, systemkabinet | Front støvfilter, låsbar fordør, nulstillingsknap, strømknap, 2 x LAN LED |
| Strømenhed | Ingen strømforsyning (ATX) |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 48.2 cm x 60 cm x 28.5 cm |
| Vægt | 20.14 kg |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Cooling System | Internal: 120 mm fan x 3 | Rear: 80 mm fan mount x 2 |
| CPU Cooler Max Height | 135 mm |
| Form Factor | Rack-mountable |
| Front Accessible Bays Qty | 1 |

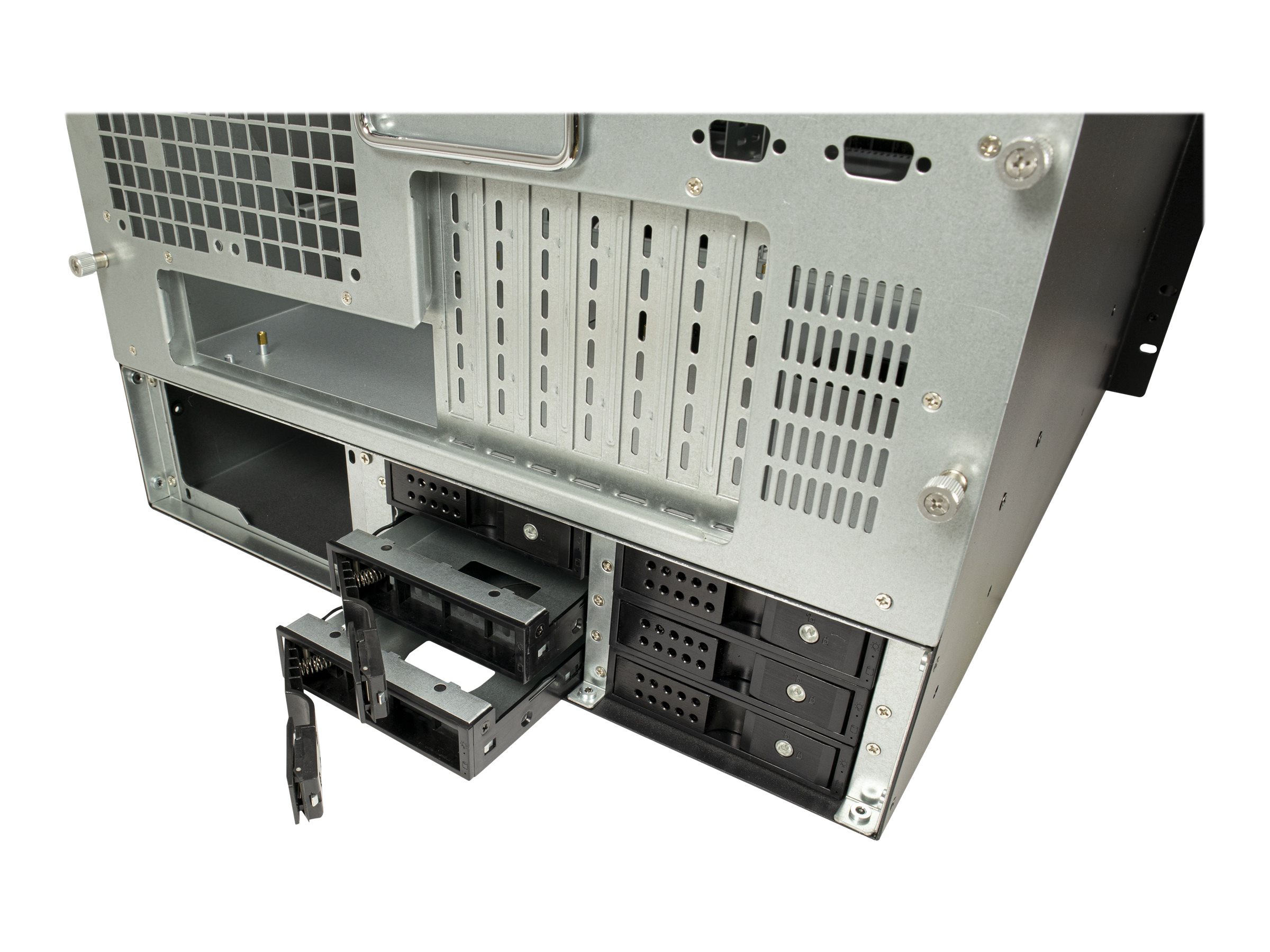

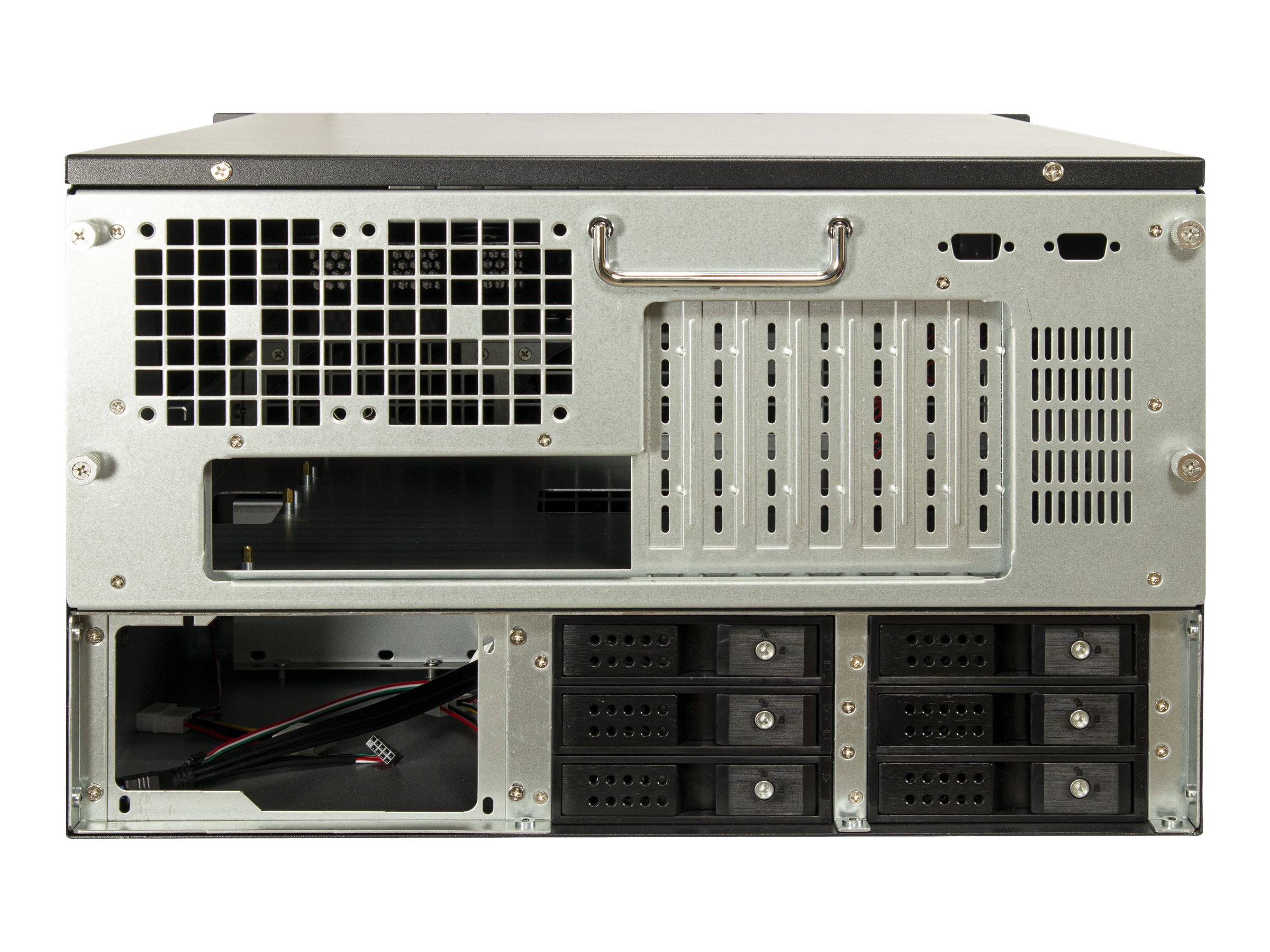

| Hot-Swap Bays Qty | 8 |
| Internal Bays Qty | 16 |
| Max Mainboard Size | Extended ATX |
| Max Supported Dimensions | 30.5 cm x 33 cm |
| Product Material | 1.0-1.2 mm steel |
| Server Swappable Drive Interface | SATA |
| Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX |
| System Cabinet Features | Front dust filter, lockable front door, reset button, power button, 2 x LAN LED |
| Video Card Max Length | 330 mm |
| Expansion / Connectivity | |

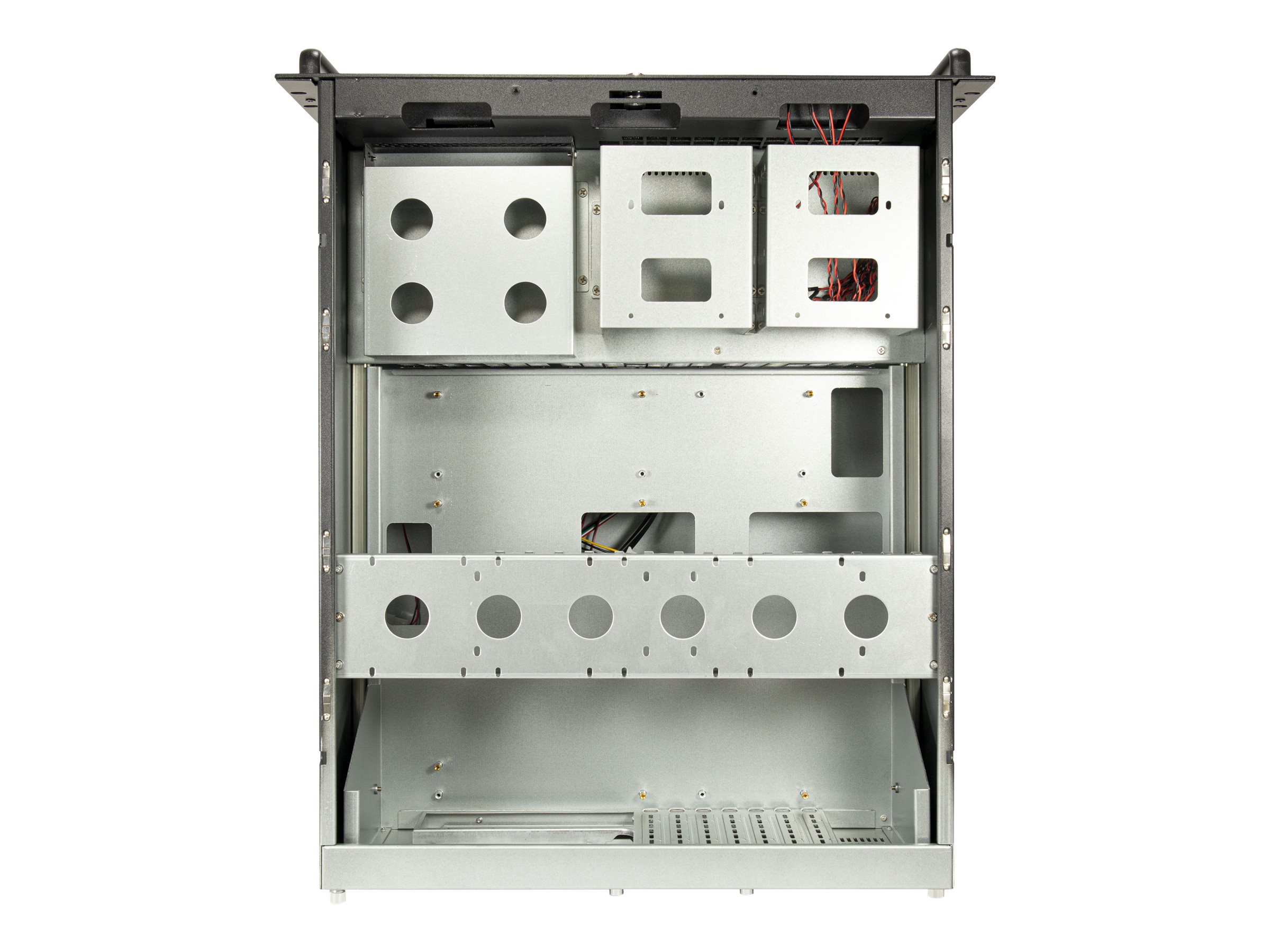

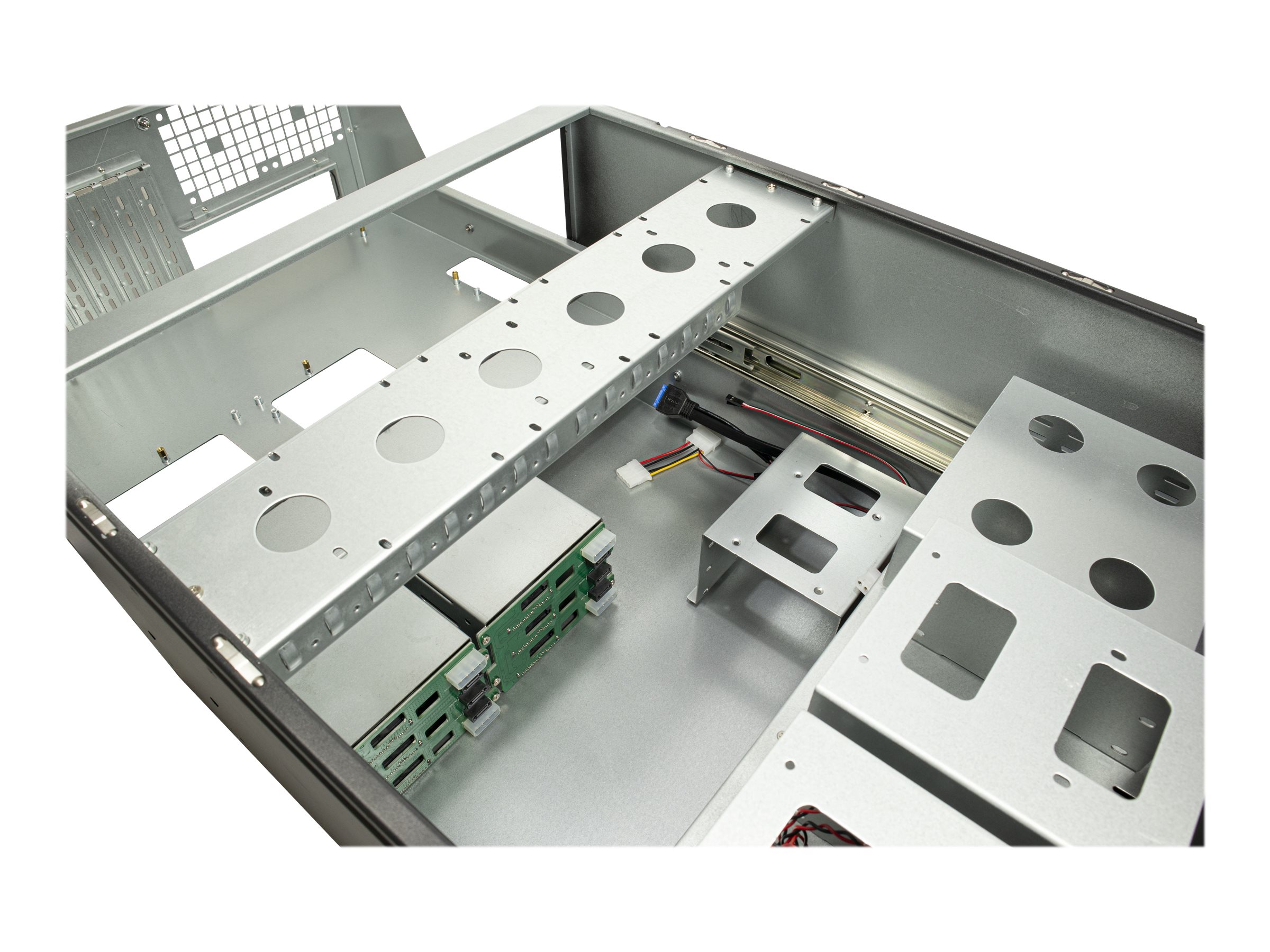

| Expansion Bays | 9 (total) / 9 (free) x internal - 3.5" | 7 (total) / 7 (free) x internal - 2.5" | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 2 x USB 3.0 |
| Miscellaneous | |

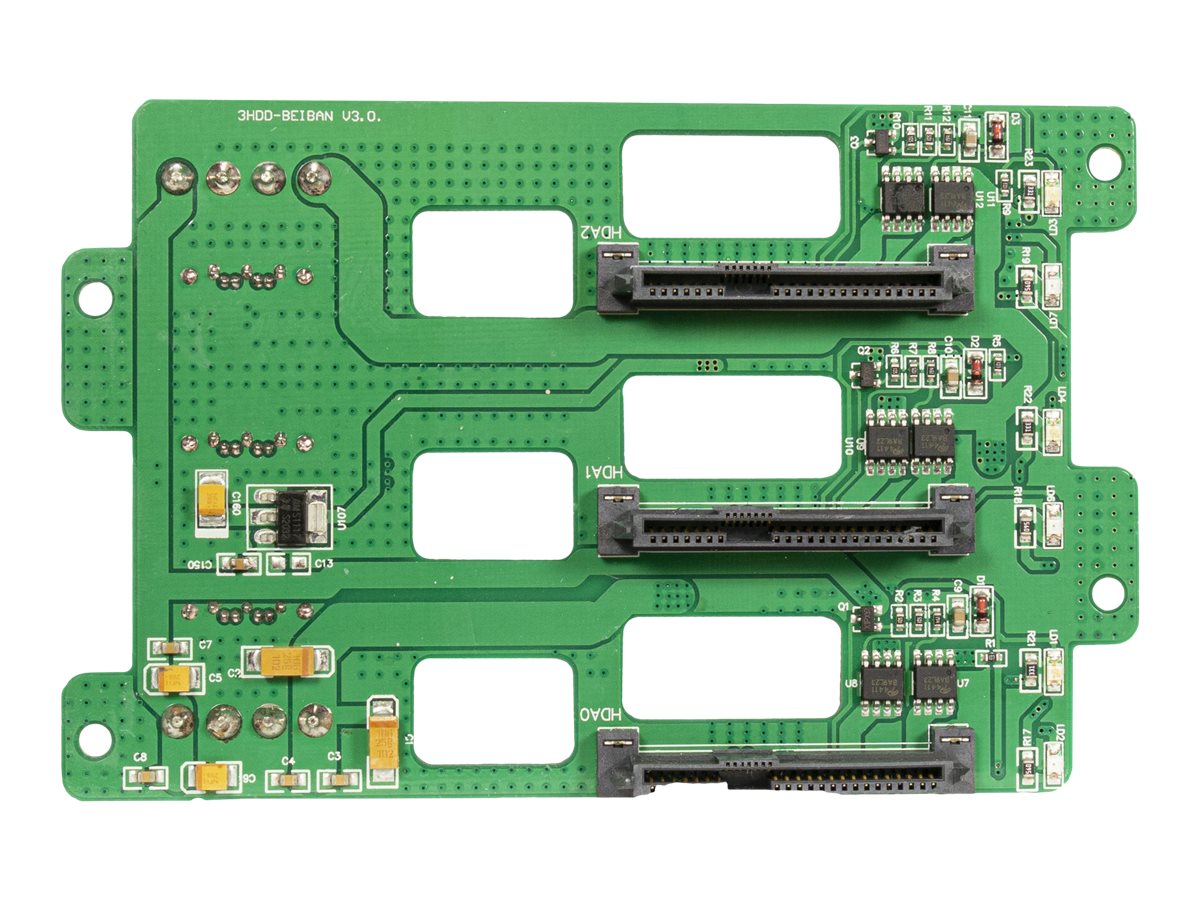

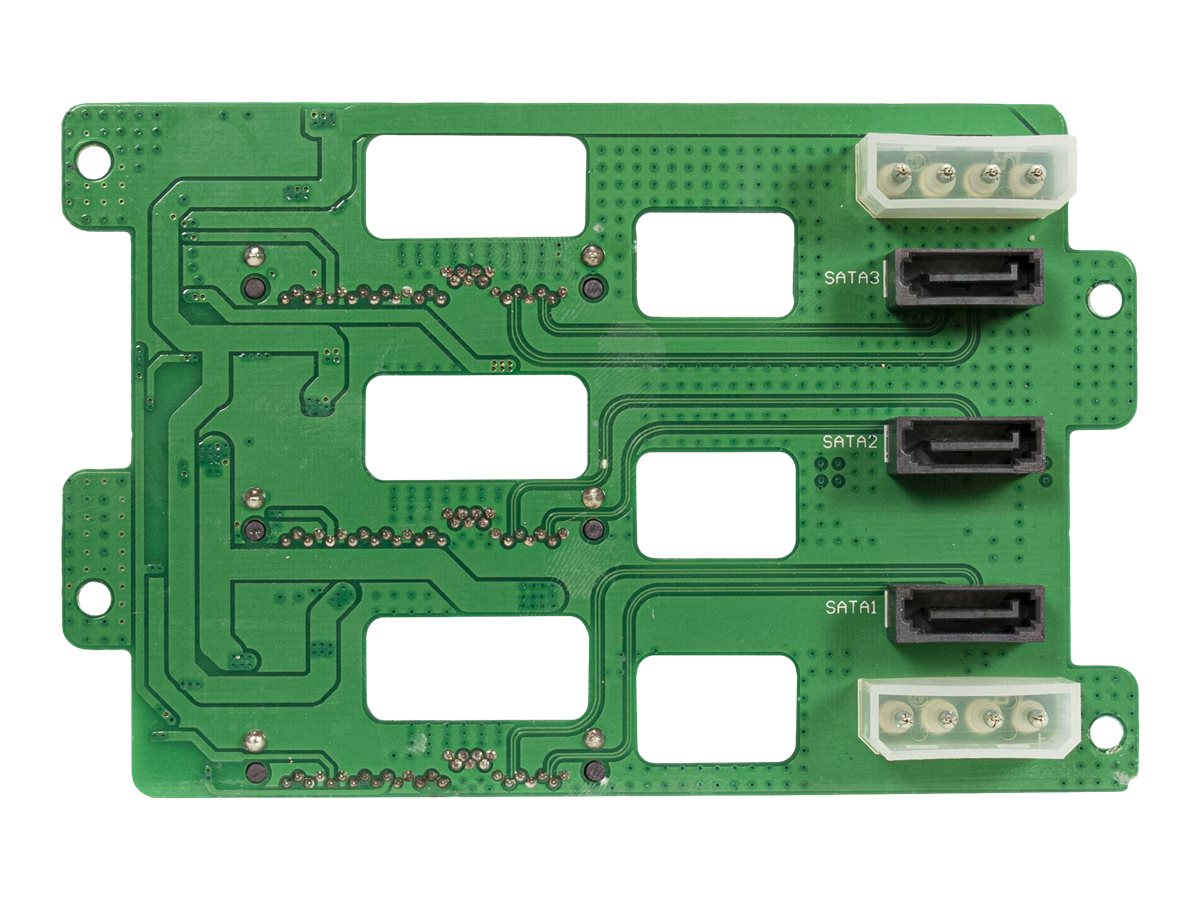

| Included Accessories | SATA backplane, screws, power supply mounting bracket, 7 slot brackets |
| Power | |
| Power Device | No power supply |
| Power Redundancy | Optional |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Depth | 60 cm |
| Height | 28.5 cm |
| Weight | 20.14 kg |
| Width | 48.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 70.5 cm |
| Shipping Height | 37.5 cm |
| Shipping Weight | 23.76 kg |
| Shipping Width | 57.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
