Intellinet IPE-OD2G60 2-Port Outdoor Vandalproof Ultra Extender Netværk/strømforlænger
Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing - Netværk/strømforlænger - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - 2 porte - op til 100 m
1 000,00DKK800,00DKK excl. VAT
-
Product no 996531129
Model 561648
Brand Intellinet
EAN 0766623561648
Weight 0.35 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Intellinet 2-Port Outdoor Vandalproof Gigabit PoE++ Extender, Two 30 W Ports, Extends PoE up to 100 m (328 ft.), 60 W Power Budget, IEEE 802.3bt (4PPoE) Compliant, IP67 Waterproof, IK10-rated, Metal Housing - netværk/strømforlænger - 10Mb LAN, 100Mb LAN, 1GbE |
| Enhedstype | Netværk/strømforlænger |
| Antal porte | 2 |
| Model | Ekstern |
| Kabeltype | 10Base-T, 100Base-TX, 1000Base-T |
| Dataoverførselshastighed | 1 Gbps |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Maks. overføringsafstand | 100 m |
| Power Over Ethernet (PoE) | UPOE / 4PPoE / PoE+ |
| Dimensioner (B x D x H) | 15 cm x 7.3 cm x 4.4 cm |
| Vægt | 353 g |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Network/power extender |
| Form Factor | External |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Flow control, store and forward, full duplex mode, fanless, 256KB packet buffer, metal housing, outdoor enclosure, 60 W total power budget |
| MAC Address Table Size | 2048 entries |
| Max Transfer Distance | 100 m |
| Ports Qty | 2 |
| Status Indicators | PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE output) - RJ-45 female - 30 W | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (input) - RJ-45 female |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, RoHS, IP67, IK10 |

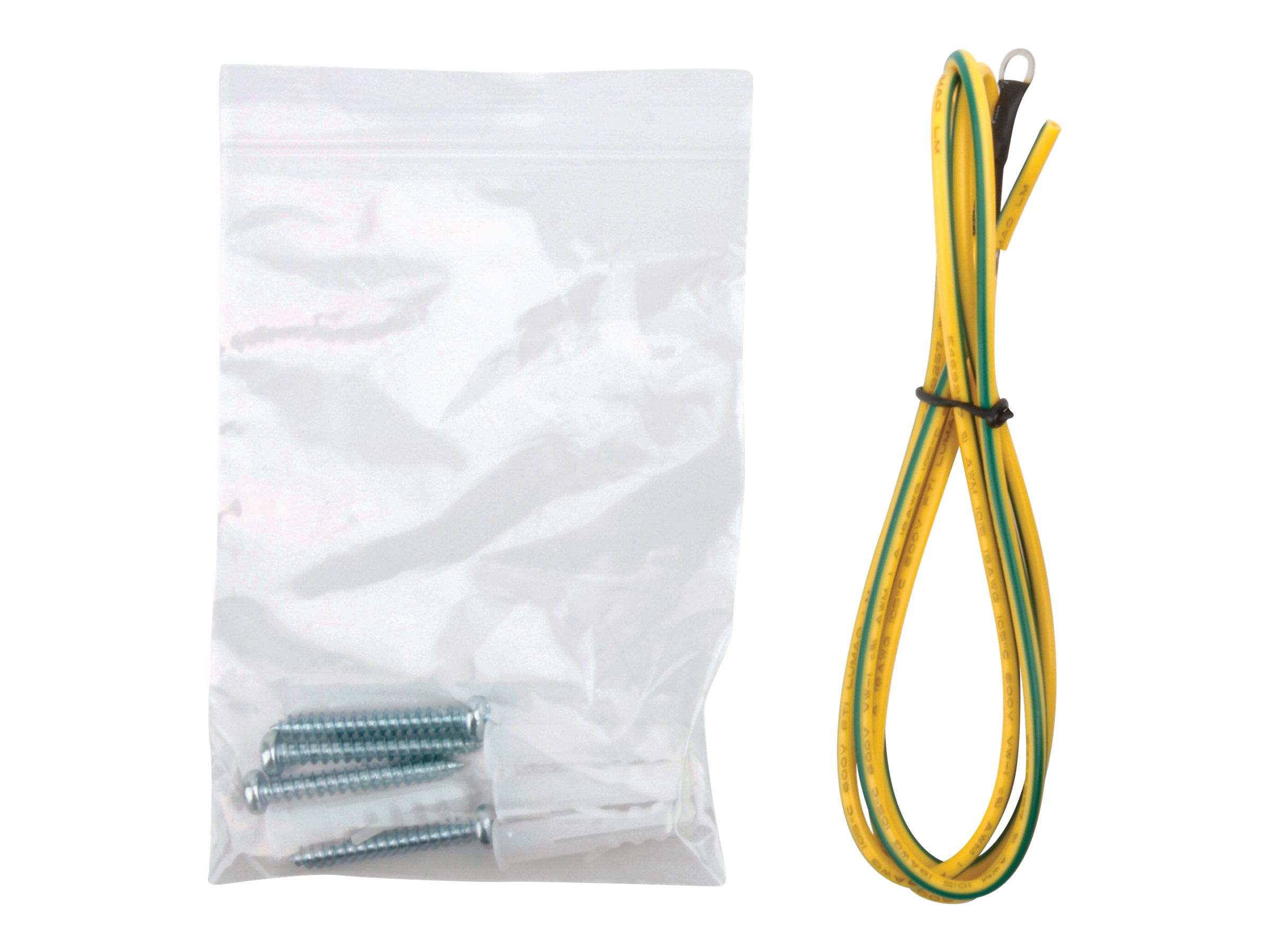

| Included Accessories | Grounding kit, cable gland |
| Power | |
| Power Over Ethernet (PoE) | UPOE / 4PPoE / PoE+ |
| Dimensions & Weight | |
| Depth | 7.3 cm |
| Height | 4.4 cm |
| Weight | 353 g |
| Width | 15 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
