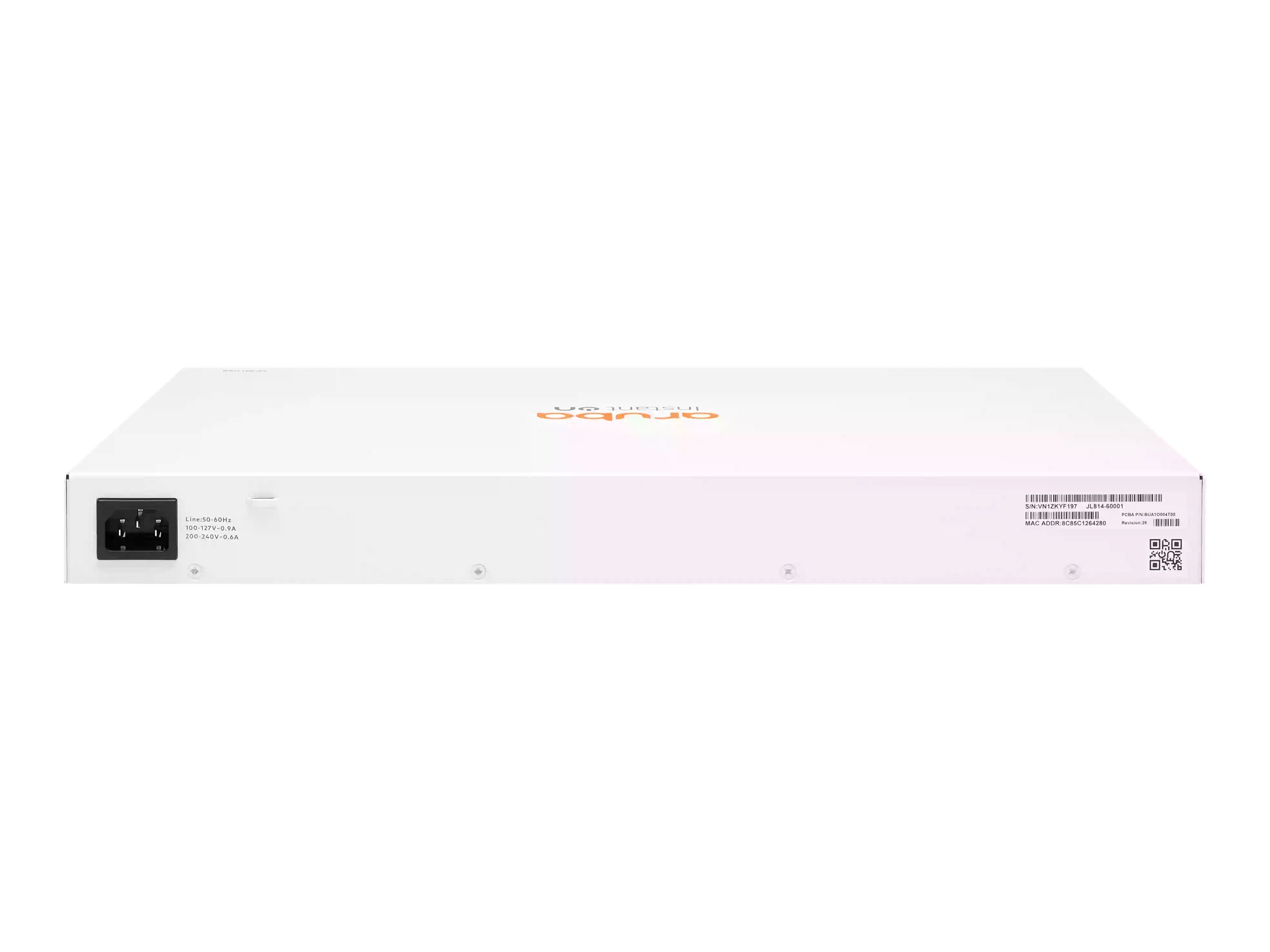

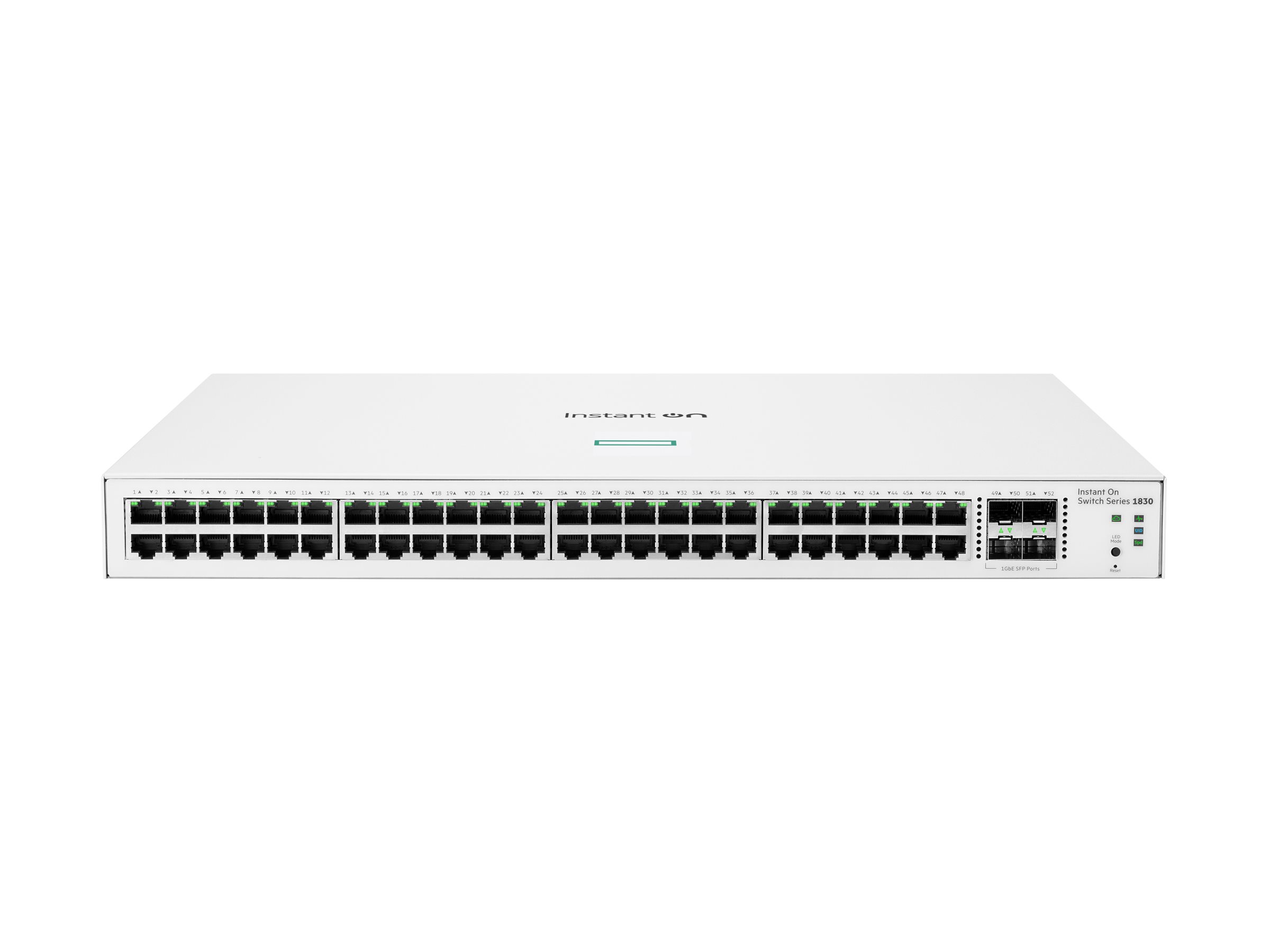

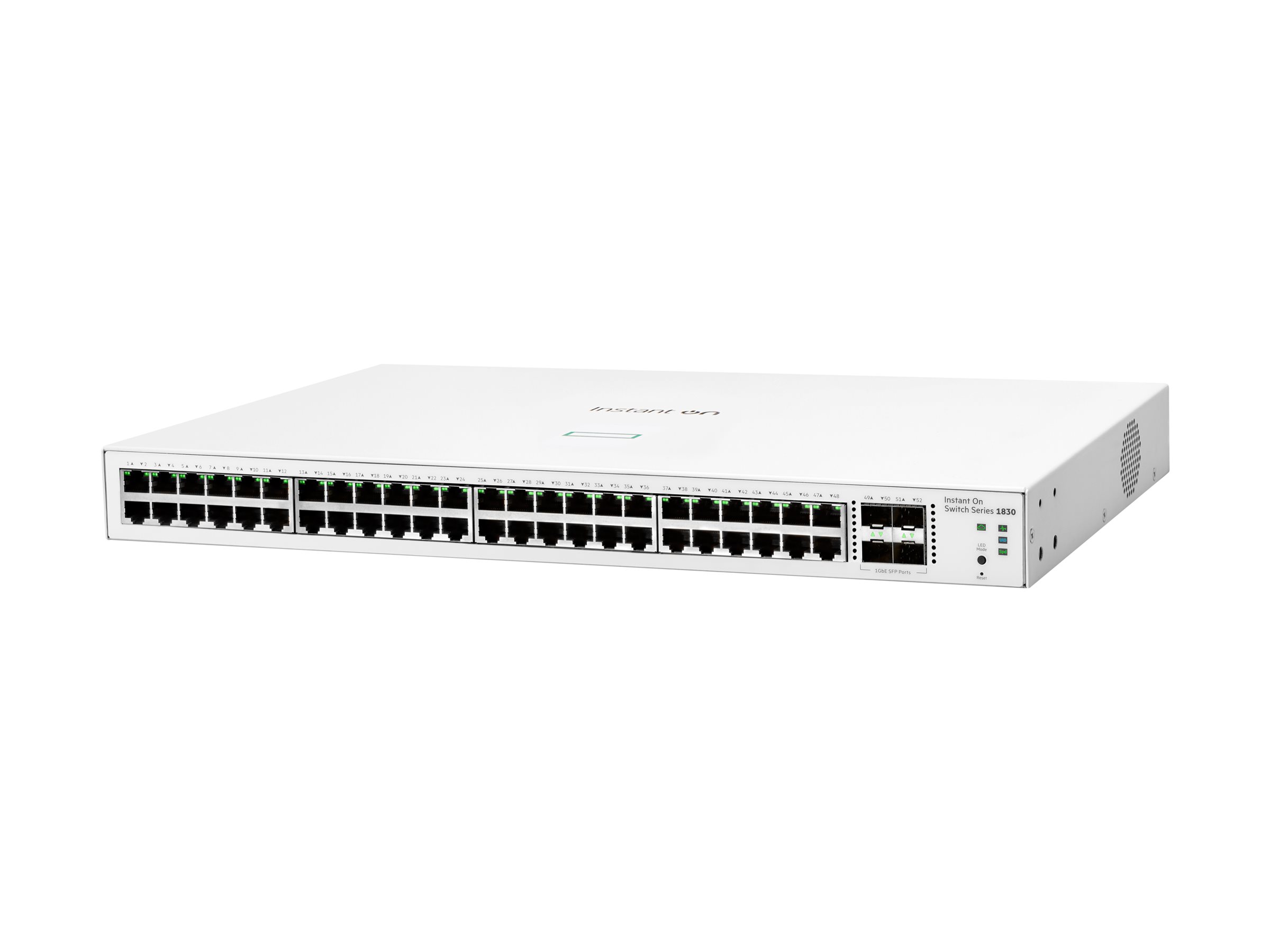

HPE Aruba Instant On 1830 48G 4SFP Switch 48-porte Gigabit
HPE Networking Instant On 1830 48G 4SFP Switch - Switch - smart - 48 x 10/100/1000 + 4 x Gigabit SFP - desktop, monterbar på stativ
2 287,00 DKK
1 829,60 DKK excl. VAT
-
Product no 1000224686
Model JL814A#ABB
Brand Hewlett Packard Ente
EAN 0190017519784
Weight 4.81 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Networking Instant On 1830 48G 4SFP Switch - switch - 48 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 48 porte - smart |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Præstation | Latens (100 Mbps): 5.2 µs<br>Latens (1 Gbps): 2.8 µs<br>Kapacitet: 77.37 Mpps<br>Omkoblingskapacitet: 104 Gbps |
| MAC adresse table størrelse | 16.000 indlæg |
| Jumborammesupport | 9216 byte |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Egenskaber | Datatransport, auto-sensing per device, auto-negotiation, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, portspejling, firmware kan opgraderes, SNTP-understøttet, til vægmontering, STP support, resultat register, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP klient, CoS, sky-administreret, 1,5 MB pakkebuffer, SCP, Link Aggregation, dobbelt billedsupport, DoS protection, EEE, BPDU Filter, løkkebeskyttelse, Global Storm Control, Port Scheduling |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.3 cm x 25.3 cm x 4.39 cm |
| Vægt | 3.54 kg |
| Lokalisering | Engelsk / Europa |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Device Type | Switch - 48 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Qu |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16000 entries |
| Performance | Latency (100 Mbps): 5.2 µs | Latency (1 Gbps): 2.8 µs | Throughput: 77.37 Mpps | Switching capacity: 104 Gbps |
| Ports | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Processor | 1 x ARM: 800 MHz |
| RAM | 512 MB SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Routing Protocol | IGMPv2, IGMP |
| Status Indicators | Port status, port duplex mode, link/activity, speed |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 | 4 x Gigabit LAN SFP |
| Power | |
| Power Consumption Operational | 40.2 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4- |
| Localization | English / Europe |
| MTBF | 144.4 years |
| Dimensions & Weight | |
| Depth | 25.3 cm |
| Height | 4.39 cm |
| Weight | 3.54 kg |
| Width | 44.3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime | Technical support - live chat - lifetime | Technical support - phone consulting - 90 days from date of purchase |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
HPE Networking Instant On Switch 48p Gigabit 4p SFP 1830
HPE Networking Instant On Switch 1830 series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.
Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
Option to manage your switches through local web GUI.
Cost-effective PoE support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.
Gigabit Connectivity for Small Businesses
- HPE Networking Instant On Switch 1830 is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Class 4 PoE models.
- Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
- With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
- 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
Simplify Network Deployment and Management
- The HPE Networking Instant On Switch 1830 series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The switches can be deployed using two management modes - HPE Networking Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.
Keep Your Business Protected with Integrated Security Features
- The HPE Networking Instant On Switch 1830 series is enhanced with security features such as VLANs, automatic Denial-of-service protection, Global Storm Control, and TPM (Trusted Platform module) based security to guard your network from unwanted or unauthorized access.
- Global Storm Control protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic.
- Includes a Trusted Platform Module (TPM) for protected hardware-based generation and storage of cryptographic keys used for connection to the HPE Networking Instant On cloud portal.
Better Energy Efficient Features for Reducing Environmental Footprint
- The HPE Networking Instant On Switch 1830 series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
- Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
- PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 48 RJ-45 10/100/1000 ports, 4 SFP 1GbE ports |
| Memory and processor | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash packet buffer: 1.5 MB |
| Throughput | 77.37 Mpps |
| Switching capacity | 104 Gbps |
| PoE capability | - |
| Management features | HPE Networking Instant On Cloud Web browser SNMP Manager |
| Input voltage | 100 - 240 VAC |
| Power consumption | Maximum: 100-127V: 40.2W 200-220V: 40W Idle: 100-127V: 17.7W 200-220V: 17.7W |
| Product dimensions (metric) | 25.30 x 44.30 x 4.39 cm |
| Weight | 3.54 kg |
