Product no 999218689
Model DS-2CD2783G2-IZS(2.8
Brand Hikvision Digital Te
EAN 6941264095262
Weight 0.855 kg

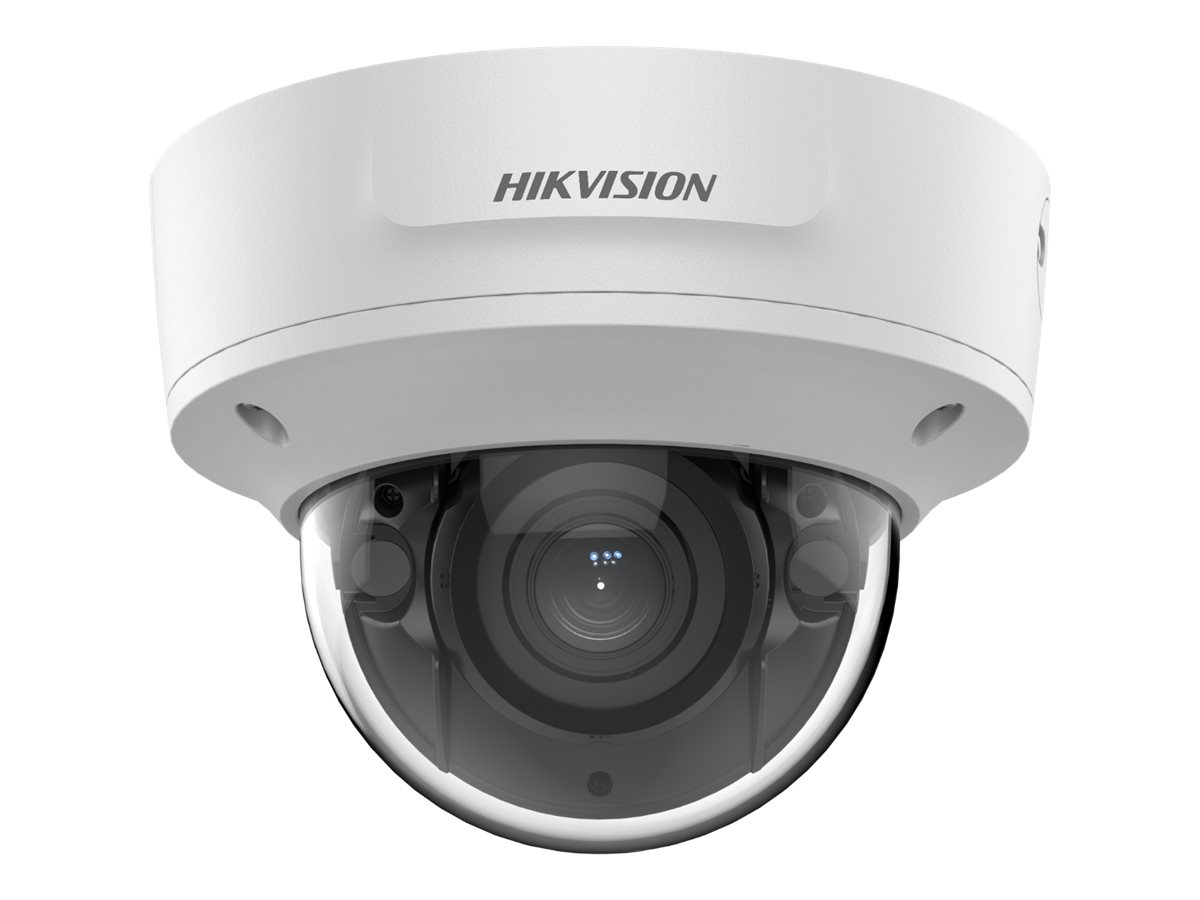

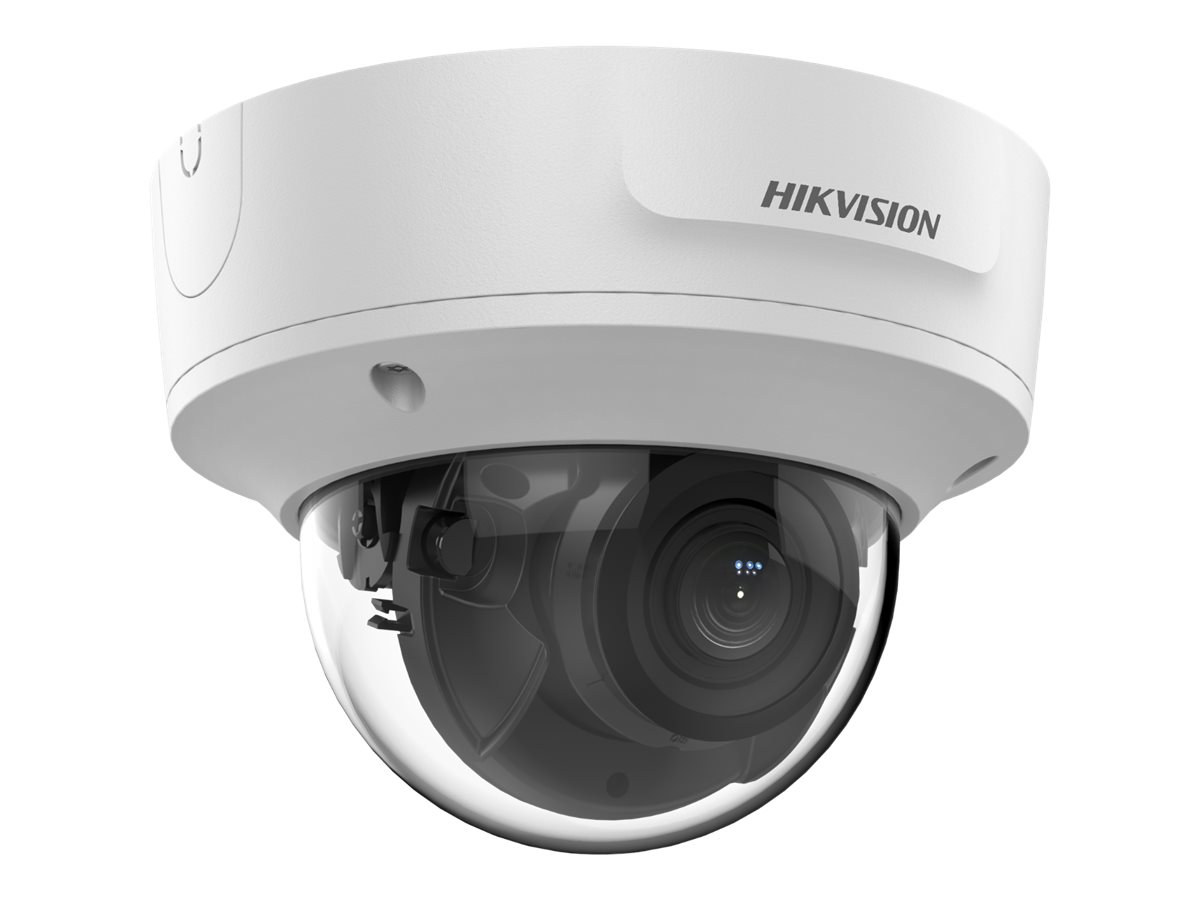

Produktbeskrivelse | Hikvision Pro Series with AcuSense DS-2CD2783G2-IZS - netværksovervågningskamera - kuppel |
Enhedstype | Netværksovervågningskamera - fast - kuppel - støvsikker / vandtæt / beskyttet mod vandaler |
Audio | Ja |
Dimensioner (B x D x H) | 15.33 cm x 15.33 cm x 11.16 cm |
Vægt | 855 g |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Optisk zoom | 4.3 x |
Maksimum opløsning | 3840 x 2160 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Video Modes | 4K |
Billedsensortype | PS CMOS - 1/2.8" - 8 MP |
Minimumbelysning | 0.005 lux - farve - F1.6 - AGC on<br>0 lux - IR |
Brændviddekontrol | Motoriseret zoom |
Brændvidde | 2.8 mm - 12 mm |
Objektivmontering | Φ14 montering |
Objektiv Iris | F/1.6 - fast irisblænder |
Poanoreringsvinkel (grad) | 0 til 355 |
Krængningsvinkel (grad) | 0 til 75 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | DC 12 V / PoE klasse 3 |
Egenskaber | Backlight Compensation (BLC), skarphedskontrol, rotering af digitalbillede, hvidbalance, mætningskontrol, lysstyrkekontrol, kontrastkontrol, Wide Dynamic Range (WDR), infrarød skære filter, Privacy Mask Function, NAS-Ready, aktiv pillealarm, nulstillingsknap, kodeordsbeskyttelse, tredobbelt video-stream, Region of Interest (ROI), indtrængningsdetektion, audioundtagelsesdetektion, ONVIF (Profil S) support, ONVIF (Profile G) support, Line Crossing Detection, vandmærke, hjerteslag, anti-flimren, Internet Server Application Programming Interface (ISAPI), IP-adressefiltrering, 3D digital støjreduktion (DNR), opførselsanalyse, miljøstøjfiltrering |
Producentgaranti | 3 års garanti |
Miljømæssige parametre (operativ) | -30 °C - 60 °C; 0 - 95% (ikke-kondenserende) relativ luftfugtighed |
General | |
---|---|
Audio Formats | AAC, PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u |
Audio Support | Yes |
Connectivity Technology | Wired |
Depth | 15.33 cm |
Device Type | Network surveillance camera |
Form Factor | Dome |
Height | 11.16 cm |
Weight | 855 g |
Width | 15.33 cm |
Camera | |
Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
Exposure Range | 1/3 sec - 1/100000 sec |
Features | Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, saturation control, brightness control, contrast control, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, NAS-Ready, active tampering alarm, |
Frame Rate (max) | 30 frames per second |
Infrared Distance | 40 m |
Infrared LEDs | Yes |
Max Digital Video Resolution | 3840 x 2160 |
Minimum Illumination | 0.005 lux - color - F1.6 - AGC on | 0 lux - IR |
Motion Detection | Yes |
Type | Color - Day&Night - fixed - dustproof / waterproof / vandal-proof |
Video Modes | 4K |
Image Sensor | |
Type | 8 MP PS CMOS 1/2.8" |
Lens Construction | |
Diagonal Field of View (degree) | 35 - 131 |
Focal Length | 2.8 mm - 12 mm |
Horizontal Field of View (degree) | 30 - 108 |
Lens Iris | F/1.6 fixed iris |
Optical Zoom | 4.3 x |
Type | Φ14 mount - motorized zoom |
Vertical Field of View (degree) | 17 - 56 |
Panning | |
Range (degree) | 0 to 355 |
Tilting | |
Range (degree) | 0 to 75 |
Interfaces | |
Alarm Inputs Qty | 1 |
Alarm Outputs Qty | 1 |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv6, Bonjour, RTCP, PPPoE, IGMP, QOS |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 | Audio line in - terminal block | Audio line out - terminal block |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Compliant Standards | IP67, IK10 |
Power | |
Power Device | 12.5 Watt |
Power Requirements | DC 12 V / PoE Class 3 |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Dimensions & Weight (Shipping) | |
Shipping Depth | 17.4 cm |
Shipping Height | 17.3 cm |
Shipping Weight | 1.469 kg |
Shipping Width | 24.4 cm |
Environmental Parameters | |
Max Operating Temperature | 60 °C |
Min Operating Temperature | -30 °C |
Relative Humidity (operating) | 0 - 95% (non-condensing) |
