Product no 999680652
Model DS-2CD2183G2-IU(2.8m
Brand Hikvision Digital Te
EAN 6941264095453
Weight 0.75 kg

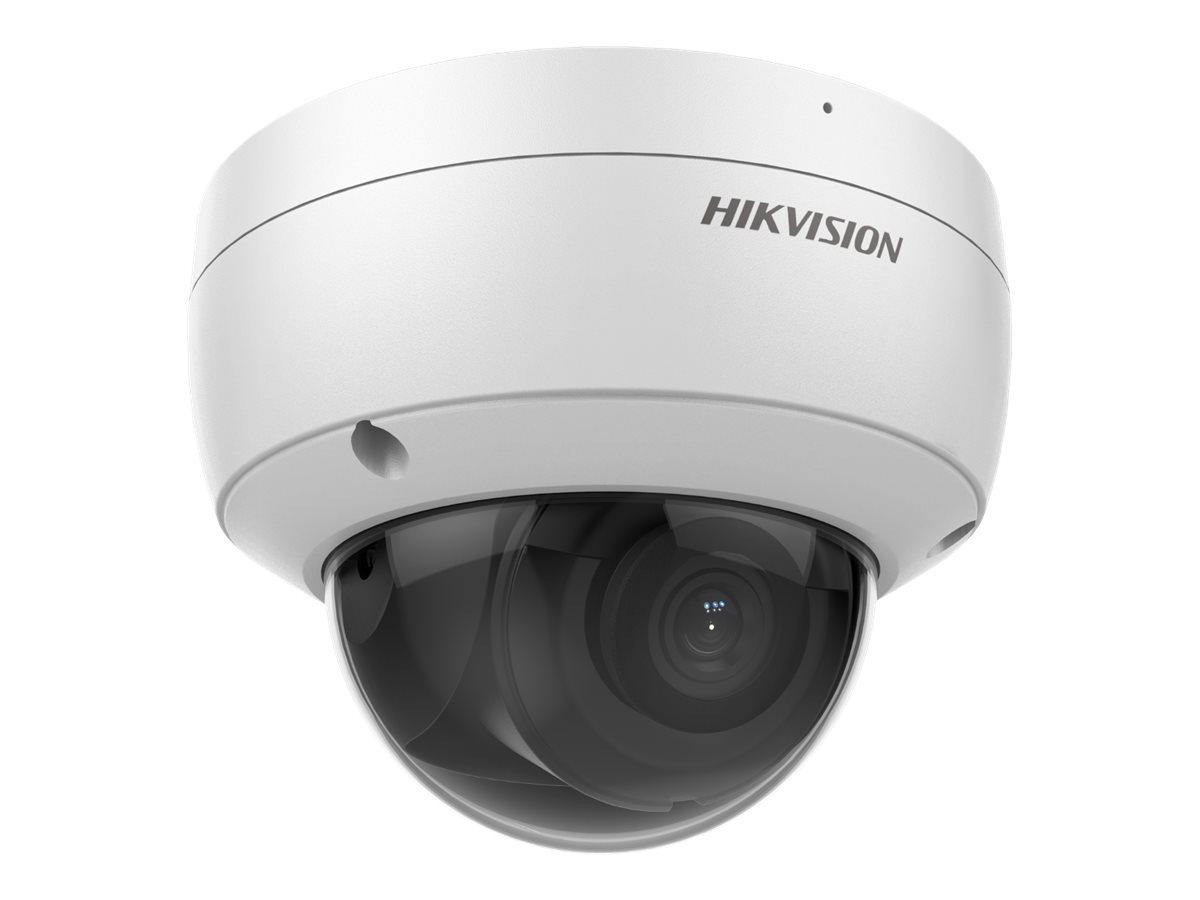

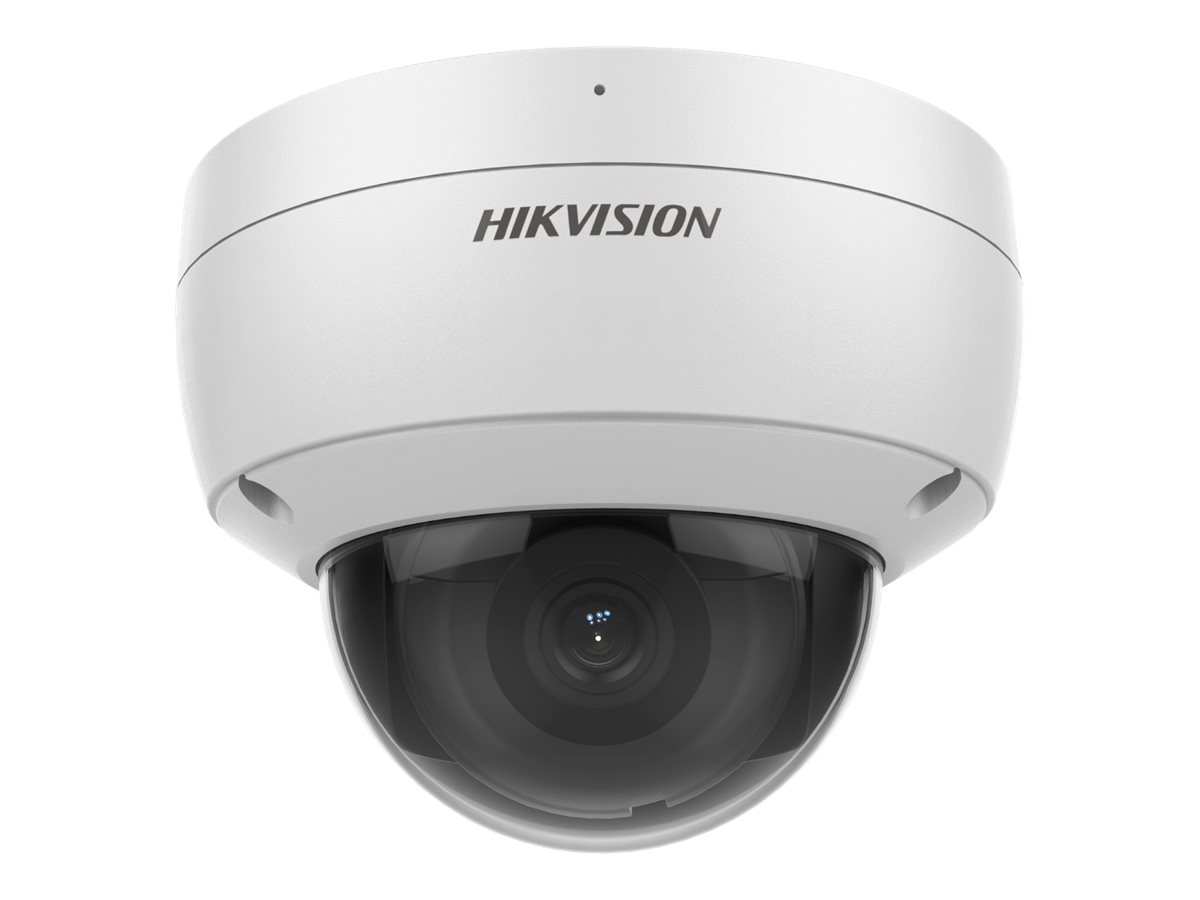

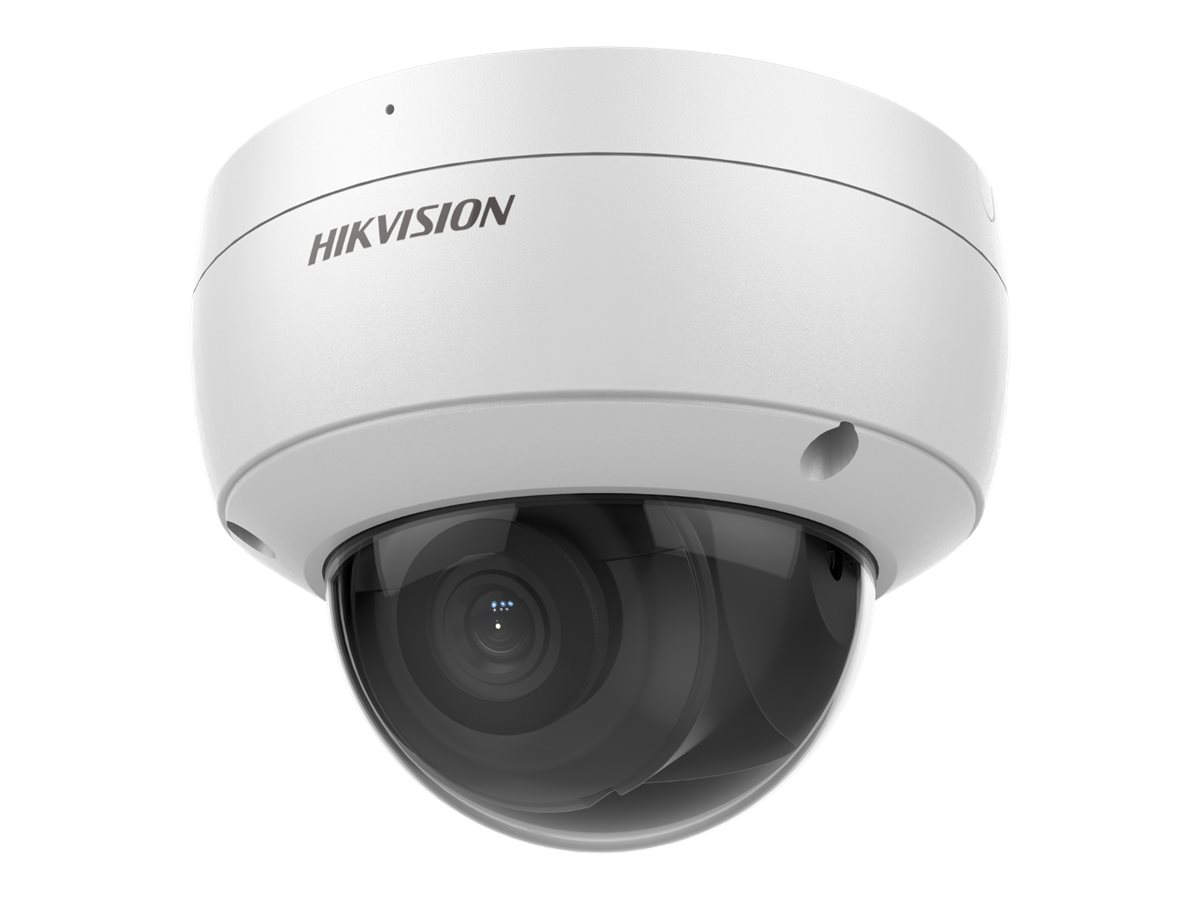

Produktbeskrivelse | Hikvision Pro Series (All) DS-2CD2183G2-IU - netværksovervågningskamera - kuppel |
Enhedstype | Netværksovervågningskamera - fast - kuppel - støvsikker / vandtæt / beskyttet mod vandaler |
Audio | Ja: indbygget mikrofon |
Dimensioner (B x D x H) | 12.14 cm x 12.14 cm x 9.22 cm |
Vægt | 550 g |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Maksimum opløsning | 3840 x 2160 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Billedsensortype | PS CMOS - 1/2.8" - 8 MP |
Minimumbelysning | 0.005 lux - farve - F1.6 - AGC on<br>0 lux - S/H - infrarøde LEDer på |
Brændviddekontrol | Fast brændvidde |
Brændvidde | 2.8 mm |
Objektivmontering | M12 montering |
Objektiv Iris | F/1.6 - fast irisblænder |
Poanoreringsvinkel (grad) | 0 til 355 |
Krængningsvinkel (grad) | 0 til 75 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | DC 12 V / PoE klasse 3 |
Egenskaber | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Highlight Compensation (HLC), Variable Bitrate (VBR), Constant Bitrate (CBR), indtrængningsdetektion, 3D Digital Noise Reduction Technology, Line Crossing Detection, DORI-dækning, Vehicle Detection, menneskedetektion, Face Capture, AcuSense-teknologi |
Producentgaranti | 3 års garanti |
Miljømæssige parametre (operativ) | -30 °C - 60 °C; 95 % (ikke-kondenserende) relativ luftfugtighed |
General | |
---|---|
Audio Formats | AAC, PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u |
Audio Support | Yes: built-in microphone |
Connectivity Technology | Wired |
Depth | 12.14 cm |
Device Type | Network surveillance camera |
Form Factor | Dome |
Height | 9.22 cm |
Weight | 550 g |
Width | 12.14 cm |
Camera | |
Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
Exposure Range | 1/3 sec - 1/100000 sec |
Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Highlight Compensation (HLC), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, 3D Digital Noise Reduction Technology, Line Crossing Detection, DORI coverage, Vehicle Detectio |
Infrared Distance | 30 m |
Infrared LEDs | Yes |
Max Digital Video Resolution | 3840 x 2160 |
Minimum Illumination | 0.005 lux - color - F1.6 - AGC on | 0 lux - B&W - infrared LEDs on |
Motion Detection | Yes |
Type | Color - Day&Night - fixed - dustproof / waterproof / vandal-proof |
Video Capture | 3840 x 2160, 50 Hz @ 20 fps | 3200 x 1800, 50 Hz @ 25 fps | 2688 x 1520, 50 Hz @ 25 fps | 1920 x 1080, 50 Hz @ 25 fps | 1280 x 720, 50 Hz @ 25 fps | 3840 x 2160, 60 Hz @ 20 fps | 3200 x 1800, 60 Hz @ 30 fps | 2688 x 1520, 60 Hz @ 30 fps | 1920 x 1080 |
Image Sensor | |
Type | 8 MP PS CMOS 1/2.8" |
Lens Construction | |
Diagonal Field of View (degree) | 128 |
Focal Length | 2.8 mm |
Horizontal Field of View (degree) | 107 |
Lens Iris | F/1.6 fixed iris |
Type | M12 mount - fixed focal |
Vertical Field of View (degree) | 57 |
Panning | |
Range (degree) | 0 to 355 |
Tilting | |
Range (degree) | 0 to 75 |
Interfaces | |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, PPPoE, IGMP, SSL, QOS |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Compliant Standards | IP67, IK10 |
Power | |
Power Requirements | DC 12 V / PoE Class 3 |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Dimensions & Weight (Shipping) | |
Shipping Depth | 15 cm |
Shipping Height | 14.1 cm |
Shipping Weight | 800 g |
Shipping Width | 15 cm |
Environmental Parameters | |
Max Operating Temperature | 60 °C |
Min Operating Temperature | -30 °C |
Relative Humidity (operating) | 95% (non-condensing) |
