Grandstream UCM6302A IP-PBX
Grandstream UCM6302A - IP-PBX - 2 FXO-porte - 2 FXS-porte - 3 x 10/100/1000
2 488,00DKK1 990,40DKK excl. VAT
-
Product no 998994808
Model UCM6302A
Brand Grandstream Networks
EAN 6947273703556
Weight 0.725 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Grandstream UCM6302A IP-PBX |
| Produkttype | IP-PBX |
| Antal FXO-porte | 2 |
| Antal FXS-porte | 2 |
| Netværksporte | 3 x 10/100/1000 |
| Opkaldsservice | Opkaldsvideresendelse, opkaldstransfer, opkald venter, kalder-ID, må ikke forstyrres, voidemail, Call Recording, Blacklist, Call Back, Call Routing, Follow me, Call Parking, Whitelist, Music on Hold |
| VoIP-protokoller | SIP, SRTP |
| Kapacitet | Samtidige opkald: 75<br>Brugere: 500<br>Maksimale samtidge SRTP-opkald: 75 |
| Power Over Ethernet (PoE) | PoE+ |
| Nødvendig spænding | 50/60 Hz |
| Dimensioner | 27 cm x 17.5 cm x 3.6 cm |
| Vægt | 725 g |
| General | |
|---|---|
| Call Services | Call forwarding, call transfer, call waiting, caller ID, do not disturb, voice mail, Call Recording, Blacklist, Call Back, Call Routing, Follow me, Call Parking, Whitelist, Music on Hold |
| Capacity | Concurrent calls: 75 | Users: 500 | Maximum concurrent SRTP calls: 75 |

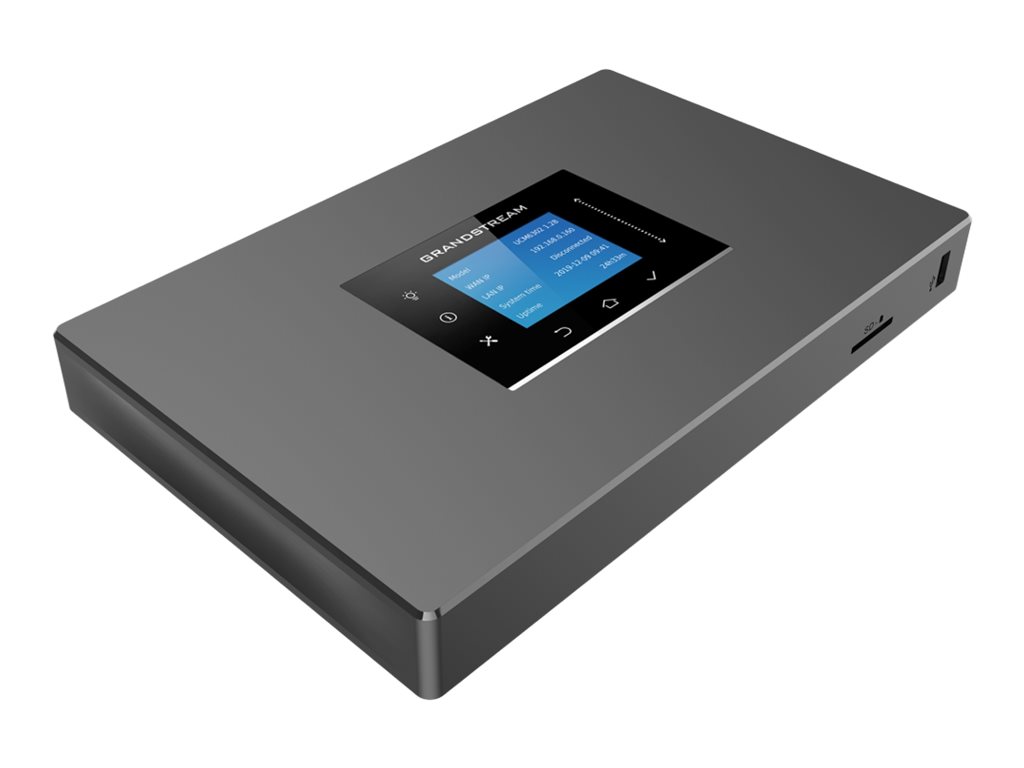

| Features | QoS, LDAP, wall-mountable, built-in SD card reader, NAT support, LCD display |
| FXO Ports Qty | 2 |
| FXS Ports Qty | 2 |
| Network Ports | 3 x 10/100/1000 |
| Product Type | IP-PBX |
| Networking | |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, DHCP, DNS, DDNS, RTP, RTCP, HTTP, HTTPs, IPv6 |
| Power Over Ethernet (PoE) | PoE+ |
| IP Telephony | |
| Voice Codecs | G.722, G.723.1, G.711u, G.711a, iLBC, T.38, G.722.1, G.722.1c, Opus, GSM, G.729A/B, G.726-32 |
| VoIP Protocols | SIP, SRTP |
| Expansion & Connectivity | |

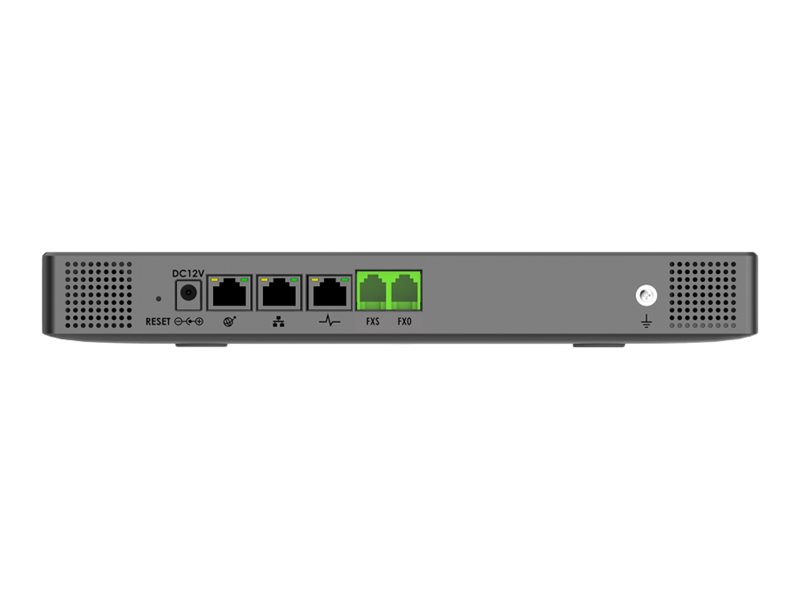

| Interfaces | 2 x FXO | 2 x FXS | 3 x 1000Base-T (PoE+) | USB 3.0 | USB 2.0 |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Type | External power adapter |
| Voltage Required | AC 100-240 V |
| Miscellaneous | |
| Authentication Method | Secure Shell (SSH), LDAP |
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, CS-03, UL 60950-1, FCC CFR47 Part 15 B, TLS, ITU-T K.21, EN 62368-1, EN 55032, UL 62368-1, ES 203 021, EN 55035, SRTP, AS/NZS CISPR 32, AS/NZS 62368.1 |
| Encryption Algorithm | TLS |
| Dimensions & Weight | |
| Depth | 17.5 cm |
| Height | 3.6 cm |
| Weight | 725 g |
| Width | 27 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.221 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
